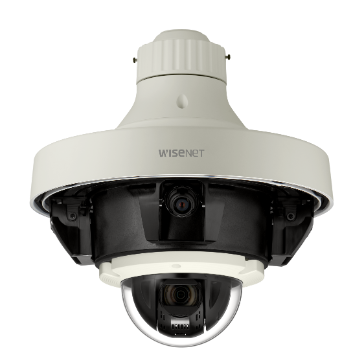

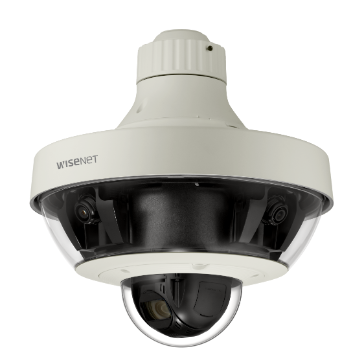

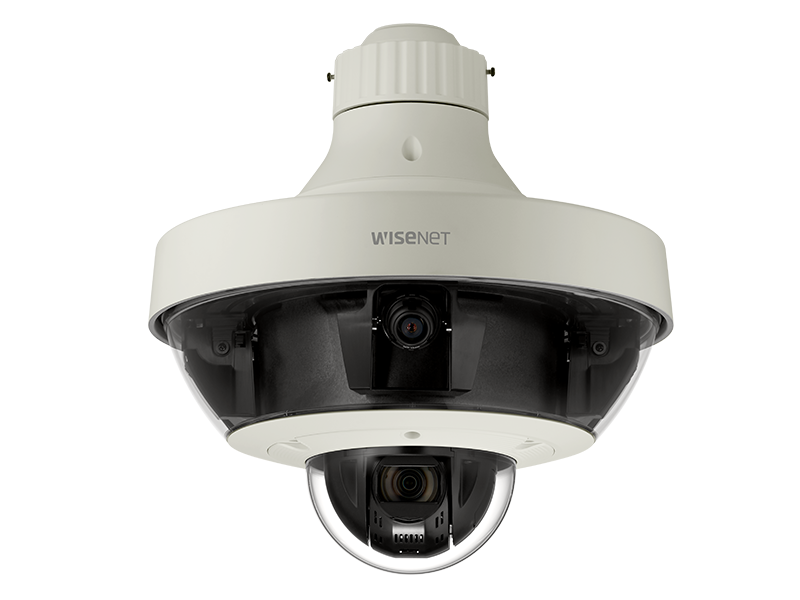

Hanwha - PNM-9320VQP - 5 Channel 4x 2MP / 5MP + 2MP 32x PTZ

Hanwha Vision

Hanwha - PNM-9320VQP - 5 Channel 4x 2MP / 5MP + 2MP 32x PTZ

Name: Hanwha - PNM-9320VQP - 5 Channel 4x 2MP / 5MP + 2MP 32x PTZ
Brand: Hanwha Vision
SKU: PNM-9320VQP
Price: 4598.15 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: PNM-9320VQP

$4,598.15

~~$7,440.00~~

Description
Specifications
Downloads
Reviews

Network vandal outdoor Multi-sensor Multi-Directional camera, (2MP/5MP X 4 sensors sold separately) 8MP ~20MP (2MP @ 60fps or 5MP @30fps) fixed focal lens modules + 2MP 32x optical zoom PTZ, triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR @ 2MP or 120dB @ 5MP, defocus detection, built in analytics, 4x SD card, hallway view, HLC, fog detection, DIS(Gyro Sensor), PoE+, IP66/IK10, -35°C ~ +55°C (-31°F ~ +131°F)

Features:

Multi-directional camera

Exchangeable 4ea x 2MP / 5MP lens modules
8MP to 20MP resolution depend on the combination of lens modules
WDR 150dB with 2MP lens module, 120dB with 5MP lens module
2.4mm, 2.8mm, 3.6mm, 6mm, 12mm fixed lens (2MP module)
3.7mm, 4.6mm, 7mm fixed lens (5MP module)

PTZ camera

Maximum 2MP (1920 x 1080) resolution
4.44~142.6mm (Optical 32x) lens
WDR 150dB, Day & Night (ICR)

Common

Maximum 60fps@2MP, Maximum 30fps@5MP (H.265 / H.264)
H.265, H.264, MJPEG codec support
Video Analytics, WiseStream II support
SD / SDHC / SDXC memory 5 slots
Lens modules are required, not included with the camera

Technical Specifications
Video
Video Out	CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation
Lens

Optional Lens	SLA-2M2400P(2MP 2.4mm)
	SLA-2M2800P(2MP 2.8mm)
	SLA-2M3600P(2MP 3.6mm)
	SLA-2M6000P(2MP 6.0mm)
	SLA-2M1200P(2MP 12mm)
	SLA-5M3700P(5MP 3.7mm)
	SLA-5M4600P(5MP 4.6mm)
	SLA-5M7000P(5MP 7.0mm)
Operational

Camera Title	Displayed up to 85 characters
Day & Night	Auto(Electrical)
Backlight Compensation	BLC, HLC, WDR, SSDR
Wide Dynamic Range	2MP 150dB, 5MP 120dB
Digital Noise Reduction	SSNRⅤ
Digital Image Stabilization	Support
Defog	Support
Motion Detection	8ea, 8point polygonal zones
Privacy Masking	32ea, polygonal zones
	- Color: Grey/Green/Red/Blue/Black/White
	- Mosaic
Gain Control	Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
LDC	Support
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation	Flip, Mirror, Hallway view(90˚/270˚)
Analytics	Defocus detection, Directional detection, Face detection, Fog detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line
Alarm Triggers	Analytics, Network disconnect, Alarm input
Alarm Events	File upload via FTP and e-mail
	Notification via e-mail
	SD/SDHC/SDXC recording at event triggers
Network

Ethernet	RJ-45(10/100/1000BASE-T)
Video Compression	H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec	Manual(5ea area), WiseStreamⅡ
Bitrate Control	H.264/H.265: CBR or VBR
	MJPEG: VBR
Streaming	Unicast(20 users) / Multicast
	Multiple streaming(Up to 10 profiles)
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS(SSL) Login Authentication
	Digest Login Authentication
	IP Address Filtering
	User access log
	802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface	ONVIF Profile S
	SUNAPI(HTTP API)
Environmental & Electrical

Operating Temperature / Humidity	-35°C ~ +55°C (-31°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity	-50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Certification	IP66, IK10
Mechanical

Color / Material	Ivory / Aluminum
Product dimensions / weight	Ø367.8x381.5mm (Ø144.49"x150.20"), 7.05kg (16.1 lb)

PNM-9320VQP-_20datasheet.pdf:

PNM-9320VQP_20-_20manuals.pdf:

PNM-9320VQP_20-_20quick_guide_pnm-9320vqp_180905_en.pdf:

PNM-9320VQP_20-_20brochures_wisenet_p_series_200129_en_multi_sensor_cameras.pdf:

PNM-9320VQP_20-_20_20htw_networkcamera_1.32.01_releasenote_en.pdf:

a_e_document_pnm-9320vqp_181031_en.docx:
