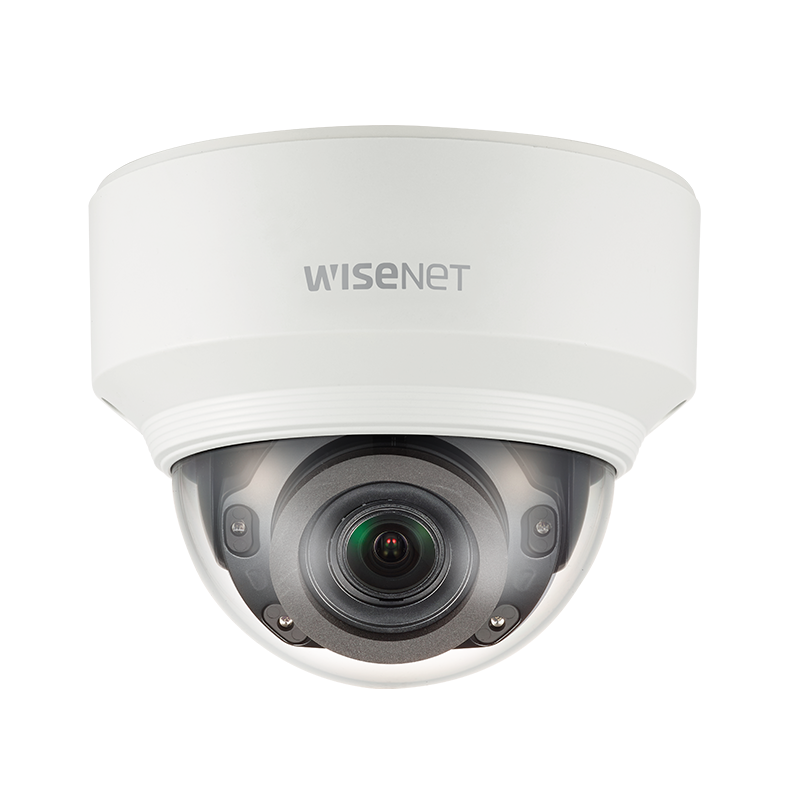

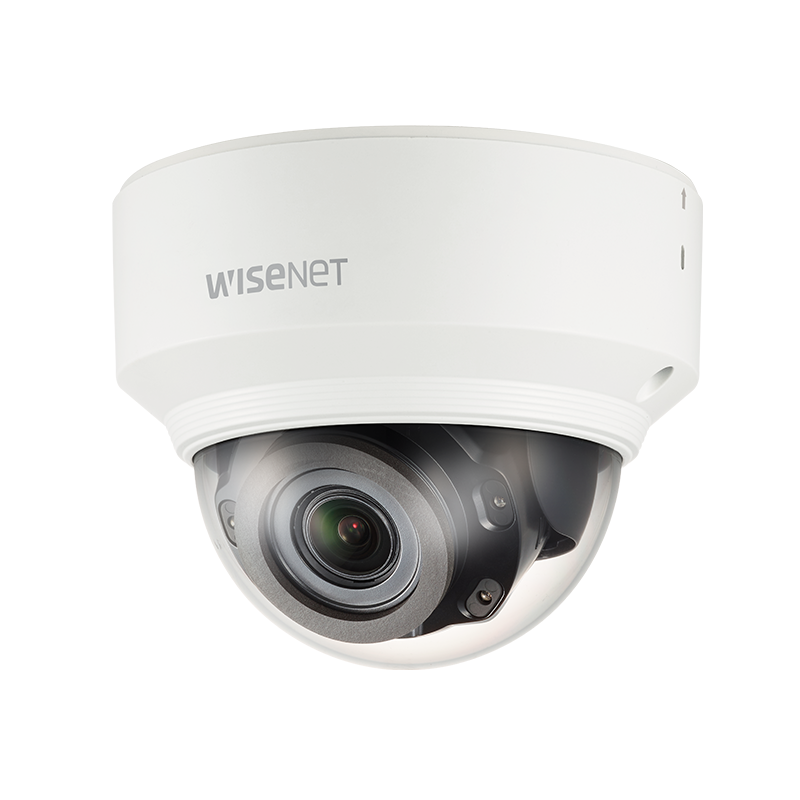

Hanwha - XND-8080RV - Wisenet X powered by Wisenet 5 network IR indoor vandal dome camera, 5MP @30fps, motorized vari-focal lens 2.4x (3.9~9.4mm) (92.1°~38.7°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for eas
Hanwha - XND-8080RV - Wisenet X powered by Wisenet 5 network IR indoor vandal dome camera, 5MP @30fps, motorized vari-focal lens 2.4x (3.9~9.4mm) (92.1°~38.7°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for eas
Hanwha - XND-8080RV - Wisenet X powered by Wisenet 5 network IR indoor vandal dome camera, 5MP @30fps, motorized vari-focal lens 2.4x (3.9~9.4mm) (92.1°~38.7°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for eas
Hanwha - XND-8080RV - Wisenet X powered by Wisenet 5 network IR indoor vandal dome camera, 5MP @30fps, motorized vari-focal lens 2.4x (3.9~9.4mm) (92.1°~38.7°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for eas
Hanwha - XND-8080RV - Wisenet X powered by Wisenet 5 network IR indoor vandal dome camera, 5MP @30fps, motorized vari-focal lens 2.4x (3.9~9.4mm) (92.1°~38.7°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for eas
Hanwha - XND-8080RV - Wisenet X powered by Wisenet 5 network IR indoor vandal dome camera, 5MP @30fps, motorized vari-focal lens 2.4x (3.9~9.4mm) (92.1°~38.7°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for eas
Hanwha Vision

Hanwha - XND-8080RV - Wisenet X powered by Wisenet 5 network IR indoor vandal dome camera, 5MP @30fps, motorized vari-focal lens 2.4x (3.9~9.4mm) (92.1°~38.7°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for eas

Product SKU: XND-8080RV
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$1,224.72
$1,620.00
Notify me When Available
You will receive an email when the product is available.
  • Description
  • Specifications
  • Downloads

Wisenet X powered by Wisenet 5 network IR indoor vandal dome camera, 5MP @30fps, motorized vari-focal lens 2.4x (3.9~9.4mm) (92.1°~38.7°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, advanced video analytics and sound classification, high powered IR LEDs range of 98', true D/N, dual SD card, hallway view, HLC, defog detection, DIS, 12VDC/PoE, IK08



Features:

  • 5 megapixel (2560 x 1920) resolution
  • 3.9 ~ 9.4mm (2.4x) motorized varifocal lens
  • 30fps@all resolutions (H.265/H.264)
  • H.265, H.264, MJPEG codec supported, multiple streaming
  • Day & Night (ICR), WDR (120dB), Defog
  • Loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering
  • Motion detection, Handover
  • SD/SDHC/SDXC memory slot (Max. 512GB)
  • Hallway view, WiseStream II support
  • IR viewable length 30m, IK08
  • LDC support (Lens Distortion Correction)
  • PoE / 12V DC, Bi-directional audio support
Video
Imaging Device1/1.8" 6M CMOS
Effective Pixels2,616(H) x 1,976(V)
Minimum IlluminationColor : 0.07Lux (F1.3, 1/30sec), B/W : 0Lux (IR LED on)
Video OutCVBS : 1.0 Vpp / 75Ω composite, 720 x 480 for installation
USB : micro USB type B, 1280 x 720 for installation
Lens
Focal Length (Zoom Ratio)3.9 ~ 9.4mm (2.4x) motorized varifocal
Maximum Aperture RatioF1.3
Angular Field of ViewH : 92.1˚ ~ 38.7˚ / V : 67.2˚ ~ 29.0˚ / D : 119.9˚ ~ 48.6˚
Minimum Object Distance0.5m (1.64ft)
Focus ControlSimple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
Lens TypeDC auto iris, P-Iris / Board-in type
Operational
IRViewable Length30m (98.43ft)
Camera TitleOff / On (Displayed up to 85 characters) - W/W : English / Numeric / Special characters - China : English / Numeric / Special / Chinese characters - Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White),
Transparency, Auto scale by resolution
Day & NightAuto (ICR)/ Color/ B/W / External / Schedule
Backlight CompensationOff / BLC / HLC (Masking / Dimming), WDR
Wide Dynamic Range120dB
Digital Noise ReductionSSNRV (2D+3D noise filter) (Off / On)
Digital Image StabilizationOff / On
DefogOff / Auto (Input from fog detection)/ Manual
Motion DetectionOff / On (8ea, 8point polygonal zones), Handover
Privacy MaskingOff / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic
Gain ControlOff / Low / Middle / High
White BalanceATW / AWC / Manual/Indoor / Outdoor (Included mercury & Sodium)
LDCOff / On (5 levels with min / max)
Electronic Shutter SpeedMinimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Digital PTZ24x, Digital PTZ (Preset, Group)
Flip / MirrorOff / On, Hallway view : 90˚/270˚
Alarm I/OInput 1ea / Output 1ea
Alarm TriggersAlarm input, Motion detection, Video & Audio analytics, Network disconnect
Alarm eventsFile upload via FTP, E-mail, Notification via E-mail, Localstorage (SD/SDHC/
SDXC) or NAS recording at event triggers, External output, DPTZ preset
Audio InSelectable(Mic in/Line in),
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio OutLine out, Maximum output level: 1Vrms
MECHANICAL
Color / MaterialIvory / Aluminum
Dimensions (WxH)Ø140.8 x 113.0mm (Ø5.54" x 4.45")
Weight732g (1.61lb)
Hanwha_20Techwin_20America_20-_20NDAA_20Compliant_20Product_20List_208.pdf:
xnd-8080rv_specifications_06202019_0_65d1f0ee-0c0b-4118-b58f-2aaa8b7da08b.pdf:
