24% $263.52

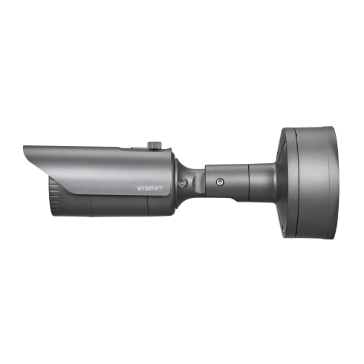

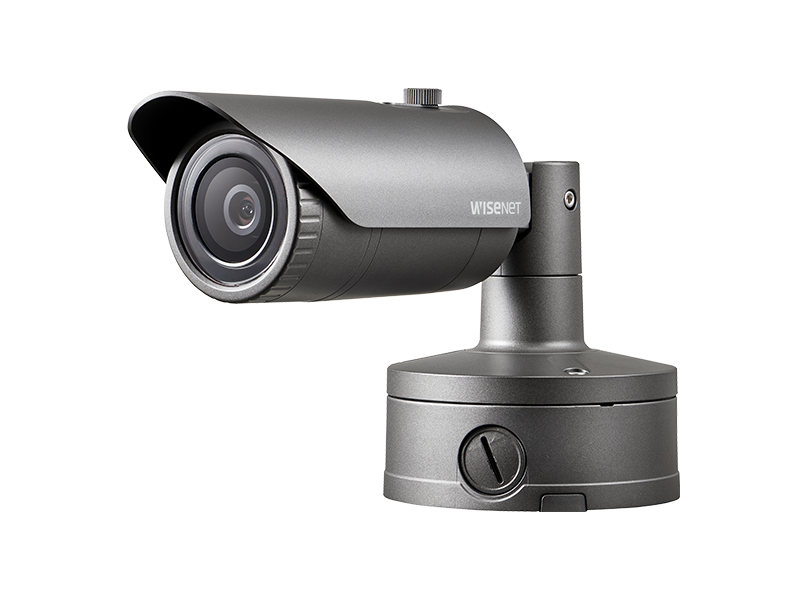

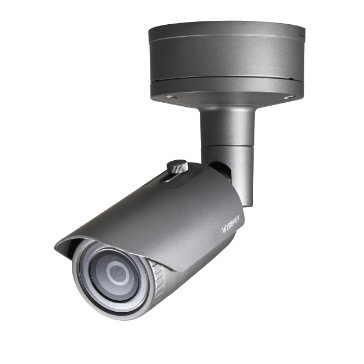

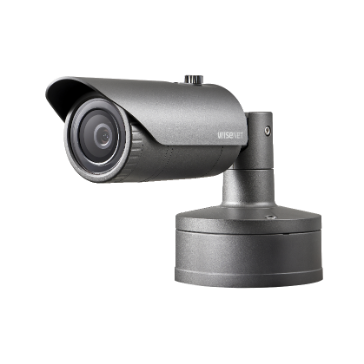

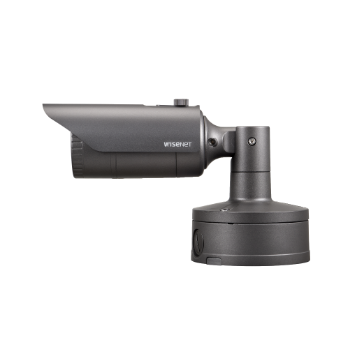

Hanwha - XNO-8040R - Wisenet X powered by Wisenet 5 network outdoor vandal bullet camera, 5MP @30fps, 7mm fixed lens (50.7°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, advanced video anal
Hanwha - XNO-8040R - Wisenet X powered by Wisenet 5 network outdoor vandal bullet camera, 5MP @30fps, 7mm fixed lens (50.7°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, advanced video anal
Hanwha - XNO-8040R - Wisenet X powered by Wisenet 5 network outdoor vandal bullet camera, 5MP @30fps, 7mm fixed lens (50.7°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, advanced video anal
Hanwha - XNO-8040R - Wisenet X powered by Wisenet 5 network outdoor vandal bullet camera, 5MP @30fps, 7mm fixed lens (50.7°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, advanced video anal
Hanwha - XNO-8040R - Wisenet X powered by Wisenet 5 network outdoor vandal bullet camera, 5MP @30fps, 7mm fixed lens (50.7°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, advanced video anal
Hanwha - XNO-8040R - Wisenet X powered by Wisenet 5 network outdoor vandal bullet camera, 5MP @30fps, 7mm fixed lens (50.7°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, advanced video anal
Hanwha - XNO-8040R - Wisenet X powered by Wisenet 5 network outdoor vandal bullet camera, 5MP @30fps, 7mm fixed lens (50.7°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, advanced video anal
Hanwha - XNO-8040R - Wisenet X powered by Wisenet 5 network outdoor vandal bullet camera, 5MP @30fps, 7mm fixed lens (50.7°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, advanced video anal
Hanwha - XNO-8040R - Wisenet X powered by Wisenet 5 network outdoor vandal bullet camera, 5MP @30fps, 7mm fixed lens (50.7°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, advanced video anal
Hanwha - XNO-8040R - Wisenet X powered by Wisenet 5 network outdoor vandal bullet camera, 5MP @30fps, 7mm fixed lens (50.7°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, advanced video anal
Hanwha Vision

Hanwha - XNO-8040R - Wisenet X powered by Wisenet 5 network outdoor vandal bullet camera, 5MP @30fps, 7mm fixed lens (50.7°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, advanced video anal

Product SKU: XNO-8040R
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$816.48
$1,080.00
Notify me When Available
You will receive an email when the product is available.
  • Description
  • Specifications
  • Downloads

Wisenet X powered by Wisenet 5 network outdoor vandal bullet camera, 5MP @30fps, 7mm fixed lens (50.7°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, advanced video analytics and sound classification and business analytics, high powered IR LEDs range of 98', true D/N, dual SD card, hallway view, HLC, defog detection, DIS, backbox included, 12VDC/PoE, IP67, IK10, Nema 4X



Features:

  • Built-in 7mm fixed lens
  • Max. 30fps@all resolutions (H.265/H.264)
  • Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Heatmap, People counting, Queue management, Tampering
  • Motion detection, Handover
  • Dual SD slots (Max. 512GB),WiseStream II support
  • IR viewable length 30m, IP67/IP66, NEMA 4X, IK10
Video
Imaging Device1/1.8" 6M CMOS
Effective Pixels2,616(H) x 1,976(V)
Minimum IlluminationColor : 0.2Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED on)
Video OutCVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
USB : micro USB type B, 1280 x 720 for installation
Lens
Focal Length (Zoom Ratio)) 3.7mm fixed (XNO-8020R)
Maximum Aperture RatioF1.6
Angular Field of ViewH : 97.5˚ / V : 71.9˚/ D : 126.2˚ (XNO-8020R)
Minimum Object Distance0.4m (1.31ft)
Focus ControlManual
Lens TypeFixed / Board-in type
Operational
IRViewable Length30m (98.43ft)
Camera TitleOff / On (Displayed up to 85 characters) - W/W : English / Numeric / Special characters - China : English / Numeric / Special / Chinese characters - Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White),
Transparency, Auto scale by resolution
Day & NightAuto (ICR)/ Color/ B/W / External / Schedule
Backlight CompensationOff / BLC / HLC (Masking / Dimming), WDR
Wide Dynamic Range120dB
Digital Noise ReductionSSNRV (2D+3D noise filter) (Off / On)
Digital Image StabilizationOff / On
DefogOff / Auto (Input from fog detection)/ Manual
Motion DetectionOff / On (8ea, 8point polygonal zones), Handover
Privacy MaskingOff / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic
Gain ControlOff / Low / Middle / High
White BalanceATW / AWC / Manual/Indoor / Outdoor (Included mercury & Sodium)
LDCOff / On (5 levels with min / max)
Electronic Shutter SpeedMinimum / Maximum / Anti icker (2 ~ 1/12,000sec)
Digital PTZ24x, Digital PTZ (Preset, Group)
Flip / MirrorOff / On, Hallway view : 90˚/270˚
Alarm I/OInput 1ea / Output 1ea
Alarm TriggersAlarm input, Motion detection, Video & Audio analytics, Network disconnect
Alarm eventsFile upload via FTP, E-mail, Notification via E-mail, Localstorage (SD/SDHC/
SDXC) or NAS recording at event triggers, External output, DPTZ preset
Audio InSelectable(Mic in/Line in),
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio OutLine out, Maximum output level: 1Vrms
Hanwha_20Techwin_20America_20-_20NDAA_20Compliant_20Product_20List_177.pdf:
XNO-8040R_607a6245-74aa-484d-9ab3-55098fa03343.pdf:
