TRENDNET - TI-W100 - Industrial AC1200 Wireless Gigabit Router

Trendnet

TRENDNET - TI-W100 - Industrial AC1200 Wireless Gigabit Router

Name: TRENDNET - TI-W100 - Industrial AC1200 Wireless Gigabit Router
Brand: Trendnet
SKU: TI-W100
Price: 451.98 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: TI-W100

$451.98

Description
Specifications
Downloads
Reviews

TRENDnet’s Industrial AC1200 Wireless Dual Band Gigabit Router, model TI-W100, features dual-band AC1200 WiFi to maximize device networking speeds; it is equipped with an 867Mbps Wireless AC network, and a 300Mbps Wireless N network. The industrial WiFi router supports dual-WAN hybrid connections (Ethernet & WiFi) for load balancing or fail-over modes, and encrypted Virtual Private Network (VPN) access for remote users. This industrial grade router is equipped with an IP30 rated metal housing, and designed to operate within a wide temperature range of -30° – 70° C (-22° – 158° F) for rugged industrial environments.

Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this industrial WiFi router a powerful solution for SMB networks. The industrial wireless router features advanced management, QoS, VLAN, VPN, and other capabilities to ensure optimal performance, scalability, and protection of your network. Intelligently manage your offices’ web access with our advanced contenting filtering tool, increase employee productivity, and finally take control of your internet.

Dual-WAN

Connect up to two separate WAN internet connections (Ethernet & WiFi) to efficiently load-balance traffic, or configure for redundancy using the WAN fail-over mode.

VPN

Supports IPsec and SSL VPN protocols for encrypted remote access to local area network (LAN) resources over the internet.

AC1200 WiFi

Features dual-band AC1200 WiFi to maximize device networking speeds; it’s equipped with an 867Mbps Wireless AC network, and a 300Mbps Wireless N network.

Features:

Industrial AC1200 Dual-Band Wireless
4 x Gigabit ports, 1 x Gigabit WAN port
Hardened IP30 rated metal housing
Operating temperature range of -30° – 70° C (-22° – 158° F)*
Up to 8 SSIDs per band
SSID to VLAN mapping
Wireless WAN support (WAN load balancing/failover between wired Ethernet WAN and Wireless WAN)
802.1Q/Port-based VLAN support
Inter-VLAN routing
IPsec & SSL VPN (OpenVPN) support
Redundant power inputs with overload current protection
Digital input/output
Modbus serial port and virtual COM support
Power supply sold separately (model: TI-M6024)
Optional Magnetic WiFi Antenna base, model TEW-LB101 (sold separately)
NDAA / TAA compliant

Technical Specifications
Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.1Q IEEE 802.1X IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n (up to 300Mbps @ 256QAM)* IEEE 802.11ac (5GHz: up to 867Mbps @ 256QAM)* IEEE 802.3af IEEE 802.3at

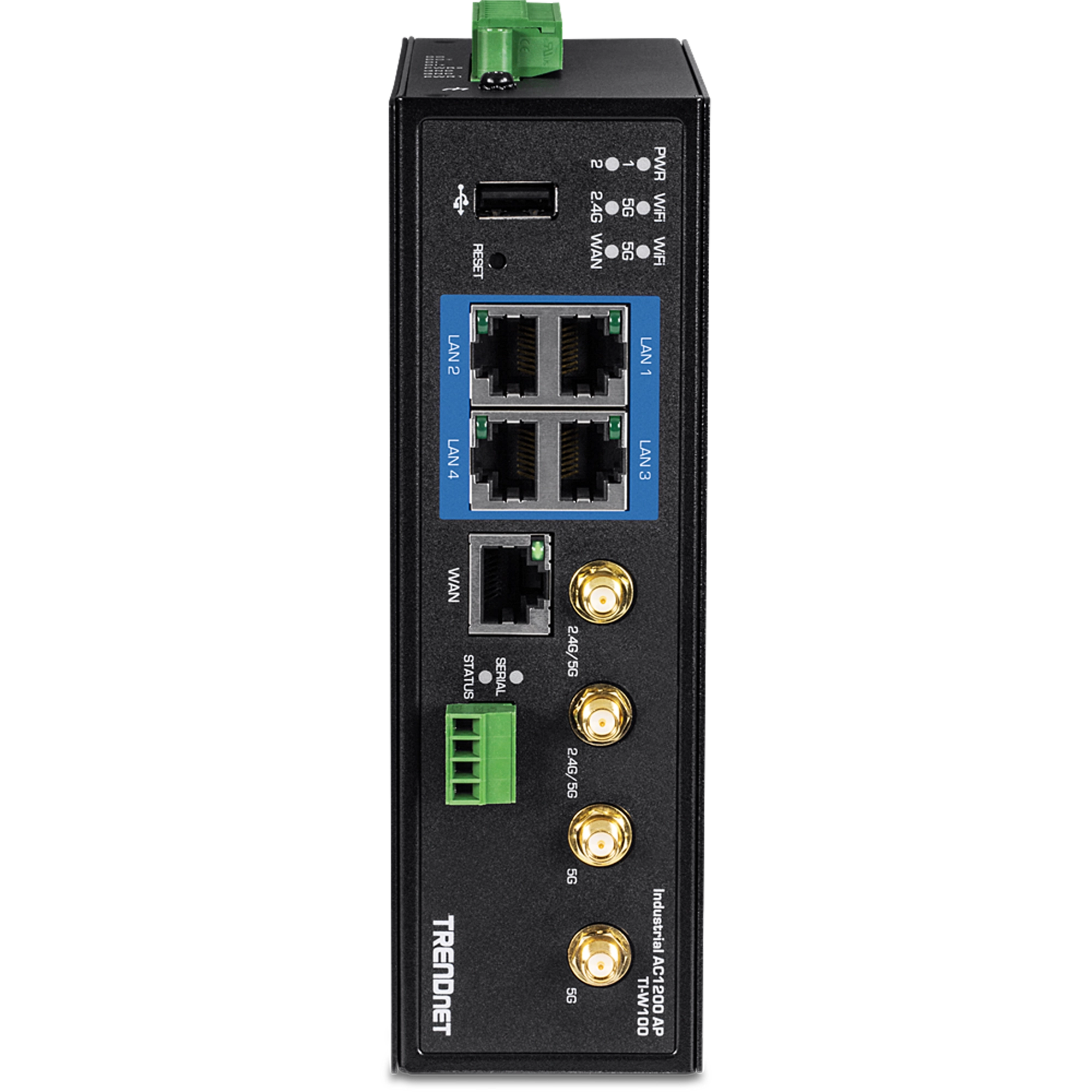

Device Interface	4 x Gigabit ports 1 x Gigabit WAN port 2 x Wireless WAN uplink (2.4GHz or 5GHz)* 1 x USB 2.0 (Log Storage) 4 x RP-SMA antenna connectors (2 x 2.4GHz/5GHz WLAN, 2 x 5GHz) 8-pin removable terminal block (primary/RPS power inputs & digital input/output) 4-pin removable terminal block RS-232/RS-485 serial port (Modbus) LED indicators Reset button
Performance	NAT (LAN-to-WAN) throughput: 900Mbps Routing performance: 900Mbps Maximum concurrent sessions: 32,000 Maximum number of VLANs: 4 (ID: 1-4091) IPsec VPN (AES-256/SHA-256/LAN-to-LAN) throughput: 160Mbps SSL VPN (OpenVPN®) Throughput (Blowfish/SHA-1/Server): 20Mbps
VPN	SSL VPN Tunnels: Up to 2 IPsec VPN Tunnels: Up to 16 tunnels SSL OpenVPN Modes: Server, Client SSL OpenVPN Encryption: Blowfish, AES-128/192/256 SSL OpenVPN Authorization: TLS with RSA, Static Key SSL OpenVPN Hash Algorithm: MD4, MD5, SHA-1/256/512 IPsec VPN Modes: Site-to-Site, Client-to-Site or Dynamic VPN IPsec Encryption: DES, 3DES, AES-128/192/256 IPsec Hash Algorithm: MD5, SHA-1/256 IPsec Key Exchange: IKEv1/2, Main/Aggressive Mode, Pre-shared key, X.509, DH Groups 1/2/5/14-18 IPsec Protocols: ESP/AH, PFS DH Groups 1/2/5/14-18, X-AUTH, DPD, Local/Remote ID: FQDN, User@FQDN, Key ID IPsec NAT Traversal
Networking	WAN Modes: NAT, Classical Routing or Bridge Mode (NAT Disabled) NAT Loopback Enable/Disable NAT Modes: NAT, PAT, One-to-One NAT VLAN tag assignment on WAN interface IPv4 WAN Modes: Dynamic IP (DHCP), Static IP, PPPoE, PPTP, L2TP Wireless WAN Mode: NAT enable/disable, Dynamic IP (DHCP), Static IP, fast roaming signal threshold/channels IPv6 WAN Modes: Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE VLAN ID assignment on WAN interface IGMP proxy on WAN interface WAN IP address alias Routing: Static (Up to 64 entries), RIPv1/v2, OSPFv2, BGP4 Static ARP (Up to 32 entries) VLAN: Port-based, 802.1Q (Up to 4 VLANs, 4 IP interfaces) Inter-VLAN Routing SSID per VLAN assignment DHCP Server, Relay, Options 42/66/72/114/150/160 Dynamic DNS: dyn.com, no-ip.com WAN Failover Networking monitoring for WAN load balancing (DNS query or ICMP, latency threshold, fail threshold, query threshold) WAN Traffic load balancing: Smart Weight (Automatic), Specific Weight Percentage, User defined traffic policy VPN passthrough: IPsec, PPTP, L2TP Up to 8 SSIDs per band AP Router, WDS only, and WDS hybrid modes WiFi scheduling 5G WiFi bandsteering
Access Control	Wireless encryption: WPA/WPA2-PSK, WPA/WPA2-RADIUS Wireless IDS Certificate management (Root CA, SCEP, Local certificate, self-signed, RSA, Import PEM certificates) NAT/SPI, virtual server/port forwarding, port triggering, firewall traffic rules, DMZ host, allow/deny ping on WAN interfaces ALG: PPTP/L2TP/IPsec VPN passthrough MAC filtering Custom scheduling for access control rules MMI (max. password attempts, login timeout, HTTP/HTTPS, HTTPS certificate, HTTP compares/binding) Wireless client isolation Stealth Mode DoS prevention
Quality of Service	Software-based priority queues Hardware-based bandwidth control WMM
Management	HTTP/HTTPS web-based GUI CLI: Telnet / SSHv2 Command script TR-069/STUN SNMP v1, v2c, v3 SNMP trap (up to 4 receivers) Modbus Slave, gateway for TCP, and RTU/ASCII master/slave access Virtual COM RFC2217, TCP client, TCP server, UDP Data logging (sniffer, offline proxy, full-time proxy) Device configuration backup & restore, upgrade firmware, reboot, and reset to default Scheduled auto reboot Auto restore configuration Set custom UI logo Set custom CSS Wake-on-LAN (WoL) Diagnostic tools: Built-in ping, traceroute, speed test, and packet capture utilities Event configuration and management: digital input/output, Modbus, syslog, SNMP trap, email alert, reboot System time settings (NTP, manually set, or copy from PC, time zone, and daylight savings time) FTP/FTPS/SFTP server Creates groups (IP, MAC, or host name), external server object definition
MIB	MIB II RFC 1213
Frequency	2.412 - 2.462GHz 5.150 – 5.250GHz, 5.725 – 5.850GHz
Modulation	802.11b: CCK, DQPSK, DBPSK 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM 802.11n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM with OFDM 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM
Media Access Protocol	CSMA/CA with ACK
Antenna Gain	4 x 2.4GHz 2.5dBi / 5GHz: 3.5 dBi dual-band detachable/external
Wireless Output Power (max output power without antenna gain)	802.11a: FCC: 21 dBm (max.) / ETSI: 17.38 dBm (max.) 802.11b: FCC: 26 dBm (max.) / ETSI: 17.38 dBm (max.) 802.11g: FCC: 23 dBm (max.) / ETSI: 17.38 dBm (max.) 802.11n (2.4GHz): FCC: 21 dBm (max.) / ETSI: 14.38 dBm (max.) 802.11n (5GHz): FCC: 21 dBm (max.) / ETSI: 16.4 dBm (max.) 802.11ac: FCC: 21 dBm (max.) / ETSI: 16.4 dBm (max.)
Receiving Sensitivity	802.11a: -68 dBm (typical) @ 54Mbps 802.11b: -83 dBm (typical) @ 11Mbps 802.11g: -70 dBm (typical) @ 54Mbps 802.11n (2.4GHz): -66 dBm (typical) @ 300Mbps 802.11n (5GHz): -64 dBm (typical) @ 300Mbps 802.11ac: -55 dBm (typical) @ 867Mbps
Wireless Channels	2.4GHz: FCC: 1 – 11, ETSI: 1 – 13 5 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165; ETSI: 36, 40, 44, 48
Power	PWR (Primary) terminal input: 12 – 48V DC RPS (Redundant) terminal input: 12 – 48V DC Digital Input: Logic 0: 0V-2V, Logic 1: 5V-30V Digital Output: Relay Mode, up to 30V/1A Compatible power supply: TI-M6024 (60W) sold separately Max. Consumption: 20W

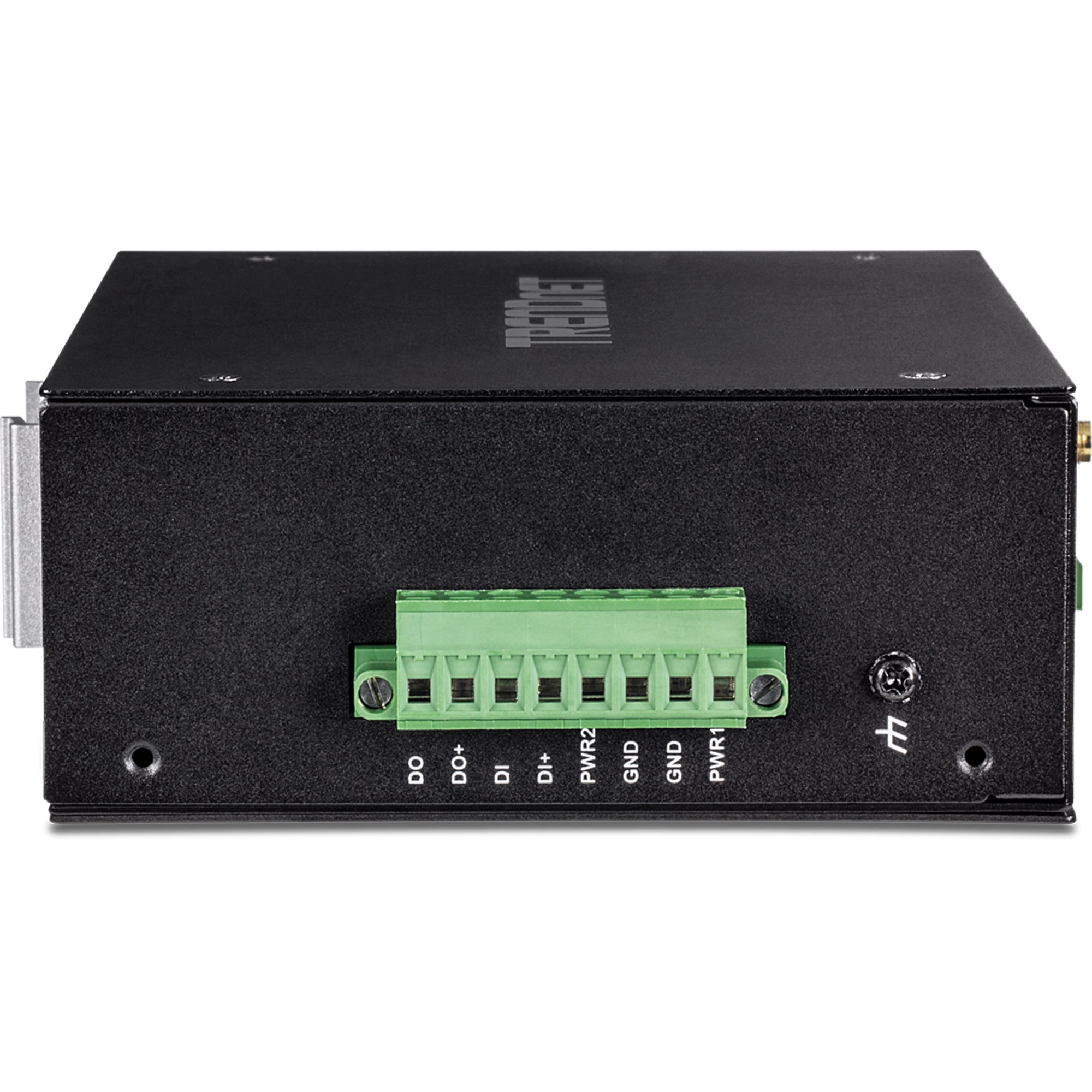

Terminal Block	Redundant power inputs, alarm relay contact, 8 pin Wire range: < 2.5 mm^2 Solid wire (AWG): 12-24 Stranded wire (AWG): 12-24 Wire strip length: 5mm

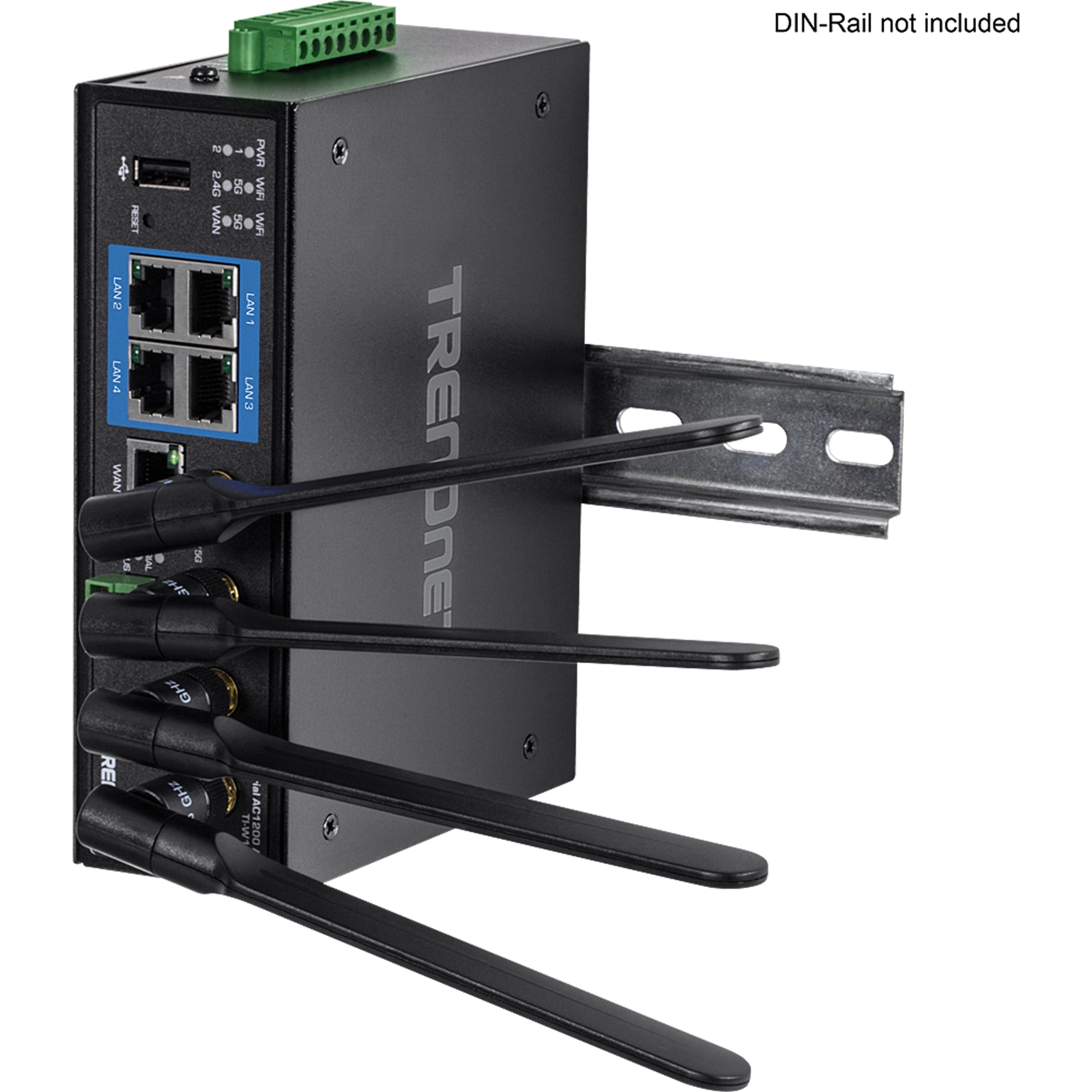

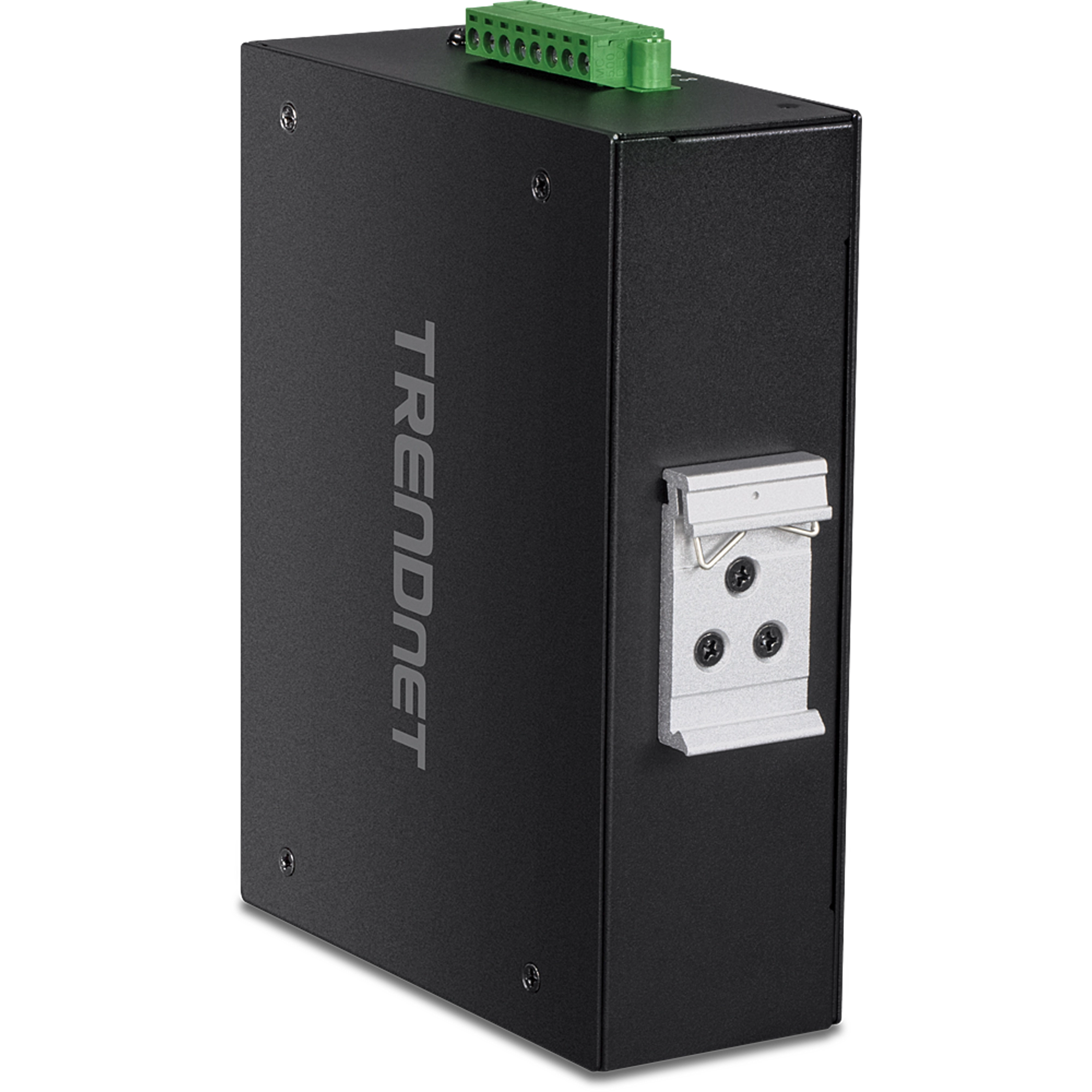

Enclosure	IP30 rated metal enclosure Fanless passive cooling DIN-Rail mount Grounding point ESD (Ethernet) Protection: 8KV DC Surge (Power) Protection: 2KV DC
MTBF	414,021 hours @ 25° C 285,605 hours @ 70° C
Operating Temperature	-30° – 70° C (-22° – 158° F)*
Operating Humidity	Max. 95% non-condensing
Dimensions	160 x 120 x 51mm (6.3 x 4.72 x 2.01 in.)
Weight	884g (1.95 lbs.)
Certifications	CE FCC Freefall (IEC 60068-2-32)
Warranty	3 year
