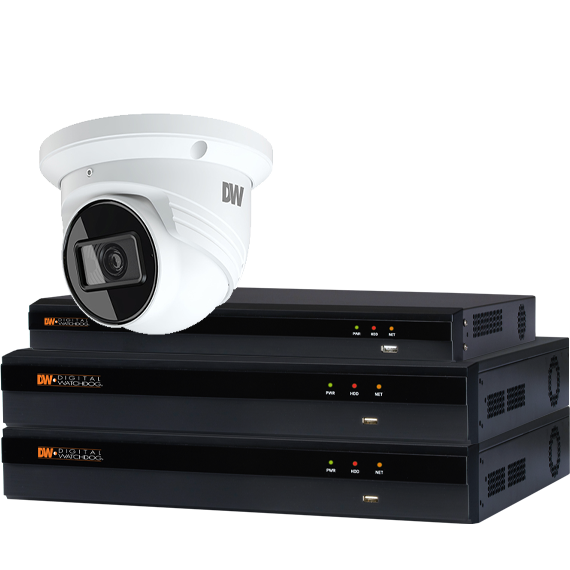

Digital Watchdog - DW-VP12T9KIT28 - 5MP Fixed Vandal Turret cameras with 2TB HDD NVR Consist of 1

Specification (5MP turret IP camera)
Image sensor	5MP 1/2.7” CMOS
Total pixels	2592 (H) x 1944 (V)
Minimum scene illumination	0.02 lux (color)
	0.0 lux (B/W)
S/N ratio	50dB
LENS
Focal length	2.8mm, F1.6	3.6mm, F1.6
Lens type	Fixed lens
Field of view (FoV)	98.5°	81.4°
IR distance	100ft range
I/O
Audio in / out	1 audio input and 1 microphone built-in
Audio compression	G.711A / U
OPERATIONAL
Shutter mode	Auto, manual
Shutter speed	1/30s ~ 1/100000s
Auto gain control	Auto
Day / night	Auto, day (color), night (B/W), schedule
Smart DNR™ 3D digital noise reduction	3D DNR
Wide dynamic range (WDR)	True WDR low, middle, high
Wide dynamic range (WDR) dB	120dB
Privacy zone	4 programmable privacy masks
Camera analytics	Line crossing, perimeter intrusion, video tampering detection (scene change, video blur, abnormal color detection), object classification (differentiate humans from objects)
Backlight compensation (BLC)	Yes
De-Fog	Yes
Mirror and flip	Yes
Alarm notifications	Notifications via email or FTP server
Memory slot	Micro SD / SDHC / SDXC card up to 256GB (card not Included)
NETWORK
LAN	802.3 compliance 10/100 LAN
Video compression type	H.265, H.264, MJPEG
Resolution	5MP, 4MP, 2K, 3MP, 2.1MP/1080P, 720P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps ) HFR mode: 1080P / 720P (60Hz : 1 ~ 60fps; 50Hz: 1~50fps )
Frame rate	Up to 30fps at all resolutions
Video bitrate	64 Kbps ~ 8 Mbps
Bitrate control	Multi-streaming CBR/VBR at H.264/ H.265 (controllable frame rate and bandwidth)
Streaming capability	Dual-stream at different rates and resolutions
IP	IPv4, IPv6
Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS
Security	IP filtering, MAC filtering, authentication (ID/PW), SSL/TSL
ONVIF conformance	Yes
Web viewer	OS: Windows®
	Browser: Internet Explorer
Video management software	DW Spectrum® IPVMS
ENVIRONMENTAL
Operating temperature	-22°F ~ 140°F (-30°C ~ 60°C)
Operating humidity	95% RH (non–condensing)
IP rating	IP67-rated
IK rating	IK10 impact-resistant
Other certifications	FCC, CE, ROHS, POE, ONVIF
ELECTRICAL
Power requirement	DC 12V, PoE IEEE 802.3af Class 3. (Adapter not included)
Power consumption	7W
MECHANICAL
Material	Metal turret housing
Dimensions	4.66” x 3.58” (118.6 x 91 mm)
Weight	1.01 lb (0.46 kg)
Warranty	5 year warranty
Specification - DW-VG4122T8P
Hardware
Display Modes	1
	12
	4
	6
	9
	Sequence
Display Speed	Up to 30fps per channel
Local Video Output Resolution	1024x768
	1280x1024
	1280x720
	1920x1080 (1080p)
	800x600
	3840×2160 (4K)
	2560x1440 (1440p)
Local Video Outputs	1x True HD output
	1x VGA output
Max Supported Recording Resolution	4K (3840×2160)
Video Compression	H.264
	H.265
OS on SSD	N/A
Max throughput (Mbps)	80Mbps
Input channels	12 Channels
	8 PoE channels
Storage
Raw internal storage options	2TB, 4TB, 6TB, 8TB,10TB, 12TB, 16TB, 32 TB
RAID Options	No RAID
Max HDD Bay	2 x SATA HDD
Maximum Storage	No storage (DW-VG4128P)
	2TB (DW-VG4122T8P)
	4TB (DW-VG4124T8P)
	6TB (DW-VG4126T8P)
	8TB (DW-VG4128T8P)
	10TB (DW-VG41210T8P)
	12TB (DW-VG41212T8P)
	16TB (DW-VG41216T8P)
	20TB (DW-VG41220T8P)
	32TB (DW-VG41232T8P)
VMS features
Alarm in/out	1 alarm output
	4 alarm inputs
Audio in/out	1 output
Performance features	Camera Color Control
	CCIP
	Covert Channel
	Digital Zoom in live and playback
	Import and export settings
	PoE built-in
	Quick Setup under 3 Minutes
	Real-time temp alert
Playback Functions	Calendar
	Event search
	Smart motion search
	Thumbnail search
	Timeline
Playback speed	x1
	x16
	x2
	x32
	x4
	x64
	x8
	x99
Post-recording	0~5 minutes
Pre- recording	0~5 seconds
PTZ control	RS485
	UTC
Recording Modes	Continuous
	Emergency
	Motion detection
	Pre- and post-alarm
	Quick backup
	Scheduled
	Sensor
Recording Resolution and Recording Rate	Up to 3840×2160 (4K): 360fps
System Operation	Graphical user interface (GUI)
	Joystick Controller (optional)
	USB mouse (included)
Network
Backup	Local backup via USB
	Network backup via CMS
Ethernet Ports	1x 1G Ethernet (RJ45)
Firmware Upgrade	CMS over network
	FTP
	USB
Protocol	DDNS
	DHCP
	RTSP
	Static fixed IP
	uPNP
System recovery after power failure	Auto-reboot and journaling file system
Transmission speed live	Up to 3840×2160 (4K): 360fps
Remote Client	DW VMAX Plus App
	C3 CMS
	DW Mobile Plus
	DW Witness
Electrical
Maximum Power per Port	Up to 30W
Power Consumption	120W total power budget (recorder + PoE ports)
Power Requirements	48V DC, 2.5A
Total PoE Power Budget	12W per PoE port
	96W
General
Accessories	Mouse
Operating Temperature and Humidity	10~90% RH
	32~113 °F (0~45 °C)
Rail kit	DW-G419RE (optional. Sold separately)
Recorder Dimensions (H X W X D)	1.77" x 14.96" x 10.58" (45 x 380 x 268.8mm)
Serial ports	RS485
USB interface	Yes
Warranty	5 Year Limited Warranty
Weight (barebone, HDD not included)	3.74 lbs (1.69 kg)
