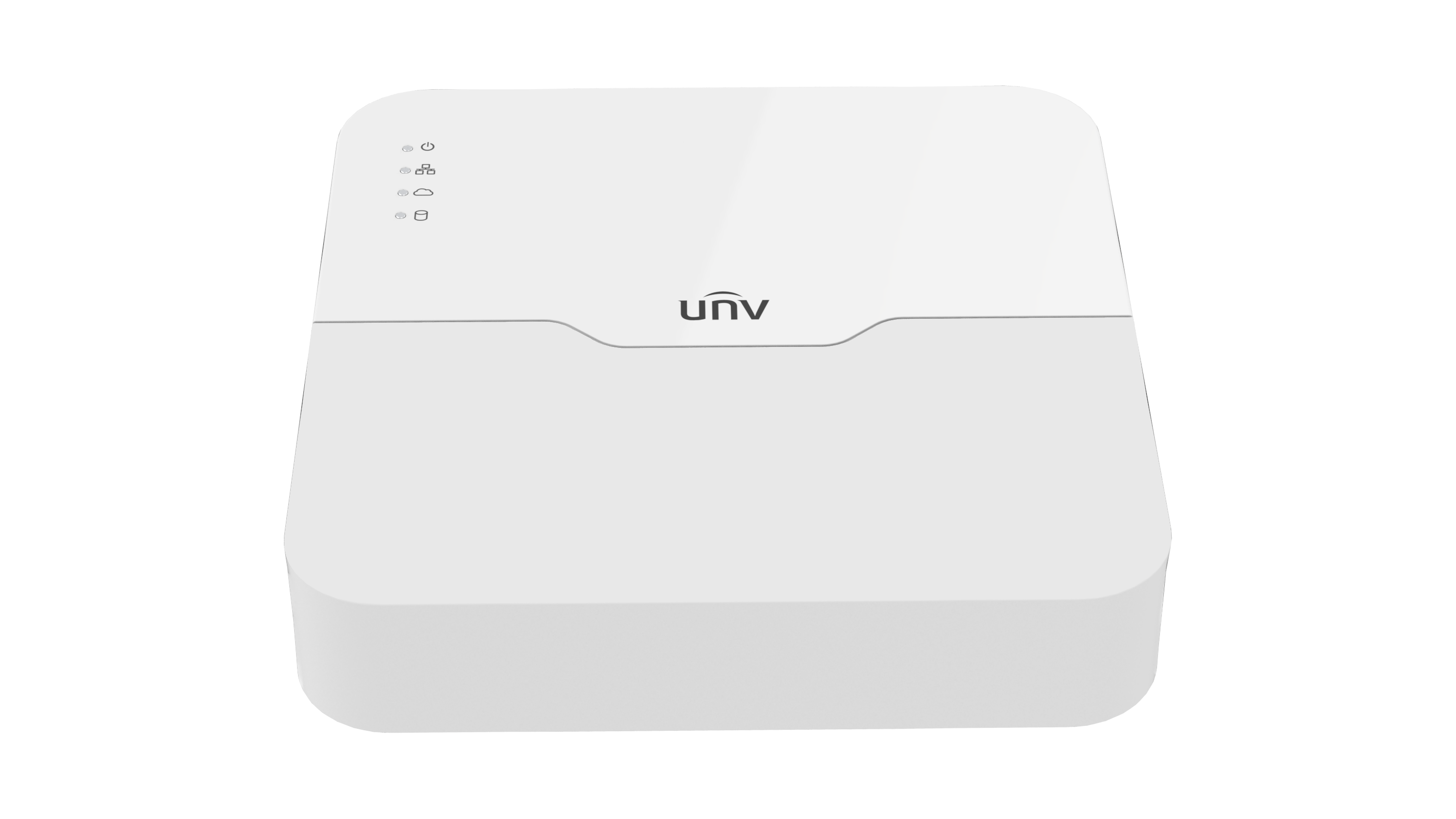

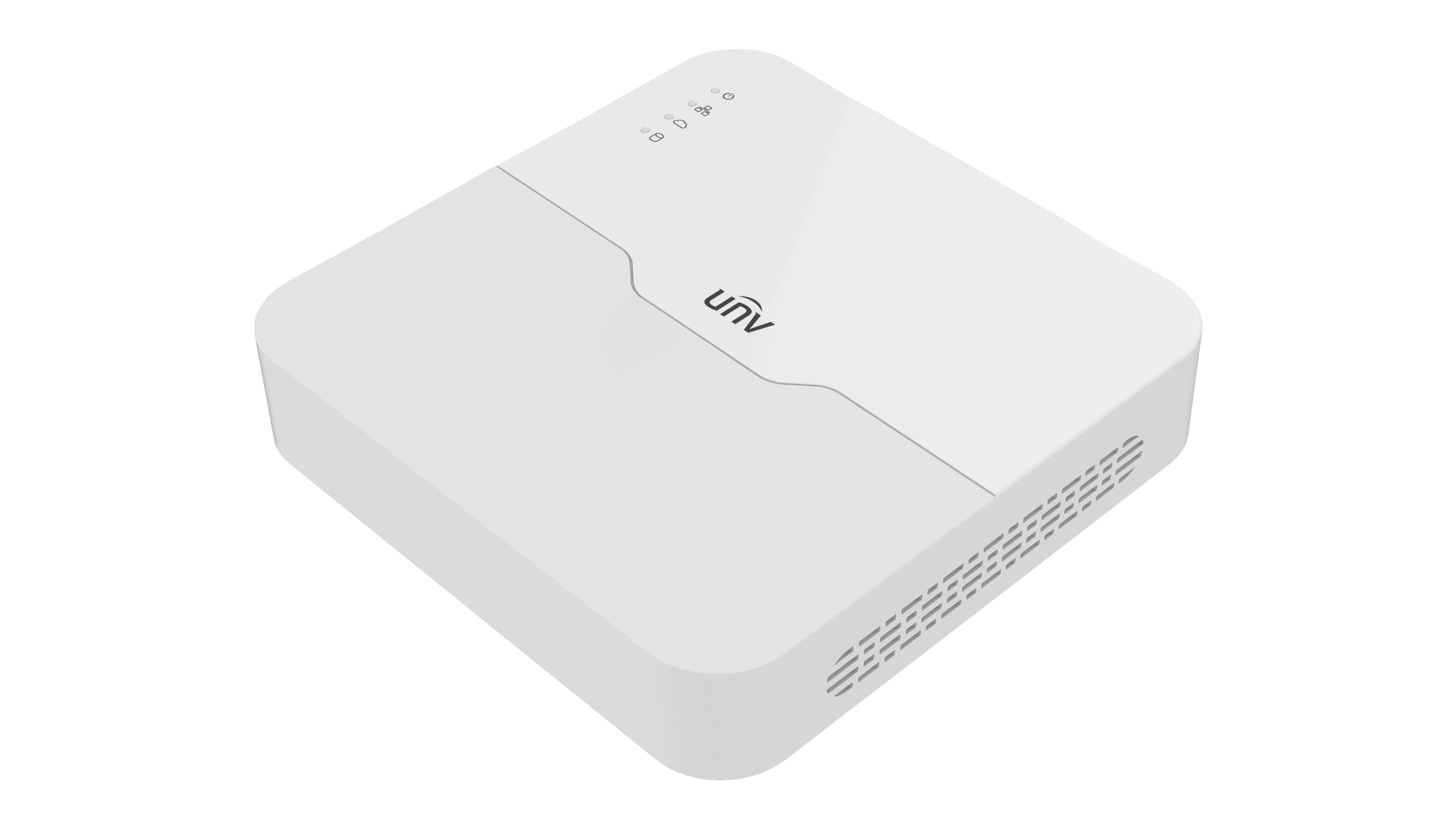

Uniview - NVR301-08B-LP8-IQ - Uniview NVR301-08B-LP8-IQ 4K AI NVR

Name: Uniview - NVR301-08B-LP8-IQ - Uniview NVR301-08B-LP8-IQ 4K AI NVR
Brand: Uniview
SKU: NVR301-08B-LP8-IQ
Price: 272.16 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: NVR301-08B-LP8-IQ

$272.16

~~$682.80~~

Description
Specifications
Downloads
Reviews

1 HDD 8-ch 4 PoE 1U Network Video Recorder

Features:

Support Ultra 265/H.265/H.264 video formats
4/8/16 channel input
Plug & Play with 4/8 independent PoE network interfaces
Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
Support HDMI and VGA simultaneous output
Up to 12 Megapixels resolution recording
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade

Decoding
Decoding Format	Ultra 265,H.265,H.264
Decoding Capability	NVR301‑04B‑LP4‑IQ:Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30 Smart On：2 x 4K@30, 4 x 4MP@30 NVR301‑08B‑LP8‑IQ:Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30 Smart On：2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30 NVR301‑16B‑LP8‑IQ:Smart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30, 16 x 720P@30 Smart On：2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30
Audio Compression	G.711A, G.711U
Network
Incoming Bandwidth	80Mbps
Outgoing Bandwidth	80Mbps
Remote Users	128
Protocols	TCP/IP; P2P; NTP; DHCP; PPPoE; HTTP; HTTPS; DNS; DDNS; SNMP; SMTP; RTSP; IPv6; IPv4
Browser(Plugin)	Windows:IE(IE10/11),Firefox (version 52.0 and above),Chrome(version 45 and above),Edge(version 79 and above)
Video/Audio Input
IP Video Input	NVR301‑04B‑LP4‑IQ:4‑ch NVR301‑08B‑LP8‑IQ:8‑ch NVR301‑16B‑LP8‑IQ:16‑ch
RCA Audio Input	1‑ch
Video/Audio Output
HDMI Output	4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output	1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
RCA Audio Output	1‑ch
Liveview Display	NVR301‑04B‑LP4‑IQ:1/4 NVR301‑08B‑LP8‑IQ:1/4/6/8/9 NVR301‑16B‑LP8‑IQ:1/4/6/8/9/16
Corridor Mode Screen	NVR301‑04B‑LP4‑IQ:3/4 NVR301‑08B‑LP8‑IQ:3/4/5/7/9 NVR301‑16B‑LP8‑IQ:3/4/5/7/9/10/12/16
Two-way Audio
Two-way Audio	1‑ch,RCA(Using the audio input and output)
Snapshot	Description
FTP/Schedule/Event Snapshot	4‑ch snapshot,up to D1 resolution
Recording	Description
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
Num of Concurrent Playback	16‑ch
Smart
VCA Detection by IPC	Face Detection; face detection; Vehicle Detection; SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area); Ultra Motion Detection (UMD); People Counting(People Flow Counting,Crowd Density Monitoring); Traffic Monitoring
Smart by NVR	face detection; Smart Intrusion Prevention (SIP); Ultra Motion Detection(UMD)
VCA Search	Motor Vehicle Search; Non‑Motor Vehicle Search; Human Body Search; General Search; People Counting Report; Heat Map
Smart by IPC	All channels (up to 8 images/s in total)Face Detection,face detection,Vehicle Detection,SIP,UMD,Traffic Monitoring
Search by Image	Support
SIP by NVR	2‑ch
UMD by NVR	4‑ch
Alarm
General Alarm	Defocus Detection; Scene Change Detection; Object Left Behind; Object Removed; Auto Tracking; Motion Detection; Tampering; Human Body Detection; Video Loss; Alarm Input; Audio Detection
Alert Alarm	IP Conflict; Network Disconnected; Disk Offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal
GUI Language
GUI Language	38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA	1 SATA Interfaces
Capacity	Up to 10TB for each HDD (The maximum HDD capacity varies with environment temperature)
External Interface
Network Interface	1 RJ45 10M/100M self‑adaptive Ethernet Interface
USB	Rear panel: 1 x USB2.0, 1 x USB3.0
RS485	N/A
RS232	N/A
Alarm In	N/A
Alarm Out	N/A
Power Supply	NVR301‑04B‑LP4‑IQ:DC 48V/1.35A NVR301‑08B‑LP8‑IQ/NVR301‑16B‑LP8‑IQ:DC 52V/1.8A
Power Switch	Support
PoE
PoE Interface	NVR301‑04B‑LP4‑IQ:4 RJ45 10M/100M self‑adaptive Ethernet Interface NVR301‑08B‑LP8‑IQ:8 RJ45 10M/100M self‑adaptive Ethernet Interface NVR301‑16B‑LP8‑IQ:16 RJ45 10M/100M self‑adaptive Ethernet Interface
Max Power	NVR301‑04B‑LP4‑IQ:Max 30W for single port,Max 50W in total NVR301‑08B‑LP8‑IQ/NVR301‑16B‑LP8‑IQ:Max 30W for single port,Max 75W in total
Supported Standard	IEEE 802.3at,IEEE 802.3af
Working Environment
Working Temperature	‑10°C ~ + 55°C (+14°F ~ +131°F)
Working Humidity	≤ 90% RH (non‑condensing)
Power Consumption (without HDD)	≤ 12W
Dimensions
Weight (without HDD)	NVR301‑04B‑LP4‑IQ:≤ 2.7Kg (6.0lb) NVR301‑08B‑LP8‑IQ/NVR301‑16B‑LP8‑IQ:≤ 4Kg (8.8lb)
Height	1U
Dimensions	NVR301‑04B‑LP4‑IQ:205mm × 212mm × 46mm (8.1"×8.3"×1.8") NVR301‑08B‑LP8‑IQ/NVR301‑16B‑LP8‑IQ:270mm × 212mm × 46mm (10.6"×8.3"×1.8")
Certification
Certification	CE, FCC, UL, RoHS, WEEE
CE	EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
FCC	Part15 Subpart B
