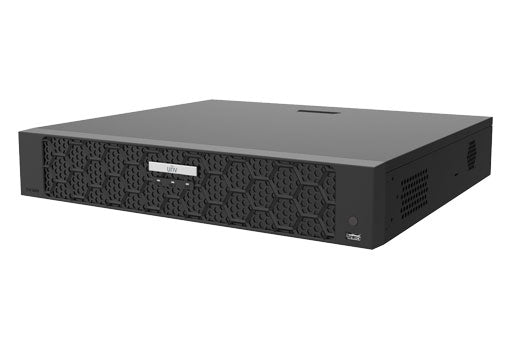

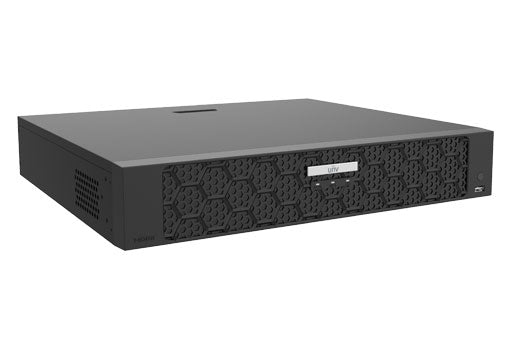

Uniview - NVR504-16B-P16 - Uniview NVR504-16B-P16 4K NVR

Name: Uniview - NVR504-16B-P16 - Uniview NVR504-16B-P16 4K NVR
Brand: Uniview
SKU: NVR504-16B-P16
Price: 891.0 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: NVR504-16B-P16

$891.00

~~$2,206.80~~

Description
Specifications
Downloads
Reviews

4K, Ultra 265/H.265/H.264 Network Video Recorder with 16 channel

Features:

Support Ultra 265/H.265/H.264 video formats
16/32‑channel input
Plug & Play with 16 independent PoE network interfaces
Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
Support 1‑ch HDMI, 1‑ch VGA. HDMI up to 4K (3840x2160) resolution
VGA and HDMI independent output
Up to 16 Megapixels resolution recording
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade

Decoding
DecodingFormat	Ultra 265, H.265, H.264
DecodingCapability	NVR504‑16B‑P16:Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30 H.264: 2 x 16MP(48002688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 16 x 720P@30 NVR504‑32B‑P16:Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 16MP(48002688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1
AudioCompression	G.711A, G.711U
Network
IncomingBandwidth	320Mbps
OutgoingBandwidth	160Mbps
RemoteUsers	128
Protocols	TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;RTSP;802.1x;IPV6
Browser(Plugin)	Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)
Video/AudioInput
IPVideoInput	NVR504‑16B‑P16:16‑ch NVR504‑32B‑P16:32‑ch
RCAAudioInput	1‑ch
Video/AudioOutput
HDMIOutput	HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGAOutput	VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
RCAAudioOutput	1‑ch
LiveviewDisplay	NVR504‑16B‑P16:1/4/6/8/9/16 NVR504‑32B‑P16:1/4/6/8/9/16/25/32
CorridorModeScreen	NVR504‑16B‑P16:3/4/5/7/9/10/12/16 NVR504‑32B‑P16:3/4/5/7/9/10/12/16/32
Two-wayAudio	Description
Two-wayAudio	1‑ch, RCA(Using the audio input and output)
Snapshot
FTP/Schedule/EventSnapshot	4‑ch snapshot, up to D1 resolution
Recording
RecordingResolution	16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
SynchronousPlaybackinLocal	16‑ch
Smart
VCADetectionbyIPC	Face Detection;Vehicle Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection);People Counting(People Flow Counting, Crowd Density Monitoring);Video Metadata;Traffic Monitoring
VCASearch	Motor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report;Heat Map
SmartbyIPC	All channels (up to 8 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
Alarm
GeneralAlarm	Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection
AlertAlarm	IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal
GUILanguage
GUILanguage	38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
HardDisk
SATA	4 SATA Interfaces
Capacity	Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature)
DiskGroup	Support
RedundantStorage	Support
DiskArrayType	RAID 1, 5
ExternalInterface
NetworkInterface	1 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface
USB	Front panel: 1 x USB2.0;Rear panel: 1 x USB3.0
RS485	1
RS232	N/A
AlarmIn	16‑ch
AlarmOut	4‑ch
PowerSupply	AC 100 ～ 240 V
PowerSwitch	Support
PoE
Interface	16 RJ45 10M/100M self‑adaptive Ethernet Interface
MaxPower	Max 30W for single port, Max 150W in total
SupportedStandard	IEEE 802.3at, IEEE 802.3af
WorkingEnvironment
WorkingTemperature	‑10 °C ~ 55 °C (14 °F ~ 131 °F)
WorkingHumidity	≤ 90% RH (non‑condensing)
PowerConsumption(withoutHDD)	≤ 20W
Dimensions
Weight(withoutHDD)	≤ 4Kg (8.82lb)
Dimensions	400mm × 368mm × 74mm (15.7"×14.5"×2.9")
Certification
Certification	CE, FCC, UL, RoHS, WEEE
CE	EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
FCC	Part15 Subpart B

Quick_20Guide_20_19.pdf:
