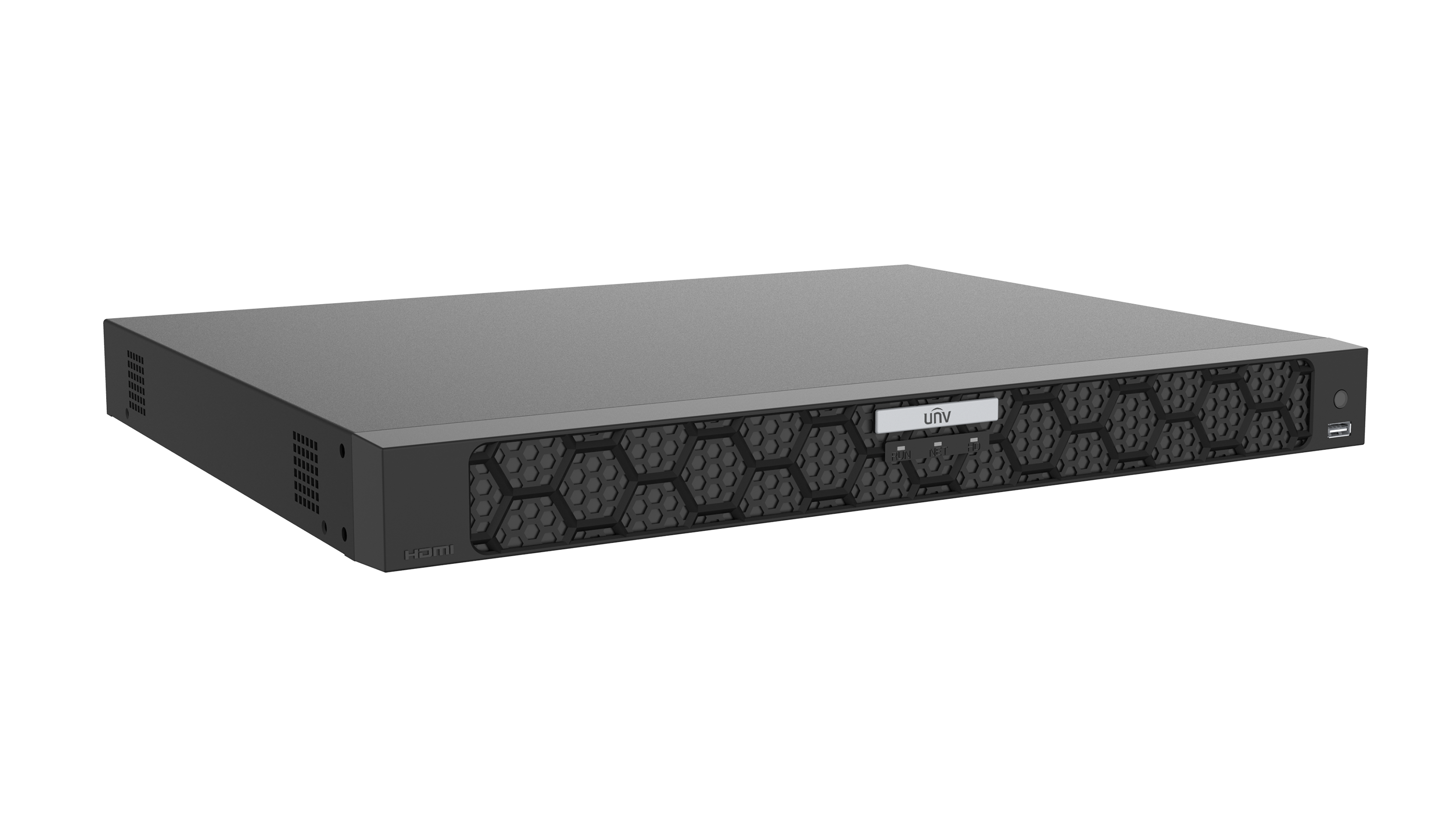

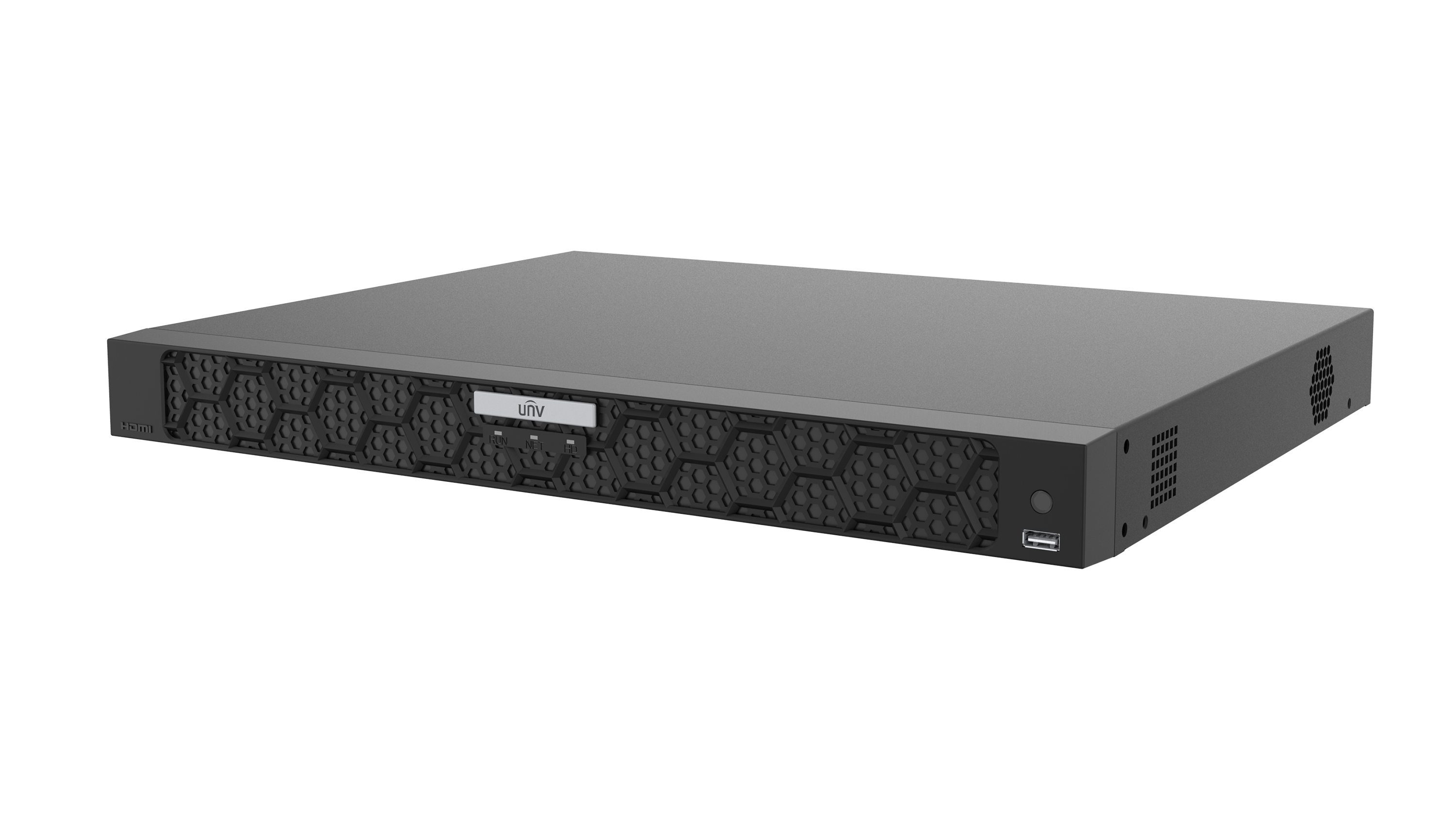

Uniview - NVR504-32B-IQ - Uniview NVR504-32B 4K AI NVR

Name: Uniview - NVR504-32B-IQ - Uniview NVR504-32B 4K AI NVR
Brand: Uniview
SKU: NVR504-32B-IQ
Price: 819.72 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: NVR504-32B-IQ

$819.72

~~$2,026.80~~

Description
Specifications
Downloads
Reviews

4K AI Network Video Recorder with 32 Channel

Features:

Support Ultra 265/H.265/H.264 video formats
16/32 channel input
Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
Support 1 ch HDMI, 1 ch VGA. HDMI up to 4K (3840x2160) resolution
VGA and HDMI independent output
Up to 16 Megapixels resolution recording
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade

Decoding
Decoding Format	Ultra 265,H.265,H.264
Decoding Capability	NVR504‑16B‑IQ:Smart Off：2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30 Smart On：2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 12 x 1080P@30, 16 x 720P@30 NVR504‑32B‑IQ:Smart Off：2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 720P@30 Smart On：2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30, 12 x 1080P@30, 24 x 720P@30, 32 x D1
Audio Compression	G.711A,G.711U
Network
Incoming Bandwidth	Smart Off：320Mbps Smart On：160Mbps
Outgoing Bandwidth	160Mbps
Remote Users	128
Protocols	TCP/IP;P2P;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;NFS;RTSP;802.1x;IPV6
Browser(Plugin)	Windows:IE(IE10/11),Firefox (version 52.0 and above),Chrome(version 45 and above),Edge(version 79 and above)
Video/Audio Input
IP Video Input	NVR504‑16B‑IQ:16‑ch NVR504‑32B‑IQ:32‑ch
RCA Audio Input	1‑ch
Video/Audio Output
HDMI Output	HDMI:4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output	VGA:1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
RCA Audio Output	1‑ch
Liveview Display	NVR504‑16B‑IQ:1/4/6/8/9/16 NVR504‑32B‑IQ:1/4/6/8/9/16/25/32
Corridor Mode Screen	NVR504‑16B‑IQ:3/4/5/7/9/10/12/16 NVR504‑32B‑IQ:3/4/5/7/9/10/12/16/32
Two-way Audio
Two-way Audio	1‑ch,RCA(Using the audio input and output)
Snapshot
FTP/Schedule/Event Snapshot	4‑ch snapshot,up to 4K resolution
Recording
Recording Resolution	16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local	16‑ch
Smart
VCA Detection by IPC	Vehicle Detection;SIP(Intrusion Detection,Cross Line Detection,Enter Area,Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection,Smoking Detection,Temperature Measurement,Smoke and Fire Detection);People Counting(People Flow Counting,Crowd Density Monitoring);Video Metadata;Traffic Monitoring
Smart by NVR	Smart Intrusion Prevention (SIP);Ultra Motion Detection(UMD)
VCA Search	Motor Vehicle Search;Non‑Motor Vehicle Search;General Search;People Counting Report;Heat Map
Smart by IPC	All channels (up to 8 images/s in total) Vehicle Detection,Temperature Detection,SIP,UMD,Video Metadata,Traffic Monitoring
Search by Image	Support
Vehicle Picture Library	Up to 5 vehicle picture libraries,with up to 25,000 vehicle pictures in total
SIP by NVR	4‑ch
UMD by NVR	8‑ch
Capacity of Snapshot Records	2 millions records for vehicle snapshot;3 millions records for SIP;2 millions records for video Metadata
Alarm	Description
General Alarm	Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection
Alert Alarm	IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal;Array Damaged;Array Degraded
GUI Language
GUI Language	38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA	4 SATA Interfaces
Capacity	Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature)
Disk Group	Support
Redundant Storage	Support
Disk Array Type	RAID 1,5
External Interface
Network Interface	2 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface
USB	Front panel: 1 x USB2.0;Rear panel: 1 x USB2.0, 1 x USB3.0
RS485	1
RS232	N/A
Alarm In	16‑ch
Alarm Out	4‑ch
Power Supply	DC 12V/5A
Power Switch	Support
Working Environment
Working Temperature	‑10°C ~ + 50°C (+14°F ~ +122°F)
Working Humidity	≤ 90% RH (non‑condensing)
Power Consumption (without HDD)	≤ 12W
Dimensions
Weight (without HDD)	≤ 3.4Kg (7.5lb)
Height	1U
Dimensions	440mm × 344mm × 48mm (17.3"×13.5"×1.9")
Certification
Certification	CE, FCC, UL, RoHS, WEEE
CE	EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
FCC	Part15 Subpart B

Quick_20Guide_20_15.pdf:

UNV_20NVR504-B-IQ_20Series_20Network_20Video_20Recorder.pdf:
