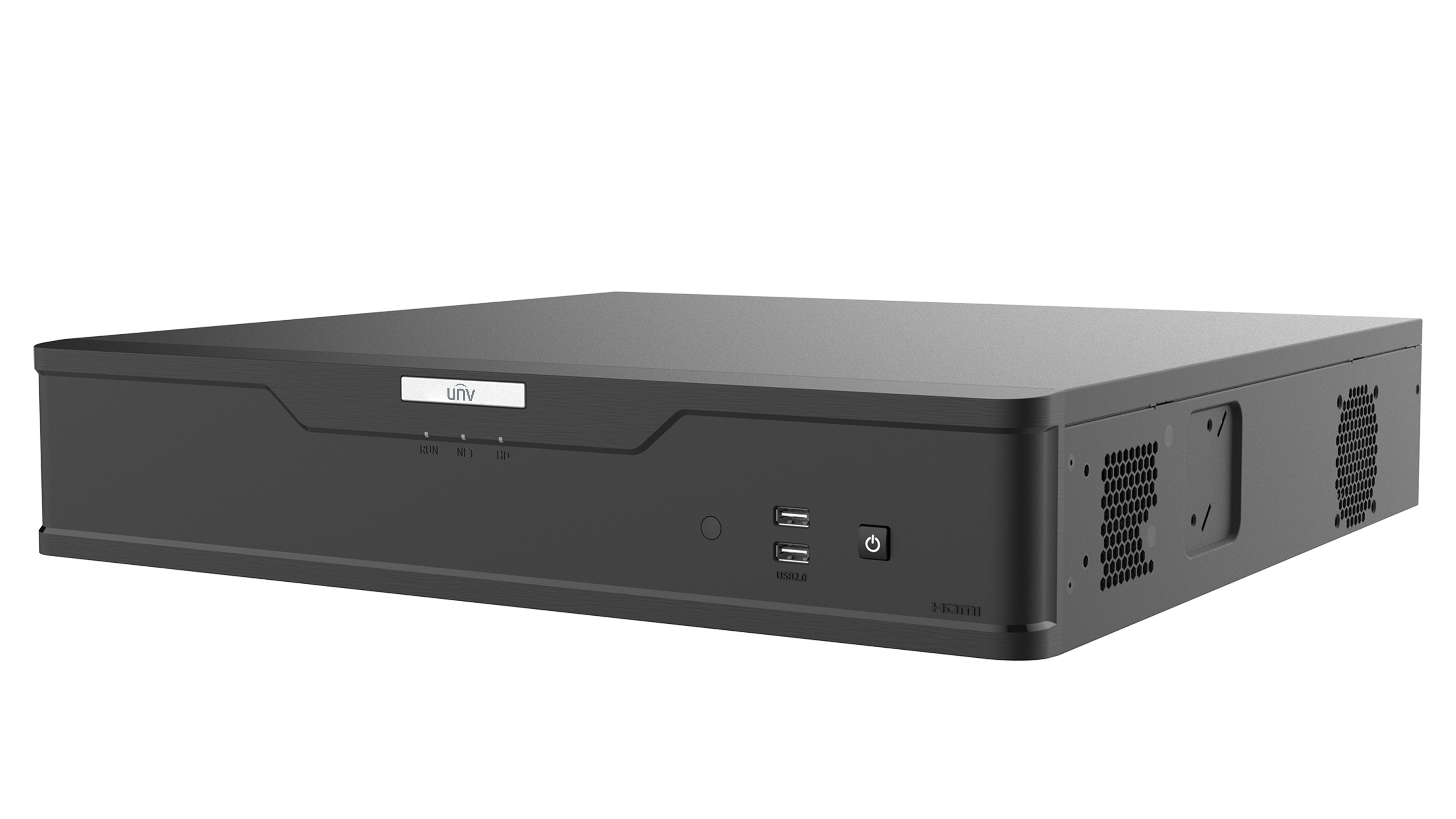

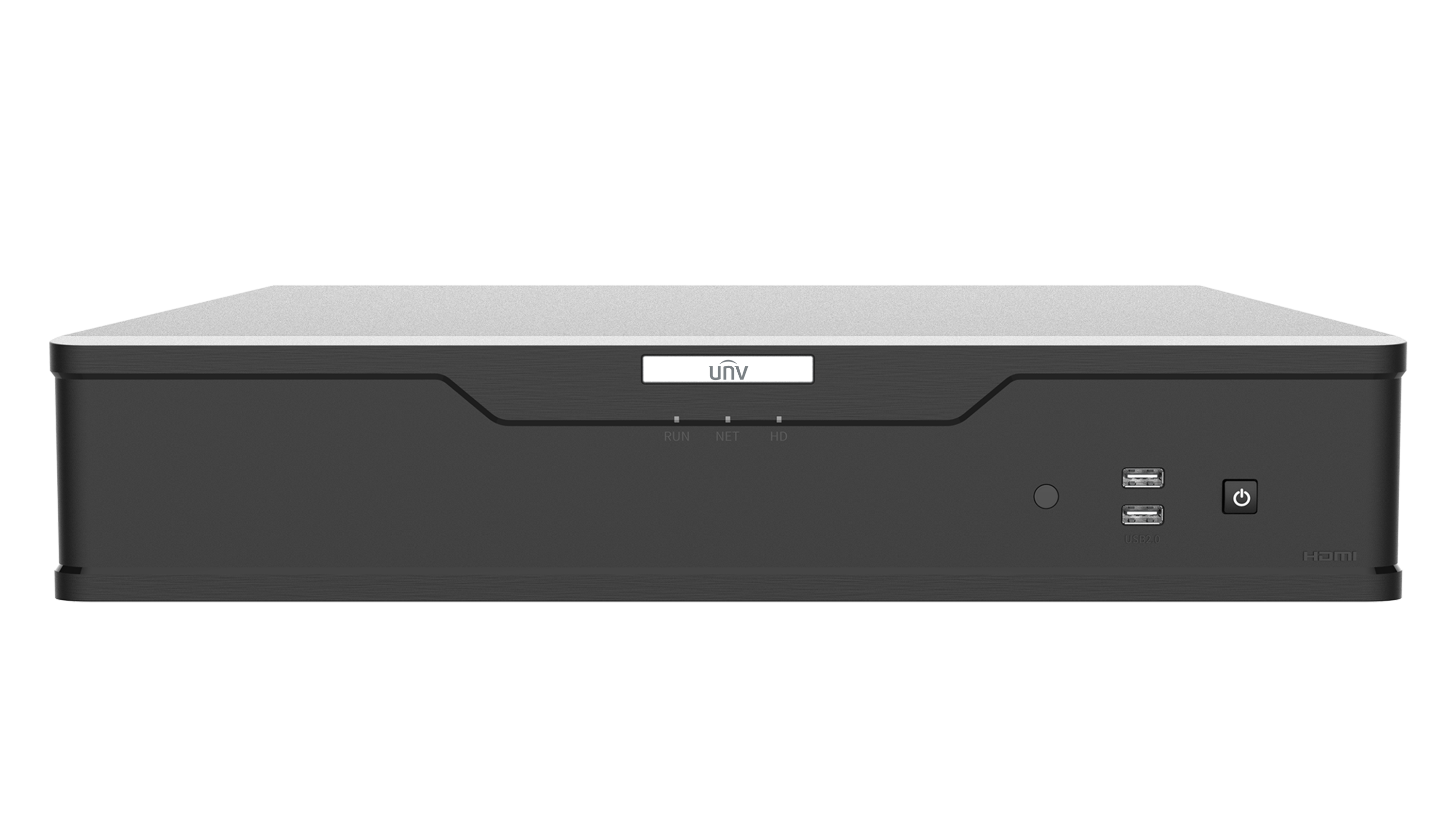

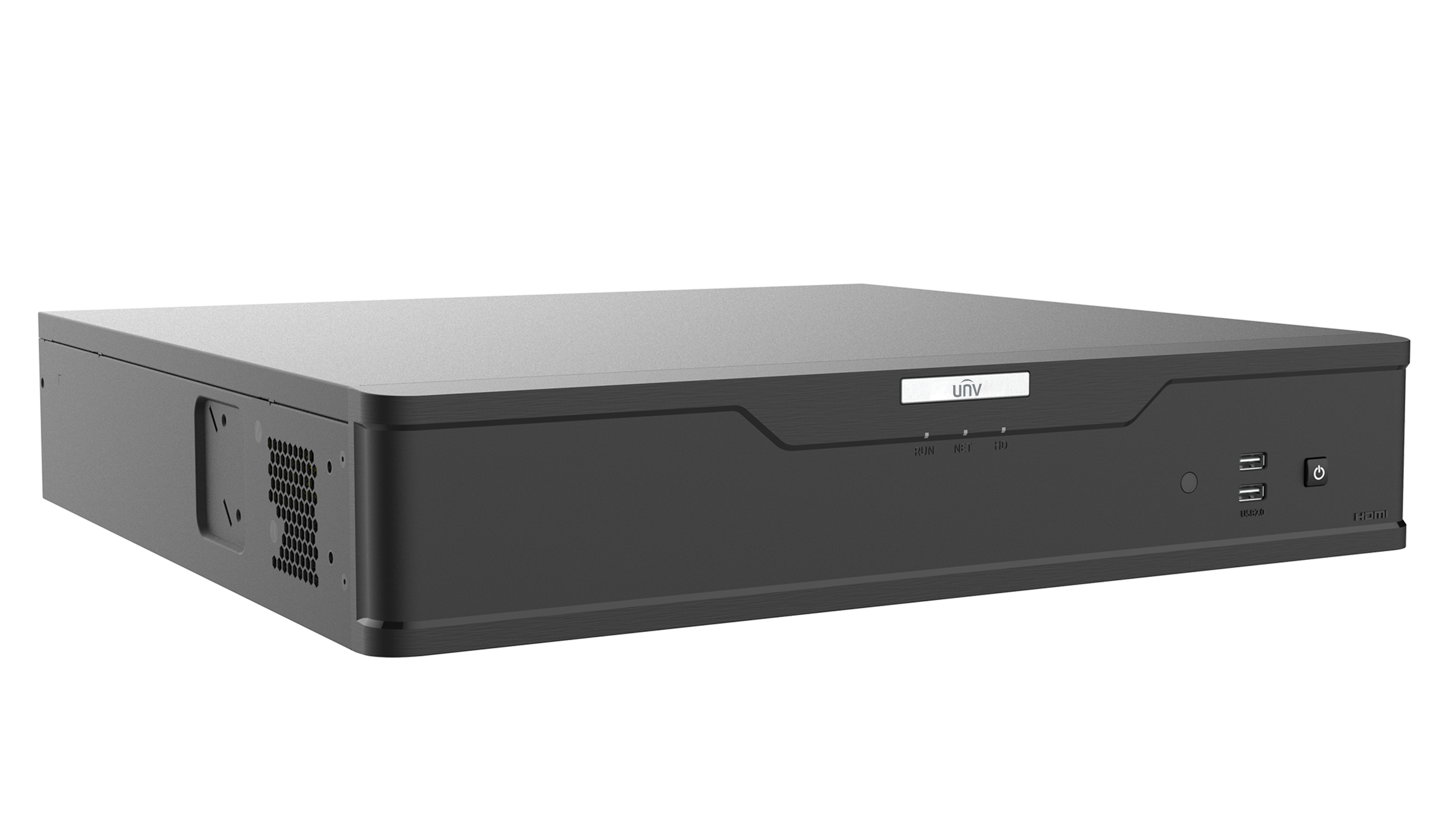

Uniview - XVR308-32Q3 - Uniview 8 Hard Disks 32-Channel 5MP TVI CVI AHD H.265 Hybrid Network Video Recorder, Audio over Coax

Name: Uniview - XVR308-32Q3 - Uniview 8 Hard Disks 32-Channel 5MP TVI CVI AHD H.265 Hybrid Network Video Recorder, Audio over Coax
Brand: Uniview
SKU: XVR308-32Q3
Price: 1377.0 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: XVR308-32Q3

$1,377.00

~~$3,406.80~~

Description
Specifications
Downloads
Reviews

8 Hard Disks 32-Channel 5MP TVI CVI AHD H.265 Hybrid Network Video Recorder, Audio over Coax

Features:

Support H.265/H.264 video formats
Support audio over coaxial cable(TVI & Uniview CVI protocol cameras)
Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
32-channel BNC input
Support 1-ch CVBS output, 1-ch VGA output, 2-ch HDMI, HDMI2 output at up to
4K(3840 x 2160)
HDMI1 and VGA simultaneous output, HDMI2 and HDMI1/VGA independent output
Long transmission distance over coaxial cable
Support mainstream cameras of ONVIF and RTSP protocol

Video/Audio Input
IP Video Input	4-ch
Analog Video Input	32-ch, BNC
Max IP Video Input	36-ch
Supported Analog Camera Types	Support AHD input:8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps, Support TVI input:8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps, Support CVI input: 8MP@15fps, 5MP@25fps, 4MP@30fps, 1080P@30fps, 720P@30fps Support CVBS input
BNC Audio Input	32-ch, channel audio
RCA Audio Input	1-ch
Video/Audio Output
HDMI Output	HDMI1:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz; HDMI2:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output	VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
BNC Video Output	1-ch
RCA Audio Output	1-ch
Live View Display	HDMI/VGA: 1/4/6/8/9/16/25/36
Playback Screen	1/4/9/16
Encoding/Decoding
Recording Resolution	8MP Lite/5MP Lite/4MP Lite /1080P/720P/D1
Recording Frame Rate	Main stream: 8MP Lite@8fps, Sub stream: D1@8fps, Main stream: 5MP Lite@12fps, Sub stream: D1@12fps, Main stream: 4MP Lite@15fps Sub stream: D1@15fps, Main stream: 1080P@15fps, Sub stream: D1@15fps, Main stream: 720P@30fps, Sub stream: D1@30fps
Audio Sample Rate	8 KHz, 16 bit per channel
Audio Bit Rate	64Kbps per channel
Decoding Capability	Analog: 32 x 8MP Lite@8, 32 x 5MP Lite@12, 32 x 4MP Lite@15, 32 x 1080P@25, 32 x 720@30 IP: 2 x 8MP@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30, 36 x D1, 16 x 720P@30
Num of Concurrent Playback in Local	16-ch
Coaxial Cable
Audio over Coaxial Cable(Form)	32-ch, One-way Audio(TVI&Uniview CVI protocol cameras)
Two-way Audio
Two-way Audio	1-ch, RCA(Using the audio input and output)
Analog Snapshot
FTP/Schedule/Event Snapshot	Schedule/FTP/Event snapshot:32-ch snapshot, up to 704*576 resolution
Network
Incoming Bandwidth	160Mbps (Up to 224 Mbps after all analog channel conversion)
Outgoing Bandwidth	160Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, IPv6
Browser(Plugin)	Windows: IE (IE10/ 11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above)
Smart
Analog Smart by XVR	Ultra Motion Detection(UMD) , SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area)
IP Smart by IPC	Face Detection, Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking, SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area)
VCA Search	Face Search, Behavior Search
Smart Functions by XVR	16-ch(UMD), 8-ch(SIP)
Smart Functions by IP Camera	8-ch(SIP)
Alarm
General Alarm	Motion
Alert Alarm	IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
GUI Language	38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA	8 SATA interfaces
Capacity	Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature)
External Interface
Network Interface	2 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
USB	Front panel: 2 x USB2.0, Rear panel: 1 x USB3.0
RS485	1
RS422	1
RS232	1
eSATA	1
Alarm In	16-ch
Alarm Out	6-ch
Power Supply	AC 100 ～ 240 V
Power Switch	Support
Working Environment
Working Temperature	-10 °C ~ 55 °C (14 °F ~ 131 °F )
Working Humidity	≤ 90% RH(non-condensing)
Power Consumption (without HDD)	≤ 45W
Dimensions
Weight (without HDD)	≤6.0 Kg ( 13.23lb )
Height	2U
Dimensions	442.0mm × 435.9mm × 88.6mm (17.4" × 17.2" × 3.5")
Certification
Certification	CE, FCC, UL, RoHS, WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2
FCC	Part15 Subpart B

XVR308-32Q3-Datasheet_262a7acf-acde-48be-ae7d-b54d12cebcb2.pdf:

Quick_20Guide_20_32__compressed.pdf:
