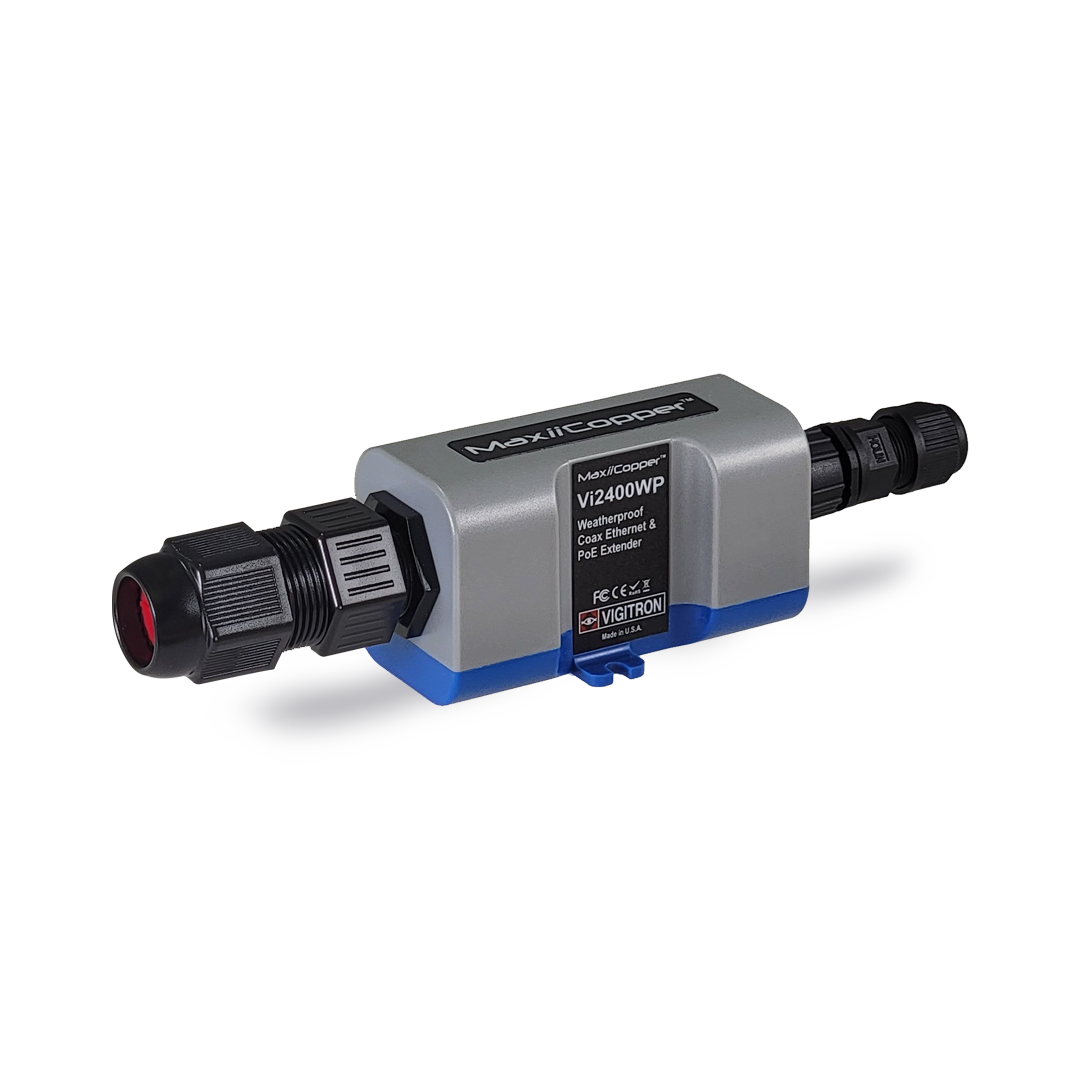

Vigitron - Vi2400WP - 1-Port MaxiiCopper Ethernet Extender over Coax, af/at 37W PoE, Hardened, IP67 Weatherproof

Vigitron’s MaxiiCopper' Vi2400WP Ethernet over Coax Network extender brings new performance standards to the growing need for high-speed transmission of full bandwidth Ethernet and PoE over extended distances of coaxial cables. The IP67-rated housing protects performance under harsh weather conditions and up to 3 feet (1m) of water. Developed as a complete product the Vi2400W simplifies installation and lowers cost by eliminating the need for extra cost housings. Its unique Symmetric Bandwidth (SBW') assures full bandwidth transmission is maintained over the entire operational distance for both uploads and downloads with Virtual Zero Packet Loss (VZPL'). Bandwidth assurance provides the ability to transmit multiple cameras on single camera runs with no information loss.

Pass-Through PoE (PTP') eliminates the need for additional remote site power while allowing a single PoE source, such as a PoE network switch, to provide power to both transceivers and the camera. This feature eliminates the need for local and remote site power supplies. Type tested under NEMA-TS2 environmental standards for extended temperature operations between -40C° to +75C°, the Vi2400WP is the perfect solution for extended-distance data and power transmission for warehouses, parking lots, campuses, casinos, and many more. MaxiiCopper’s' Vi2400WP is low power and easily fits inside most cameras housing and junction boxes. Best of all, the Vi2400WP is MegaPixel Certified (MPC'), the type tested to network packet performance standards, and major manufacturer compatibility tested to assure you error-free and reliable operations.

Installation cost savings, proven performance, and major camera brand compatibility all go into making Vigitron’s MaxiiCopper' Vi2400WP your best choice for extended distance data and power transmission outdoors.

Features:

• Transmits Ethernet and PoE up to 5,000 feet (1,515 m) over Coax cable
• IP67 weatherproof construction for mounting on buildings and poles
• Certified for IEC600068-2-52 for salt ladened environments
• Simply installation and lowers costs by eliminating the need for extra enclosures\
• Saves equipment costs and reduces installation time
• Pass-Through PoE (PTP) compatible with 802.3af and 802.3at PoE
• MegaPixel Certified (MPC) High data rate, ideal for high bandwidth requirements of Mega-pixel cameras and multiple IP cameras systems requiring Jumbo Frames
• Symmetric Bandwidth(SBW) provides consistent upload and download with Virtual Zero Packet Loss (VZPL) over a total specified distance
• Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
• Type tested for -40°C to +75°C temperature range
• Complies to major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPS
• 6KV surge protection
• Complies to major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPS
