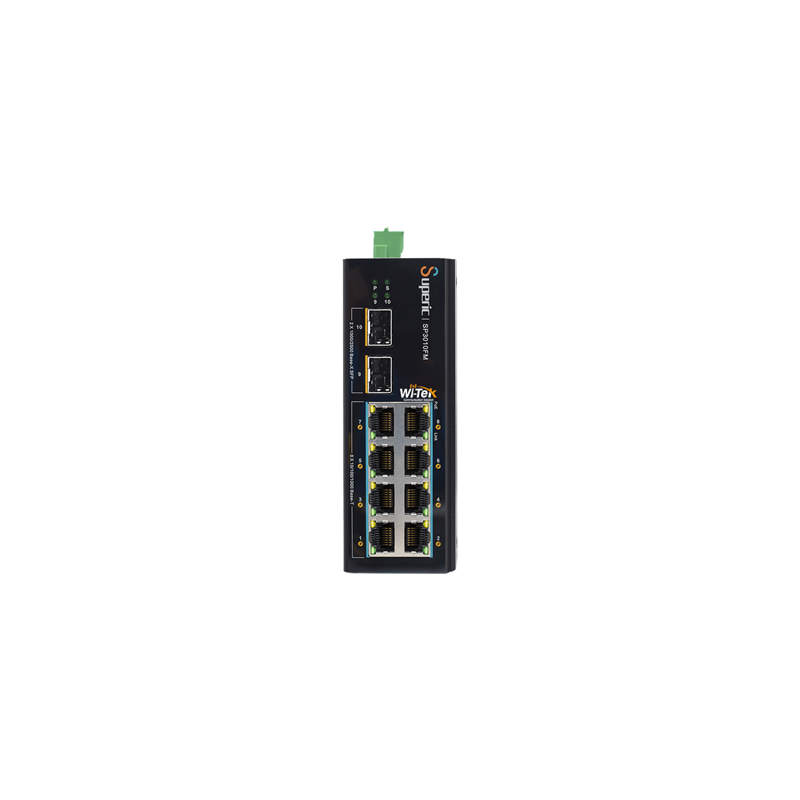

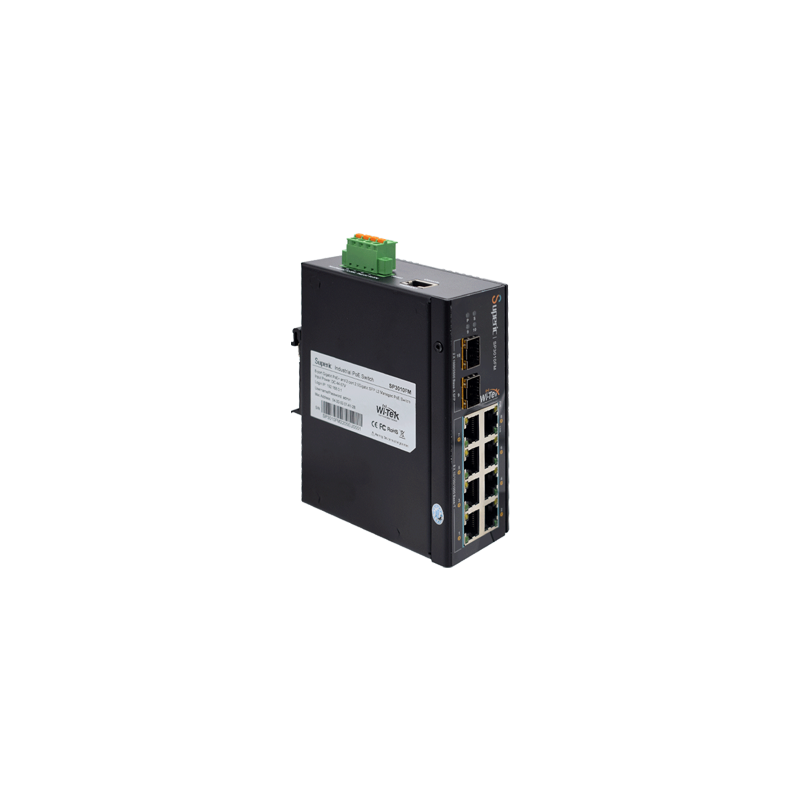

Wi-Tek - SP3010FM - 8GE+2*2.5G SFP Fiber Uplink Easy Smart Managed Industrial PoE Switch with 8Port PoE

  Model

SP3010FM

Interfaces

Downlink Ports

8*10/100/1000 Base-T PoE+ RJ-45(Auto-MDI/MDI-X)

Uplink Ports

2*1000/2500 Base-X SFP

Management port

1*RJ45 Console

PoE

PoE Standard

IEEE 802.3af/at (PSE)

PoE Power Supply Type

End-span

PoE Pin Assignment

1/2(+)，3/6(-)

PoE Power Output

46~55V DC

PoE Power

30W max for each port, 240W max

Switch Property

Standards

IEEE 802.3 10Base-T

IEEE 802.3u 100Base-TX

IEEE 802.3ab 1000Base-T

IEEE 802.3z 1000Base-X

IEEE 802.3x flow control and back pressure

IEEE 802.1D spanning tree protocol

IEEE 802.1w rapid spanning tree protocol

IEEE 802.1Q VLAN tagging

ITU-T G.8032 ERPS

IEEE 802.1X port authentication network control

IEEE 802.1ab LLDP

IEEE 802.3ad LACP

IEEE802.3af Power Over Ethernet

IEEE802.3at Power Over Ethernet plus PSE

Forwarding Modes

Store and Forward

Packet Buffer

2Mbit

MAC Table

16k

Switching Capacity

20Gbps

Packet Forwarding Rate

14.9Mpps

Jumbo Frame

10kB

Power Supply

Input Voltage

Power 1 (Main): 44~57V DC, Power 2 (Backup): 44~57V DC

Power Consumption

Full loading without PoE ≤ 10W PoE power budget ≤ 240W

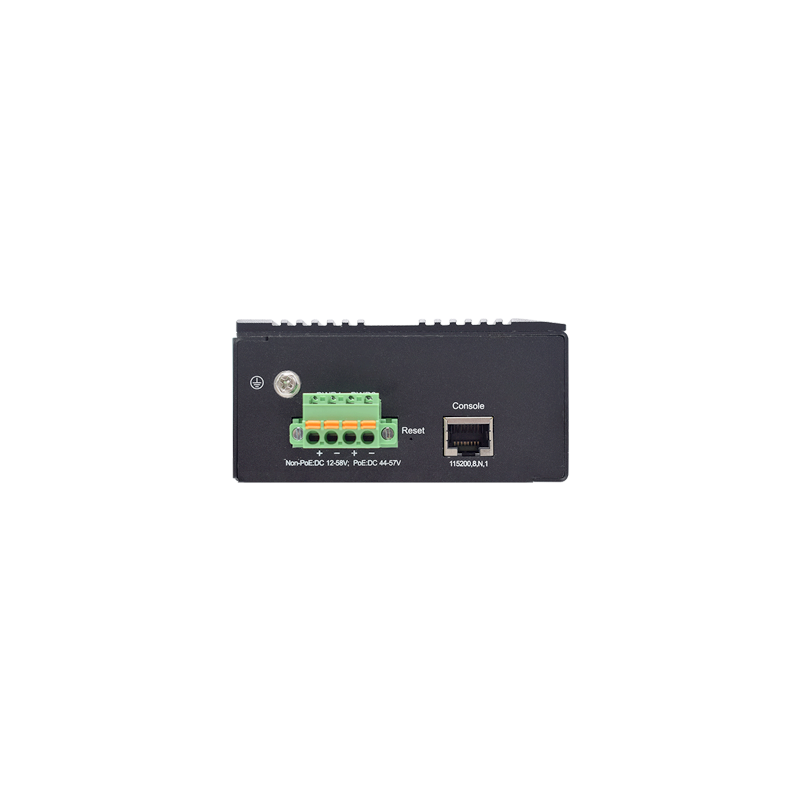

Connector

Removable 4-pin terminal block

Reverse polarity protection

Support

Over-voltage protection

Support

Over-current protection

Support

Environmental Reliability

Industrial Standard

Surge protection of power: IEC 61000-4-5  Level 3 (4kV/2kV)(8/20us)

Surge protection of Ethernet ports: IEC 61000-4-5  6kV/2kV (10/700us)

DIP: IEC 61000-4-11  Level 3 (10V)

ESD: IEC 61000-4-2  Level 4 (8kV/15kV)

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Operating Temperature

-40℃~75℃

Storage Temperature

-40℃~85℃

Operating Humidity

5%~95% (Non-condensation)

LED Indicators

P (Power indicator)

Off: the device is power off or failed

On: the device power on is normal

S (System status indicator)

Blinking: device initialization

On: device on and normal operation

Copper ports

1-8 Green indicators

Off: ports link down

On: ports link up

Blinking: data on TX/RX



1-8 Yellow indicators

Off: PoE not working

On: PoE working

Fiber ports

9-10 Fiber ports indicators

Off: ports link down

On: ports link up

Blinking: data on TX/RX

Dimensions (W*D*H)

48*98*130mm

Net Weight

690g

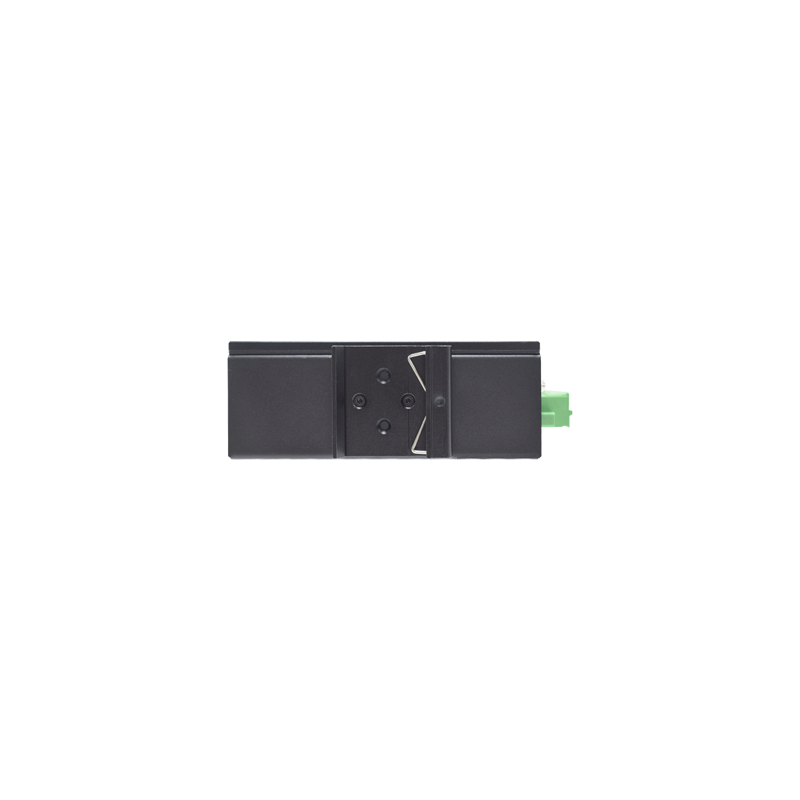

Installation

Desktop/DIN-rail

Certifications

Certifications

CE, FCC, RoHS

Software Feature

Port aggregation

Support 1GE port aggregation

Support 2.5GE aggregation

Support static aggregation

Support dynamic aggregation

Port features

Support IEEE802.3x flow control

Support port traffic statistics

Support port isolation

Support network storm suppression based on port bandwidth percentage

VLAN

Support access mode

Support trunk mode

Support hybrid mode

VLAN Classification

Mac Based VLAN

IP Based VLAN

Protocol Based VLAN

QinQ

Port-based QinQ

VLAN-based QinQ

Flow-based QinQ

Port mirroring

Many to one port mirroring

Ring network protocol

Support STP, RSTP, MSTP

Support G.8032 ERPS protocol, single ring, sub Ring and associated sub ring Recovery time ≤20ms

DHCP

Support DHCP Client

Support DHCP Snooping

Multicast

IGMP V1, V2, V3

IGMP snooping

ACL

IP Standard ACL

MAC extend ACL

IP extend ACL

QoS

Support QoS Class, Remarking

Support SP, WRR queue scheduling Ingress Port-based Rate-limit Egress

Support Policy-based QoS

Security

Support Dot1x, port authentication, MAC authentication, RADIUS service

Support port-security

Support IP Source Guard, IP/Port/MAC binding

Support ARP-check and ARP packet filtering for illegal users

Support port isolation

Management and maintenance

Support LLDP

Support user management and login authentication

Support SNMPV1/V2C/V3

Support web management, HTTP1.1, HTTPS

Support Syslog and alarm grading

Support RMON(Remote Monitoring) alarm

Support NTP

Support temperature monitoring

Support Ping, TRACERT

Support optical transceiver DDM function

Support TFTP Client

Support Telnet Server

Support SSH Server

Support IPv6 management

Support PoE management

Support TFTP, web upgrading
