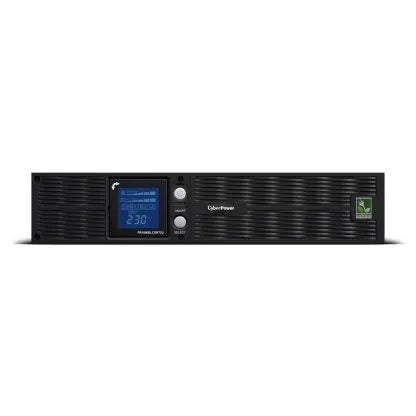

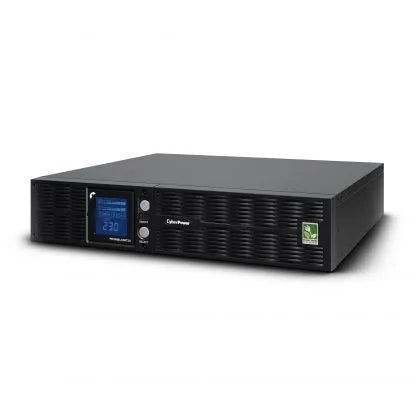

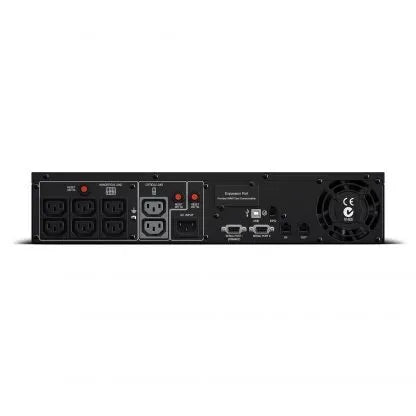

- CYBERPOWER - PR1000ELCDRT2U - 1000VA/700W 230V Sinewave 8 IEC outlet, AVR LCD AVR Rackmount, 3 year warranty CYBERPOWER - PR1000ELCDRT2U - 1000VA/700W 230V Sinewave 8 IEC outlet, AVR LCD AVR Rackmount, 3 year warranty
CYBERPOWER - PR1000ELCDRT2U - 1000VA/700W 230V Sinewave 8 IEC outlet, AVR LCD AVR Rackmount, 3 year warranty
- Description
- Specifications
- Downloads
- Replacement
- Reviews
A high-voltage rack/tower convertible UPS with line interactive topology and an adjustable output of either 220, 230 or 240 VAC, the CyberPower Smart App Sinewave PR1000ELCDRT2U provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR1000ELCDRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The PR1000ELCDRT2U comes with a $400,000 Connected Equipment Guarantee.
Features:
- Battery Backup: Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
- Surge Protection: Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- Data Line Protection: Prevents power surges that travel through telephone, coaxial, and Ethernet lines from causing damage to electronics.
- Line Interactive Topology: Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
- Automatic Voltage Regulation (AVR): Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
- Sine Wave Output: Provides power protection to ENERGY STAR 6.0 systems with Active PFC power supplies.
- GreenPower UPS Bypass Design: Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
- Rotatable Multifunction LCD Panel: Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime. The rotatable panel is easily readable whether the UPS is rack mounted or standing as a tower.

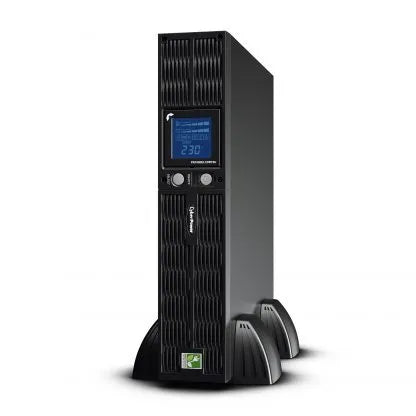

- Rack/Tower Versatility: Allows for horizontal rack or vertical tower installation.
- PowerPanel Business Edition Software: Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality.
- High-Voltage Input: 220V, 230V or 240V selectable input voltage allows for use in a wider variety of locations.
- Cisco Compatible: This CyberPower UPS system is a Cisco EnergyWise compliant end device.
- Three-Year Warranty: CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
| General | |
| Energy Saving | GreenPower UPS Bypass Technology |
| UPS Topology | Line Interactive |
| Battery | |
| Battery Quantity | 4 |
| Battery Size | 12 V / 7 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RBP0030 |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 7 min |
| Runtime at Half Load | 22 min |
| Typical Recharge Time | 6 Hours |
| User Replaceable Battery | Yes |
| Input | |
| Adjustable Voltage Range | 150 – 300 VAC |
| Circuit Breaker | 15 A |
| Cord Length | 6 ft (1.8 m) |
| Input Frequency Range | 47 Hz – 63 Hz |
| Input Plug Type | IEC-320 C14 |
| Input Voltage Range | 160 VAC – 288 VAC |
| Nominal Input Voltage | 230 VAC |
| Output | |
| Automatic Voltage Regulation | Double Boost |
| Single Buck | |
| On AC WaveForm | Sine Wave |
| On Battery Frequency | 50/60 Hz ± 0.1Hz |
| On Battery Voltage | 220/230/240 VAC ± 5% |
| On Battery Waveform | Sine Wave |
| Outlet Type | 8 – IEC-320 C13 |
| Outlets – Battery & Surge Protected | 8 |
| Outlets – Critical Load | 2 |
| Outlets – Total | 8 |
| Output Power Factor | 0.9 |
| Overload Protection | Internal Circuitry Limiting |
| Circuit Breaker Protected | |
| Typical Transfer Time | 4 ms |
| USB Charge Port | No |
| VA | 1000 VA |
| Watts | 900 W |
| Surge Protection & Filtering | |
| EMI/RFI Filtration | Yes |
| Phone / Network Protection RJ11/RJ45 | 1-In / 1-Out (Combo) |
| Surge Suppression (Joules) | 810 J |
| Management & Communications | |
| Audible Alarms | Battery Mode |
| Low Battery | |
| Overload | |
| Emergency Power Off (EPO) Port | Yes |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On |
| Management Cable | USB Cable |
| Serial Cable | |
| SNMP / HTTP Remote Monitoring | Yes – with optional RMCARD205 |
| Serial Port | 1 Serial |
| 1 Dry Contact | |
| Software (Free Download) | PowerPanel® Business |
| Physical | |
| Color | Black |
| Form Factor | Rack / Tower |
| Material of Construction | Metal |
| Rack Height | 2U |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.31 x 8.79 x 40.01 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17.05 x 3.46 x 15.75 (in) |
| Physical Dimensions – (WxHxD) (mm) | 433 x 88 x 400 (mm) |
| Physical Weight (kg) | 25.49 |
| Physical Weight (lb) | 56.2 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 9.75 |
| Shipping – Weight (lb) | 21.5 |
| Shipping Dimensions – (WxHxD) (cm) | 52.4 x 29.21 x 54.61 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 20.63 x 11.5 x 21.5 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 524.0 x 292.1 x 546.1 (mm) |
| Environmental | |
| Audible noise at 1.5M from surface of unit | 34.5 dBA |
| Online Thermal Dissipation | 64 BTU/hr |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | CE |
| Warranty | |
| CEG Amount | $400000 |
| Connected Equipment Guarantee | Lifetime |
| Extended Warranty Option | WEXT5YR-U4A |
| Product Warranty | 3 Year Limited Warranty |
