BOLIDE - BN1009/PTZ4K/NDAA - 8MP ( 4K ) 37x Optical 16x Digital Zoom Active Deterrent PTZ , Built-in Microphone and Speaker, Dual Source Illumination, iPac AI Enabled, Supports Audio and Light Alarm with Blue and Red Flashing Light, IR Up to 656 Feet
BOLIDE - BN1009/PTZ4K/NDAA - 8MP ( 4K ) 37x Optical 16x Digital Zoom Active Deterrent PTZ , Built-in Microphone and Speaker, Dual Source Illumination, iPac AI Enabled, Supports Audio and Light Alarm with Blue and Red Flashing Light, IR Up to 656 Feet
BOLIDE - BN1009/PTZ4K/NDAA - 8MP ( 4K ) 37x Optical 16x Digital Zoom Active Deterrent PTZ , Built-in Microphone and Speaker, Dual Source Illumination, iPac AI Enabled, Supports Audio and Light Alarm with Blue and Red Flashing Light, IR Up to 656 Feet
BOLIDE - BN1009/PTZ4K/NDAA - 8MP ( 4K ) 37x Optical 16x Digital Zoom Active Deterrent PTZ , Built-in Microphone and Speaker, Dual Source Illumination, iPac AI Enabled, Supports Audio and Light Alarm with Blue and Red Flashing Light, IR Up to 656 Feet
BOLIDE - BN1009/PTZ4K/NDAA - 8MP ( 4K ) 37x Optical 16x Digital Zoom Active Deterrent PTZ , Built-in Microphone and Speaker, Dual Source Illumination, iPac AI Enabled, Supports Audio and Light Alarm with Blue and Red Flashing Light, IR Up to 656 Feet
BOLIDE - BN1009/PTZ4K/NDAA - 8MP ( 4K ) 37x Optical 16x Digital Zoom Active Deterrent PTZ , Built-in Microphone and Speaker, Dual Source Illumination, iPac AI Enabled, Supports Audio and Light Alarm with Blue and Red Flashing Light, IR Up to 656 Feet
Bolide

BOLIDE - BN1009/PTZ4K/NDAA - 8MP ( 4K ) 37x Optical 16x Digital Zoom Active Deterrent PTZ , Built-in Microphone and Speaker, Dual Source Illumination, iPac AI Enabled, Supports Audio and Light Alarm with Blue and Red Flashing Light, IR Up to 656 Feet

Product SKU: BN1009/PTZ4K/NDAA
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
$1,545.75
$2,384.00
Notify me When Available
You will receive an email when the product is available.
  • Description
  • Specifications
  • Downloads

• 1/1.8" Progressive Scan CMOS
• 8MP (4K) Resolution
• 37x Optical Zoom and 16x Digital Zoom
• Built-in Microphone and Speaker
• Dual Sources Illumination
• Deep Learning Algorithm
• Supports Audio and Light Alarm with Blue And Red Flashing Light

  Camera
Image Sensor1/1.8" Progressive CMOS
Max Resolution8MP 3840 (H) × 2160 (V)
Min. IlluminationColor: 0.0005 Lux @ (F1.6, AGC ON)
B/W: 0 Lux with Light
Shutter Speed1/5s to 1/20000s
Day & NightAuto Switch
Zoom37x Optical, 16x Digital
Lens
Focal Length5.5mm – 202mm
Angle of ViewH: 60° ~ 2.31°, V: 35.5 ~ 1.3°
D: 67.5° ~ 2.65°
Max ApertureMax F1.6
Focus ControlAuto / Manual / Semi-Automatic
PTZ
Movement Range (Pan)360°
Movement Range (Tilt)-20° to 90° (Auto Flip)
Pan SpeedConfigurable from 0.6° to 200°/s
Preset Speed: 200°/s
Tilt SpeedConfigurable from 0.6° to 90°/s
Preset Speed: 200°/s
Presets255
Patrol Scan4 Patrols, Up to 32 Presets for Each Patrol
Pattern Scan4 Pattern Scans
Power-Off MemoryYes
3D PositioningYes
Illuminator
Supplement Light RangeWhite Light: Up to 25M
IR: Up to 200M
Supplement Light TypeHybrid (IR and White Light)
Video
Main Stream50Hz: 25FPS (3840x2160/3072x1728/2592x1944/2592x1520/2304x1296/1920x1080/1280x960/1280x720)
60Hz: 30FPS (3840x2160/3072x1728/2592x1944/2592x1520/2304x1296/1920x1080/1280x960/1280x720)
Sub-Stream50Hz: 25FPS (1920x1080/1280x720/640x480/320x240)
60Hz: 30FPS (1920x1080/1280x720/640x480/320x240)
Third Stream50Hz: 25FPS (620x480/320x240)
60Hz: 30FPS (620x480/320x240)
Video Encoding
Video Bit Rate8kbps to 16384kbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Region of Interest (ROI)8
Audio
Audio CompressionG.711, RAW_PCM
Event
Basic EventMotion Detection, Video Tampering Alarm, Alarm Input And Output, Sound Detection
Deep LearningFace Recognition, Human and Vehicle Detection
Perimeter IntrusionLine Crossing Detection, Stationary Object Detection, Cross Counting, Heat Map, Intrusion Detection, Region Entrance Detection, Region Exiting Detection
License Plate RecognitionYes
Smart TrackingAuto Tracking
Alarm LinkageUpload to FTP, Send E-mail, Trigger Alarm Output, Trigger Recording
General
Power36VDC/24VAC/PoE++, Max 44.80W
Operating Condition-30°C to 60°C (-22°F to 149°F)
Humidity90% or Less (Non-Condensing)
MaterialMetal

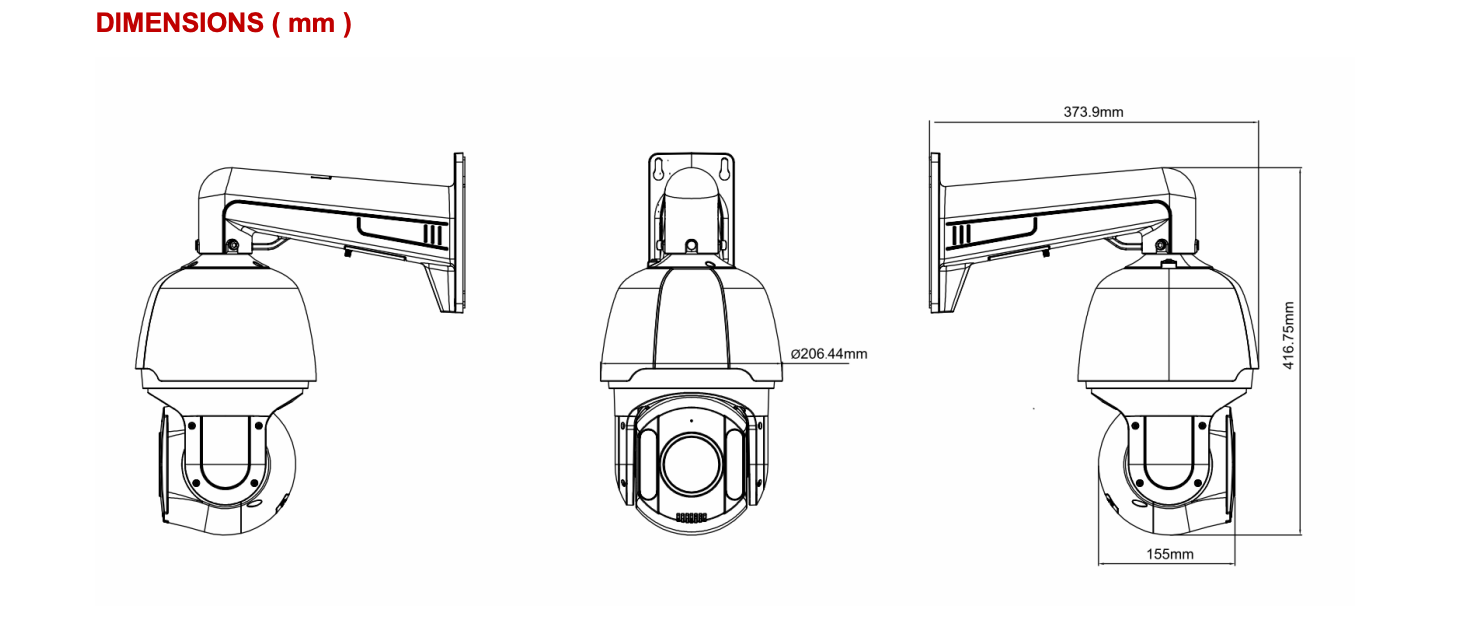

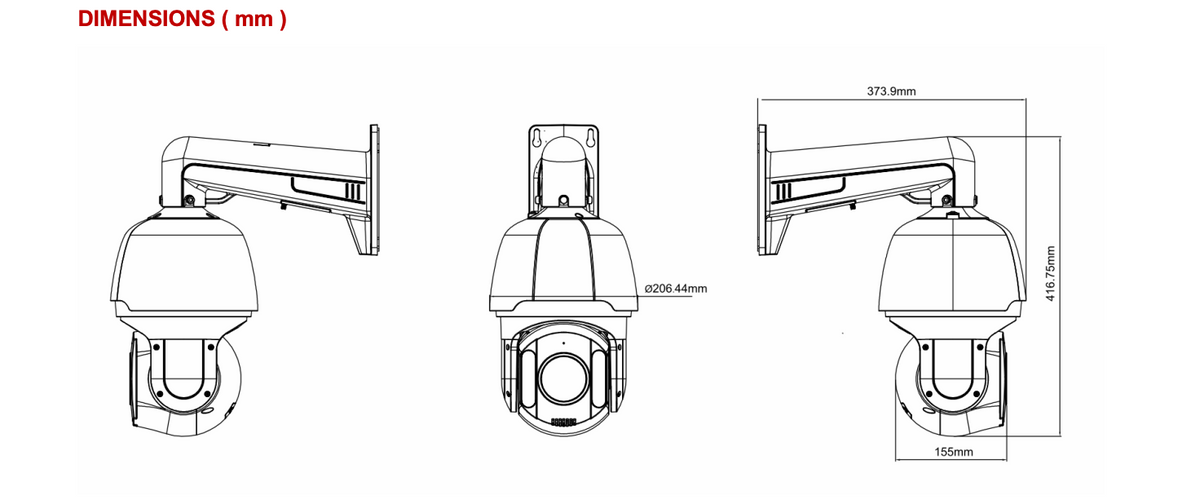

Dimension206.4mm x 337.8mm (8.13" x 13.3")
Weight5.27kg (11.6lb)
Weather RatingIP67, IK10
Model NumberBN1009/PTZ4K/NDAA
Description4K 37x Optical Zoom Active Deterrent Network PTZ Camera
Network
ProtocolsIPv4, IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, PPPoE, RTMP
ONVIF ProfileProfile M, S, G, T
APIHttp API
Simultaneous LiveUp to 14 Channels
User/HostUp to 15 Users, 3 User Levels: Administrator, Operator, User
SecurityPassword Protection, Complicated Password, HTTPS Encryption, IP Address Filter, Control Timeout Settings
Web BrowserIE10/11, Safari V12.1 Above, Firefox V.52 Above, Google Chrome V.57 Above, Edge V.79 Above
ClientBolide VMS
Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, HLC, 3D DNR
Wide Dynamic Range (WDR)120dB
Digital Image StabilizationYes
Image SettingsSaturation, Brightness, Contrast, Sharpness, Hue and White Balance Adjustable by Client Software or Web Browser
Privacy4 Privacy Masks
Interface
Ethernet Interface1 RJ45 10M/100M Self-Adaptive Ethernet Port
On-Board StorageBuilt-in Memory Card Slot, Supports MicroSD/SDHC/SDXC Card, Up to 256GB
Alarm1 Input, 1 Output
Audio1 Input (Line In), 1 Output (Line Out); Built-in Microphone and Speaker
ResetYes
RS-485 InterfaceControl By Joystick Controller (Only Use PTZ Function)
