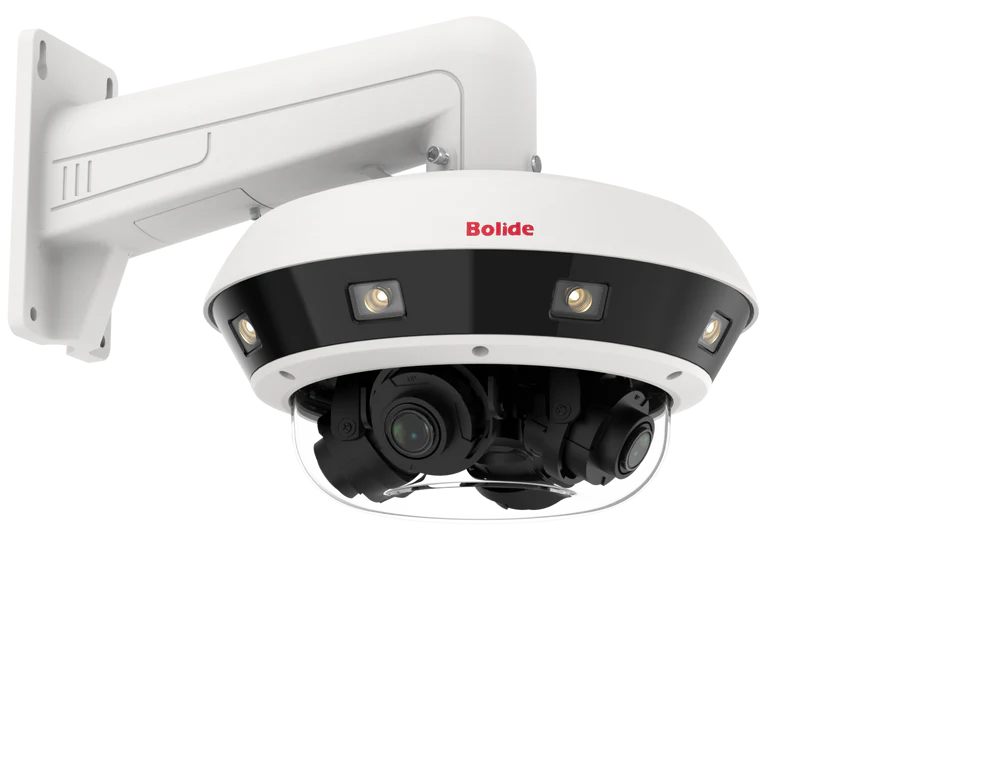

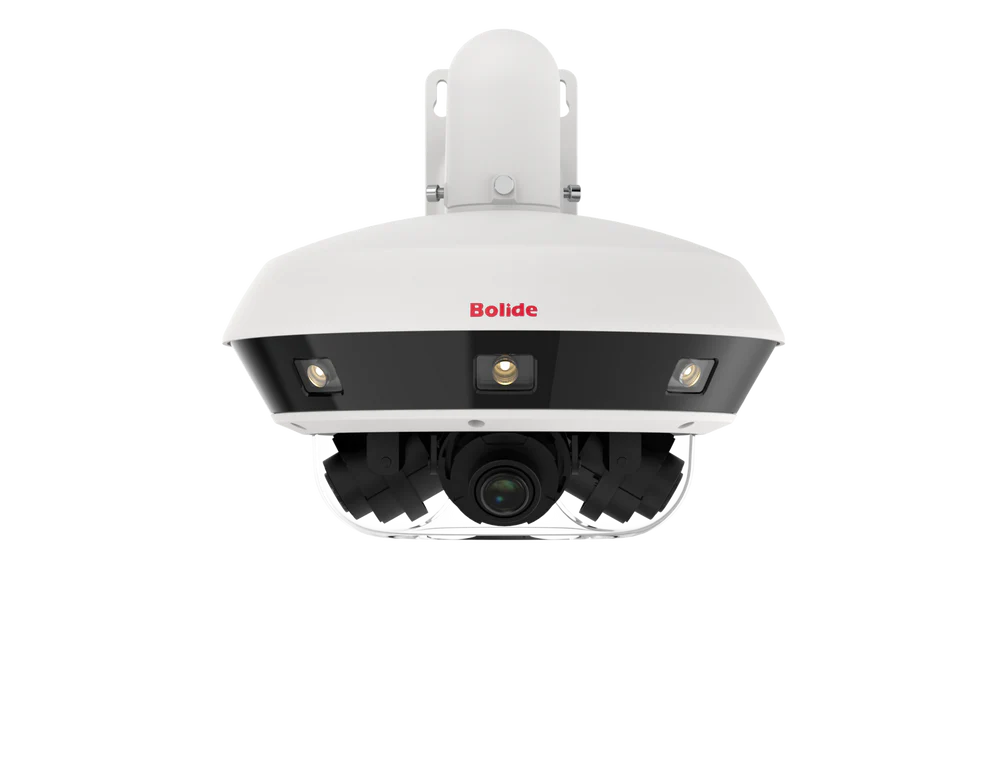

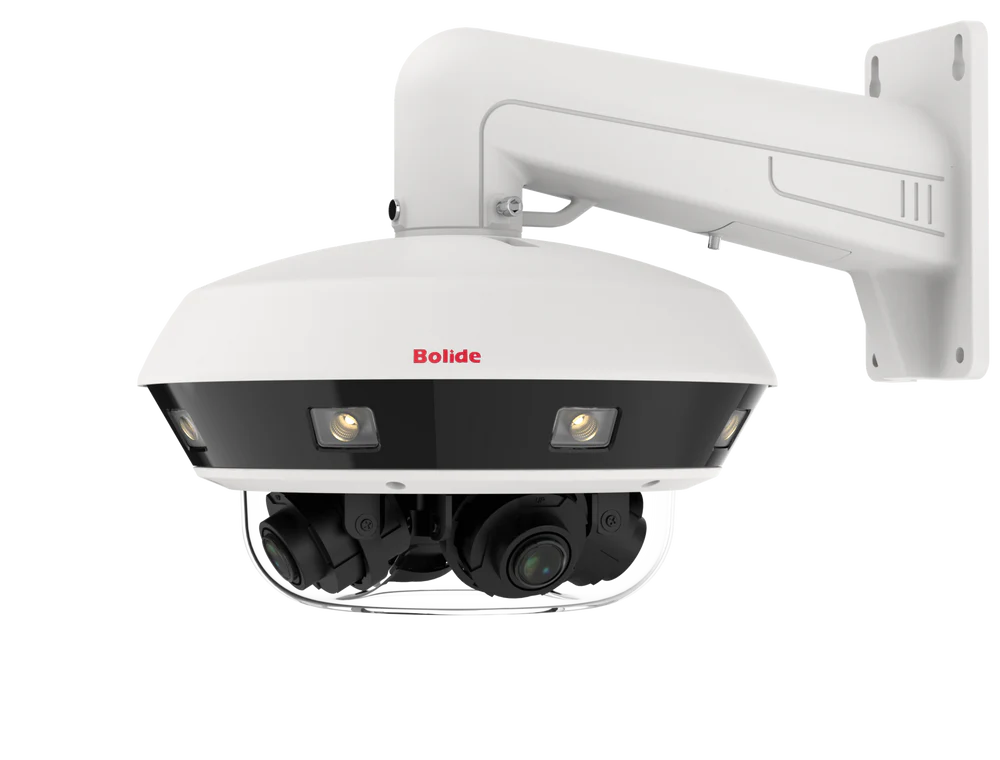

BOLIDE - BN9108R/NDAA - 4K Multi-Sensor Camera, 4 Adjustable Lenses In One Camera Cover Up to 360° Field of View, 4-Channel Steam Output, and Each Channel Can Output Max. 8MP (3840x2160) @ 25/30FPS, 4-Channel Starlight and 120Db WDR, Built-in Dual So

Bolide

BOLIDE - BN9108R/NDAA - 4K Multi-Sensor Camera, 4 Adjustable Lenses In One Camera Cover Up to 360° Field of View, 4-Channel Steam Output, and Each Channel Can Output Max. 8MP (3840x2160) @ 25/30FPS, 4-Channel Starlight and 120Db WDR, Built-in Dual So

Name: BOLIDE - BN9108R/NDAA - 4K Multi-Sensor Camera, 4 Adjustable Lenses In One Camera Cover Up to 360° Field of View, 4-Channel Steam Output, and Each Channel Can Output Max. 8MP (3840x2160) @ 25/30FPS, 4-Channel Starlight and 120Db WDR, Built-in Dual So
Brand: Bolide
SKU: BN9108R/NDAA
Price: 2168.1 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: BN9108R/NDAA

$2,168.10

~~$3,345.44~~

Description
Specifications
Downloads
Reviews

• 4 Adjustable Lenses In One Camera Cover Up to 360° Field of View
• 4-Channel Steam Output, and Each Channel Can Output Max. 8MP (3840x2160) @ 25/30FPS
• 4-Channel Starlight and 120Db WDR
• All-in-One, Design IP, Multi-Channel, Multiple Use
• The Intelligence Functions of 4 Channels Can Be Enabled At The Same Time
• Built-in Dual Source Illuminator (IR & Warm light)
• IP67 / IK10 Water-Resistant and Vandal-Proof, Preventing Water Ingress for Outdoor Use

Image Sensor
Image Sensor	1/1.8" Progressive CMOS (EA)
Max Resolution	8MP 3840 (H) × 2160 (EA)
Min. Illumination	Color 0.006Lux @ F1.2 (AGC ON); B/W 0.002 lux @ (F1.2, AGC ON); 0 Lux with IR On / White Light On
Shutter Time	1/5s – 1/20,000 s
Day & Night	IR Cut Filter
Angle Adjustment	Four Flexible Lens in One Track, Slide range: -60° to 60°, Tilt: 0° to 90°, Rotate: 0° to 355°
Lens
Lens	2.8 ~ 12mm, Varifocal Motorized Lens
Field of View	Horizontal FOV: 48° to 112° Vertical FOV: 27° to 58° Diagonal FOV: 55° to 138°
Lens Mount	16.7
Aperture	Max. F1.30
Illuminator
Supplement Light Type	IR and Warm Light
Supplement Light Range	Up to 98Ft (IR) / 49Ft (Warmlight)
IR Wavelength	850nm
Smart Supplement Light	Yes
Video
Resolution	Main Stream: 50/60Hz: 25FPS 8MP (3840x2160) 5MP (2592x1944, 3072x1728) 4MP (2592x1520) 3MP (2304x1296) 1080P(1920x1080) 960P (1280x960) 720P(1280x720) Sub Stream: 50/60Hz: 25FPS 720P(1280x720) VGA (640x480), QVGA (320x240)
Video Compression	H.265+/H.265/H.264+/H.264
Video Bit Rate	8Kbps to 16Mbps
H.264 Type	Baseline Profile/Main Profile/High Profile
H.265 Type	Main Profile
Region of Interest (ROI)	Yes
