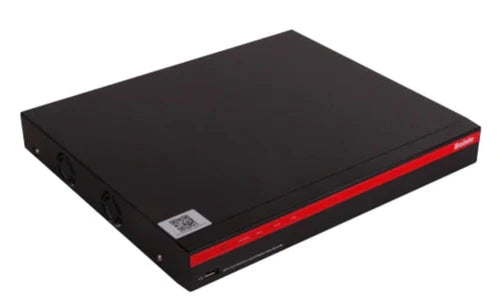

BOLIDE - SVR9516HAI - 16-Channel H.265 5MP HD Over Coax / IP Hybrid DVR, Supports AHD / TVI / CVI/ Analog Formats, 128Mbps + 192Mbps With Analog Off IP Camera Throughput, 4K Output, HDMI and VGA, 16-Channel Audio In/ 1-Channel Audio Out, 16-Channel A
BOLIDE - SVR9516HAI - 16-Channel H.265 5MP HD Over Coax / IP Hybrid DVR, Supports AHD / TVI / CVI/ Analog Formats, 128Mbps + 192Mbps With Analog Off IP Camera Throughput, 4K Output, HDMI and VGA, 16-Channel Audio In/ 1-Channel Audio Out, 16-Channel A
Bolide

BOLIDE - SVR9516HAI - 16-Channel H.265 5MP HD Over Coax / IP Hybrid DVR, Supports AHD / TVI / CVI/ Analog Formats, 128Mbps + 192Mbps With Analog Off IP Camera Throughput, 4K Output, HDMI and VGA, 16-Channel Audio In/ 1-Channel Audio Out, 16-Channel A

Product SKU: SVR9516HAI
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
$604.80
$932.26
Notify me When Available
You will receive an email when the product is available.
  • Description
  • Specifications
  • Downloads

16-Channel H.265 5MP HD Over Coax / IP Hybrid DVR, Supports AHD / TVI / CVI/ Analog Formats, 128Mbps + 192Mbps With Analog Off IP Camera Throughput, 4K Output, HDMI and VGA, 16-Channel Audio In/ 1-Channel Audio Out, 16-Channel Alarm In/ 1-Channel Alarm Out, BNC Spot Out, 2 SATA Hard Drive Bay Up to 24TB, QuickConnect NDAA Compliant



Features:

  • 4K / 5MP Resolution
  • NDAA Compliant
  • Hybrid DVR - Additional IP Channels
  • 2 HDD Bays Up to 12TB / Bay (24TB Total)
  • 1 HDMI, 1 VGA Outputs
  • Built-in Video Analytics
  • Bolide QuickConnect Enabled
  • iPac AI Enabled
Display
ResolutionVGA: 1024x768,1280x720, 1280x1024, 1440x900, 1920x1080
HDMI: 1024x768,1280x720, 1280x1024, 1440x900, 1920x1080, 2560x1440, 3840x2160
FeatureSingle/Quad/Nine/S.E.Q/Custom
Record
ResolutionAnalog
8MP/5MP/4MP/3MP/1080P/720P/960H
IP
8MP/5MP/4MP/3MP/1080P/720P/960H
SpeedAnalog: 8MP: 7FPS / Channel, 5MP:12FPS / Channel,                  4MP:15FPS / Channel, 1080P: PAL: 25FPS / Channel,
NTSC: 30FPS / Channel
IP: PAL: 25FPS / Channel, NTSC: 30FPS / Channel
Sub-Stream
PAL：704x576: 10FPS/Channel, NTSC：704x480:10FPS/Channel
Video CompressionH.265 / H.264
Video SystemNTSC / PAL
Operating SystemLinux (embedded)
Analog video Input/ Output16-Channel BNC / VGA, HDMI, BNC Output
IP Video Input16-Channels
Composite Video InputUp to 24 Channels ( Analog & IP )
Audio Input/Output16 Audio In / 1 Audio Out
IP-Recording BandwidthUp to 192Mbps
Max. Output Bandwidth192Mbps
Recording ModeContinuous / Manual / Motion Detection / Alarm / Video Analytics
Synchronous PlaybackUp to 16 Channels
Network TypeLAN, DHCP
HDD Interface2 SATA HDD, Up To 12TB Per Bay ( 24TB Total )
USB1 USB 2.0 ( Front ), 1 USB 3.0 ( Rear )
PTZ ControlControl Over Coax, RS-485
Mobile SurveillanceBolide Quick Connect on iOS / Android
Power SupplyDC12V / 5A
Dimension14.96" x 13" x 1.96"
Working Temperature32°F~+104°F
Working Humidity10%~90%
SVR9516HAI_f26e5a38-b095-4db4-87ed-4c46140b6704.pdf:
