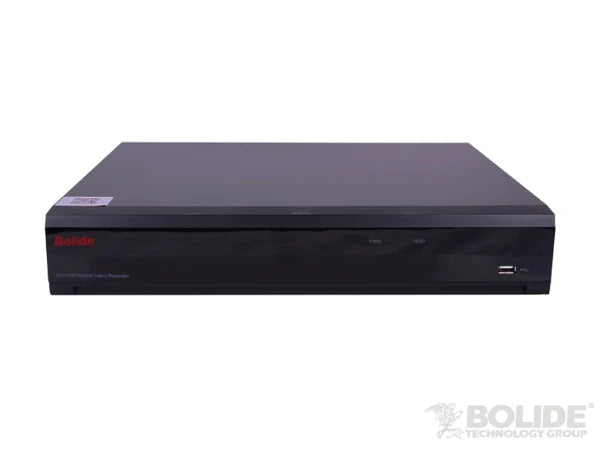

BOLIDE - SVR9532H/NDAA - 32-Channel H.264 5MP Lite HD Over Coax / IP Hybrid DVR, Supports AHD / TVI / CVI/ Analog Formats, 32Mbps IP Throughput, Records Up to 1080P, 4K Output, HDMI and VGA, 4-Channel Audio In/ 1-Channel Audio Out, 16-Channel Alarm I
BOLIDE - SVR9532H/NDAA - 32-Channel H.264 5MP Lite HD Over Coax / IP Hybrid DVR, Supports AHD / TVI / CVI/ Analog Formats, 32Mbps IP Throughput, Records Up to 1080P, 4K Output, HDMI and VGA, 4-Channel Audio In/ 1-Channel Audio Out, 16-Channel Alarm I
BOLIDE - SVR9532H/NDAA - 32-Channel H.264 5MP Lite HD Over Coax / IP Hybrid DVR, Supports AHD / TVI / CVI/ Analog Formats, 32Mbps IP Throughput, Records Up to 1080P, 4K Output, HDMI and VGA, 4-Channel Audio In/ 1-Channel Audio Out, 16-Channel Alarm I
BOLIDE - SVR9532H/NDAA - 32-Channel H.264 5MP Lite HD Over Coax / IP Hybrid DVR, Supports AHD / TVI / CVI/ Analog Formats, 32Mbps IP Throughput, Records Up to 1080P, 4K Output, HDMI and VGA, 4-Channel Audio In/ 1-Channel Audio Out, 16-Channel Alarm I
BOLIDE - SVR9532H/NDAA - 32-Channel H.264 5MP Lite HD Over Coax / IP Hybrid DVR, Supports AHD / TVI / CVI/ Analog Formats, 32Mbps IP Throughput, Records Up to 1080P, 4K Output, HDMI and VGA, 4-Channel Audio In/ 1-Channel Audio Out, 16-Channel Alarm I
BOLIDE - SVR9532H/NDAA - 32-Channel H.264 5MP Lite HD Over Coax / IP Hybrid DVR, Supports AHD / TVI / CVI/ Analog Formats, 32Mbps IP Throughput, Records Up to 1080P, 4K Output, HDMI and VGA, 4-Channel Audio In/ 1-Channel Audio Out, 16-Channel Alarm I
Bolide

BOLIDE - SVR9532H/NDAA - 32-Channel H.264 5MP Lite HD Over Coax / IP Hybrid DVR, Supports AHD / TVI / CVI/ Analog Formats, 32Mbps IP Throughput, Records Up to 1080P, 4K Output, HDMI and VGA, 4-Channel Audio In/ 1-Channel Audio Out, 16-Channel Alarm I

Product SKU: SVR9532H/NDAA
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
$945.00
$1,457.86
Notify me When Available
You will receive an email when the product is available.
  • Description
  • Specifications
  • Downloads

• 32-Channel DVR H.264

• HYBRID: Analog & IP

• 2 Hard Drive Bays Up to 24TB

• Control over Coax

  Display
ResolutionAnalog: 5MP (20fps), 3MP(18FPS), 1080P/720P/960H
IP: 5MP/4MP/3MP/1080P/720P
Feature1/4/6/8/9/10/13/14/16/17/19/22/25/32/36/49/S.E.Q.
Record
ResolutionAnalog: 1080P/720P/960H
IP: 1080P/720P
SpeedAnalog 1080P: PAL: 15fps (each ch)
720P: PAL: 25fps (each ch) / NTSC: 30fps (each ch)
960H: PAL: 25fps (each ch) / NTSC: 30fps (each ch)
IP: PAL: 25fps (each ch) / NTSC: 30fps (each ch)
Video
Video CompressionH.264
Video SystemNTSC/PAL
Operating SystemLinux (embedded)

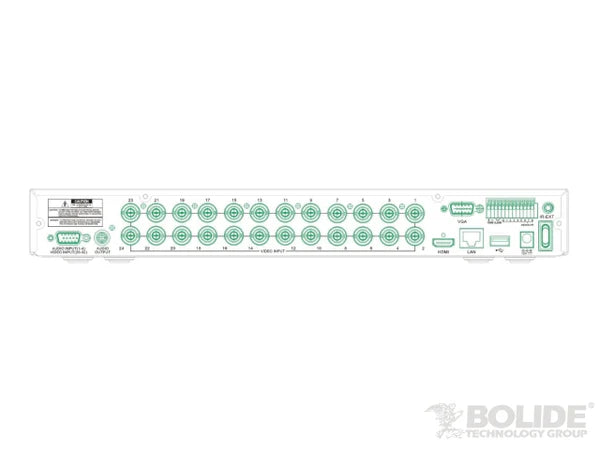

Input/Output
Analog video input/output32CH inputs / VGA & HDMI output
IP Video InputUp to 4CH
Composite Video InputUp to 40 CH (Analog video + IP video)
Audio Input/Output4CH inputs / 1 CH output (RCA)
Performance
IP-Recording Bandwidth32Mbps
Max. Output Bandwidth128Mbps
Max. Decode Performance5MP: 16CH realtime
Recording ModeContinuous/Manual/Motion detect
Synchronous Playback16CH
Network & Storage
Network TypeTCP/IP, P2P
HDD Interface2 x SATA (Up to 24TB)
Sensor & Alarm I/O8CH inputs / 1CH output
USB2 x USB (for mouse and backup)
Control & Connectivity
PTZ ControlRS-485, Control over Coax
Mobile SurveillanceSupports mobile phones: iPhone/Android
VGA/HDMI1280*1024, 1440*900, 1280*720, 1920*1080, 1680*1050, 1600*1200, 1920*1200, 2560*1440, 3840*2160
Power
Power SupplyDC12V/5A
Physical
Dimension378 x 326 x 66mm
Working Temperature-10°C ~ 55°C
Working Humidity10% ~ 90%
SVR9532H_ENG_124603d9-388b-437d-a747-8ff04f862594.pdf:
