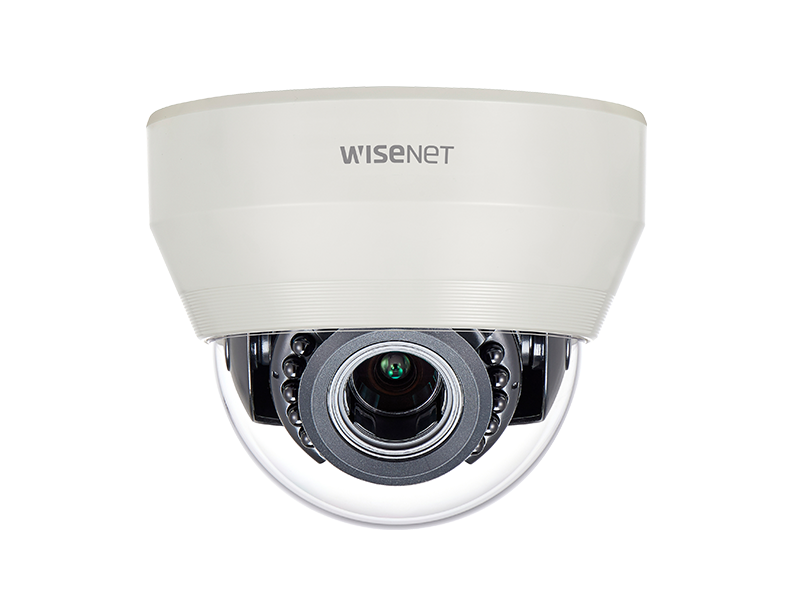

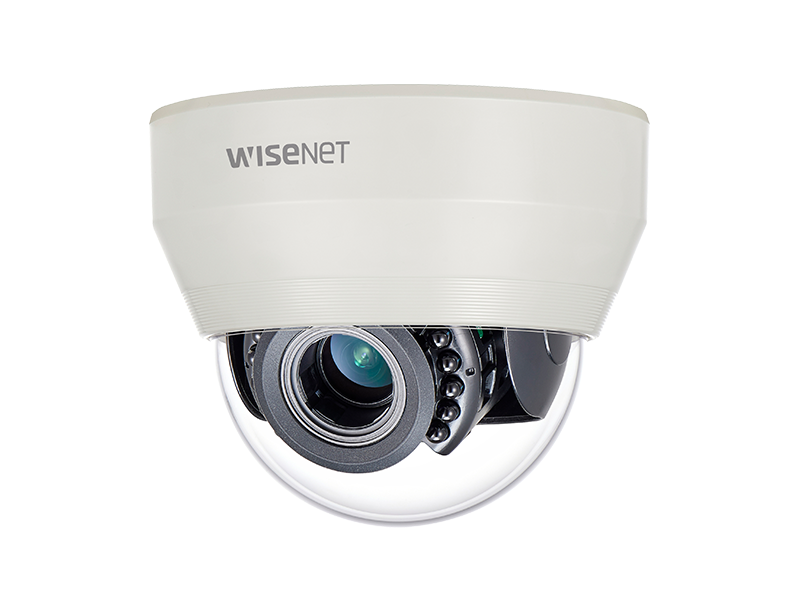

HCD-7070R - DISCONTINUED Replacement: HCD-7070RA

HCD-7070RN/P

VIDEO

Imaging Device

1/3" 4M CMOS

Total Pixels

2,720(H) x 1,536(V)

Effective Pixels

2,688(H) x 1,520(V)

Scanning System

Progressive Scan

Min. Illumination

Color : 0.16 Lux (F1.6)

B/W : 0 Lux (IR LED on)

S / N Ratio

Video Output

Resolution

2560 x 1440

Max. Framerate

30fps @ 4M

25fps @ 4M

PAN / TILT / ROTATE

Pan / Tilt / Rotate Range

0° ~ 350° / 0° ~ 63° / 0° ~ 355°

LENS TYPE

Focal Length (Zoom Ratio)

3.2 ~ 10mm (3.1x) varifocal

Max. Aperture Ratio

F1.6

Angular Field of View

H : 93.48˚(Wide) ~ 29.44˚(Tele) / V : 50.47˚(Wide) ~ 16.64˚(Tele) / D : 112.53˚(Wide) ~ 33.7˚(Tele)

Min. Object Distance

0.5m (1.64ft)

Focus Control

Manual

Lens Type

DC Auto Iris

Mount Type

Board-in Type

OPERATIONAL

On Screen Display

Multi-language Support (14)

English, Spanish, French, Portuguese, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish

Day & Night

Auto (ICR) / Color / B/W

Backlight Compensation

Off / User BLC / HLC

Wide Dynamic Range

D-WDR (Off / On)

Digital Noise Reduction

2D DNR

Motion detection

Off / On (4 zones)

Privacy Masking

Off / On (2 zones rectangle)

Gain Control

Off / Low / Middle / High / Very High

White Balance

ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°)

Electronic Shutter Speed

1/30sec ~ 1/12,000sec

1/25sec ~ 1/12,000sec

Reverse

Off / H-Rev / V-Rev

Alarm

(MD) output 1

Remote Control Interface

Coaxial

Protocol

AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron)

IR Distance

20m (65.62ft)

Video Transmission Distance

500m (5C2V Coaxial cable)

ENVIRONMENTAL

Operating Temperature / Humidity

-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH

ELECTRICAL

Input Voltage

Dual ( 24V AC ±10% & 12V DC ±10%)

Power Consumption

Max. 5.8W

MECHANICAL

Color / Material

Ivory / Plastic

Dimensions (WxH)

Ø119.8 x 98.5mm (Ø4.72" x 3.88")

Weight

320g (0.71 lb)
