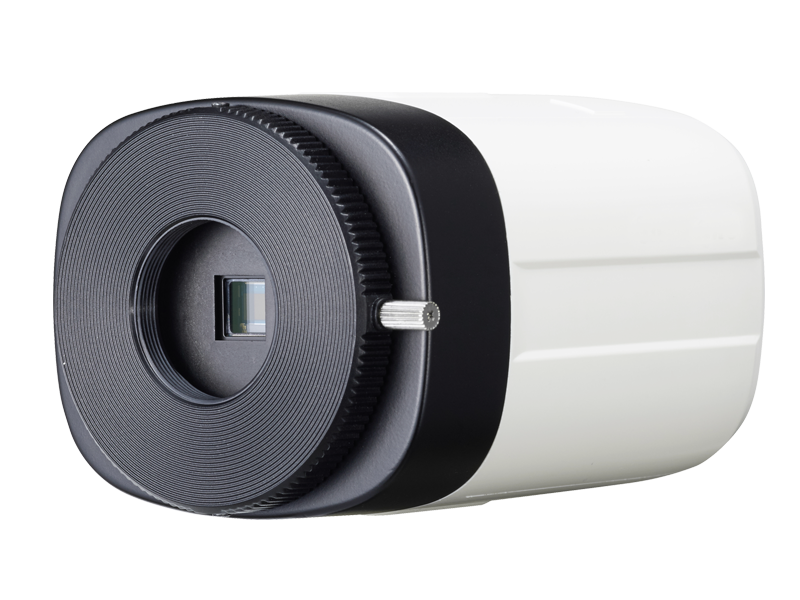

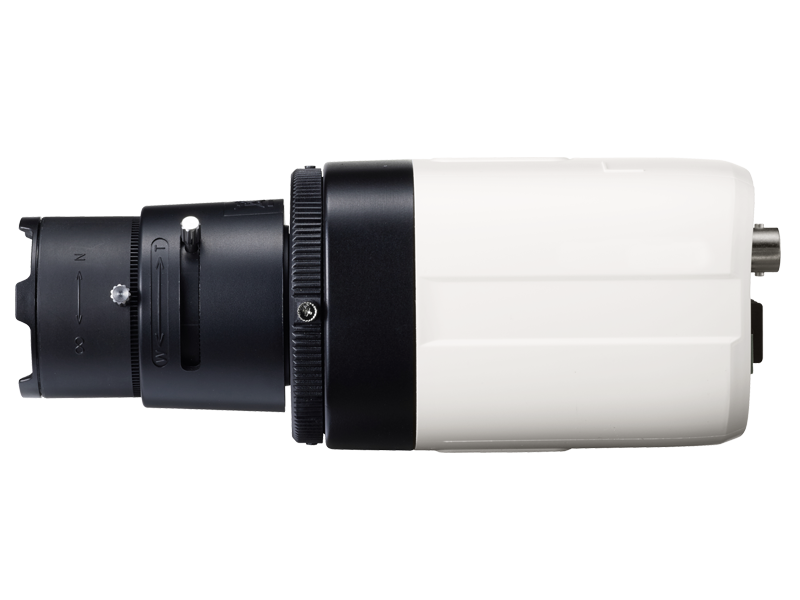

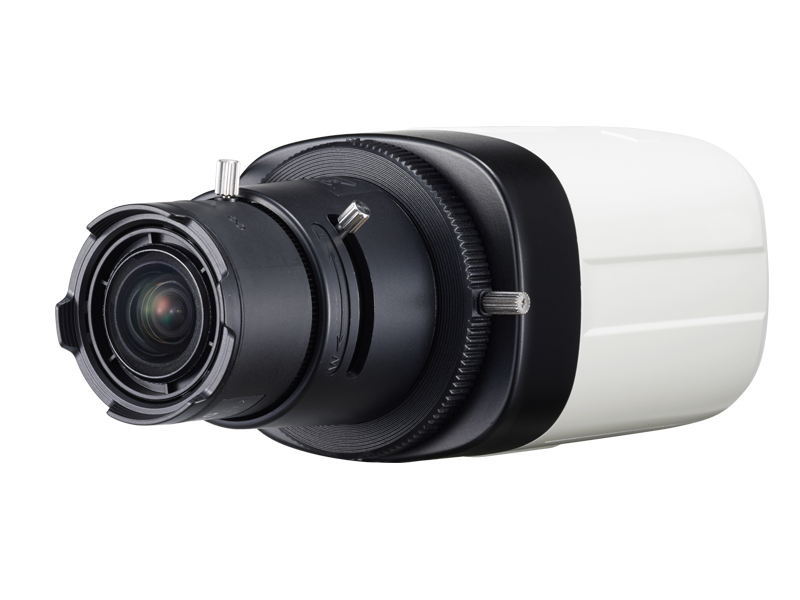

SCB-6003 - DISCONTINUED

Model

SCB-6003

Video

Imaging Device

1/3" 2M CMOS

Total Pixels

1,956(H) x 1,266(V) 2.47M pixels

Effective Pixels

1,944(H) x 1,092(V) 2.12M pixels

Scanning System

Progressive scan

Min. Illumination

Color : 0.04Lux (F1.2)

B/W : 0.004Lux (F1.2)

S / N Ratio

52dB (AGC off, Weight on)

Video Output

BNC (AHD, CVBS selectable)

Resolution

1920 x 1080

Max. Framerate

30fps@1080p, 30fps@720p

Lens

Mount Type

C/CS

Operational

On Screen Display

English, Japanese, Spanish, French, Portuguese, Korean, German, Italian,

Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish

Camera Title

Off / On (Displayed 15 characters)

Day & Night

Auto (ICR) / External / Color / B/W

Backlight Compensation

Off / User BLC / HLC

Wide Dynamic Range

DWDR

Digital Noise Reduction

SSNRIV (Off / On)

Defog

Off / Auto / Manual

Motion Detection

Off / On (4 zones)

Privacy Masking

Off / On (4 zones rectangle)

Gain Control

Off / Low / Middle / High

White Balance

ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°)

Electronic Shutter Speed

1sec ~ 1/12,000sec

Reverse

Off / H-Rev / V-Rev / HV-Rev

Profile

Basic, Day & Night, Backlight, Indoor, User

Alarm

(MD) output 1, External D/N 1

Remote Control Interface

Coaxial control, RS-485

Protocol

Coax : NTSC/PAL - Samsung CCVC, Pelco-C (Coaxitron), AHD - ACP (AHD Coax Protocol)

RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, Honeywell, Vicon, AD, GE

Video Transmission Distance

500m (1,640.42ft) (75-5 coaxial cable)

Environmental

Operating Temperature / Humidity

-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH

Electrical

Input Voltage / Current

Dual (24V AC & 12V DC ±10%)

Power Consumption

Max. 4.2W

Mechanical

Color / Material

Black, Ivory / Aluminum, Plastic

Dimensions (WxHxD)

68.4 x 59.6 x 92.7mm (2.69" x 2.35" x 3.65")

Weight

175.5g (0.39 lb)
