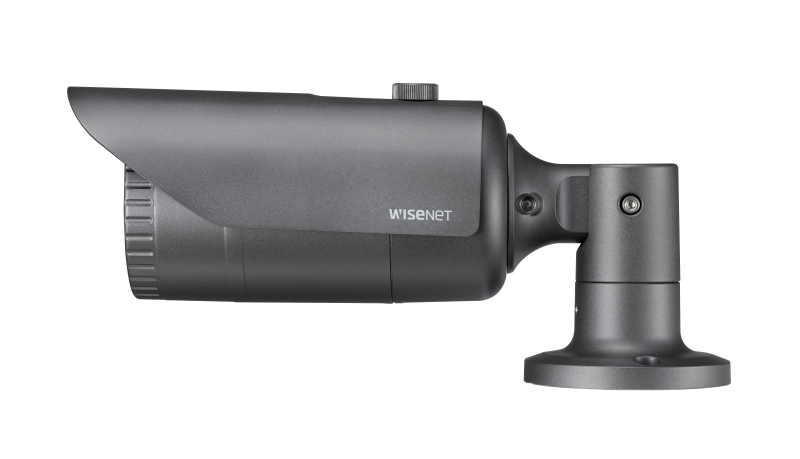

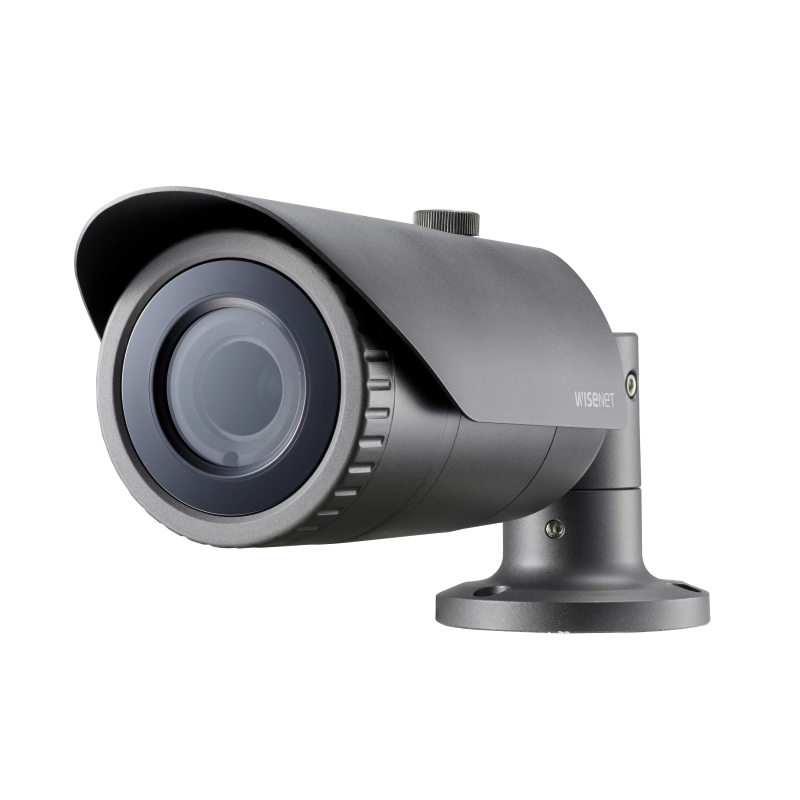

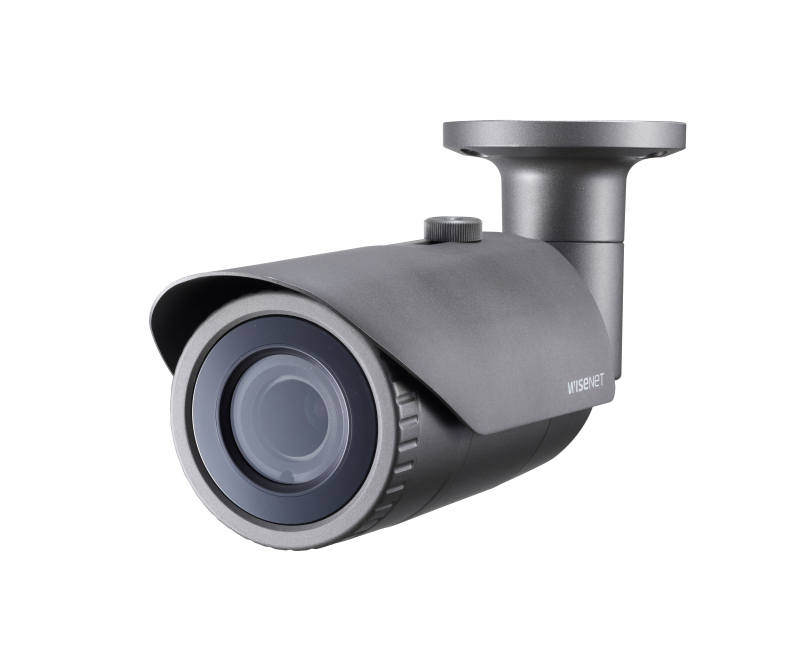

SCO-6083R

SCO-6083R

Video

Imaging Device

1/3" 2M CMOS

Total Pixels

1,956(H) x 1,266(V) 2.47M pixels

Effective Pixels

1,944(H) x 1,092(V) 2.12M pixels

Scanning System

Progressive scan

Min. Illumination

Color : 0.11Lux (F1.4)

B/W : 0Lux (IR LED on)

52dB (AGC off, Weight on)

S / N Ratio

Video Output

BNC (AHD, CVBS selectable)

Resolution

1920 x 1080

Max. Framerate

30fps@1080p, 30fps@720p

Lens

Focal Length (Zoom Ratio)

2.8 ~ 12mm (4.3x) varifocal

Max. Aperture Ratio

F1.4

Angular Field of View

H : 102˚(Wide) ~ 32.2˚(Tele) / V : 54˚(Wide) ~ 18.2˚(Tele) /D : 121˚(Wide) ~ 38˚(Tele)

0.5m (1.64ft)

Min. Object Distance

Focus Control

Manual

Lens Type

DC auto iris

Camera Title

Off / On (Displayed 15 characters)

Day & Night

Auto (ICR) / Color / B/W

Backlight Compensation

Off / User BLC / HLC

Wide Dynamic Range

DWDR

Digital Noise Reduction

SSNRIV (Off / On)

Defog

Off / Auto / Manual

Motion Detection

Off / On (4 zones)

Privacy Masking

Off / On (4 zones rectangle)

Gain Control

Off / Low / Middle / High / Very high

White Balance

ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°)

Electronic Shutter Speed

1sec ~ 1/12,000sec

Reverse

Off / H-Rev / V-Rev / HV-Rev

Profile

Basic, Day & Night, Backlight, Indoor, User, ITS

Alarm

(MD) output 1

Remote Control Interface

Coaxial control

Protocol

Coax : NTSC/PAL - Samsung CCVC, Pelco-C (Coaxitron), AHD - ACP (AHD Coax Protocol)

IR Distance

30m (98.43ft)

Video Transmission Distance

500m (1,640.42ft) (75-5 coaxial cable)

Environmental

Operating Temperature / Humidity

-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH

*Start up should be done at above -10°C (+14°F)

Ingress Protection

IP66

Vandal Resistance

IK10

Electrical

Input Voltage / Current

Dual (24V AC & 12V DC ±10%)

Power Consumption

Max. 6W

Mechanical

Color / Material

Dark gray / Aluminum

Dimensions (WxH)

Ø78.0 x 260.0mm (3.07" x 10.24") (Without sunshield)

Weight

922g (2.03 lb)
