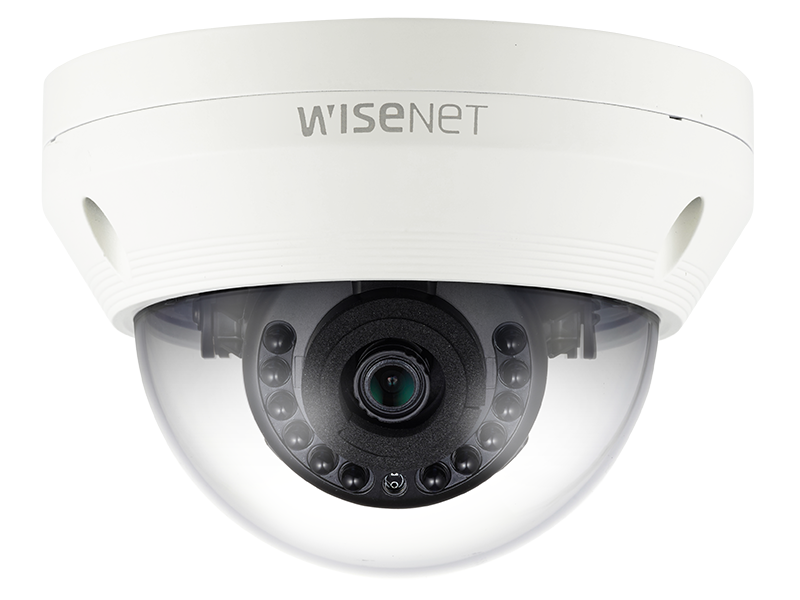

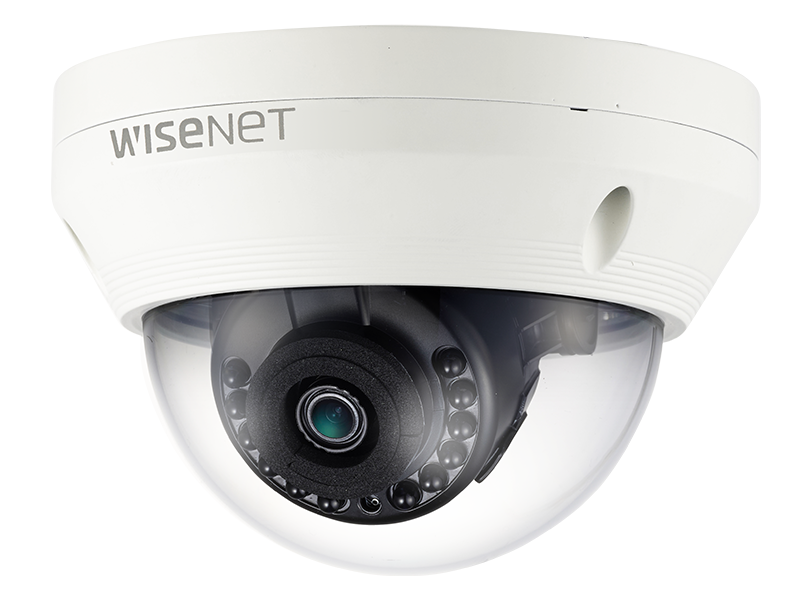

SCV-6023R

SCV-6023R

Video

Imaging Device

1/2.9" 2M CMOS

Total Pixels

2,000(H) x 1,121(V) 2.24M pixels

Effective Pixels

1,984(H) x 1,105(V) 2.19M pixels

Scanning System

Progressive scan

Min. Illumination

Color : 0.25Lux (F2.1)

B/W : 0Lux (IR LED on)

S / N Ratio

52dB (AGC off, Weight on)

Video Output

BNC (AHD, CVBS selectable)

Resolution

1920 x 1080

Max. Framerate

30fps@1080p, 30fps@720p

Lens

Focal Length (Zoom Ratio)

4mm fixed

Max. Aperture Ratio

F2.1

Angular Field of View

H : 72.2˚ / V : 52.9˚ / D : 94.3˚

Min. Object Distance

0.5m (1.64ft)

Focus Control

Manual

Lens Type

Fixed

Mount Type

Board-in type

Pan / Tilt / Rotate

Pan / Tilt / Rotate Range

0° ~ 350° / 0° ~ 67° / 0° ~ 355°

Operational

On Screen Display

English, Japanese, Spanish, French, Portuguese, Korean, German, Italian,

Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish

Camera Title

Off / On (Displayed 15 characters)

Day & Night

Auto (ICR) / Color / B/W

Backlight Compensation

Off / User BLC / HLC

Wide Dynamic Range

DWDR

Digital Noise Reduction

SSNRIV (Off / On)

Defog

Off / Auto / Manual

Motion Detection

Off / On (4 zones)

Privacy Masking

Off / On (4 zones rectangle)

Gain Control

Off / Low / Middle / High

White Balance

ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°)

Electronic Shutter Speed

1sec ~ 1/12,000sec

Reverse

Off / H-Rev / V-Rev / HV-Rev

Profile

Basic, Day & Night, Backlight, Indoor, User

Remote Control Interface

Coaxial control

Protocol

Coax : NTSC/PAL - Samsung CCVC, Pelco-C (Coaxitron), AHD - ACP (AHD Coax Protocol)

IR Distance

20m (65.62ft)

Video Transmission Distance

500m (1,640.42ft) (75-5 coaxial cable)

Environmental

Operating Temperature / Humidity

-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH

*Start up should be done at above -10°C (+14°F)

Ingress Protection

IP66

Vandal Resistance

IK10

Electrical

Input Voltage / Current

12V DC ±10%

Power Consumption

Max. 4.2W

Mechanical

Color / Material

Ivory / Aluminum

Dimensions (WxH)

Ø137.0 x 94.0mm (Ø5.39" x 3.7")

Weight

560g (1.23 lb)
