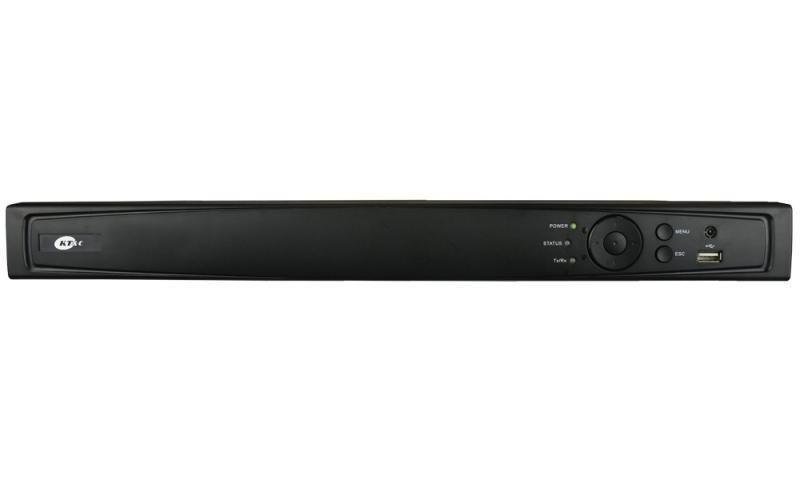

ENR-p16Px16

Streaming Video Inputs & Recording

Maximum Number of IP Cameras

16

Number of built in PnP/PoE Switch Ports

16

Supported Live View/ Record Resolutions

6MP / 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Sub-stream

Supported for recording, playback and live viewing

Audio streaming

Supported from audio capable cameras

Maximum FPS rate per camera (Live and Record)

30FPS Main stream; 30FPS Sub-stream Up to 480FPS total for 16 cameras

Maximum Record Streaming Video Input Bandwidth (all cameras combined)

160 Mb/s

Recording Compression

Depends on IP Camera; typically H.264 for main stream, MJPEG for sub-stream

Recording Modes

Continuous, Motion, Alarm, Motion+Alarm, Motion or Alarm, Event, VCA, None

Motion & VCA Detection

Camera Side, configurable from NVR for KNC-p3 & KNC-p4 Omni IP Series Cameras

Schedule Period

Per day in 1 hour blocks; or 8 time periods per day, each with different record mode; plus holidays

Pre- and Post- Event Recording

Pre-record 0~30 seconds; post record 5s~10 minutes

Built in network switch port speed

10/100 Mb/s each port

KT&C Omni-IP 'hands free Plug and Play' Cameras Fully Supported

Any OMNI-IP models (IPCAM protocol). See camera datasheets for details

Third Party Cameras Supported (requires traditional configuration and setup)

Onvif; Acti, Arecont, Axis, Bosch, Brickcom, Canon, Hikvision, Hunt, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Vivotek, Zavio

Local Live Presentation of Streaming Video/Audio

Local Display Main Monitor Outputs

HDMI 60Hz: 1920×1080, 1600×1200, 1280×1024, 1280×720, 1024×768 VGA 60Hz: 1920×1080P, 1600×1200, 1280×1024, 1280×720, 1024×768

Camera Display Layouts

1, 2x2, 1+5, 1+7, 3x3, 4x4

Automatic Stream Selection

Single camera view and 720p 2x2 at main stream resolution; Automatic switching to sub-stream resolution in other multi-view displays to conserve CPU capacity and maintain parity between per-camera screen area and image size

Audio Output (requires audio equipped cameras)

1-ch Line Level, RCA (Linear, 1KΩ)

Playback of Recorded Video/Audio

Supported Playback Resolutions

6MP / 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Nominal Local Playback Capability

16 channels @ 4CIF; 12 Channels 720p; 6 channels 1080p (actual playback depends on decoding load which varies based on settings for recorded video bandwidth restrictions, resolution, image quality, FPS rate, compression effciency, and complexity of pixel change in the scene)

Playback search modes

Time/Date; Manual Tags; Smart Search for motion events from recorded video; Event (Motion/Alarm/VCA)

Playback Controls

Play; Pause; Forward/Reverse; speed control for single~1.8~xMax (256x)

Slide bar with overview of record type and snapshot display from slider position

Digital Zoom During Playback

Supported on Local Displays and CMS

Local Hard Drives and Other Storage

Number of Internal Hard Drives

Up to 2 SATA HDD; up to 6TB each for 12TB maximum

Mirror Recording

Can clone pairs of disks

S.M.A.R.T

With extensive statistics, alarms, on demand tests and reporting

Record to

HDD, NAS or SAN

Archive to

USB

Local Plug and Play Camera Network Support

Integral PoE Switch

16 ports 10/100 Mb/s

Camera Network Security

Option to enable pass thru access from LAN/WAN to cameras or to isolate camera network from LAN/WAN for increased security

PoE Type

802.3at 30W max per port

Total Power Budget

200W all ports

PnP Network Support

Integral DHCP function with address-per-port initial assignment (Using KT&C KNC-p3 & KNC-p4 Omni-IP Series cameras connected to internal PnP PoE switch ports)

Remote Viewing and Local/Remote Configuration

Built in Web Server Interface

Live view, playback and configuration via IE, Firefox, Safari (with free plug-in/extension installed)

OMNI CMS

PC and MAC Client supports multiple device viewing, playback (with digital zoom) and configuration; user rights per camera; E-map support; live view up to 64 cameras in 4:3 and 48 cameras in 16:9; up to 4 cameras in playback

Mobile Apps

iOS and Android supported; up to 4 (Android) or 16 (iOS); 4 camera playback; snapshots from live or play; copy clips/record to smartphone; audio support; PTZ control. HD version of app, optimized for tablets, is available

User Rights Control

Per user-per camera for multiple functions

Event Logging

Multiple types: alarm, exception, operation, information; dozens of sub-types within each major type

Firmware Upgrade

From USB or remotely

Backup/Restore Configuration

For NVR settings and for IP Camera settings; from USB or remotely

Network and Other Interfaces

LAN/WAN Network Port

One 10/100/1000Mb/s RJ-45 port

Connection of non-PnP IP cameras

Supported

Remote Monitoring Output Maximum Bandwidth

80Mb/s

Maximum number of remote connections

128

DST/NTP

Supported; choice of time zone, NTP server, DST start/end/offset

Port Mapping/uPnP

Automatic port forwarding/redirection using uPnP on routers with this capability

Serial Interfaces

1xRS-485

USB Interfaces

1 USB2.0 front; 1 USB 3.0 rear

Audio Input

1 RCA (2VP-P, 1KΩ)

General Mechanical and Environmental

Power Input

100~240VAC, 47~63Hz

Continuous Power Consumption

200W including PoE

Operating Temperature

14°F ~ 131°F (-10°C ~ +55°C)

Operating Humidity Range

10% ~ 90%

Cooling Fan

2

Size

15.0” x 11.42” x 1.9” (380mm x 290mm x 48mm)

Weight (without hard drives or ODD)

 4.4lb (2Kg) NVR only allow ~1.4 lb. per HDD

Certifications

FCC, CE, RoHS
