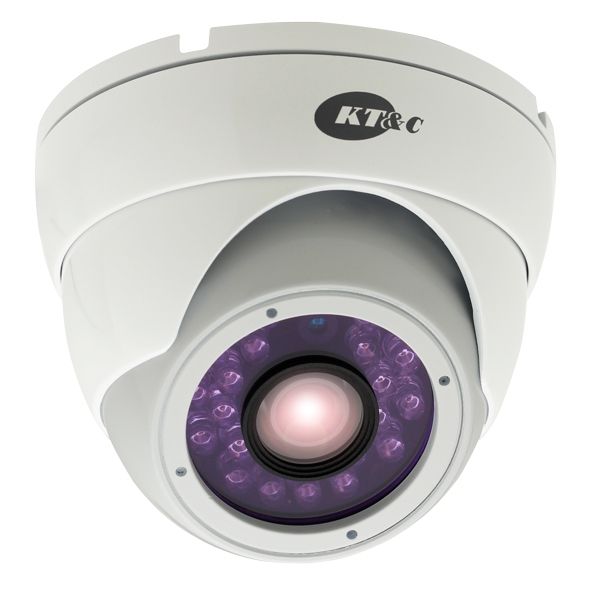

KEZ-C2TR4IRB

Imaging Device

1/2.8" Progressive Scan CMOS

Video Format

Main Output: 1080p/720p HD-TVI 30/25 FPS (OSD selectable)

Secondary Output: Full time CVBS (OSD selectable NTSC/PAL) aux video

Picture Elements

1984 (H) x 1105 (V)

Effective Picture Elements

1920 (H) x 1080 (V)

Horizontal Resolution

More than 1080 HTVL (1080p mode)

Sensitivity

0 lux IR on

Day/Night Type

True Day/Night with ICR motorized filter control

Lens Type

Megapixel Fixed Focal Length f=3.6mm board type

IR LED

20 LED, 850nm

IR Range

66’ / 20m †

Smart IR Exposure Adjust

Adjustable Off/low/mid/high

Video Output Connector Type

TVI and CVBS: BNC 75Ω

Sync. Mode

Internal

OSD Menu

Multiple functions using UTC Control

OSD Languages

English, Spanish, Portuguese, German, Russian, Japanese, French

UTC Control

Full OSD Menu access via up-the-cable (Coaxitron® type ) signaling

DWDR/BLC/HSBLC

OFF/WDR/BLC/HSBLC Selectable Adjustable for Level 1~10; also BLC area, HLC color.

Auto Gain Control

OFF; 2~42dB

Electronic Shutter

Auto; FLK; or Manual 1/30 (25) to 1/30,000

White Balance

Auto / Push Lock / Manual

Color Correction

Gamma 0.45~.65, adjustable

Day & Night

Auto True D/N with motorized ICR, controlled by photo sensor. Optional color-only and B/W only modes under OSD control

Digital Slow Sutter [DSS]

DSS low light boost Off/Auto 2X~16X*

3D-DNR

Off/Low/Mid/High

Digital Zoom

1X~8X

Defog

Off/Low/Mid/High

Mirror

Off / H-flip, V-flip, rotate

Motion Detection

Off/On for programmable zone with sensitivity adjust (pixel change detection)

Privacy Mask

Off/On with full programmability for 8 selectable zones

Lens Shading Compensation)

Off/Low/Mid/High

DPC (Defective Pixel Correction)

Off/On

Other OSD Functions

Camera Title with position, Font Color; Image Sharpness

Power Source

12VDC

Power Consumption

12VDC:390mA

Operating Temperature

14 °F ~ 122 °F (-10 °C ~ 50 °C)

Environmental

IP66 weather resistant

Mechanical

Metal ball and base, with base removable for easy mounting

Positioning

3-axis flexible positioning for wall or ceiling mounting Pan: 0~360° Tilt: 0~70° Rotate: 0~360°

Dimensions

Ø5.14” × 3.67” [Ø93 × 63mm]

Weight

.73 lbs./332g

Certifications

CE / FCC / RoHS
