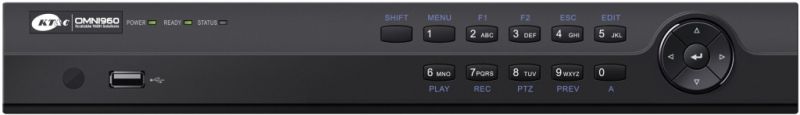

KT&C - OMNI960-4/2TB - 4 Ch DVR, 2 TB

The OMNI960-4 DVR record up to 30FPS @ full 960H/WD1 resolution – REAL TIME on ALL channels. To help manage LAN/WAN bandwidth for efficient remote monitoring the OMNI960-4 implements sub-stream re-cording. The DVR simultaneously creates and captures both the 960H high resolution image and a second stream at a separately controllable lower resolution and rate that conserves bandwidth for remote display of single or multiple displays of live and playback camera images on a PC, smart phone or tablet via cellular or low bandwidth WAN networks. With sub-stream LIVE and PLAYBACK, it is practical to remotely display multi-camera views at low bandwidth, yet at the click of a mouse the DVR can be directed to supply a fully detailed high resolution image on demand. For extreme bandwidth conservation, the OMNI960-4 offers a unique Channel 0 remote stream which displays a user defined multi-view in the bandwidth of a single channel.

The OMNI960-4 DVRs come with multiple control inputs. These inputs include USB mouse control, front panel controls and included IR hand held remote control. Mouse control is combined with a simple Graphical User Interface (GUI), offering experienced PC users the similarity of interactive command to that employed with other computer-controlled devices. With the GUI, users can command specific actions on the OMNI960-4 DVRs through graphical icons and visual indicators. All GUI functions can also be controlled via the front panel keys and IR remote as well.

Features:

• WD1 960x480 recording delivers 36% more detail than traditional 4CIF (704x480)
• H.264 Compression for efficient HDD utilization and streaming
• NTSC/PAL automatic signal selection
• WD1 real-time live display and recording all channels; real time playback on up to 4 channels
• Independent channel setup for resolution/FPS/bitrate/image quality/normal & event record
• HDMI (720p/1080p) + VGA (to 1920x1080) + BNC main monitors support any type of display
• Simultaneous high bandwidth recording (480 NTSC/400 PAL @WD1) plus sub-stream recording for reduced bandwidth remote viewing
• Unique Channel 0 remote stream displays user defined multi-view in the bandwidth of a single channel
• Pentaplex Operation (Simultaneous live, recording, playback, archiving and remote viewing)
• User friendly GUI with graphical icons and visual indicators
  -- Easy to use on-screen menus include digital zoom and instant playback of recent video
  -- Operate using front panel controls, wheel mouse or included IR remote
• Quickly locate and review event video
  -- Search by date/time, or preview images by pointing along a color coded timeline of record type
  -- Tag video of interest for easy retrieval or export
  -- Play based on results of extensive event/alarm log search
  -- Use “Smart Search” to define an area of interest; the NVR quickly reviews recorded video to list instances of motion in that area for review by the operator
• Watermarking for validation of recorded video
• Easy router setup for remote access: uPnP automatically sets up port forwarding (router must support/allow uPnP)
• Free DDNS Service – static IP address is not required for reliable remote access
• Supports individual HDD sizes up to 4Tb for extended recording; 1 HDD
• Free iOS and Android app:
  -- Scroll though single/quad display live views
  -- Playback specific cameras by date/time plus easy slider control
  -- Audio monitoring support
  -- Mobile PTZ control
  -- Relay control
  -- Up to 16 camera views from HD tablets (HD app)
• Multiple Control Inputs: mouse / front panel / hand held IR remote controller (included)
• Remote configuration support from built-in web interface and/or free CMS program
• Ethernet (10/100) interface for remote network viewing and control
• On-screen PTZ control via mouse or front panel
• Audio recording capabilities plus two-way audio support
• USB 2.0 ports on front and rear panels for video archive and mouse usage
• Free Windows CMS displays dozens of cameras
• Free MAC client software connects to individual sites for live view and playback
• Multi-language support
