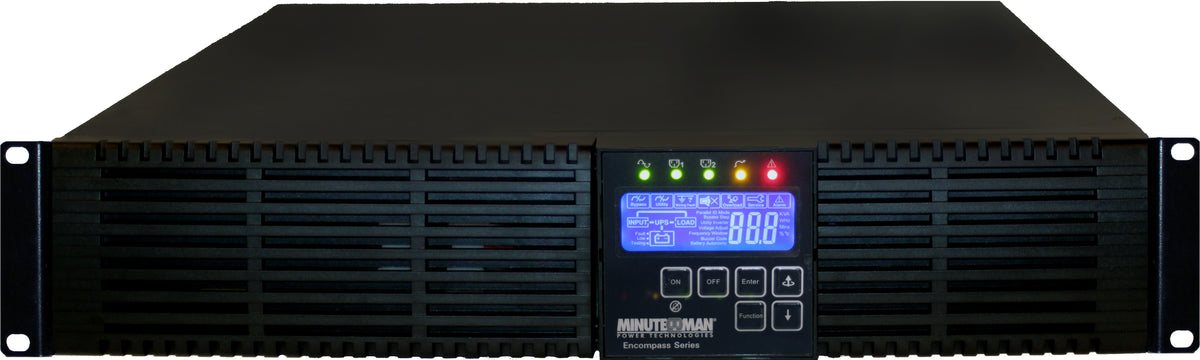

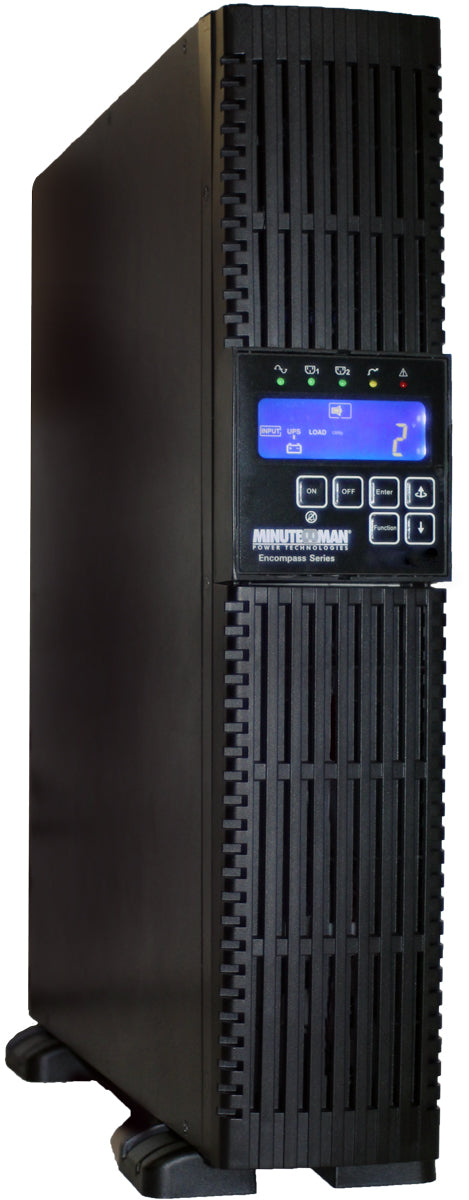

Minuteman - EC2000RT2UNC - Ecompass Series High End True Sine Wave Online Ups Rack/tower 2000VA/1800W 120V0

Designed to protect the most critical equipment used in data centers, voice and data communications, security systems, and light industrial applications, the Encompass LCD Series is SNMP-capable (card optional) and allows full device management using Minuteman’s SentryHD power monitoring and control software. The Encompass LCD Series is a value-priced online UPS solution that provides an outstanding set of features, true sine wave output, a three-year warranty (including batteries), generator compatibility, and is designed to meet the reliability expectations of even the most demanding critical applications.

Electrical Characteristics

Output Power Factor

All Encompass LCD Series models come with a 0.9 power factor of which increases the watt capacity of the units. Offering larger capacities in smaller UPS VA sizes reduces the overall cost of the UPS solution for a specific load requirement.

Output Voltage

All units in the Encompass LCD Series produce an electrical signal that does not vary from nominal voltage by more than 2%. Tightly regulating the output voltage increases the quality of power to connected equipment adding to its life expectancy, which lowers the total cost of ownership to users.

Total Harmonic Distortion (THD)

THD is the distortion of a normal AC electrical signal commonly caused by non-linear loads. This distortion can cause internal heat to build up on sensitive equipment not designed to operate with these altered AC signals. The Encompass LCD Series provides power factor correction to reduce the THD and maintain a true sine wave output signal.

Output Receptacle Control: The ability to extend the runtime of critical devices during an extended blackout is handled through the Encompass LCD’s load shedding function. Each model in the Encompass LCD UPS comes with two independently-circuited receptacle segments. Through the use of Minuteman’s SentryHD software or communication with the UPS through an Ethernet connection, users can either turn on, off or reset each segment independently of the other. By reducing the load amount on the UPS, the runtime of critical devices on the UPS battery can be extended.

Encompass LCD Series Standard Key Features:

•  True online, double-conversion technology
•  Easy-to-read LCD display
•  0.9 output power factor
•  Highly efficient Economy Mode option
•  Output receptacle control with 2 banks
•  Independent Battery Bypass – allows the UPS to provide voltage regulation and spike/surge protection either with dead batteries or without batteries
•  Hot-swappable battery replacement
•  Cold Start capable
•  Automatic internal bypass
•  Simultaneous USB and RS-232 communications
•  Compatible with Minuteman’s SentryHD software
•  SNMP compatible (with optional card)
•  Dedicated EPO port
•  Tool-less battery replacement design
•  1Gbit RJ45 network protection
•  Full three-year warranty (including batteries)
•  Green UPS design (RoHS2 compliant)
•  $150,000 Platinum Protection Guarantee
