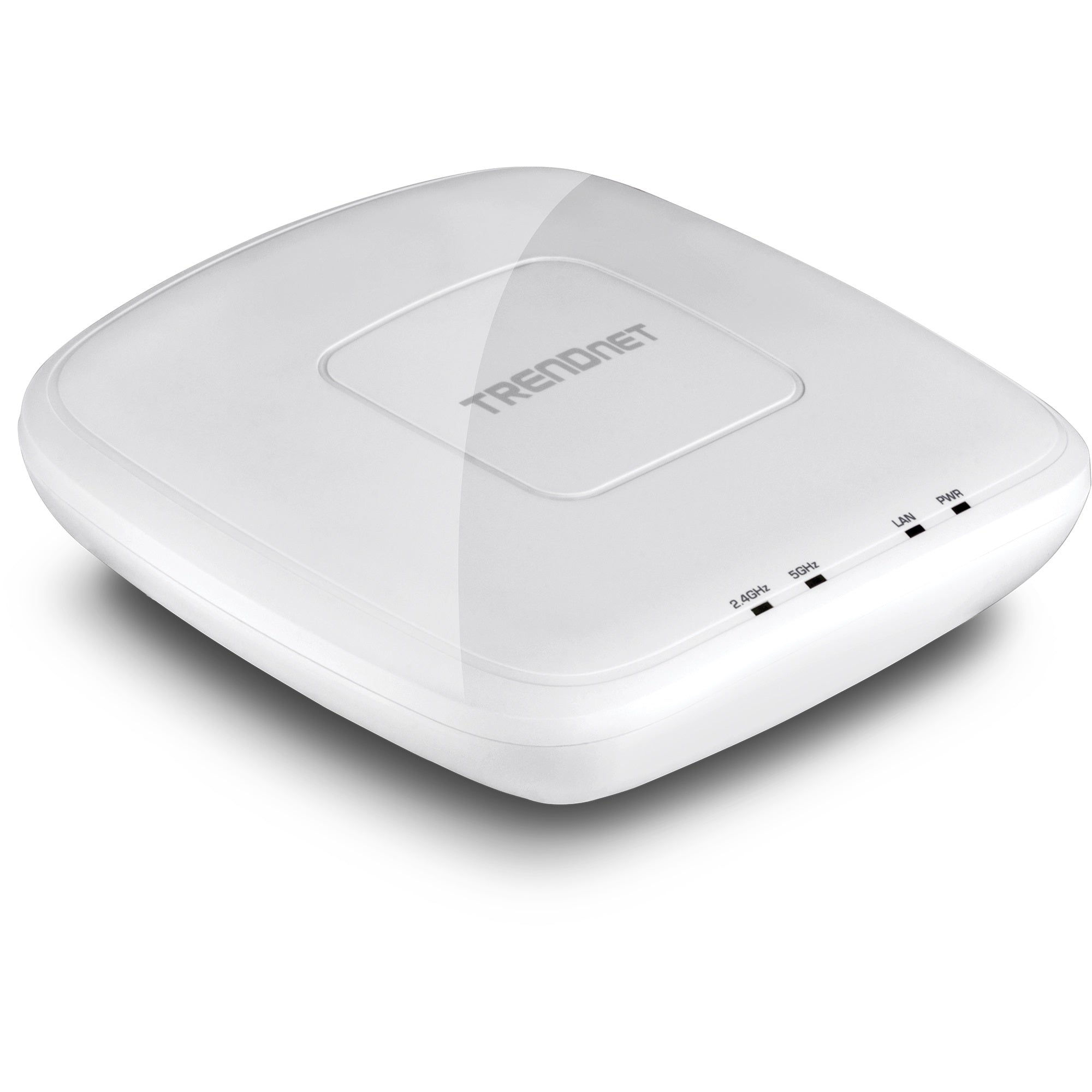

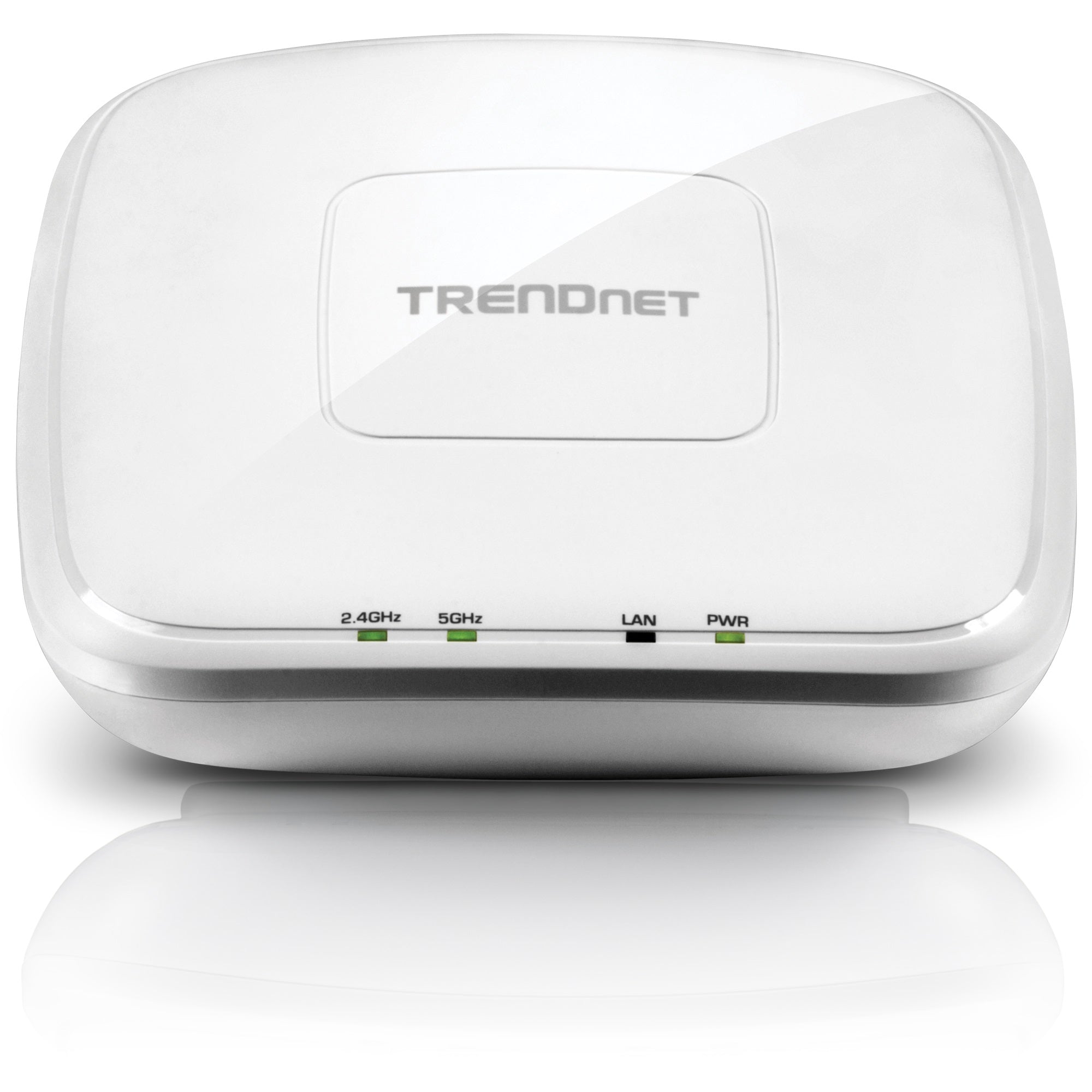

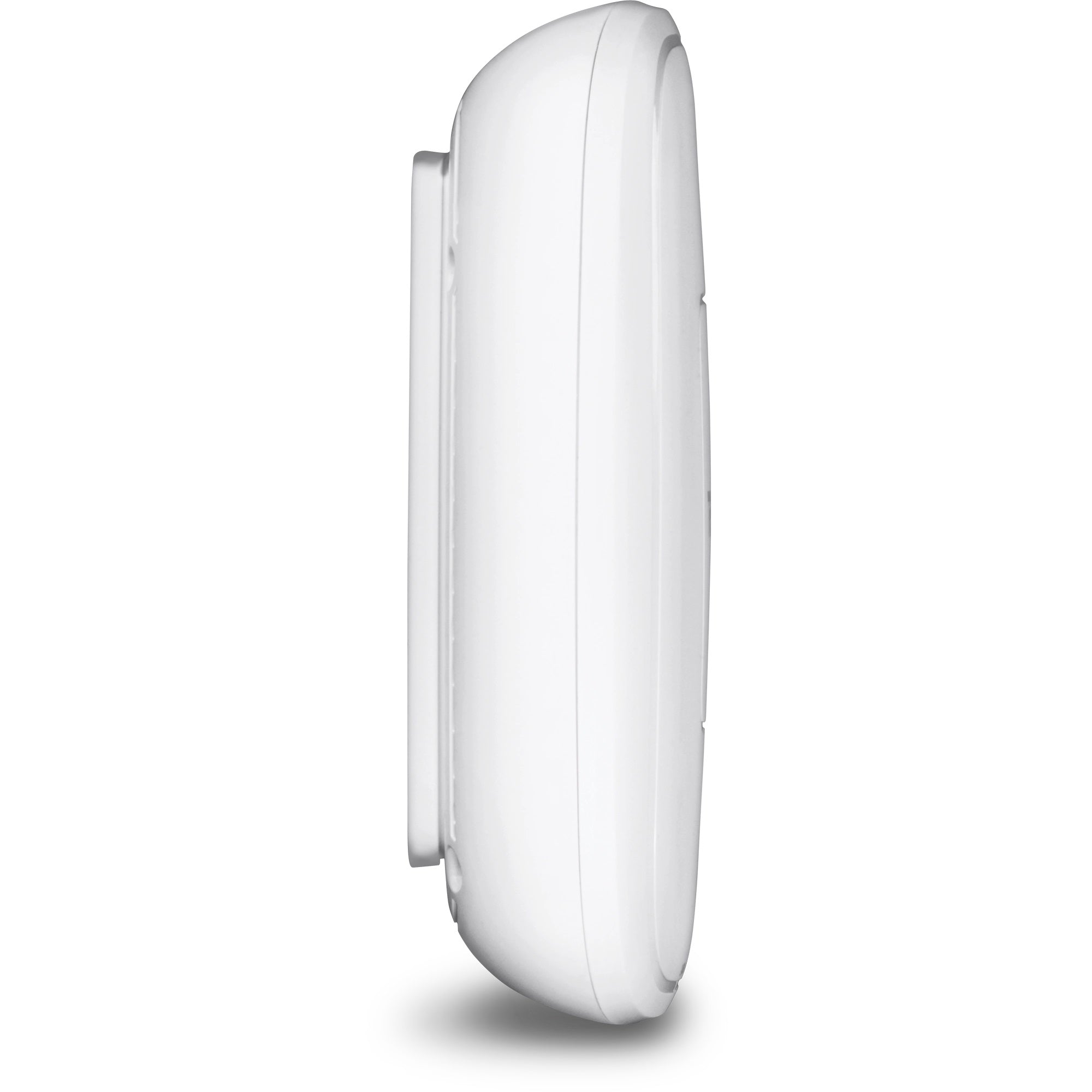

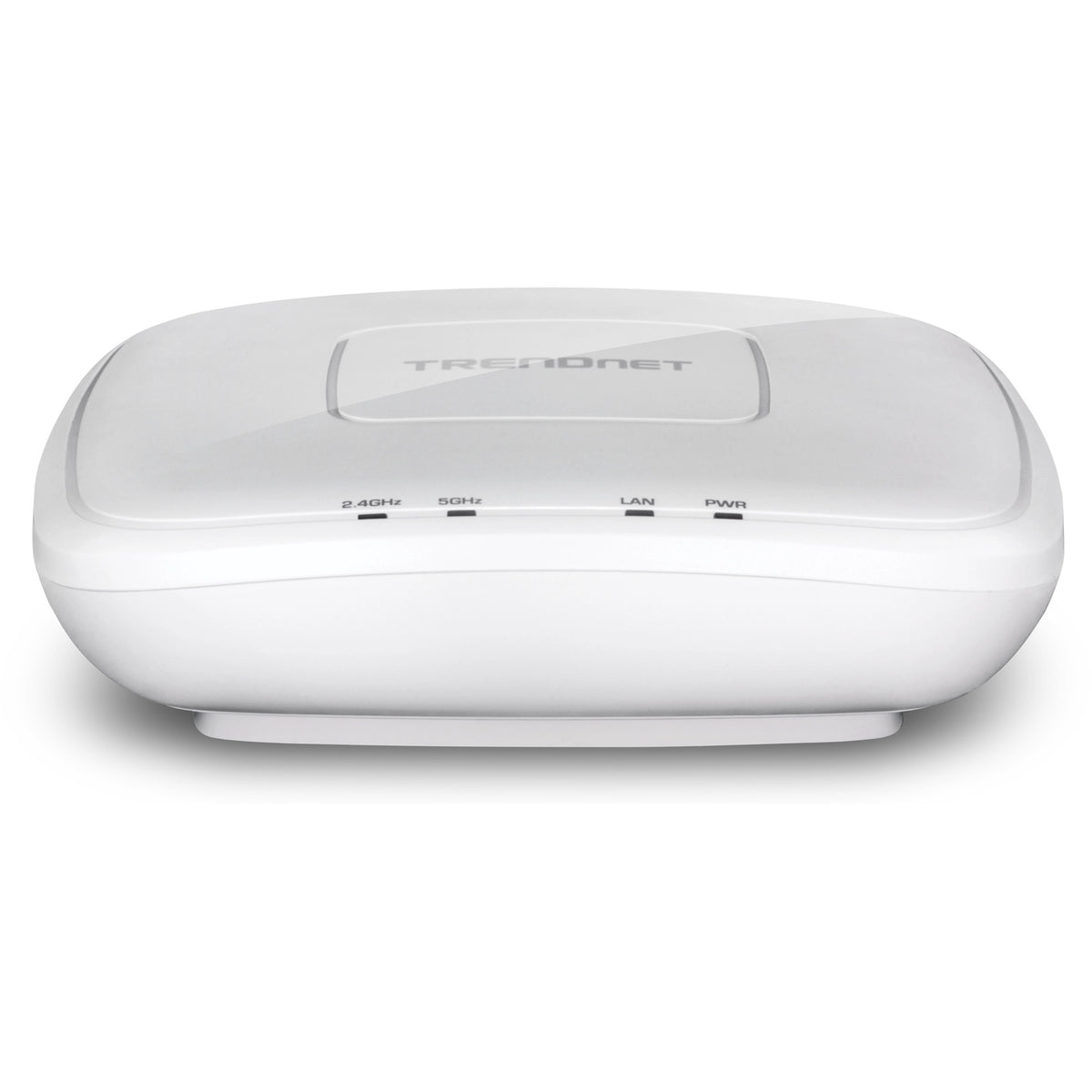

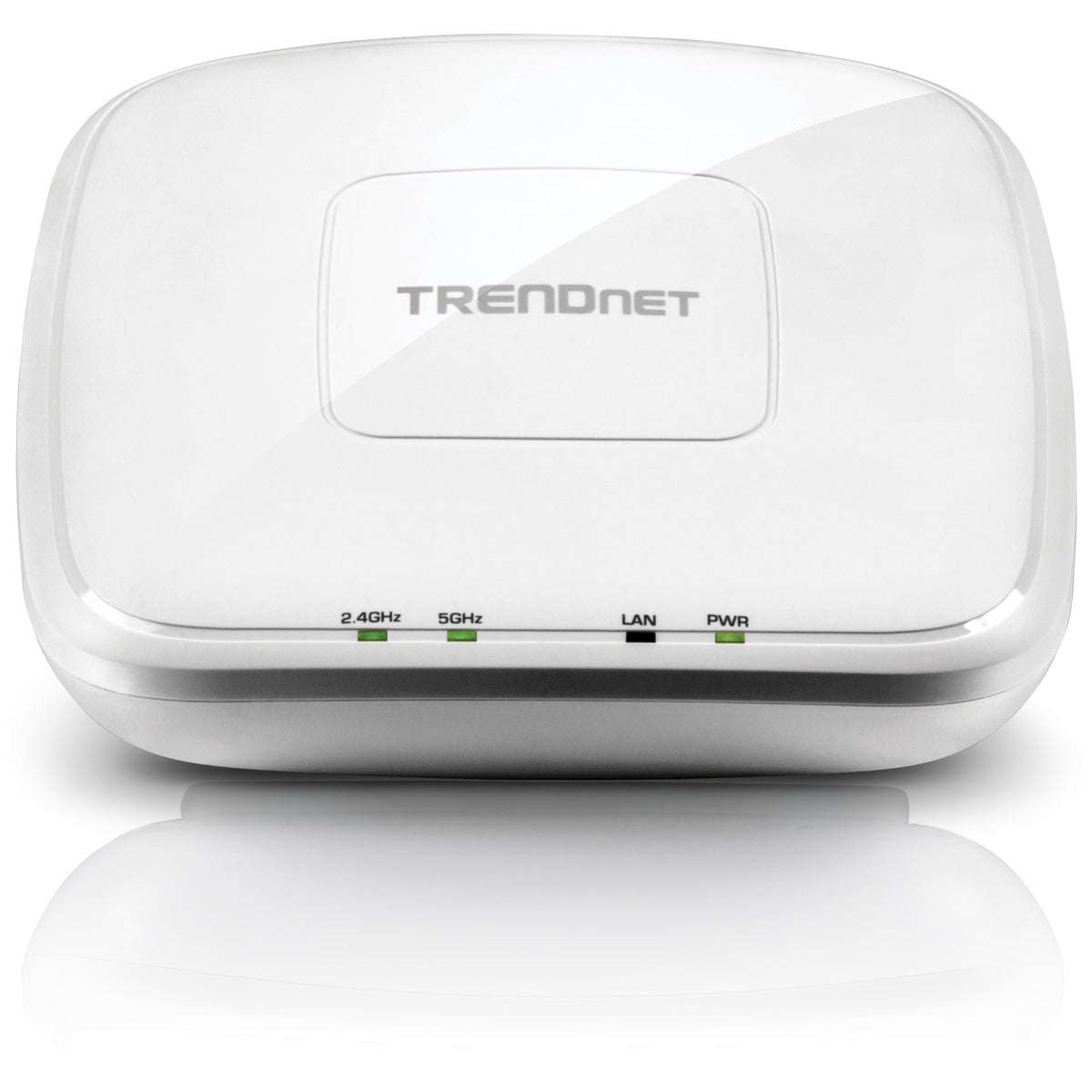

TRENDNET - TEW-825DAP - AC1750 Dual Band PoE Access

• IEEE 802.1Q
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3ab
• IEEE 802.3at
• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n (up to 450 Mbps)
• IEEE 802.11ac (up to 1300 Mbps)

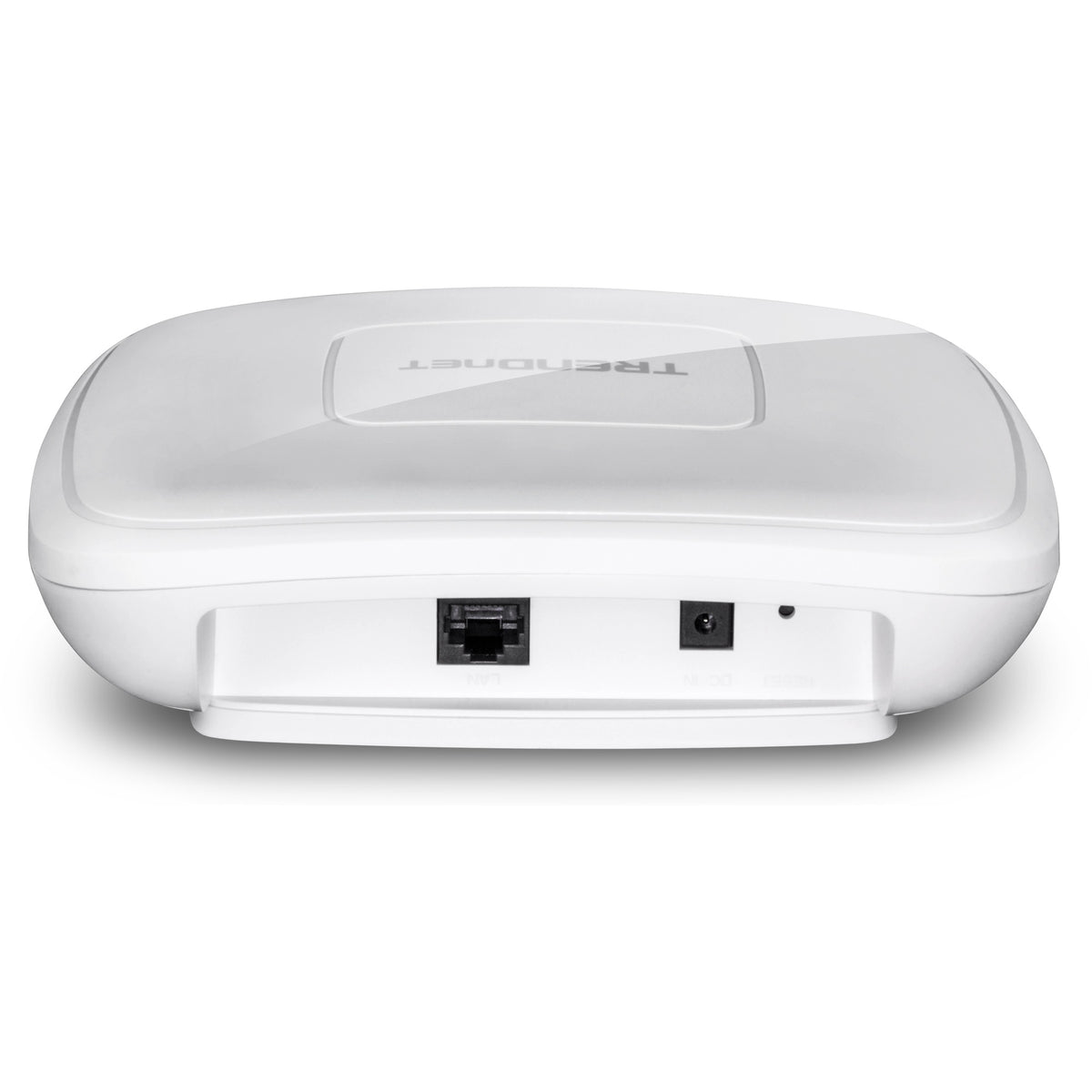

• 1 x PoE+ Gigabit LAN port
• Power port (optional non-PoE installation)
• Reset button
• LED indicators

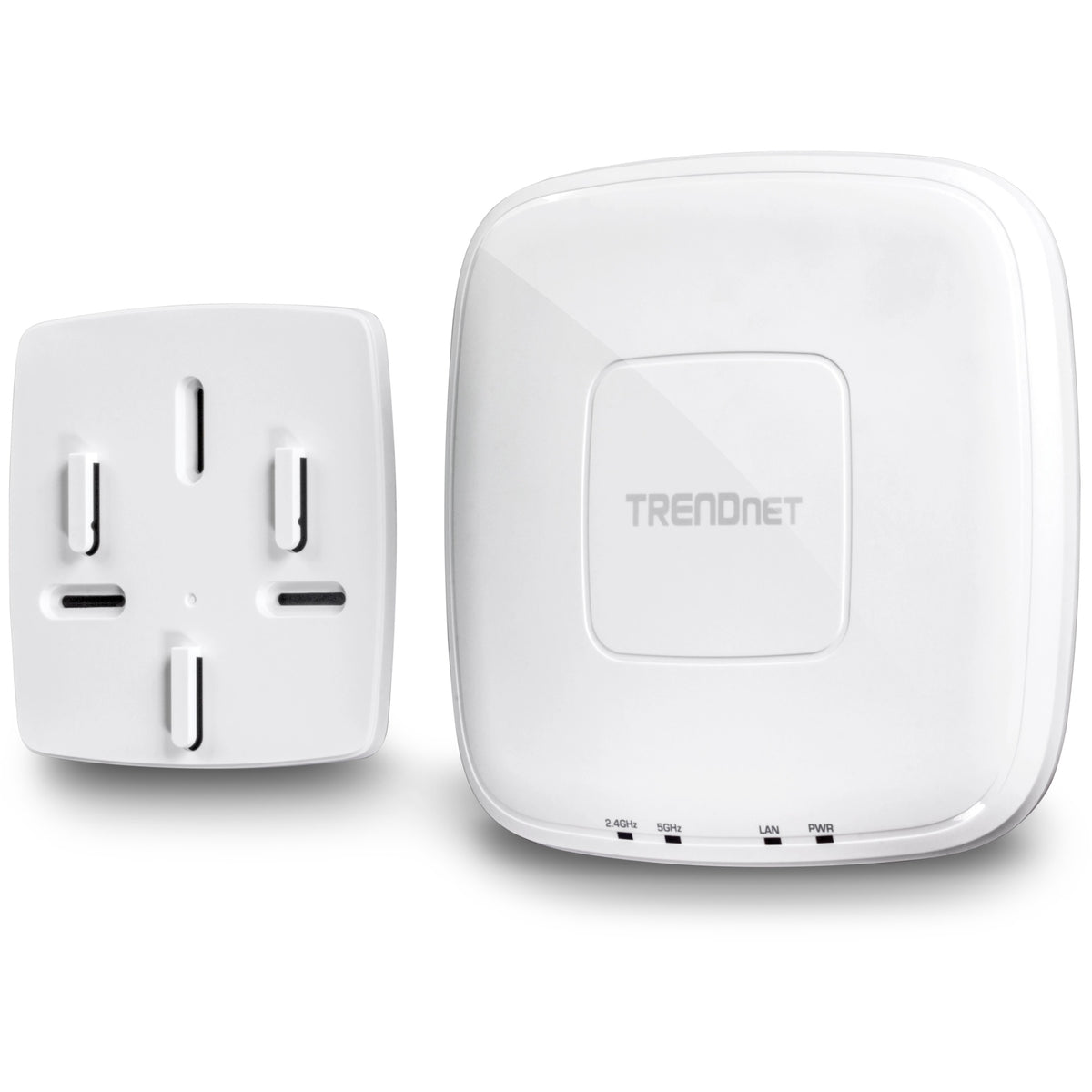

• Mounting plate

• Concurrent Dual band
• Band Steering
• WiFi traffic shaping
• 802.1Q VLAN assignment per SSID
• IPv6 support (Link-Local, Static IPv6, Auto-Configuration (SLAAC/DHCPv6)
• Multi-Language interface, English, French, Spanish, German, Russian
• LEDs on/off
• Captive Portal (Coovachilli)

• Access Point
• Client
• WDS AP
• WDS Bridge
• WDS Station
• Repeater

• Web based management
• Software Utility
• SNMP v1/v3
• STP
• Event logging
• Ping test
• Traceroute
• CLI

• Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser, or through the mobile app
• Multi-device management
• Provisioning through scheduled batch firmware or configuration updates for multiple switches
• Event/hardware network monitoring (CPU/memory utilization)
• Configure features such as IP address settings, WiFi settings, operation modes, and LED control through cloud management

• Windows® 10, 8.1, 8, 7, Vista, XP

• Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
• MAC filter
• Maximum client limit

• WMM
• Traffic shaping per SSID

• Up to 8 SSIDs per wireless band (16 total)

• 2.4 GHz: 2.412 - 2.472 GHz
• 5 GHz: 5.180 – 5.825 GHz

• 2.4 GHz: FCC: 1-11, ETSI: 1 – 13
• 5 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165 ETSI: 36, 40, 44, 48, (52, 56, 60, 64, 100,104,108,112,116, 132, 136, 140)**

• DBPSK/DQPSK/CCK for DSSS technique
• BPSK/QPSK/16-QAM/64-QAM/256-QAM for OFDM technique

• 2.4 GHz: 3 x 4 dBi
• 5 GHz: 3 x 4 dBi

• 802.11a: FCC: 23 dBm, ETSI: 21 dBm (Max.) / -65 dBm (typical) @ 54 Mbps
• 802.11b: FCC: 22 dBm (Max.), CE: 8 dBm (Max.) / -83 dBm (typical) @ 11 Mbps
• 802.11g: 17 dBm (Max.), CE: 10 dBm (Max.) / -65 dBm (typical) @ 54 Mbps
• 802.11n: FCC: 17 dBm (Max.), CE: 11 dBm (Max.) / -61 dBm (typical) @ 450 Mbps 2.4 GHz
• 802.11n: FCC: 23 dBm, CE: 21 dBm (Max.) / -61 dBm (typical) @ 450 Mbps 5 GHz
• 802.11ac: FCC: 23 dBm, CE: 21 dBm (Max.) / -54 dBm (typical) @ 1300 Mbps

• Input: 100 – 240 V AC, 50 - 60 Hz / Output: 12 V DC, 1.5 A external power adapter (non-PoE installation)
• Consumption: 12.5 Watts (max.)

• 0 – 40 °C (32 – 104 °F)

• Max. 95 % non-condensing

• CE
• FCC

• 187 x 187 x 46 mm (7.3 x 7.3 x 1.8 in.)

• 416 g (14.7 oz.)

• 3 year

PACKAGE CONTENTS

• TEW-825DAP
• 1 x Network cable (1.5 m / 5 ft.)
• CD-ROM (Utility and User's Guide)
• Quick Installation Guide
• Power adapter (12V DC, 1.5 A)
• Mounting plate
