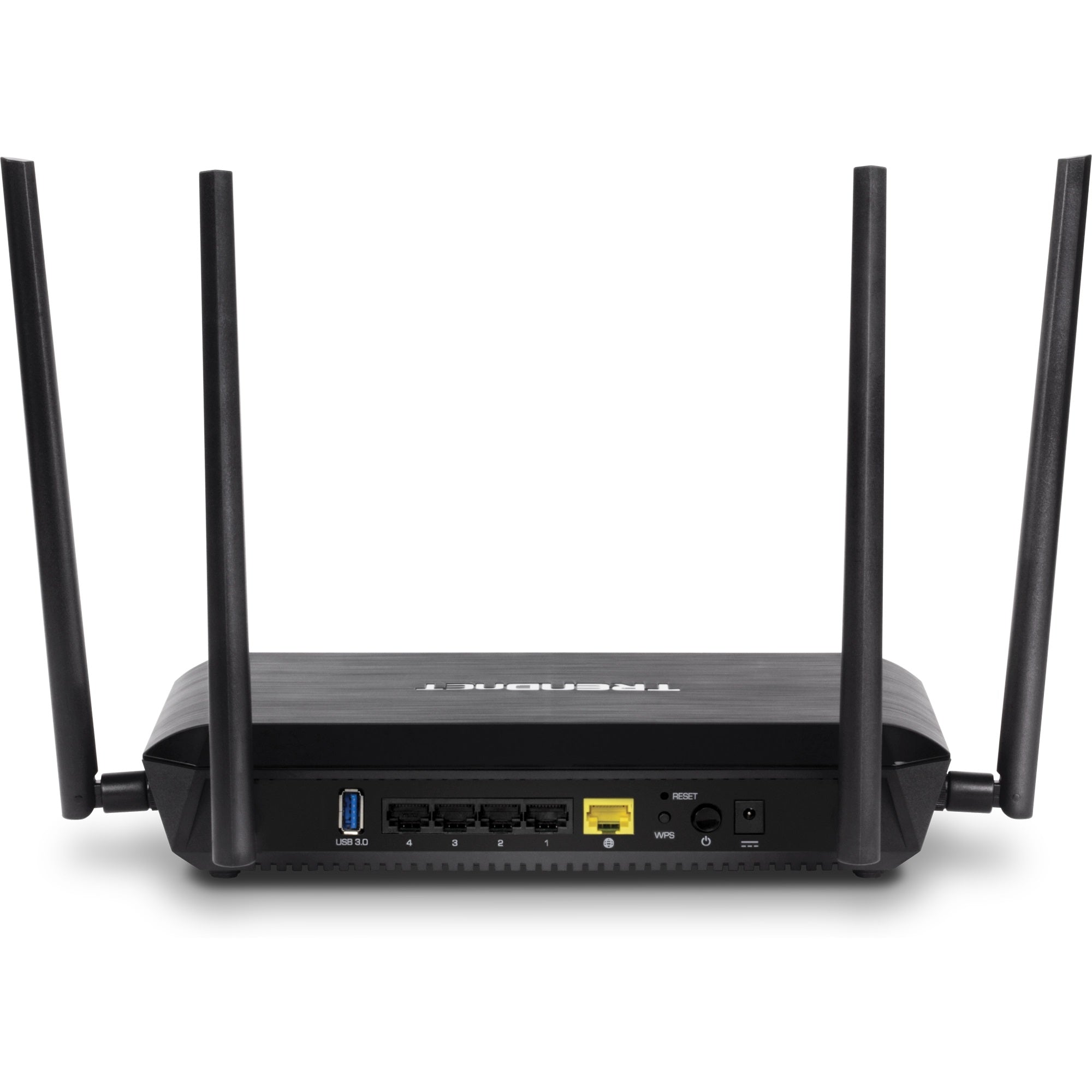

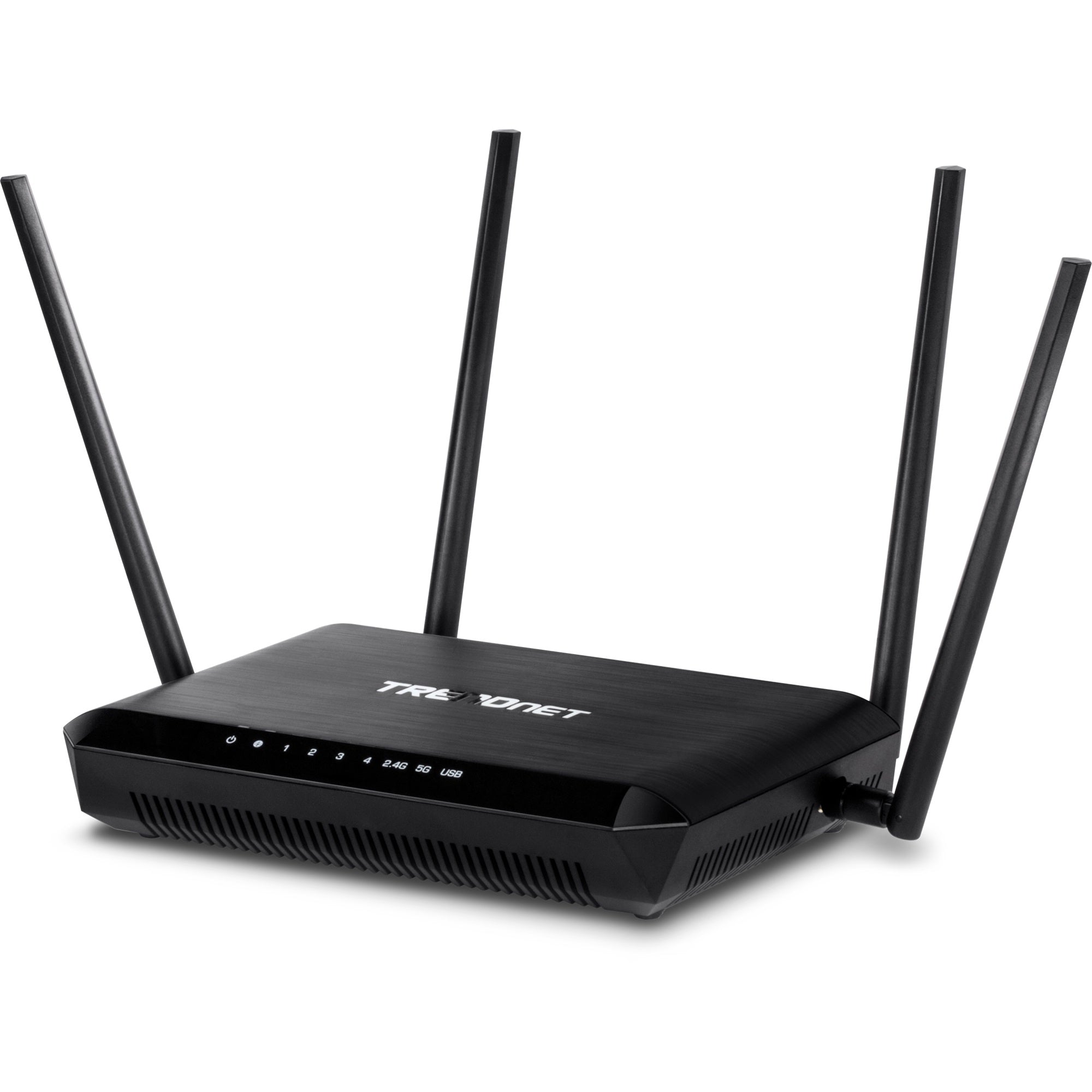

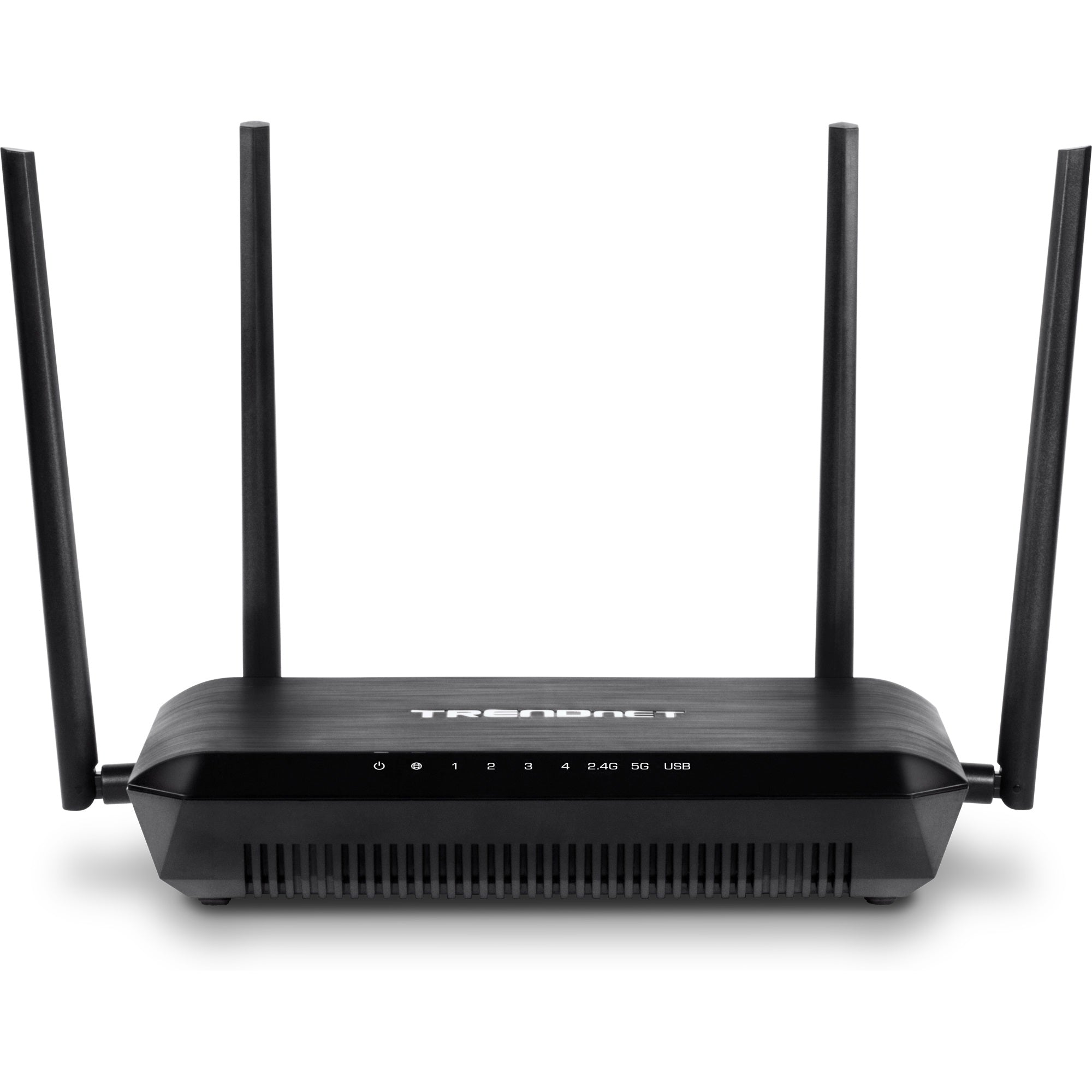

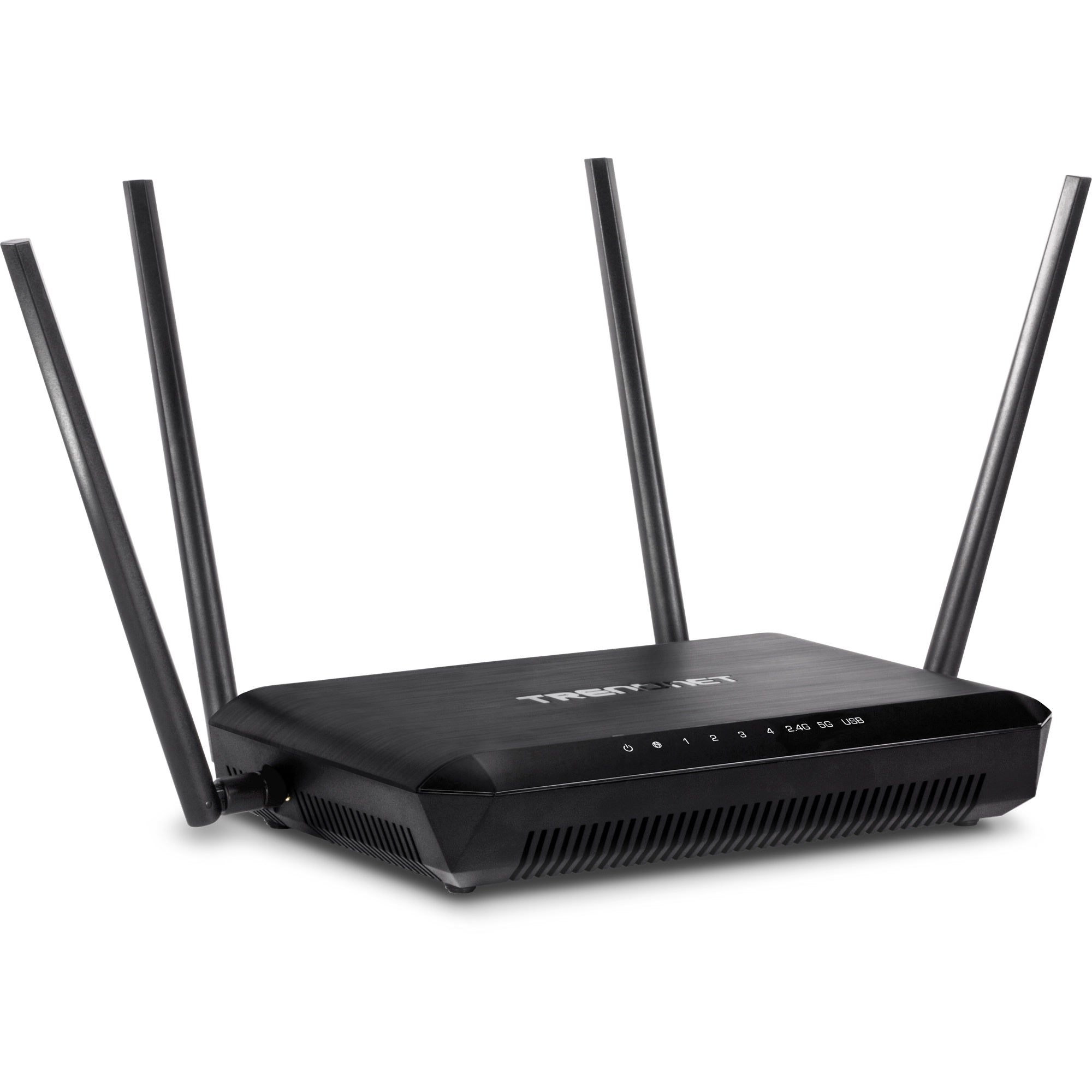

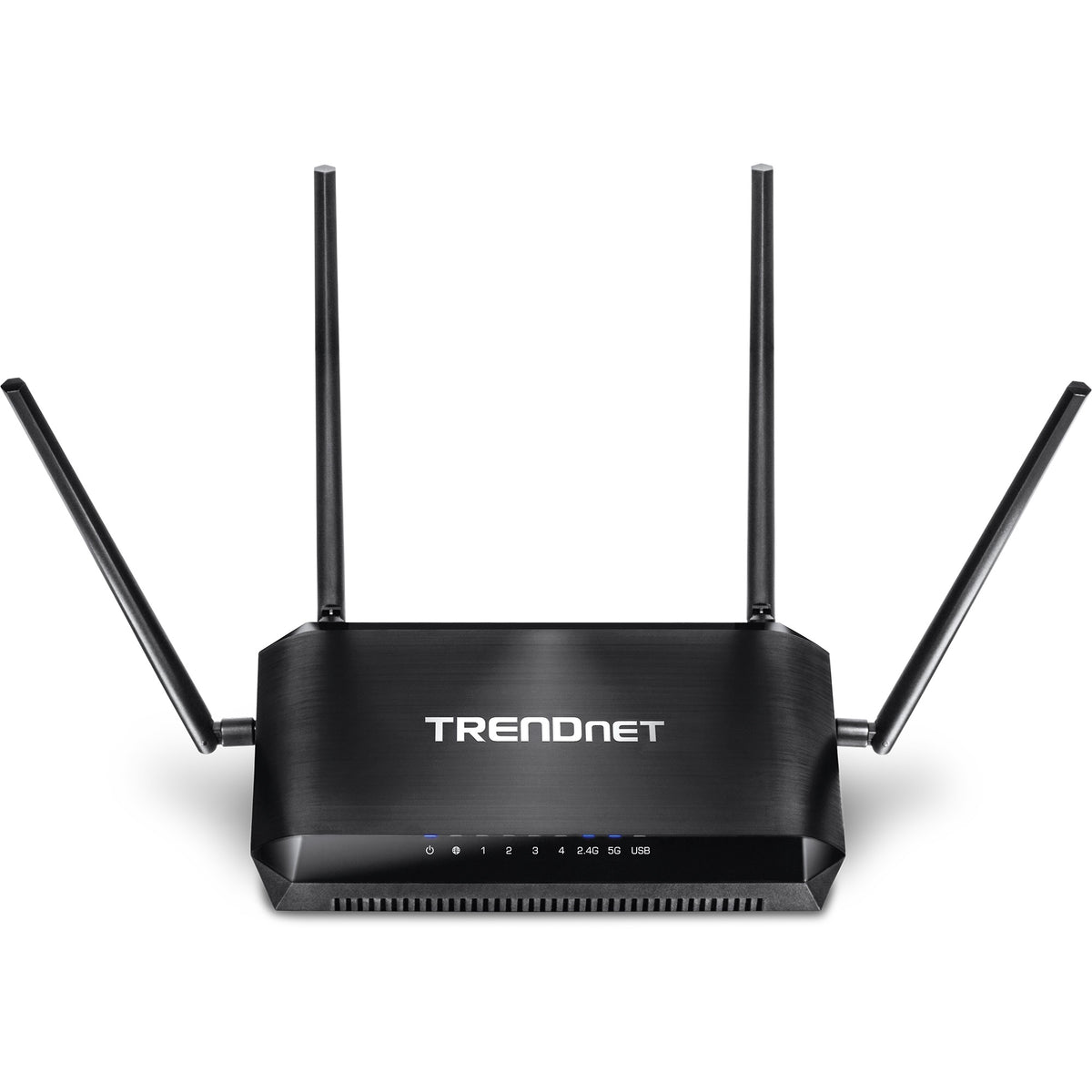

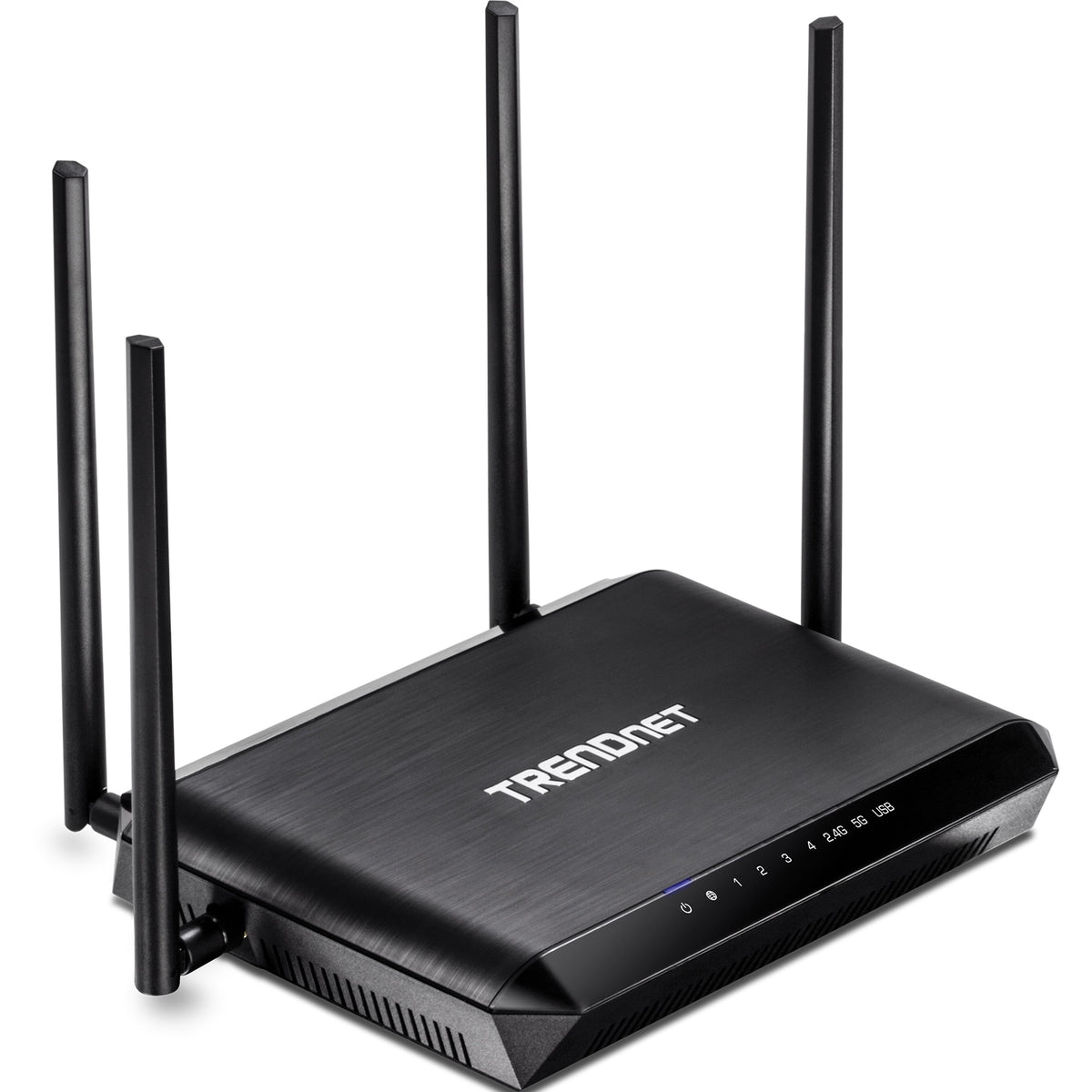

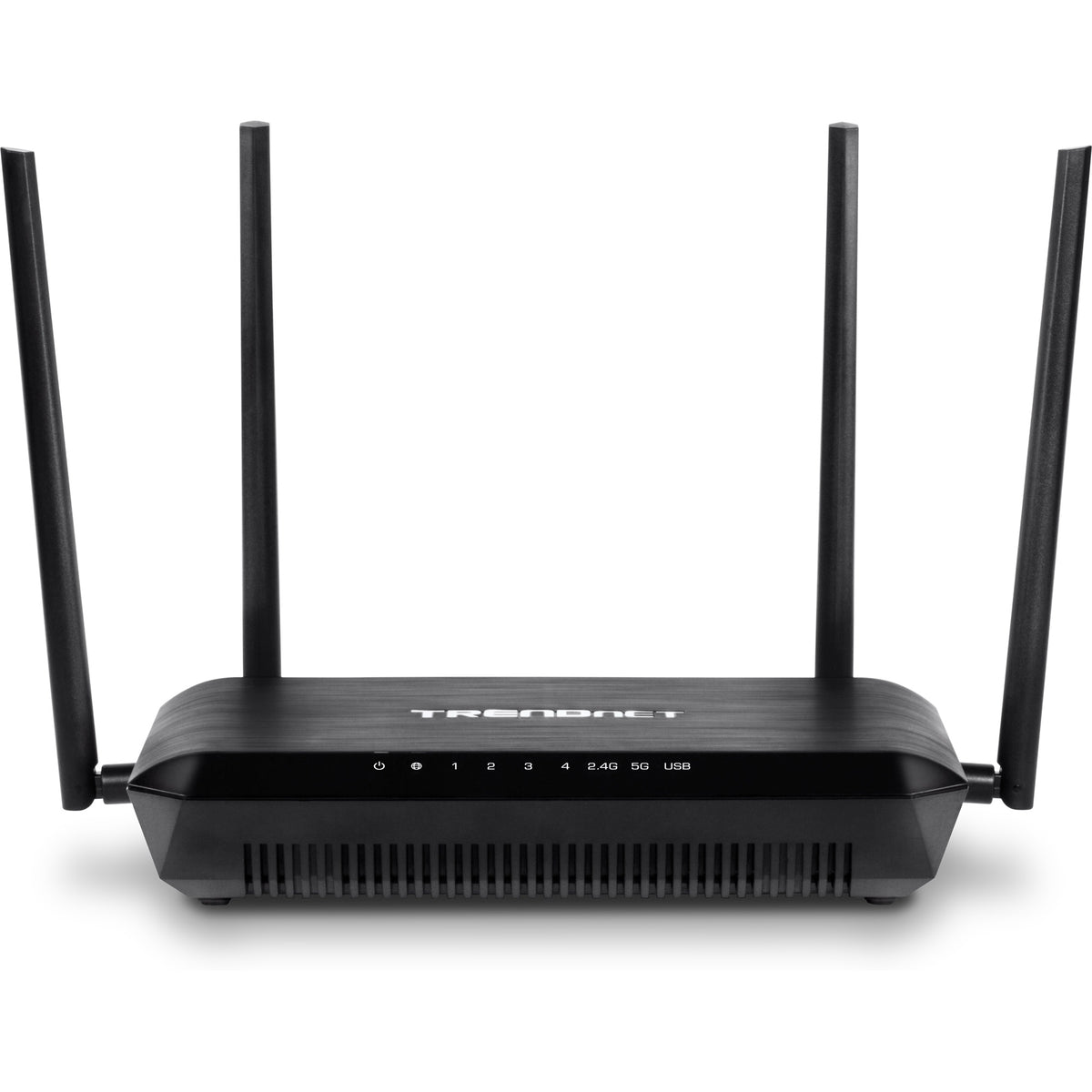

TRENDNET - TEW-827DRU - AC2600 Dual Band Wireless Router

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3ab
• IEEE 802.3az
• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n (up to 800 Mbps @ 256QAM)*
• IEEE 802.11ac (up to 1733 Mbps)*

• 4 x Gigabit LAN ports
• 1 x Gigabit WAN port
• 1 x USB 3.0 (Storage FTP, Samba, iTunes® Media Server, BitTorrent Client)
• Power switch
• WPS button
• Reset button
• LED indicators

• Multi-User MIMO for increased bandwidth efficiency and better user experience*
• Multi-Language interface: English, French, Spanish, German, Russian, Portuguese
• Pre-encrypted wireless network
• IPv6 support
• 1 guest network per band with option for internet access only
• Up to 2 additional SSIDs per band
• Dynamic DNS support for dyn.com, no-ip.com, and easydns.com
• Samba/FTP server support
• Explicit Beamforming

• Wireless encryption up to WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
• Firewall: NAT, SPI, Virtual Server, Special Applications, Gaming, DMZ Host, allow/deny ping request from internet
• ALG: PPTP/L2TP/IPsec VPN Passthrough, TFTP/FTP/RTSP/SIP/H.323 Passthrough
• Parental (Access) Controls: MAC, URL, IP Filter

• WMM
• Dynamic IP (DHCP)
• Static IP (Fixed)
• PPPoE (Dynamic IP/Static IP)
• PPTP (Dynamic IP/Static IP)
• L2TP(Dynamic IP/Static IP)
• Russia PPPoE (Dynamic IP/Static IP)
• Russia PPTP (Dynamic IP/Static IP)
• Russia L2TP (Dynamic IP/Static IP)
• IPv6 (Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE, 6to4)

• Local/remote web based management
• Upgrade firmware
• Backup/restore configuration
• Internal logging
• Reboot & scheduled automatic reboot
• Ping watchdog
• Restore to factory defaults
• Ping test

• Static
• Dynamic (RIP v1/2)

• 2.412 - 2.472 GHz
• 5.180 – 5.825 GHz

• 802.11b: CCK, DQPSK, DBPSK
• 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM
• 802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
• 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM

• CSMA/CA with ACK

• 2.4 GHz: 4 x 3 dBi (max.) detachable/external; 5 GHz: 4 x 5 dBi

• 802.11a: FCC: 26 dBm (max.) / ETSI: 22 dBm (max.) / IC: 26 dBm (max.)
• 802.11b: FCC: 27 dBm (max.) / ETSI: 15 dBm (max.) / IC: 27 dBm (max.)
• 802.11g: FCC: 25 dBm (max.) / ETSI: 16 dBm (max.) / IC: 25 dBm (max.)
• 802.11n (2.4 GHz): FCC: 25 dBm (max.) / ETSI: 16 dBm (max.) / IC: 25 dBm (max.)
• 802.11n (5 GHz): FCC: 25 dBm (max.) / ETSI: 23 dBm (max.) / IC: 25 dBm (max.)
• 802.11ac: FCC: 25 dBm (max.) / ETSI: 24 dBm (max.) / IC: 25 dBm (max.)

• 802.11a: -70 dBm (typical) @ 54 Mbps
• 802.11b: -83 dBm (typical) @ 11 Mbps
• 802.11g: -70 dBm (typical) @ 54 Mbps
• 802.11n (2.4 GHz): -59 dBm (typical) @ 800 Mbps
• 802.11n (5 GHz): -59 dBm (typical) @ 800 Mbps
• 802.11ac: -55 dBm (typical) @ 1733 Mbps

• 2.4 GHz: FCC: 1-11; ETSI: 1-13
• 5 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165; ETSI: 36, 40, 44, 48, (52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140)**

• Input: 100 – 240 V AC, 50 - 60 Hz
• Output: 12V DC, 1.5A external power adapter
• Consumption: 17.4W (max.)

• 0 – 40 °C (32 – 104 °F)

• Max. 95% non-condensing

• CE
• FCC
• IC

• 250 x 180 x 45 mm (9.8 x 7.1 x 1.8 in.)

• 612 g (21.6 oz.)

• 3 year

PACKAGE CONTENTS

• TEW-827DRU
• Quick Installation Guide
• CD-ROM (User's Guide)
• 4 x Detachable high gain antennas
• Network cable (1.5 m/5 ft.)
• Power adapter (12V DC, 1.5 A)
