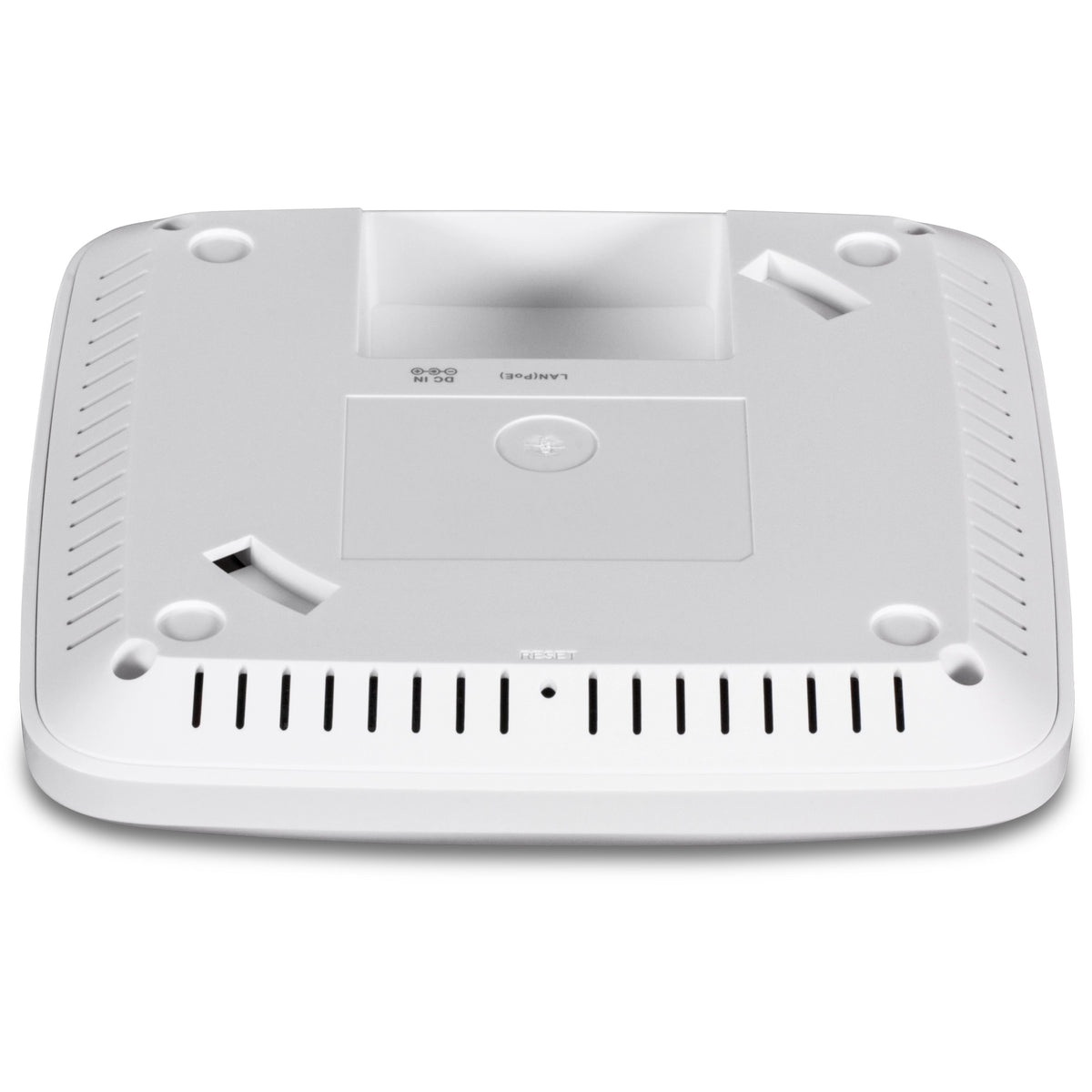

TRENDNET - TEW-921DAP CA - AX1800 Dual Band PoE+Indoor Wireless Access Point
TRENDNET - TEW-921DAP CA - AX1800 Dual Band PoE+Indoor Wireless Access Point
TRENDNET - TEW-921DAP CA - AX1800 Dual Band PoE+Indoor Wireless Access Point
TRENDNET - TEW-921DAP CA - AX1800 Dual Band PoE+Indoor Wireless Access Point
TRENDNET - TEW-921DAP CA - AX1800 Dual Band PoE+Indoor Wireless Access Point
TRENDNET - TEW-921DAP CA - AX1800 Dual Band PoE+Indoor Wireless Access Point
TRENDNET - TEW-921DAP CA - AX1800 Dual Band PoE+Indoor Wireless Access Point
TRENDNET - TEW-921DAP CA - AX1800 Dual Band PoE+Indoor Wireless Access Point
TRENDNET - TEW-921DAP CA - AX1800 Dual Band PoE+Indoor Wireless Access Point
TRENDNET - TEW-921DAP CA - AX1800 Dual Band PoE+Indoor Wireless Access Point
TRENDNET - TEW-921DAP CA - AX1800 Dual Band PoE+Indoor Wireless Access Point
TRENDNET - TEW-921DAP CA - AX1800 Dual Band PoE+Indoor Wireless Access Point
Trendnet

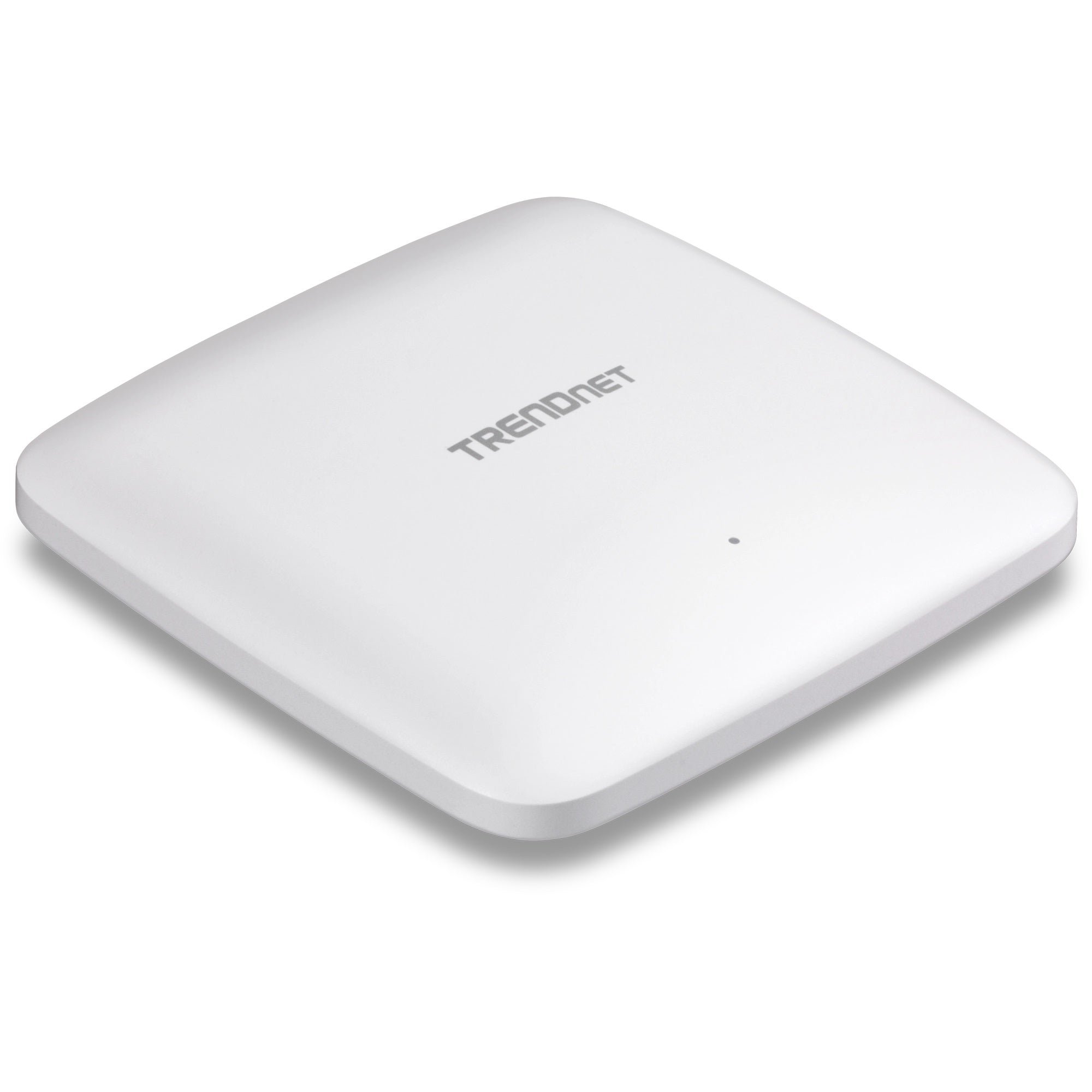

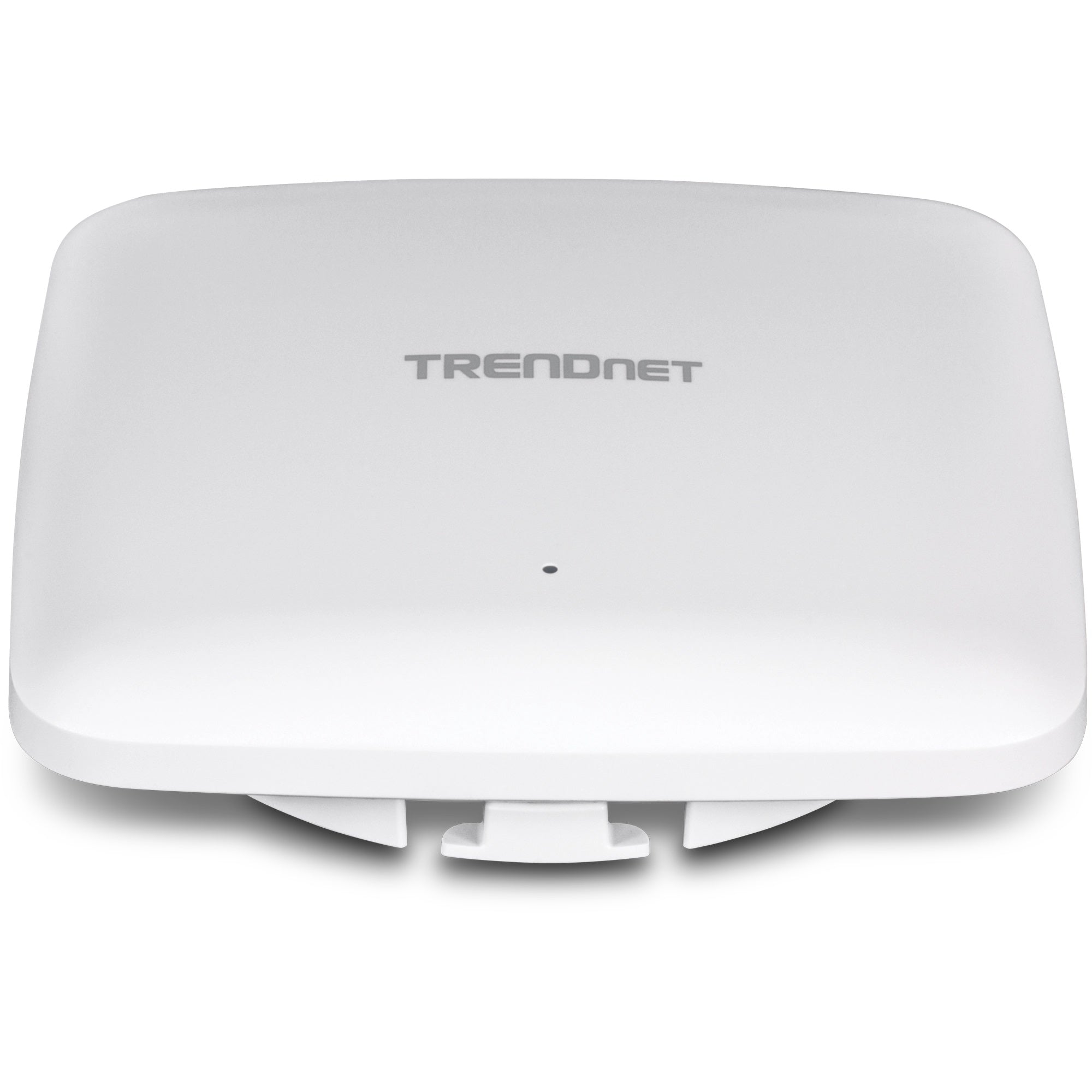

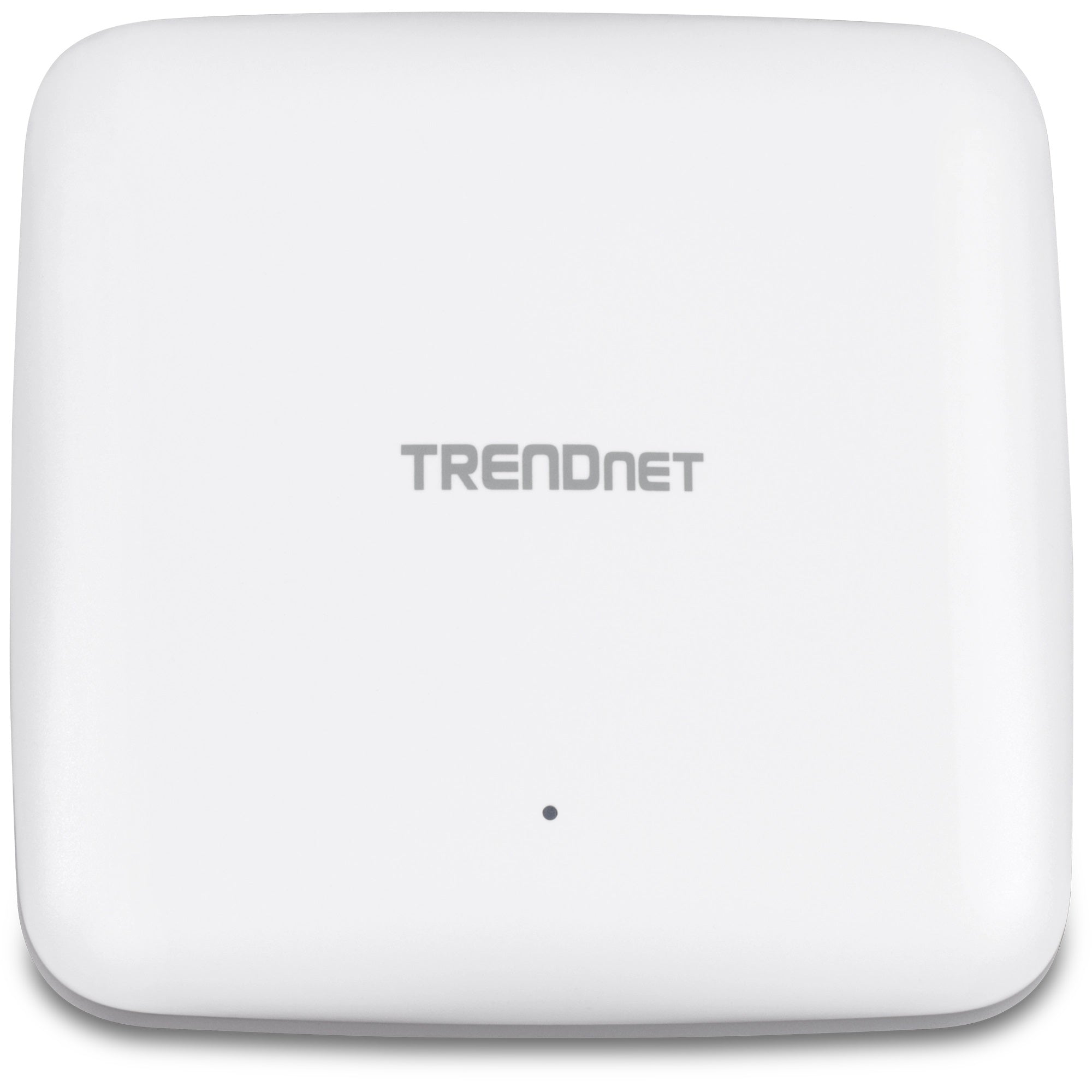

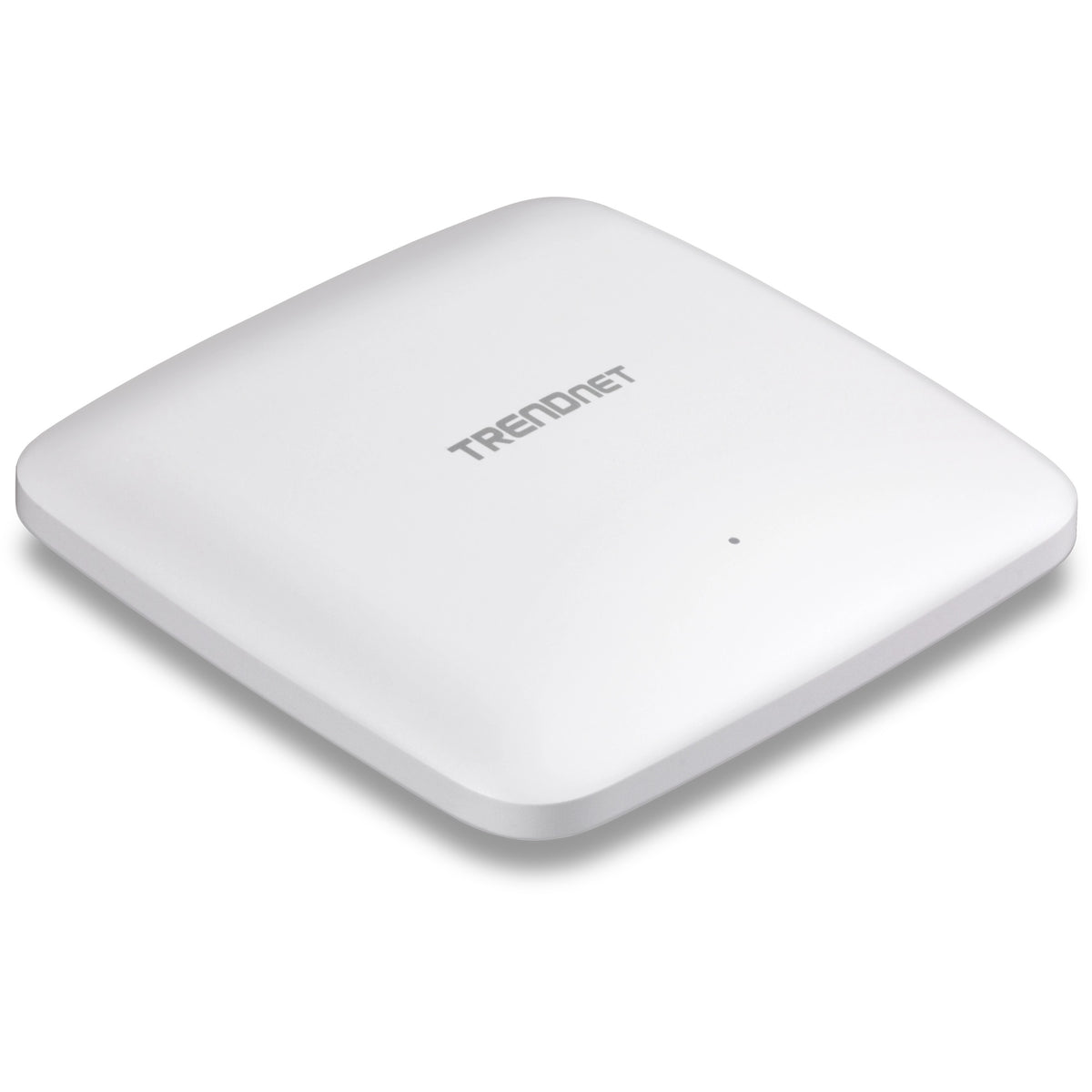

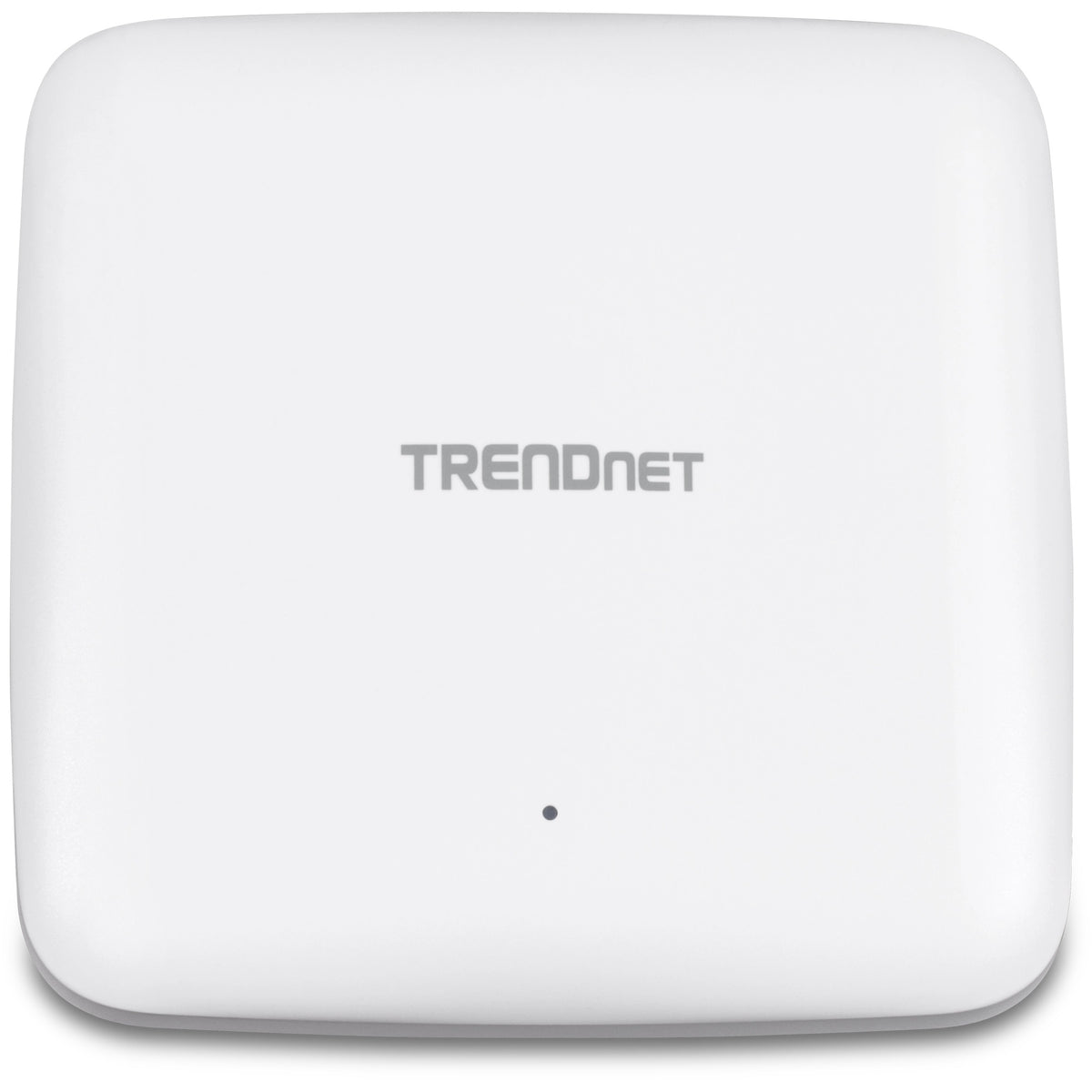

TRENDNET - TEW-921DAP CA - AX1800 Dual Band PoE+Indoor Wireless Access Point

Product SKU: TEW-921DAP CA
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$150.66
Notify me When Available
You will receive an email when the product is available.
  • Description
  • Specifications
  • Downloads

TRENDnet’s high-performance AX1800 Dual Band WiFi 6 PoE+ Access Point, model TEW-921DAP, features two concurrent WiFi bands to maximize device networking speeds with the latest WiFi 6 technology. The two separate high-speed WiFi 6 bands provide speeds up to 1201Mbps on the 5GHz band, and 567Mbps on the 2.4GHz band. Faster speeds are possible on this WiFi 6 access point with 1024-QAM, OFDMA, and MU-MIMO technologies.



This WiFi 6 access point supports innovative networking technology that improves coverage, speed, and capacity. The increase of QAM to 1024-QAM allows data to flow through a much wider ‘pipe’ than previous WiFi technologies. With OFDMA (Orthogonal Frequency-Division Multiple Access), the number of clients that can be connected to this WiFi 6 access point increases. OFDMA efficiently manages traffic in congested areas by separating channel frequencies into different subcarriers. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance on the WiFi 6 AP when multiple devices access the network.



The TEW-921DAP WiFi 6 access point features advanced access control, QoS, traffic management, band steering, and captive portal support. The low-profile housing design seamlessly blends into most environments, with a convenient wall / ceiling mounting plate included. For application flexibility, the TEW-921DAP supports Access Point (AP), Client Bridge, Wireless Distribution System Access Point (WDS AP), WDS Bridge, WDS Station, and Repeater modes. Easily manage and configure TRENDnet’s AX1800 Dual Band WiFi 6 PoE+ Access Point remotely by updating the access point to the latest firmware for access to TRENDnet Hive. TRENDnet Hive is a remote network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required on this WiFI 6 access point with TRENDnet’s reliable cloud service.



Features:

  • High-performance AX1800 PoE+ WiFi 6 access point
  • OFDMA and MU-MIMO technology boosts performance in a busy environment
  • Two concurrent WiFi bands maximize device networking speeds
  • AX1800 Dual Band: 1201Mbps (5GHz) + 567Mbps (2.4GHz) bands
  • Access Point, Client Bridge, WDS AP, WDS Bridge, WDS Station, and Repeater modes
  • Supports up to WPA3 encryption
  • Optional cloud management with TRENDnet Hive (Additional fee applies)
  • 1 x Gigabit PoE+ LAN port
  • Captive portal for hotspot applications
  • Low-profile housing blends into most environments

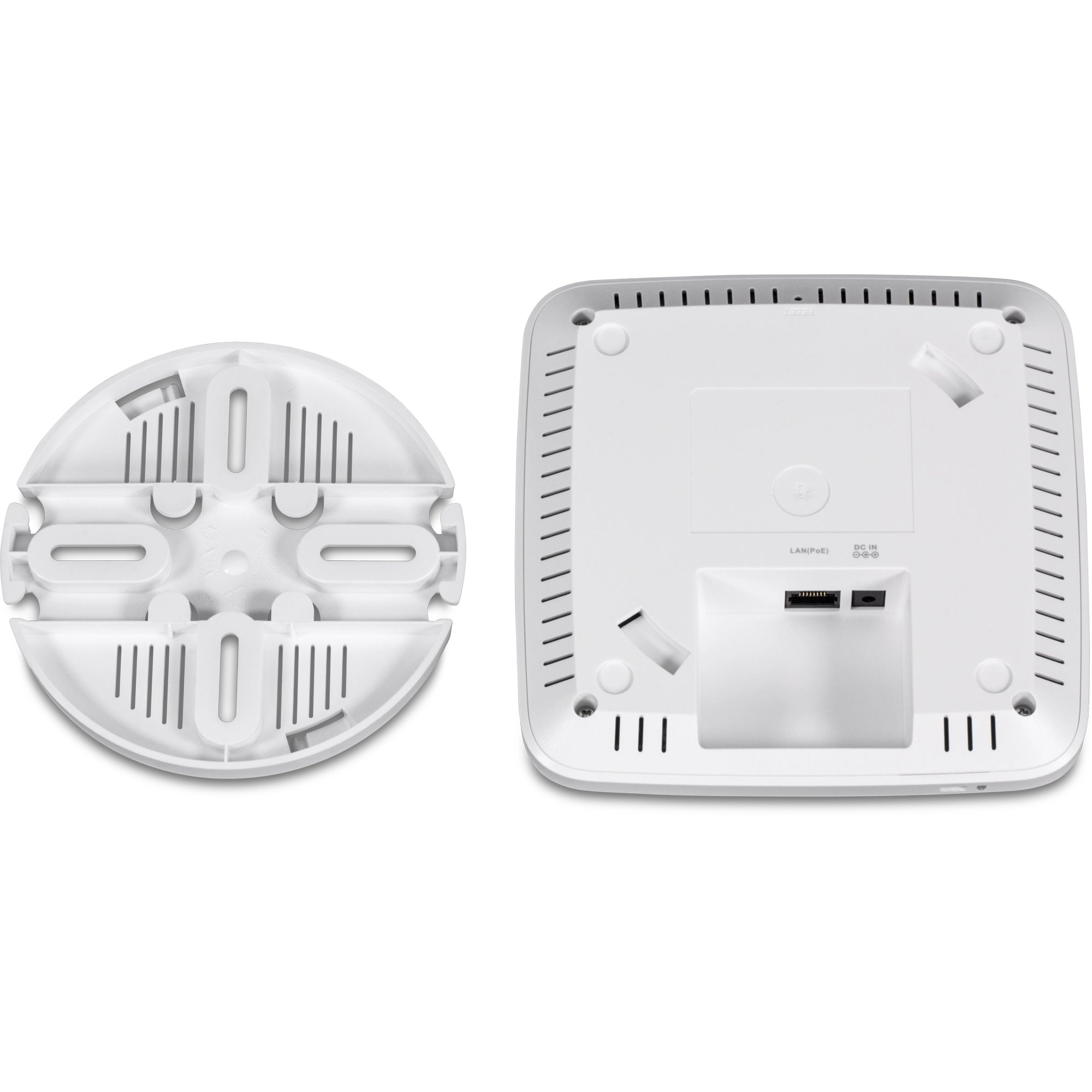

  • Includes wall / ceiling mounting plate
  • NDAA / TAA compliant (U.S. and Canada only)
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3at
  • IEEE 802.1Q
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11k
  • IEEE 802.11n (up to 400Mbps)*
  • IEEE 802.11r
  • IEEE 802.11v
  • IEEE 802.11w
  • IEEE 802.11ac Wave 2 (up to 867Mbps)*
  • IEEE 802.11ax (up to 1201Mbps)*
Hardware Interface

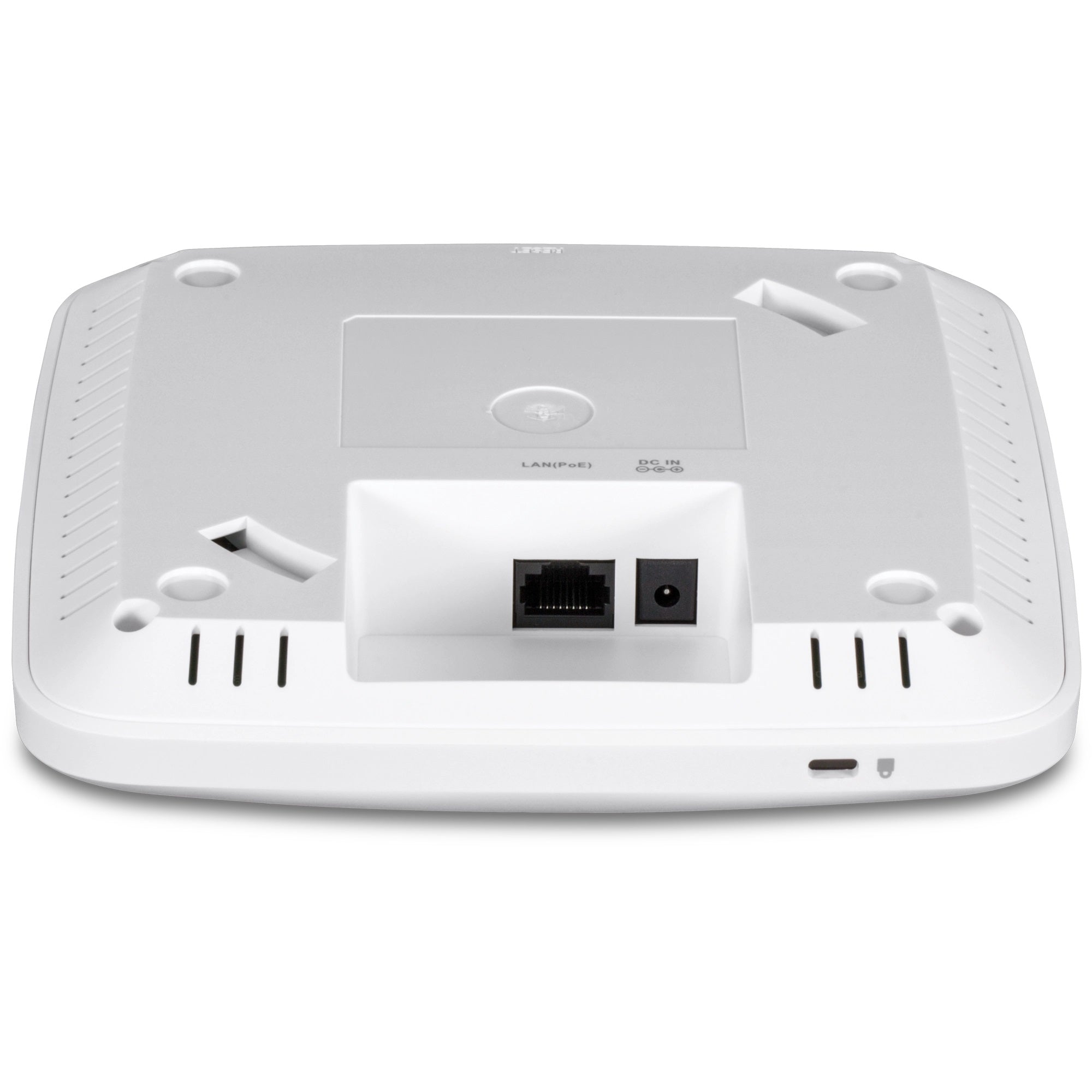

  • 1 x PoE+ Gigabit LAN port (power input)
  • Power port (optional power adapter sold separately)
  • LED indicators
  • Mounting plate

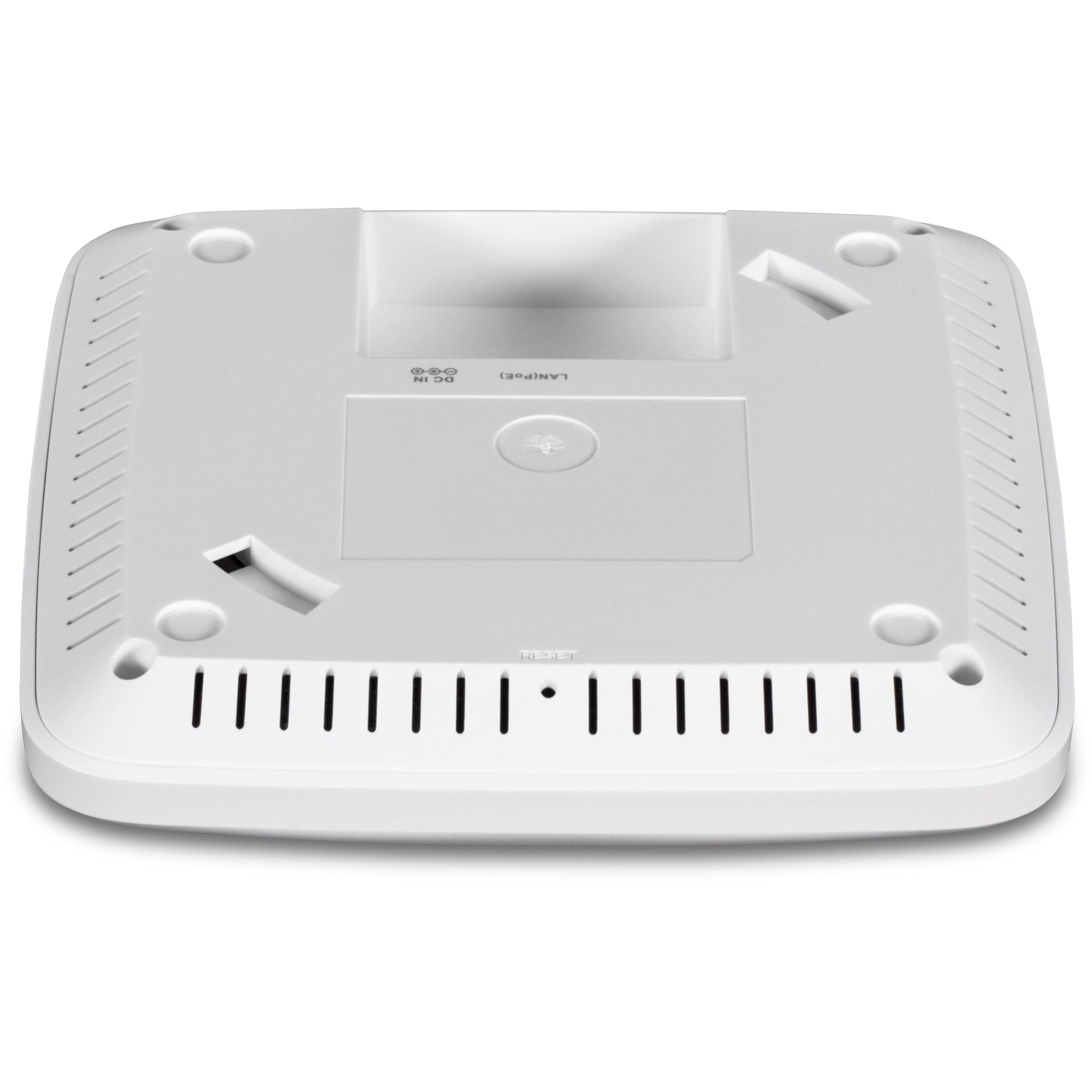

  • Reset button
Features
  • MU-MIMO
  • OFDMA
  • Band steering
  • WiFi traffic shaping
  • 802.1Q VLAN assignment per SSID
  • IPv6 support (Link-Local, Static IPv6, Auto-Configuration (SLAAC/DHCPv6))
  • Multi-Language interface, English, French, Spanish, German, Russian
  • LEDs on/off
  • External Captive Portal (Coovachilli server authentication)
  • Internal Captive Portal (Local user account authentication and customizable portal page)
  • Redirect Captive Portal
  • 802.11k intelligent radio resource management
  • RSSI Threshold (client signal strength and connectivity control)
  • Airtime Fairness
  • IGMP Snooping
Operation Modes
  • Access Point
  • Client Bridge
  • WDS AP
  • WDS Bridge
  • WDS Station
  • Repeater
Management/Monitoring
  • Web based management
  • SNMP v1/v3
  • STP
  • Event logging
  • Ping test
  • Traceroute
  • Telnet
  • Reboot & scheduled automatic reboot
Hive Cloud Management
  • Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser, or through the mobile app
  • Multi-device management
  • Provisioning through scheduled batch firmware or configuration updates for multiple switches
  • Event/hardware network monitoring (CPU/memory utilization)
  • Configure features such as IP address settings, WiFi settings, operation modes, and LED control through cloud management
Access Control
  • Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS, WPA3-PSK
  • MAC filter
  • Maximum client limit
QoS
  • Bandwidth control per SSID or client
SSID
  • Up to 8 SSIDs per wireless band (24 total)
Frequency
  • 2.4GHz: 2.412 – 2.472GHz
  • 5GHz: 5.180 – 5.320GHz
Wireless Channels
  • 2.4GHz: FCC: 1–11, ETSI: 1 – 13
  • 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165 ETSI: 36, 40, 44, 48 (52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140) **
Modulation
  • DBPSK/DQPSK/CCK for DSSS technique
  • BPSK/QPSK/16-QAM/64-QAM/256-QAM/1024-QAM for OFDM technique
  • OFDMA
Antenna Gain
  • 2.4GHz: 2 x 3.2 dBi internal
  • 5Ghz: 2 x 4.3 dBi internal
Wireless Output Power
  • 802.11a: FCC: 30 dBm (max.) / CE: 28 dBm (max.)
  • 802.11b: FCC: 29 dBm (max.) / CE: 18 dBm (max.)
  • 802.11g: FCC: 29 dBm (max.) / CE: 19 dBm (max.)
  • 802.11n (2.4GHz): FCC: 29 dBm (max.) / CE: 19 dBm (max.)
  • 802.11n (5GHz): FCC: 30 dBm (max.) / CE: 28 dBm (max.)
  • 802.11ac: FCC: 30 dBm (max.) / CE: 28 dBm (max.)
  • 802.11ax (2.4GHz): FCC: 29 dBm / CE: 19 dBm
  • 802.11ax (5GHz): FCC: 30 dBm / CE: 28 dBm
Receiving Sensitivity
  • 802.11a: -75 dBm (typical) @ 54Mbps
  • 802.11b: -90 dBm (typical) @ 11Mbps
  • 802.11g: -77 dBm (typical) @ 54Mbps
  • 802.11n (2.4 GHz): -77 dBm (typical) @ 400Mbps
  • 802.11n (5 GHz): -71 dBm (typical) @ 400Mbps
  • 802.11ac: -71 dBm (typical) @ 867 Mbps
  • 802.11ax (2.4GHz): -65 dBm (typical) @ 574Mbps
  • 802.11ax (5GHz): -63 dBm (typical) @ 1201Mbps
Power
  • IEEE 802.3at Type 2 PoE PD Class 4
  • Input: 100 - 240V AC, 50/60Hz, Output: 12V DC, 1.5A external power adapter (optional power adapter sold separately)
  • Max. consumption: 15W
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 95% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 160 x 160 x 34mm (6.3 x 6.3 x 1.34 in.)
Weight
  • 486g (1.07 lbs.)
Warranty:
  • 3 year

PACKAGE CONTENTS

  • TEW-921DAP
  • Network cable (1.5m/5 ft.)
  • Quick Installation Guide
  • Mounting plate
