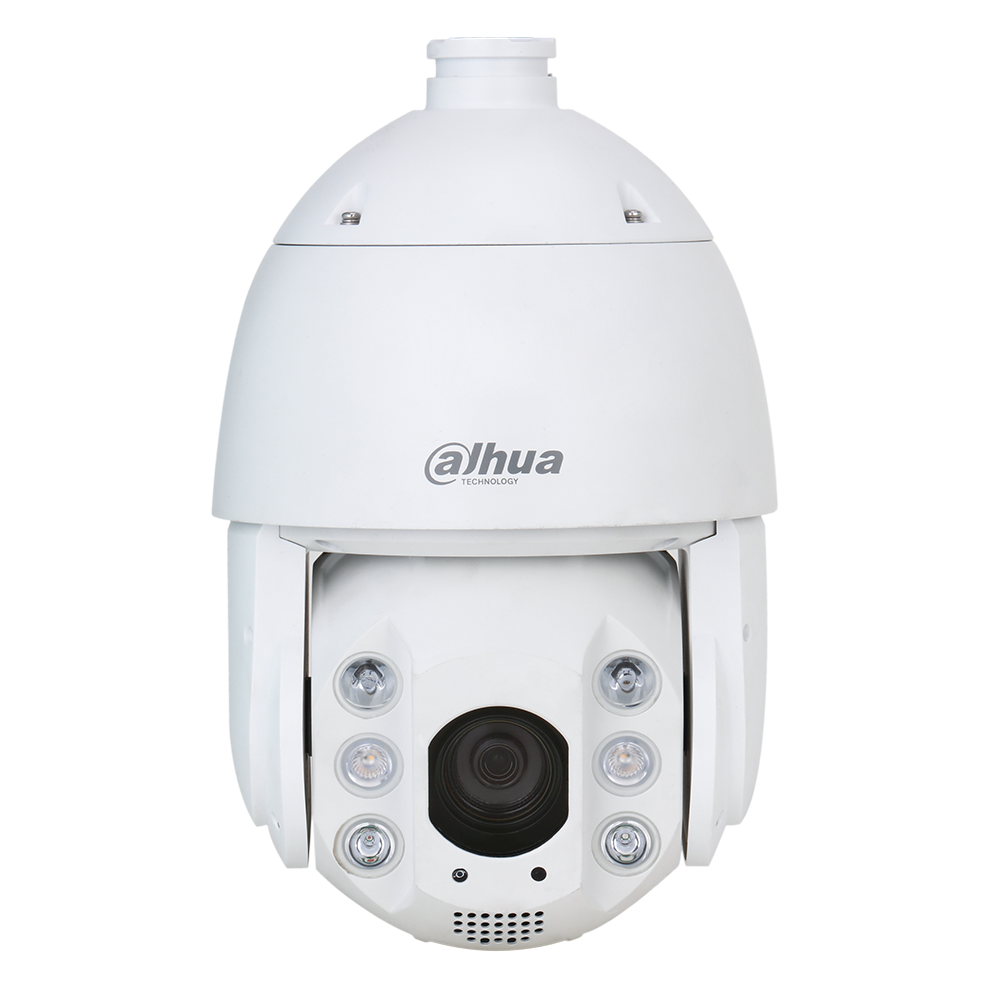

- Dahua - 6C3425XBPV - 4MP 25x TIOC 6-inch IP PTZ, Enhanced Starlight, Pro Series Dahua - 6C3425XBPV - 4MP 25x TIOC 6-inch IP PTZ, Enhanced Starlight, Pro Series
Dahua - 6C3425XBPV - 4MP 25x TIOC 6-inch IP PTZ, Enhanced Starlight, Pro Series
- Description
- Specifications
- Downloads
- Reviews
The 4MP TiOC Network PTZ camera features a 1/2.8-in. STARVIS CMOS imager with a 25x optical zoom len and provides an all -in-one solution for capturing long-distance outdoor video. The camera uses Smart H.265+ and Smart H.264+ video compression to improve encoding efficiency while preserving high-quality video. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True WDR for applications with direct sunlight or glare.
As a Dahua Three-in-One Camera (TiOC), the 4MP TiOC Network PTZ camera offers multiple features working in tandem to assist with deterrence and low-light detection while delivering high-resolution video images. The camera also features Perimeter Protection and Smart Motion Detection that offer accurate analytics. The camera is ideal for a host of diverse applications —Enhanced Starlight Technology, True Wide Dynamic Range, and Smart Dual illuminators allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.
Features:
- 1/2.8-in. 4MP STARVIS CMOS Sensor
- 4MP (2560 x 1440) at 30 fps Maximum Resolution
- Smart H.265+ and Smart H.264+ Dual Codec
- Powerful 25x Optical Zoom
- Starlight Technology for Ultra-low Light Sensitivity
- True Wide Dynamic Range (120 dB)
- Analytics+ Function – Perimeter Protection, Smart Motion Detection+
- Predictive Focus Analysis (PFA) Technology
- ArcticPro Series Camera – Operational down to –40° C (–40° F)
- IP66 Ingress Protection
- Auto-tracking
- Smart Dual Illumination — IR and White Light
- Active Alarm with Red/Blue Lights and Siren or Voice Prompt
- Five-year Warranty (when sold by an authorized Dahua dealer)
| Camera | ||||||
| Image Sensor | 1/2.8-in. STARVIS CMOS Sensor | |||||
| Effective Pixels | 2560(H) x 1440(V), 4MP | |||||
| RAM/ROM | 1 GB / 4 GB | |||||
| Electronic Shutter Speed | 1/1 s to 1/30,000 s | |||||
| Minimum Illumination | Color: 0.005 Lux @ F1.6 B/W: 0.0005 Lux @ F1.6 IR: 0 lux | |||||
| Illumination Distance | 150 m (492.13 ft) (IR) 50 m (164.04 ft) (White Light, Smart Illumination) | |||||
| Illuminators | Two (2) IR Lights Two (2) Dual Light Fusions Two (2) White LED Lights | |||||
| Lens | ||||||
| Focal Length | 4.8 mm–120 mm | |||||
| Maximum Aperture | F1.6–F3.5 | |||||
| Angle of View | Horizontal | 55.8° to 2.9° | ||||
| Vertical | 31.6° to 1.6° | |||||
| Diagonal | 63.7° to 3.3° | |||||
| Optical Zoom | 25x | |||||
| Focus Control | Automatic, Semiautomatic, Manual | |||||
| Iris Type | Fixed | |||||
| Close Focus Distance | 0.8 m–5.0 m (2.62 ft–16.40 ft) | |||||
| DORI1 Distance | Detect | Observe | Recognize | Identify | ||
| 1,655 m (5,429.79 ft) | 653 m (2,142.39 ft) | 331 m (1,085.96 ft) | 165 m (541.34 ft) | |||
| PTZ | ||||||
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –20° to +90° Auto flip 180° | |||||
| Manual Control Speed | Pan: 0.1°/s–160°/s Tilt: 0.1°/s–60°/s | |||||
| Preset Speed | Pan: 240°/s Tilt: 150°/s | |||||
| Presets | 300 | |||||
| PTZ Mode | 5 Patterns, 5 Scans, 8 Tour (Up to 32 Presets/Tour) | |||||
| Idle Motion | Activate Preset, Scan, Tour, Pattern if there is no command in the specified period | |||||
| Protocol | DH-SD, Pelco-P/D (Auto-recognition) | |||||
| Video | ||||||
| Compression | Smart H.265+, H.265, Smart H.264+, H.264B, H.264H, H.264M, MJPEG (sub stream only) | |||||
| Streaming Capability | Three (3) Streams | |||||
| Resolution | 4MP (2560 x 1440), 3MP (2048 x 1536), 1080p (1920 x 1080), 1.3MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) | |||||
| Frame Rate | Main Stream | 4MP/3MP/1080p/1.3MP/720p at 1–30 fps | ||||
| Sub Stream 1 | D1/VGA/CIF at 1–30 fps | |||||
| Sub Stream 2 | 1080p/1.3M/720p at 1–8 fps | |||||
| Electrical | ||||||
| Power Supply | 24 VDC, 2.5 A (± 25%) (Included) PoE+ (802.3at) | |||||
| Power Consumption | Basic: 13 W Max.: 23 W (Illuminator + Red/Blue Warning Lights + Speaker + PTZ) | |||||
| Bit Rate Control | CBR, VBR | |||||
| Bit Rate | H264: 2816 kbps–8192 kbps H265: 1024 kbps–7936 kbps | |||||
| Day/Night | Auto (ICR), Color, B/W | |||||
| Backlight Compensation | BLC, HLC, True WDR (120 dB) | |||||
| White Balance | Auto, Indoor, Outdoor, ATW, Manual, Sodium Lamp, Natural, Street Lamp | |||||
| Gain Control | Auto, Aperture Priority, Iris Priority, Gain Priority, Shutter Priority, Manual | |||||
| Noise Reduction | 2D/3D | |||||
| Advanced Features | Motion Detection, Region of Interest, Electronic Image Stabilization (EIS), Electric Defog | |||||
| Digital Zoom | 16x | |||||
| Flip | 180° | |||||
| Privacy Masking | Up to 24 Areas (Up to 8 areas in Same View), Multiple Colors and Mosaic Blocks | |||||
| S/N Ratio | ≥ 55 dB | |||||
| Audio | ||||||
| Input/Output | Input: One (1) Channel (LINE IN, Bare Wire) Output: One (1) Channel (LINE OUT, Bare Wire, Built- in Speaker (Mutually Exclusive)) | |||||
| Compression | G.711a, G.711Mu, G.726, G722.1, G.729, MPEG2- Layer2, G723, PCM | |||||
| Network | ||||||
| Ethernet | RJ-45 (10/100 Base-T) | |||||
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, ICMP, SNMP, SNMP v1/v2c/v3 (MIB-2), IGMP, ARP, RTCP, RTP, PPPoE, IP Filter, RTMP, Bonjour, TCP, SMB, NFS | |||||
| Interoperability | ONVIF (Profile S&G&T) | |||||
| Maximum User Access | 20 Users (Total Bandwidth: 64 Mbps) | |||||
| Edge Storage | FTP, MicroSD Card (256 GB), NAS | |||||
| Web Viewer | IE 7 or Later Chrome 42 or Earlier Firefox 52 or Earlier Safari | |||||
| Management Software | DSS, DMSS | |||||
| Mobile Operating System | Android, iOS | |||||
| Certifications | ||||||
| CE | EN55032/EN55024/EN50130-4 | |||||
| FCC | Part15 Subpart B, ANSI C63.4-2014 | |||||
| Alarm | ||||||
| Input/Output | Input: Two (2) Channels (Digital Input (0–5 VDC)) Output: One (1) Channel | |||||
| Linkage | Capture, Preset, Tour, Pattern, Recording, Alarm Digital Input, Send Email | |||||
| Event | Motion/Tampering Detection, Audio Detection, Network Disconnection Detection, IP Conflict Detection, Memory Card State Detection, Memory Space Detection | |||||
