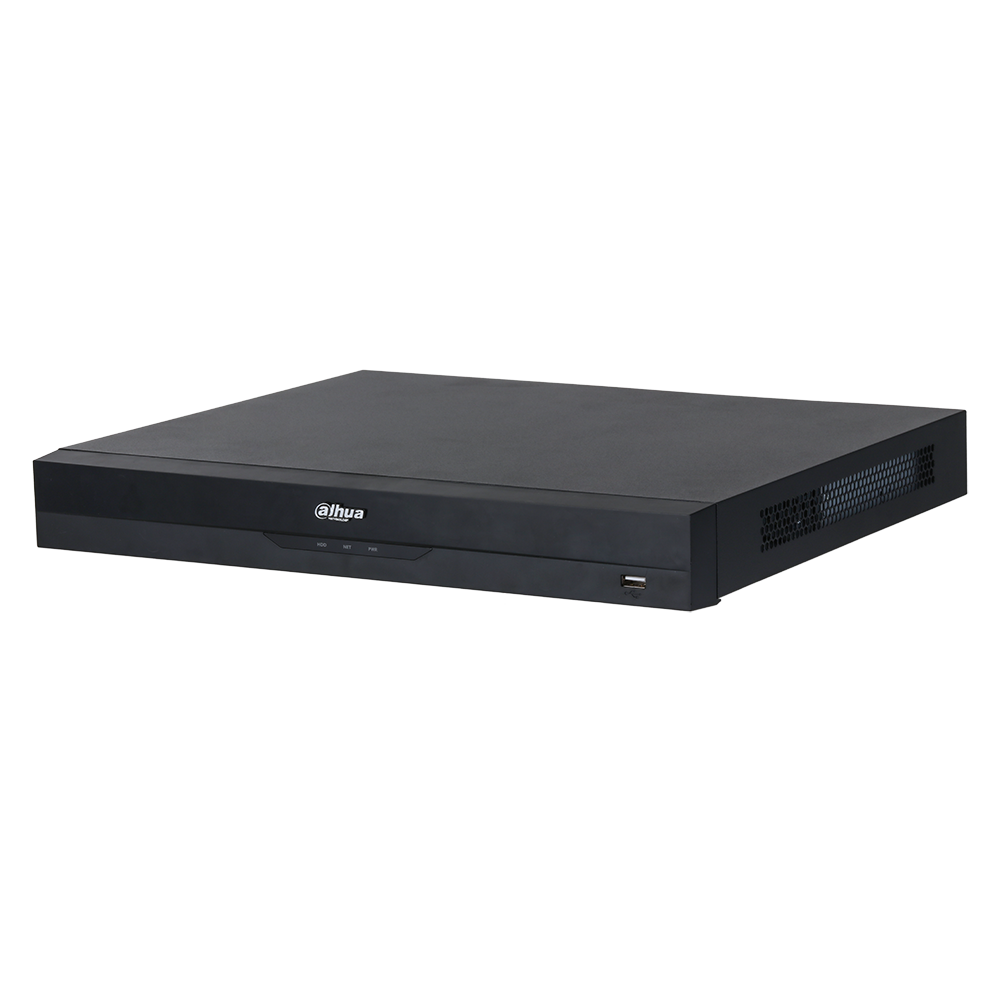

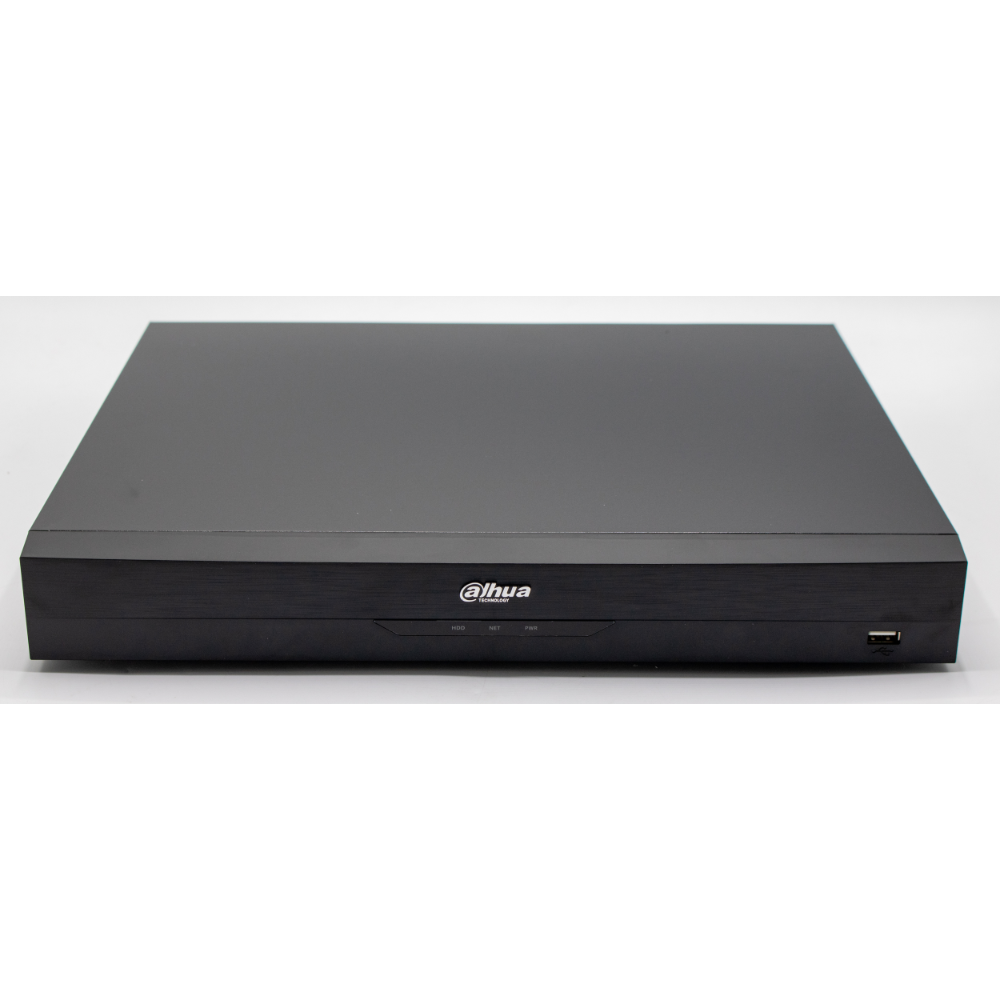

Dahua - N84B3P - 16-channel AcuPick Network Video Recorder, NO HDD

Dahua

Dahua - N84B3P - 16-channel AcuPick Network Video Recorder, NO HDD

Name: Dahua - N84B3P - 16-channel AcuPick Network Video Recorder, NO HDD
Brand: Dahua
SKU: N84B3P
Price: 975.24 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

DISCONTINUED

Product SKU: N84B3P

$975.24

~~$1,312.79~~

Description
Specifications
Downloads
Reviews

• Maximum Bandwidth of 384 Mbps Incoming/Recording/Outgoing
• Analytics+ by Recorder: AcuPick, 2-channel Face Detection and Face Detection+, 4-channel Perimeter Protection, and 8-channel Smart Motion Detection+
• Analytics+ by Camera: AcuPick, Face Detection, Face Detection+, Perimeter Protection, Smart Motion Detection+, ANPR, Stereo Analysis, Heat Map, and People Counting

System
Main Processor		Industrial-grade Processor
Operating System		Embedded Linux
Operating Interface		Web, Local GUI
Analytics+ Recording
Recorder Functions4		Face Detection, Face Detection+, Perimeter Protection, Smart Motion Detection+
Camera Fuctions		Face Detection, Face Detection+, Perimeter Protection, Video Analytics (Human, Motor Vehicles, and Non-motor Vehicles), Smart Motion Detection+, Crowd Distribution, People Counting, Automatic License Plate Recognition (ANPR), Vehicle Density, Heat Map
Perimeter Protection Recording
Recorder Channels		4 channels (10 IVS Rules per Channel)
Camera Channels		16 Channels
Face Detection
Face Attributes		Gender, Age Group, Glasses, Expressions, Face Mask, Beard
Recorder Channels		2 Channels (Up to 12 Face Images Per Channel)
Camera Channels		16 Channels
Face Detection+ 5
Face Database	Capacity	Up to 20 Databases with 200,000 Images (Max. 2.5 GB)
	Analytics	Name, Gender, Birthday, Address, Credential Type, Credential Number, Country, Region, State
Recorder Channels		1. 16 Channels with Image Stream of 16 Images when the NVR is used for Face Detection+ functionality and the camera is used for Face Detection functionality 2. 2 channels with Image Stream of 12 Images when only the NVR is used for Face Detection and Face Detection+ functionality (No camera involvment for Face Detection or Face Detection+ functionality)
Camera Channels		16 Channels when only the camera is used for Face Detection and Face Detecion+ functionality (No NVR involvement for Face Detection or Face Detection+ functionality)
Smart Motion Detection+ (SMD+) Recording
Recorder Channels		8 Channels with Secondary Filtering for False Alarm Reduction
Camera Channels		16 Channels
Video Analytics
Camera Channels		8 Channels
Human Attributes		Top Color, Top Type, Hat, Bag, Age, Gender, Umbrella
Motor Vehicle Attributes		License Plate, Plate Color, Vehicle Model, Vehicle Logo, Plate Color, Ornament, Calling
Non-motor Vehicle Attributes		Vehicle Model, Vehicle Color, Number Of Persons, Helmet
Vehicle License Plate Comparison
ANPR Channels by Camera		8 Channels
License Plate Database Capacity		20,000 (Blocklist and Allow List)
Audio and Video
Access Channel		16 Channels
Network Bandwidth	Incoming	Analytics+ Disabled: 384 Mbps Analytics+ Enabled: 200 Mbps
	Recording	Analytics+ Disabled: 384 Mbps Analytics+ Enabled: 200 Mbps
	Outgoing	Analytics+ Disabled: 384 Mbps Analytics+ Enabled: 200 Mbps
Recording Resolution		32MP, 24MP, 16MP, 12MP, 8MP, 5MP, 4MP, 1080p, 720p, D1, CIF, QCIF

Decoding Capability	Analytics Disabled	2-channel: 32MP at 20 fps or 24MP at 20 fps 4-channel:16MP at 30 fps 5-channel: 12MP at 30 fps 8-channel: 8MP at 30 fps 12-channel: 5MP at 30 fps 16-channel: 4MP at 30 fps
	Analytics Enabled	1-channel: 32MP at 20 fps or 24MP at 20 fps 2-channel: 16MP at 30 fps 4-channel: 12MP at 30 fps or 8MP at 30 fps 8-channel: 5MP at 30 fps 12-channel: 4MP at 30 fps
Video Output		• 2-channel VGA, 2-channel HDMI Video Output • Spot Output for HDMI1 and HDMI2 • Simultaneous video source output for VGA1 and HDMI1 • Simultaneous video source output for VGA2 and HDMI2 Maximum Resolution VGA: 1080p HDMI: 4K
Multi-screen Display	Main Screen	1/4/8/9/16
	Sub Screen	1/4/8/9/16
Third-party Support		ONVIF, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung

Video Compression		Smart H.265+, H.265, Smart H.264+, H.264, MJPEG (Sub Stream Only)
Audio Compression		G.711a, G.711Mu, PCM, G.723, G.726, AAC
Network Protocol		HTTP; HTTPS; TCP/IP; IPv4/IPv6; RTSP; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration
Mobile Phone Access		iOS, Android
Interoperability		ONVIF 21.12 (Profile S/Profile T/Profile G), CGI, SDK
Browser		Chrome, Edge, Firefox

Multi-channel Playback		Up to 16 Channels
Record Mode		General, Motion Detection, Intelligent, Alarm, POS
Backup Method		USB Device, Network
Playback Mode		Instant Playback, General Playback, Event Playback, Tag Playback, Smart playback (Face and Motion Detection)
Disk Group		Yes
HDD Interface		4 SATA ports, up to 16 TB each. The maximum HDD capacity varies with environment temperature.
General Alarm		Motion Detection, Privacy Masking, Local Alarm
Anomaly Alarm		Camera Offline, Storage Error, Disk Full, IP Conflict, MAC Conflict, Login Lock, Abnormal Fan Behavior, Cybersecurity Exception
Intelligent Alarm		Face Detection, Perimeter Protection, Face Detection+, Video Analytics (Human, Motor Vehices, Non-motor Vehicles), Smart Motion Detection+, Automatic License Plate Recognition (ANPR), Vehicle Density, Heat Map
Alarm Linkage		Record, Snapshot (Panoramic), Local Alarm Output, IPC External Alarm Output, Access Controller, Audio, Buzzer, Log, Preset, Email
Audio	Input	1-channel RCA
	Output	2-channel RCA
Alarm	Input	16 channels
	Output	6 channels (1-channel 12 V 1 A output)
RS-232		1

RS-485		1
USB		3 (1 front USB 2.0 ports, 2 rear USB 3.0 ports)
HDMI		2
eSATA		1
VGA		2
Network Port		1 (10/100/1000 Mbps Ethernet Port, RJ-45)
PoE Port		16 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports support ePoE
Electrical
Power Supply		100 to 240 VAC, 50 to 60 Hz
Power Consumption		≤ 13 W (without HDD), 150 W (PoE), 25.5 W (Single Port)
Environmental
Operating Temperature		–10 °C to +55 °C (14 °F to +131 °F)
Storage Temperature		–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity		10%–93% (RH)
Certifications
Safety		UL 62368-1 CAN/CSA C22.2 No.62368-1-14
Electromagnetic Compatibility		FCC: 47 CFR FCC Part15, SubpartB, Class A EN 55032:2020, Class A EN IEC 61000-3-2:2019 EN 61000-3-3:2013+A1:2019 EN 55024:2010+A1:2015 EN 55035:2020 EN 50130-4:2011+A1:2014
Electrical
Net Weight		4.82 kg (10.63 lb)
Gross Weight		7.09 kg (15.63 lb)
Product Dimensions (W x D x H)		440.0 mm × 415.1 mm x 70.0 mm (17.32 in. × 16.34 in. × 2.76 in.)
Packaging Dimensions (W x D x H)		530.0 mm × 500.0 mm × 210.0 mm (20.87 in. × 19.69 in. × 8.27 in.)
Installation		Rack or Desktop
