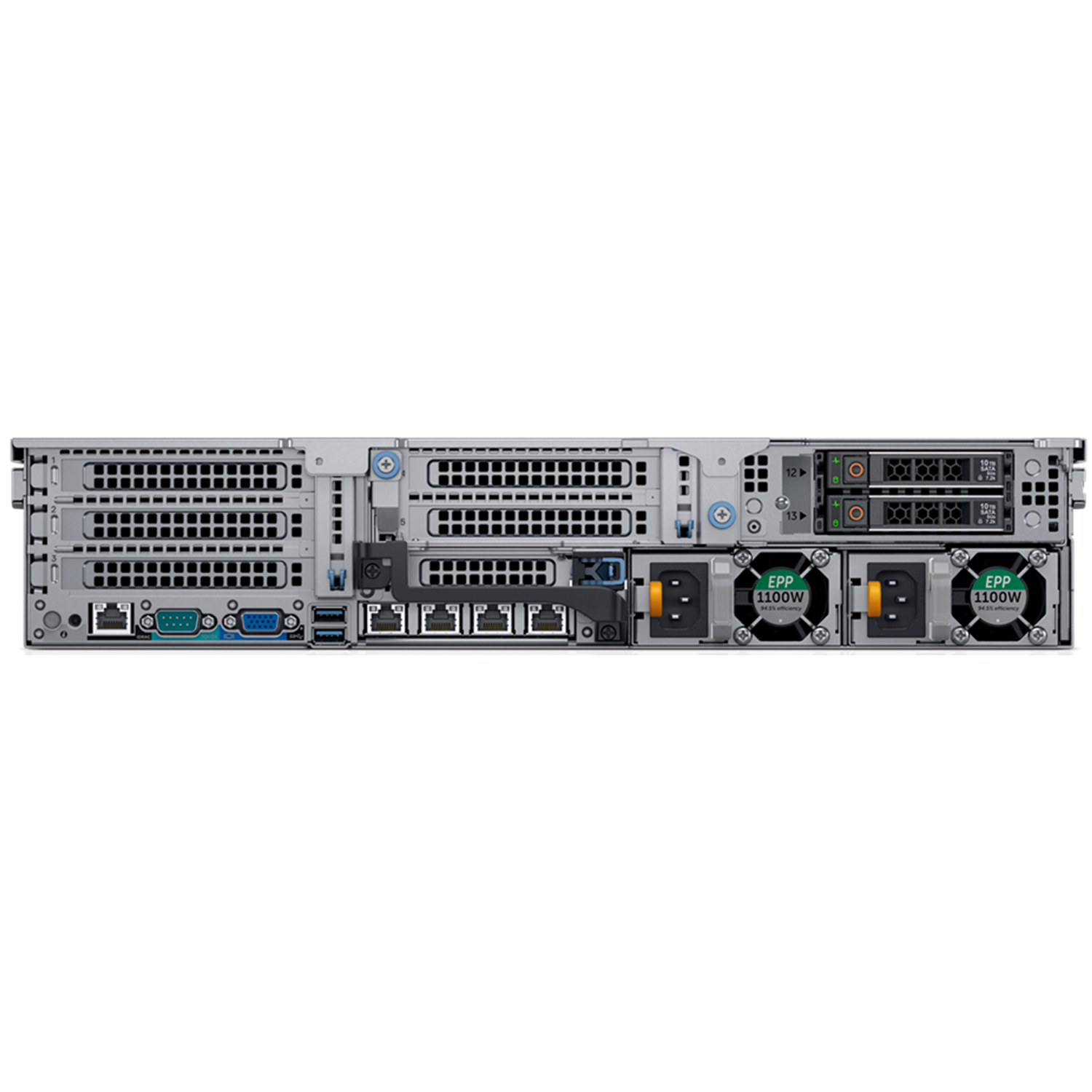

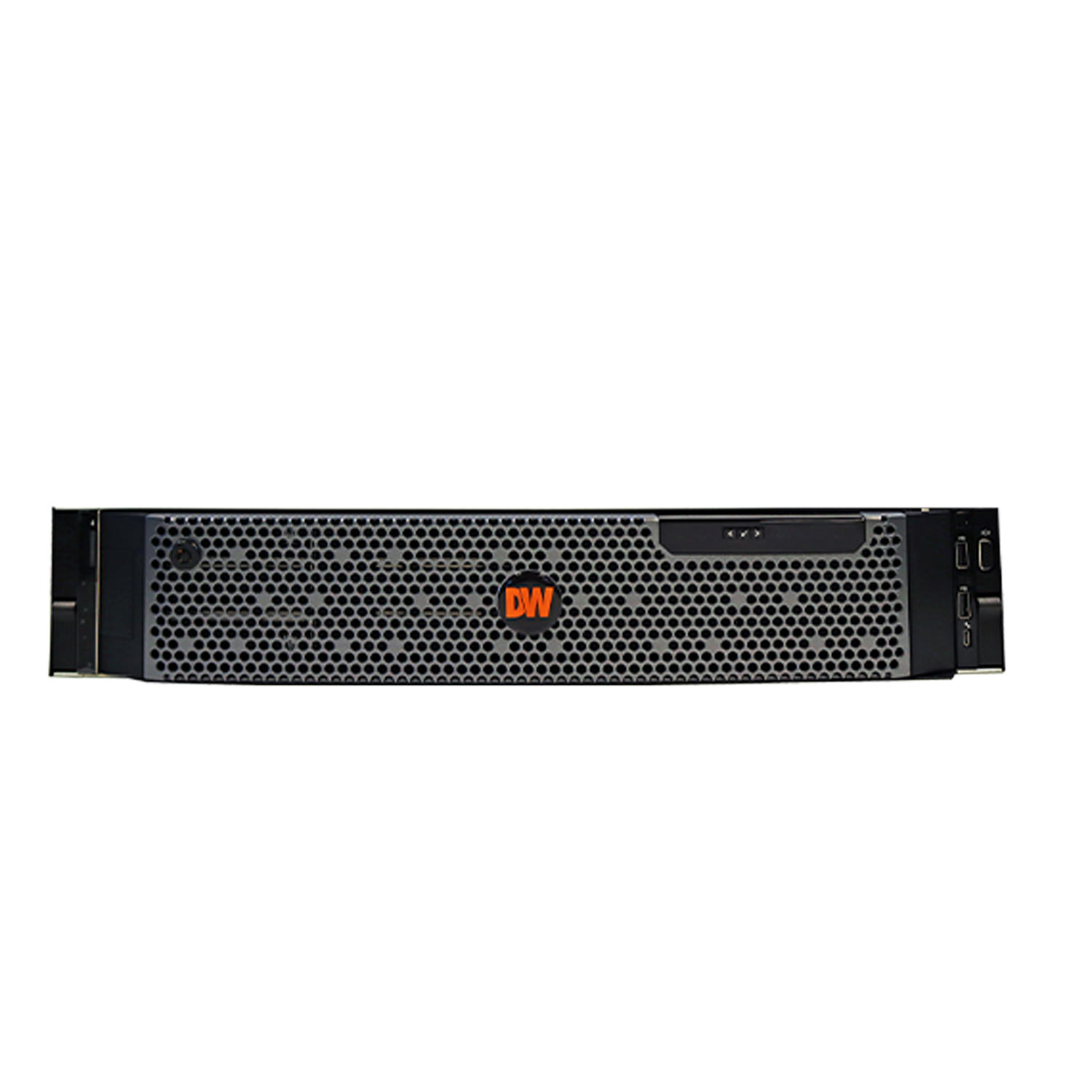

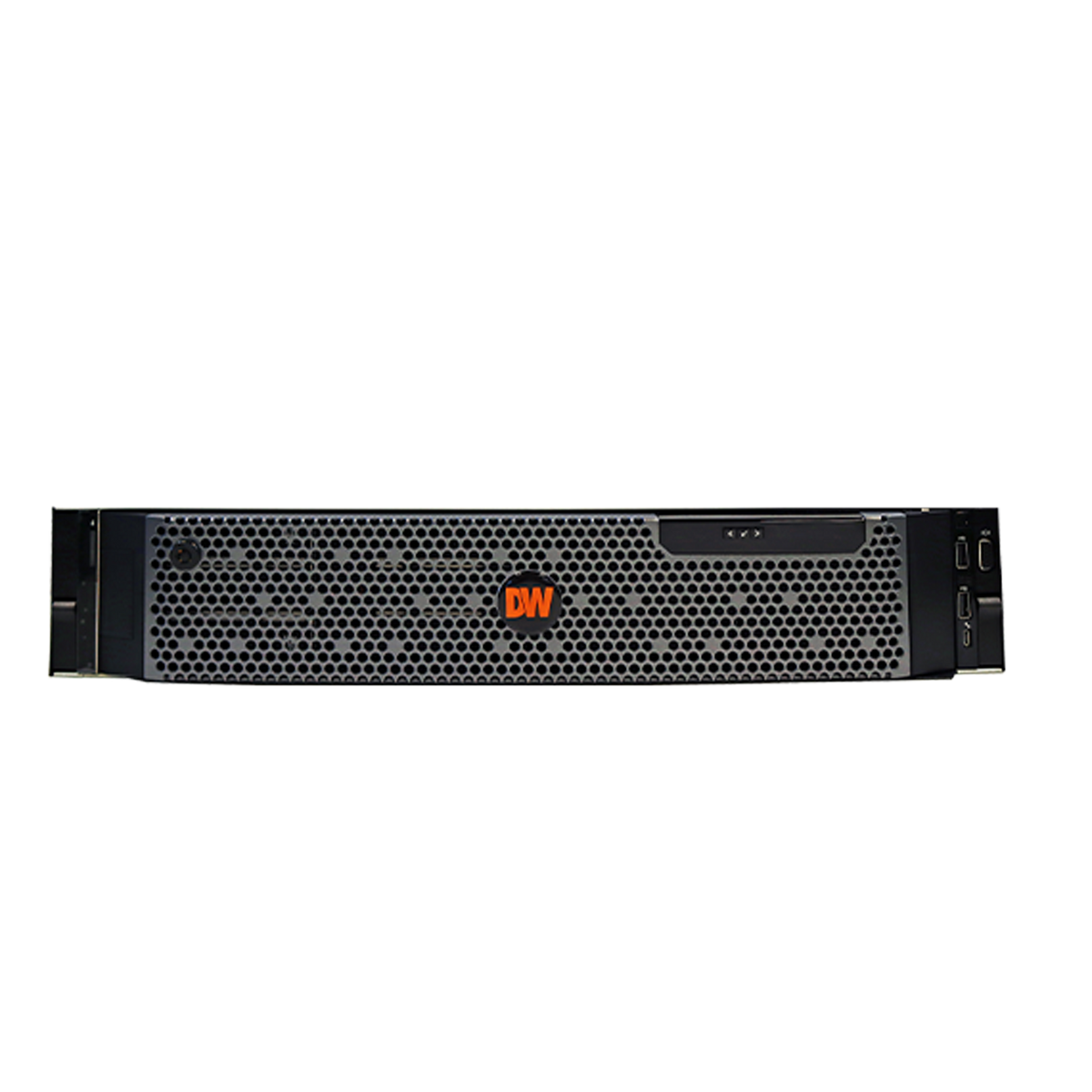

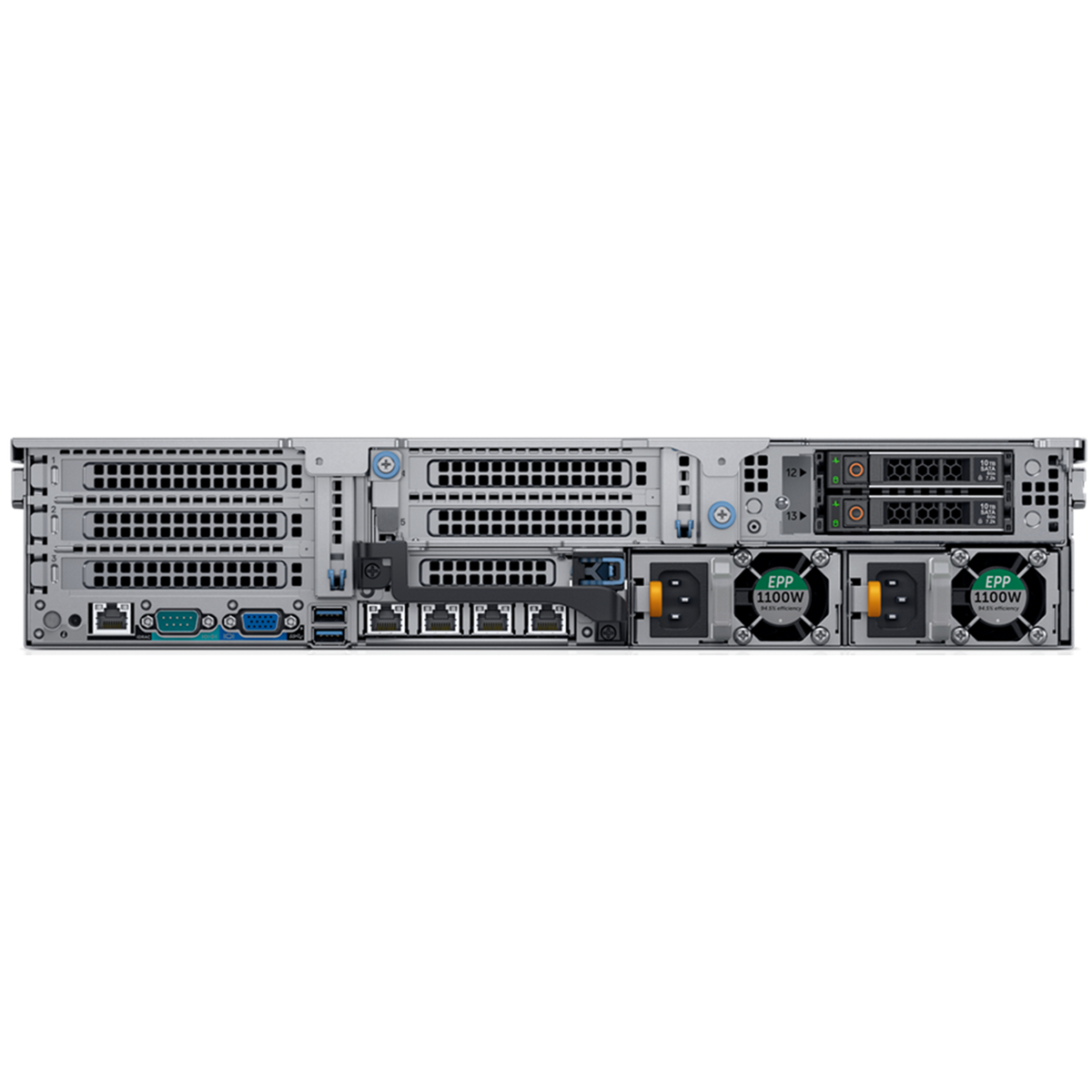

Digital Watchdog - DW-BJRR2X280TLX - Blackjack Rack NVR Server (Powered by DW Spectrum IPVMS), includes 8 camera licenses pre-installed, 600 Mbps of recording throughput, Linux on mirrored SSD's, 1000W Dual Power Supply, 2U rack-mount, 260TB usable R
Digital Watchdog - DW-BJRR2X280TLX - Blackjack Rack NVR Server (Powered by DW Spectrum IPVMS), includes 8 camera licenses pre-installed, 600 Mbps of recording throughput, Linux on mirrored SSD's, 1000W Dual Power Supply, 2U rack-mount, 260TB usable R
Digital Watchdog - DW-BJRR2X280TLX - Blackjack Rack NVR Server (Powered by DW Spectrum IPVMS), includes 8 camera licenses pre-installed, 600 Mbps of recording throughput, Linux on mirrored SSD's, 1000W Dual Power Supply, 2U rack-mount, 260TB usable R
Digital Watchdog - DW-BJRR2X280TLX - Blackjack Rack NVR Server (Powered by DW Spectrum IPVMS), includes 8 camera licenses pre-installed, 600 Mbps of recording throughput, Linux on mirrored SSD's, 1000W Dual Power Supply, 2U rack-mount, 260TB usable R
Digital Watchdog

Digital Watchdog - DW-BJRR2X280TLX - Blackjack Rack NVR Server (Powered by DW Spectrum IPVMS), includes 8 camera licenses pre-installed, 600 Mbps of recording throughput, Linux on mirrored SSD's, 1000W Dual Power Supply, 2U rack-mount, 260TB usable R

Product SKU: DW-BJRR2X280TLX
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$54,534.06
$80,790.00
Notify me When Available
You will receive an email when the product is available.
  • Description
  • Specifications
  • Downloads

Blackjack Rack NVR Server (Powered by DW Spectrum IPVMS),  includes 8 camera licenses pre-installed, 600 Mbps of recording throughput, Linux on mirrored SSD's, 1000W Dual Power Supply, 2U rack-mount, 260TB usable Raid storage, Raid 5, Dual Intel Xeon Silver Processor, 32GB of memory, 3x Mini DisplayPort outputs, Mini Display Port to true HD adapter (included), 1 display output at a time, 2x 10GB SFP+ Fiber, 2x 1G Ethernet (RJ45), iDRAC9 Enterprise, Graphic System Health Monitor, True Enterprise Scalability, Automatic Camera Detection, Local Client Display, Fully, Customizable Layouts, Easy Drag and Drop Camera Management and Recording, E-Mapping, Advanced Motion Masking and Sensitivity Settings,  Keyboard, Mouse and Rail kit  are  included, NDAA, TAA, UL, 5 Year Onsite Next Business Day Keep Your Hard Drive Warranty.



This dual processor Blackjack Rack server is the ultimate solution for recording multiple IP cameras of any resolution at up to 600Mbps throughput. The server is NDAA/TAA compliant, UL listed and includes Windows 10 IoT, Windows Server 2019, or Linux Ubuntu OS on a separate mirrored 240GB SSD. The 2U rack-mountable hardware features dual Intel Xeon processors, 32GB memory, up to eight (8) 1GB and 10GB network cards and a dual power supply. The Blackjack Rack server comes preloaded with DW Spectrum IPVMS and eight recording licenses, up to 360TB of raw internal storage with RAID5 and RAID6 options and removable hotswappable drives. The server comes complete with a 5-year, on-site, Next Business Day**, Keep Your Hard Drive warranty to ensure peace of mind.



Features:

  • Supports all ONVIF conformant IP cameras
  • Storage options 260-360TB raw internal storage
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 600Mbps throughput
  • Hot Swappable HDDs
  • OS RAID 1, Data RAID5, 6 options
  • Redundant power supply
  • 6x 1GB Base-T Ethernet Ports, 2x 10G SFP+ Fiber
  • Windows 10 IoT, Ubuntu Linux, Windows Server 2019 OS options on separate SSD
  • Dedicated RAID controller
  • Hosting DW Spectrum for setup, configuration, monitoring and recording
  • One-time recording license charge, fully transferable between cameras and encoders
  • Two (2) 4-channel licenses included for a total of 8 recording channels (DW-SPECTRUMLSC004).
  • No annual maintenance fees
  • Dual stream recording
  • Rail kit included
  • USB mouse and keyboard included
  • Designed, assembled and tested in the U.S.A
  • UL Listed
  • NDAA/TAA compliant
  • 5 year warranty, next business day on-site hardware service**, keep your hard drive
Specifications
VIDEO
CPUDual Intel® Xeon® Silver processor
Display ModesUnlimited, Customizable, Sequence
Display SpeedUp to 30fps per channel
Local Video Output ResolutionHD 1080p
Local Video Outputs3x Mini DisplayPort outputs, Mini Display Port to true HD adapter (included), 1 display output at a time
Memory32GB
Video CardNVIDIA T400 2GB
Video CompressionH.264, H.265
Video Operating SystemWindows Server® 2022 Standard (DW-BJRR2X260TS, DW-BJRR2X260TS6, DW-BJRR2X280TS, DW-BJRR2X280TS6, DW-BJRR2X300TS, DW-BJRR2X300TS6, DW-BJRR2X320TS, DW-BJRR2X320TS6, DW-BJRR2X340TS, DW-BJRR2X340TS6, DW-BJRR2X360TS, DW-BJRR2X360TS6), Linux® Ubuntu Desktop 20.04.5 LTS OS (DW-BJRR2X208TLX, DW-BJRR2X224TLX, DW-BJRR2X288TLX, DW-BJRR2X240TLX, DW-BJRR2X256TLX, DW-BJRR2X272TLX, DW-BJRR2X260TLX, DW-BJRR2X260TLX6, DW-BJRR2X280TLX, DW-BJRR2X280TLX6, DW-BJRR2X300TLX, DW-BJRR2X300TLX6, DW-BJRR2X320TLX, DW-BJRR2X320TLX6, DW-BJRR2X340TLX, DW-BJRR2X340TLX6, DW-BJRR2X360TLX, DW-BJRR2X360TLX6), Windows Server® 2019 Standard (DW-BJRR2X208TS, DW-BJRR2X224TS, DW-BJRR2X240TS, DW-BJRR2X256TS, DW-BJRR2X272TS, DW-BJRR2X288TS), Windows® 10 IoT Enterprise LTSC (DW-BJRR2X208T, DW-BJRR2X224T, DW-BJRR2X240T, DW-BJRR2X256T, DW-BJRR2X272T, DW-BJRR2X288T, DW-BJRR2X260T, DW-BJRR2X260T6, DW-BJRR2X280T, DW-BJRR2X280T6, DW-BJRR2X300T, DW-BJRR2X300T6, DW-BJRR2X320T, DW-BJRR2X320T6, DW-BJRR2X340T, DW-BJRR2X340T6, DW-BJRR2X360T, DW-BJRR2X360T6)
OS on SSD2x 240GB SSD (RAID1 mirrored)
Max throughput (Mbps)600Mbps
STORAGE
Raw internal storage options260TB, 280TB, 300TB, 320TB, 340TB, 360TB
RAID OptionsOS RAID1, RAID5 (DW-BJRR2X260T, DW-BJRR2X260TLX, DW-BJRR2X260TS, DW-BJRR2X280T, DW-BJRR2X280TLX, DW-BJRR2X280TS, DW-BJRR2X300T, DW-BJRR2X300TLX, DW-BJRR2X300TS, DW-BJRR2X320T, DW-BJRR2X320TLX, DW-BJRR2X320TS, DW-BJRR2X340T, DW-BJRR2X340TLX, DW-BJRR2X340TS, DW-BJRR2X360T, DW-BJRR2X360TLX, DW-BJRR2X360TS), RAID6 (DW-BJRR2X260T6, DW-BJRR2X260TLX6, DW-BJRR2X260TS6, DW-BJRR2X280T6, DW-BJRR2X280TLX6, DW-BJRR2X280TS6, DW-BJRR2X300T6, DW-BJRR2X300TLX6, DW-BJRR2X300TS6, DW-BJRR2X320T6, DW-BJRR2X320TLX6, DW-BJRR2X320TS6, DW-BJRR2X340T6, DW-BJRR2X340TLX6, DW-BJRR2X340TS6, DW-BJRR2X360T6, DW-BJRR2X360TLX6, DW-BJRR2X360TS6)
Max HDD Bay18x SAS HDDs
Maximum Storage260TB (220TB, RAID6) (DW-BJRR2X260T6, DW-BJRR2X260TLX6, DW-BJRR2X260TS6), 260TB (240TB, RAID5) (DW-BJRR2X260T, DW-BJRR2X260TLX, DW-BJRR2X260TS), 280TB (240TB, RAID6) (DW-BJRR2X280T6, DW-BJRR2X280TLX6, DW-BJRR2X280TS6), 280TB (260TB, RAID5) (DW-BJRR2X280T, DW-BJRR2X280TLX, DW-BJRR2X280TS), 300TB (260TB, RAID6) (DW-BJRR2X300T6, DW-BJRR2X300TS6), 300TB (280TB, RAID5) (DW-BJRR2X300T, DW-BJRR2X300TLX, DW-BJRR2X300TLX6, DW-BJRR2X300TS), 320TB (280TB, RAID6) (DW-BJRR2X320T6, DW-BJRR2X320TLX6, DW-BJRR2X320TS6), 320TB (300TB, RAID5) (DW-BJRR2X320T, DW-BJRR2X320TLX, DW-BJRR2X320TS), 340TB (300TB, RAID6) (DW-BJRR2X340T6, DW-BJRR2X340TLX6, DW-BJRR2X340TS6), 340TB (320TB, RAID5) (DW-BJRR2X340T, DW-BJRR2X340TLX, DW-BJRR2X340TS), 360TB (320TB, RAID6) (DW-BJRR2X360T6, DW-BJRR2X360TLX6, DW-BJRR2X360TS6), 360TB (340TB, RAID5) (DW-BJRR2X360T, DW-BJRR2X360TLX, DW-BJRR2X360TS), 360TB
PERFORMANCE
Playback FunctionsCalendar, Event search, Smart motion search, Thumbnail search, Timeline
PTZ controlONVIF
Recording ModesContinuous, Motion + low res always, Motion + Object, Motion + Object + Low res, Motion detection, Object + Low res, Object only
System OperationGraphical user interface (GUI), Remote via DW Spectrum IPVMS, USB mouse (included)
NETWORK
BackupNetwork backup via DW Spectrum IPVMS
Ethernet Ports2x 10GB SFP+ Fiber, 6x 1GB Base-T Ethernet Ports, iDRAC9 Enterprise
Pre-loaded VMS softwareDW Spectrum® IPVMS
Network Remote SoftwareCross-platform - Windows®, Linux Ubuntu® and Mac®, DW Mobile Plus, DW Spectrum Mobile App
ELECTRICAL
Power Consumption1000W dual power, A UPS is recommended, Redundant power supply
GENERAL
AccessoriesKeyboard, Mouse
Included IP licenses8
Operating Temperature and Humidity20 ~ 90% RH, 41 ~ 104 °F (5~40 °C)
Rail kitIncluded
Recorder Dimensions (H X W X D)17.6" x 31.9" x 3.41" (447.04 x 810.26 x 86.61mm)
Recording Licenses (Optional. Sold Separately)Custom-ordered licenses are available by request.
DW-SPCP04LSC004 - Four (4) DW Spectrum® Analog Encoder IPVMS Licenses
DW-SPCP16LSC016 - Sixteen (16) DW Spectrum® Analog Encoder IPVMS Licenses
DW-SPECTRUMLSC001 - Single DW Spectrum® IPVMS Recording License
DW-SPECTRUMLSC004 - Four (4) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC010 - Ten (10) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum® IPVMS Recording Licenses
DW-SPIOLSC001 - Single DW Spectrum® I/O Module IPVMS License
DW-SPVWALL1X2 - Single DW Spectrum® Video Wall IPVMS License
Lifetime upgrades are included with no annual renewal fees.
USB interfaceYes
Warrantykeep your hard drive, Next business day on-site hardware service (after remote diagnosis)
Weight (barebone, HDD not included)88.2 lbs (40 kg)
Form FactorRack mount
