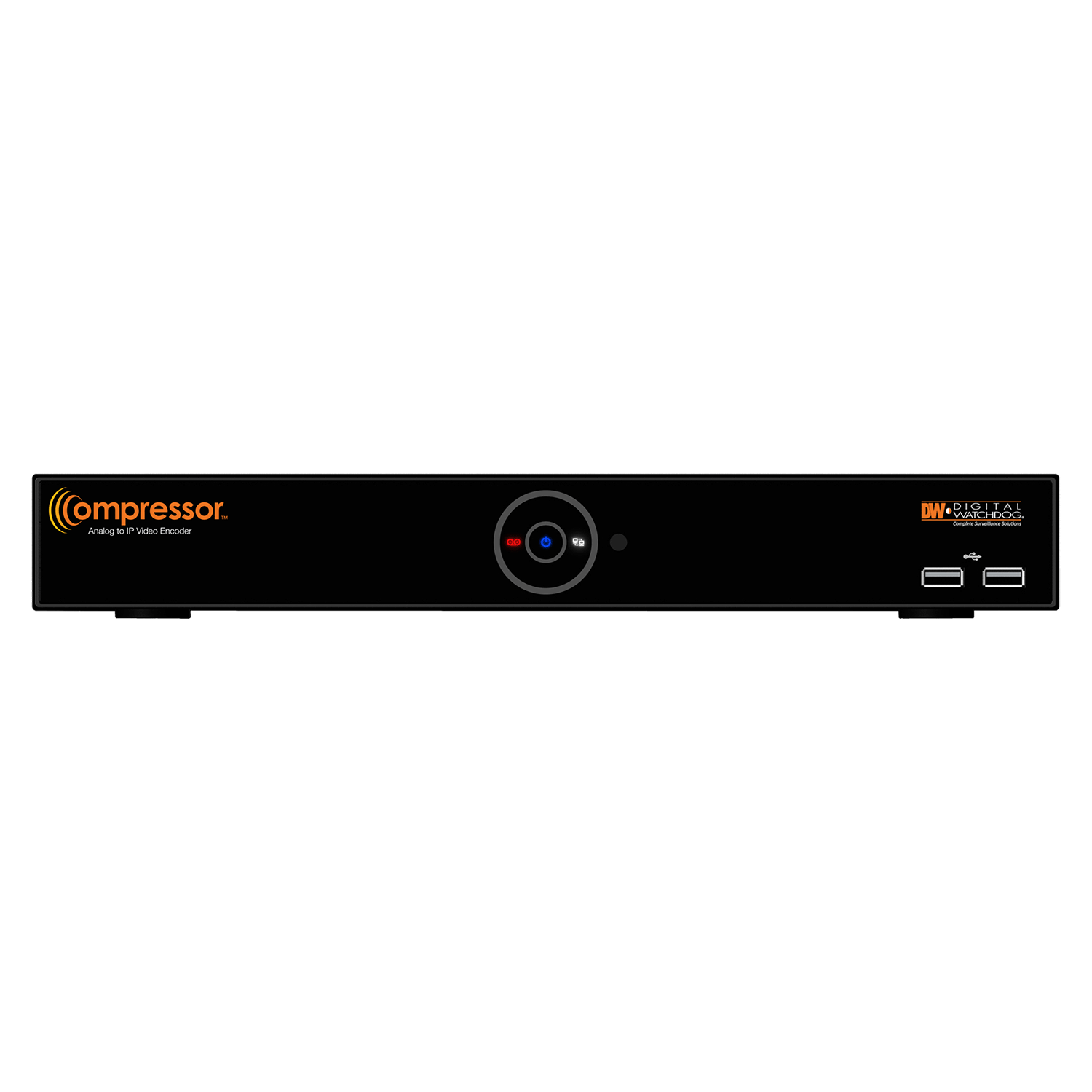

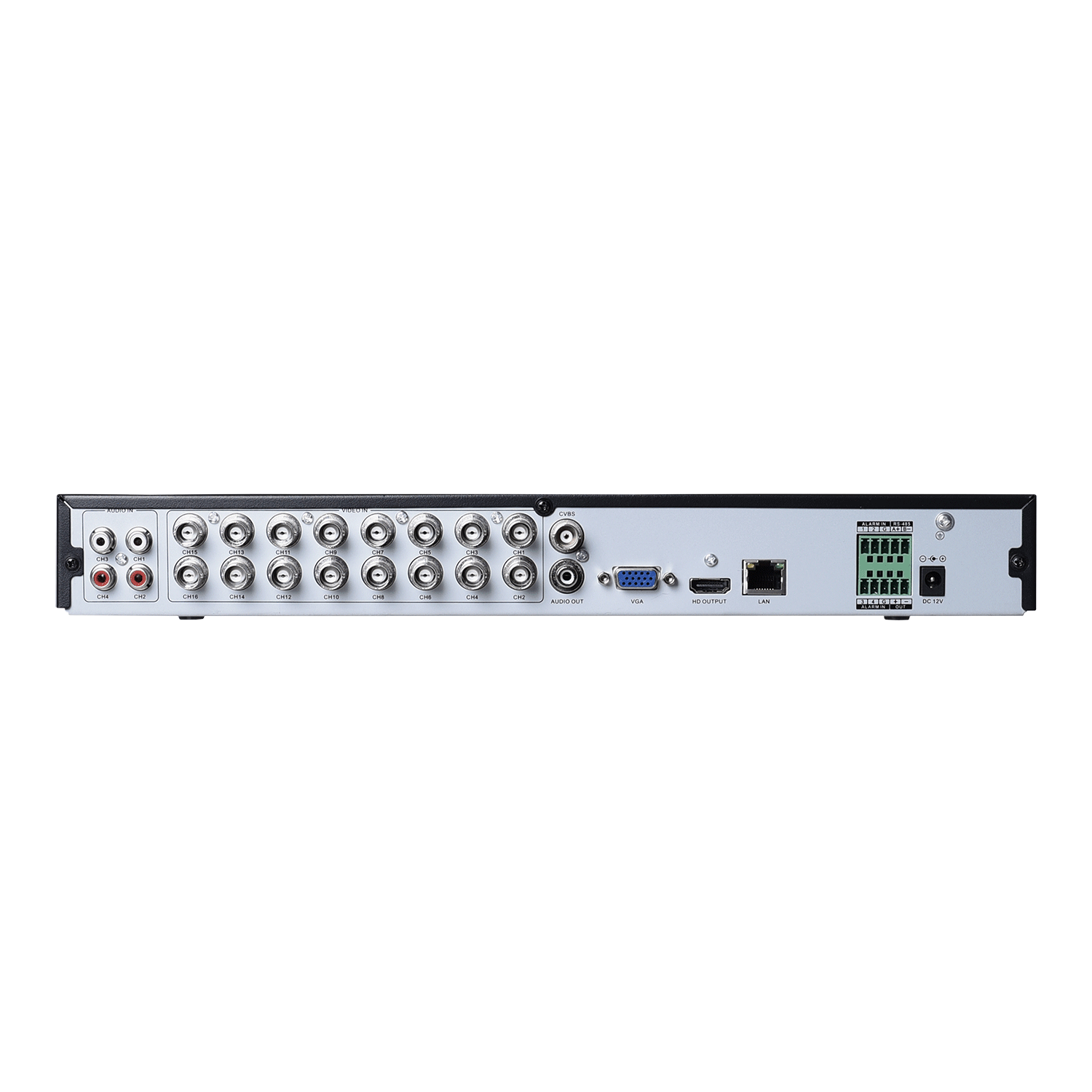

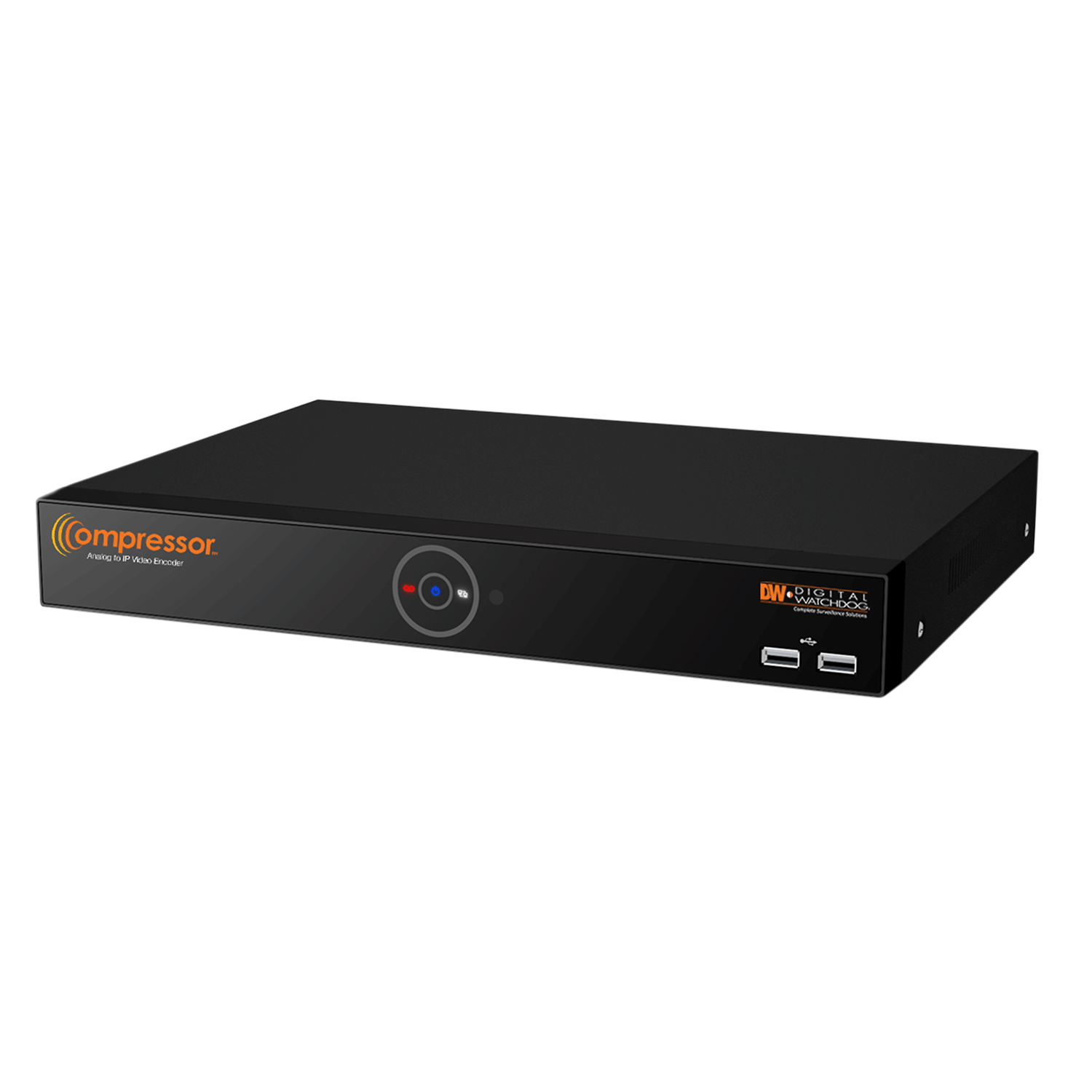

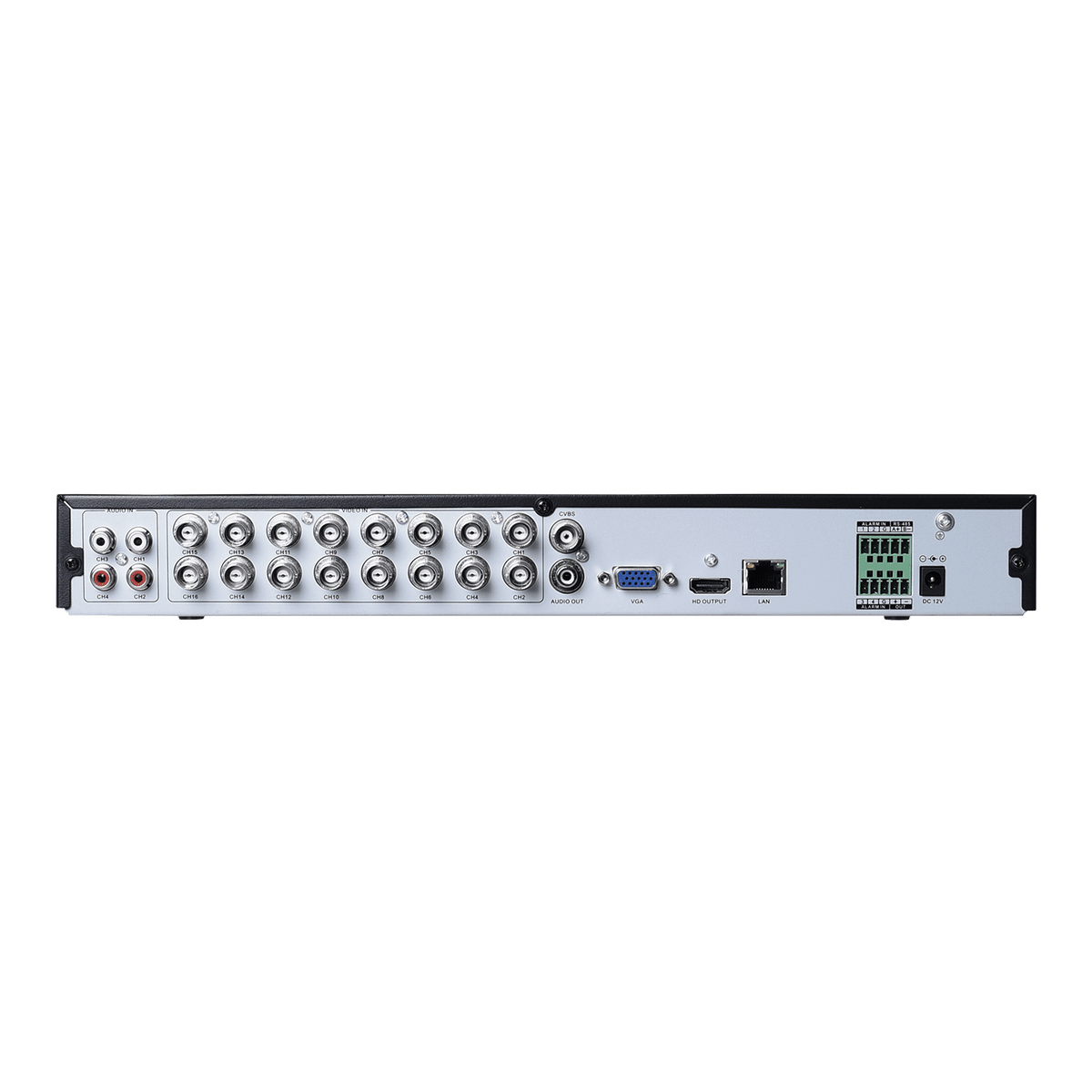

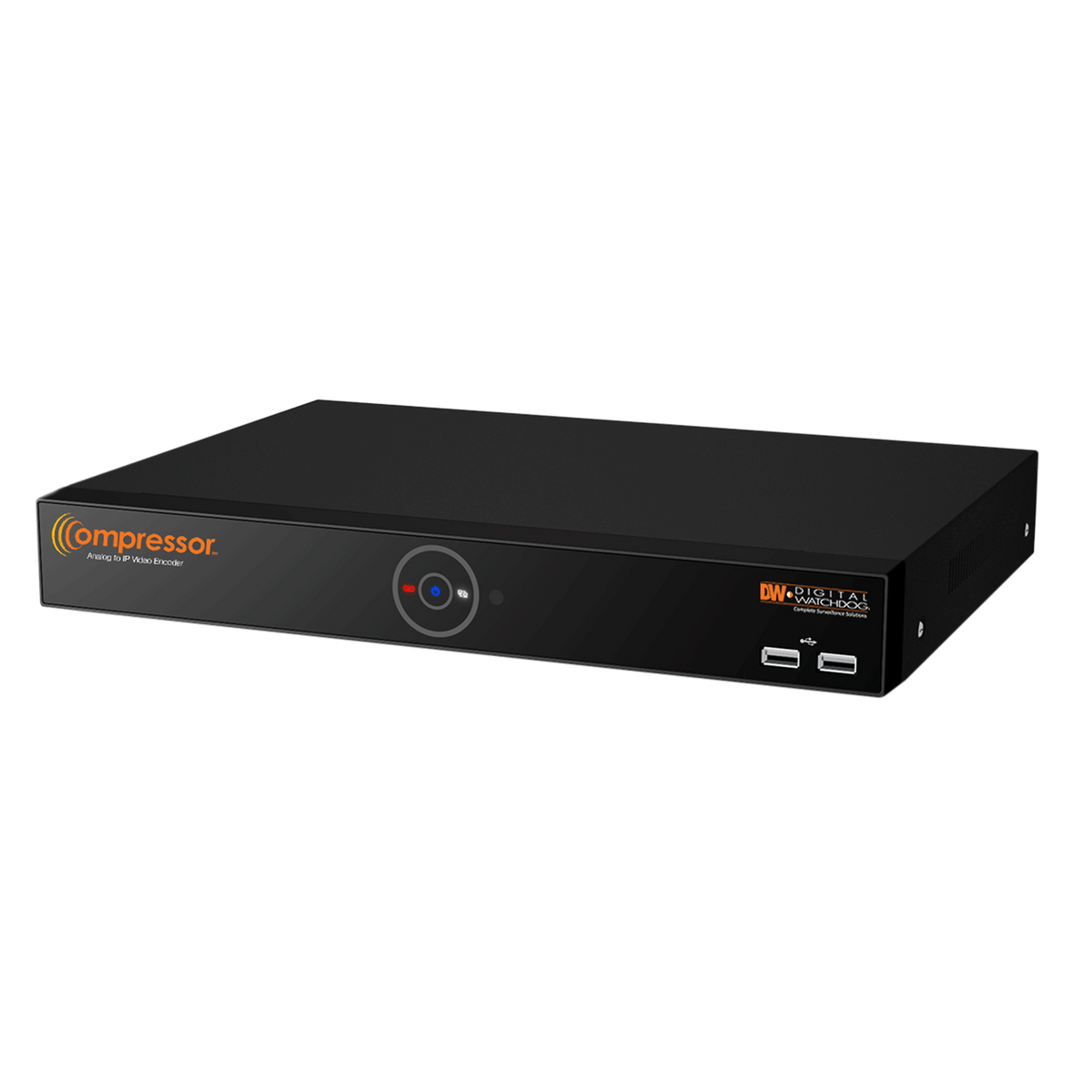

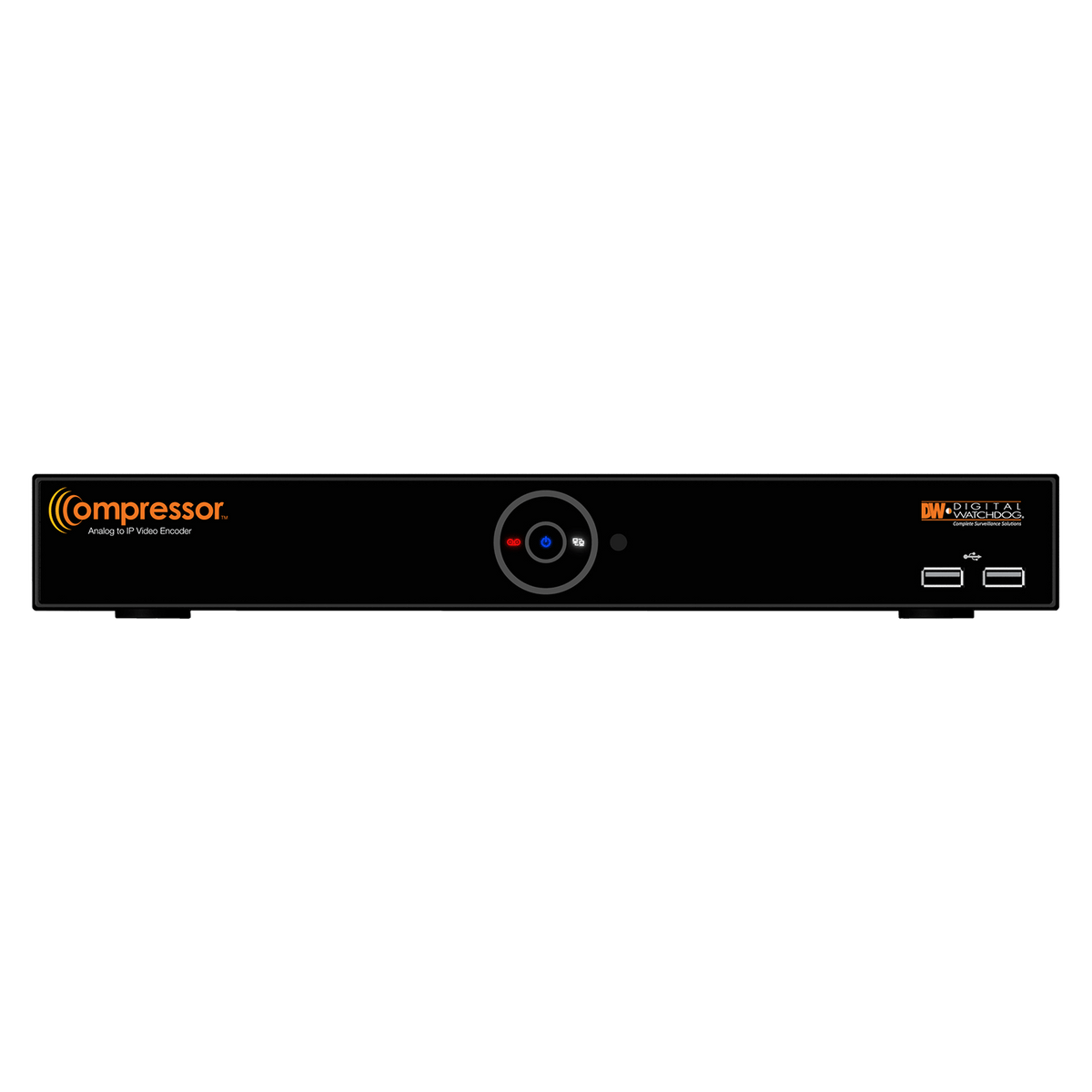

Digital Watchdog - DW-EN4K16 - 16-Channel 4K Universal HD over Coax analog to IP signal encoder

The Compressor™ analog to IP signal encoder converts up to 16 HD-Analog, HD-TVI and legacy analog signals of up to 4K resolution into IP signals at up to 480fps. The encoder supports live local display up to 4K, local audio and alarm inputs and outputs, plus camera control via UTC. The DW-ENHD4K16 encoder is fully integrated with DW Spectrum® IPVMS and will work with any ONVIF conformant VMS. The Compressor™ encoder is an easy and affordable solution for applications with both analog and IP cameras.

• The most cost-effective path to IP
• Universal HD over Coax® technology with HD-Analog, HD-TVI and all legacy analog signal support up to 4K
• Connect your analog cameras to DW Spectrum® IPVMS or any ONVIF approved VMS
• Convert up to 16 analog cameras to 4K IP video signals
• Real-time at up to 480fps local display (4K @ 240fps, 5MP @ 320fps)
• 4K @ 112fps, 5MP @ 192fps, 4MP @ 240fps, real-time 2.1MP/1080p and VGA @ 480fps
• Simultaneous streaming
• Works with DW Spectrum® IPVMS recording license (requires DW-SPCP16LSC016 or DW-SPCP04LSC004)
• Motion detection support
• Two-way audio (4 input, 1 output, 1 HD output)
• OSD and PTZ control via coax (UTC)
• 2x RS-485 Interface for PTZ control
• Search and playback from DW Spectrum® IPVMS
• Frame rate and bandwidth control
• 4 alarm input, 1 alarm output
• Privacy zones
• Event notifications via e-mail with image
• DW-EN19RE rack mount included
• ONVIF conformant, Profile S
