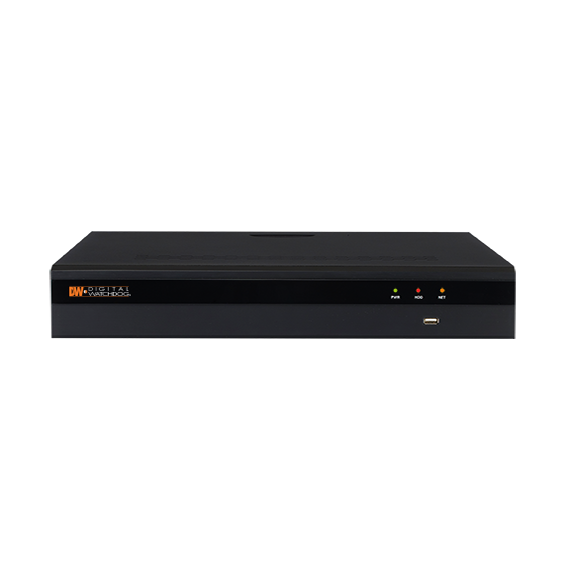

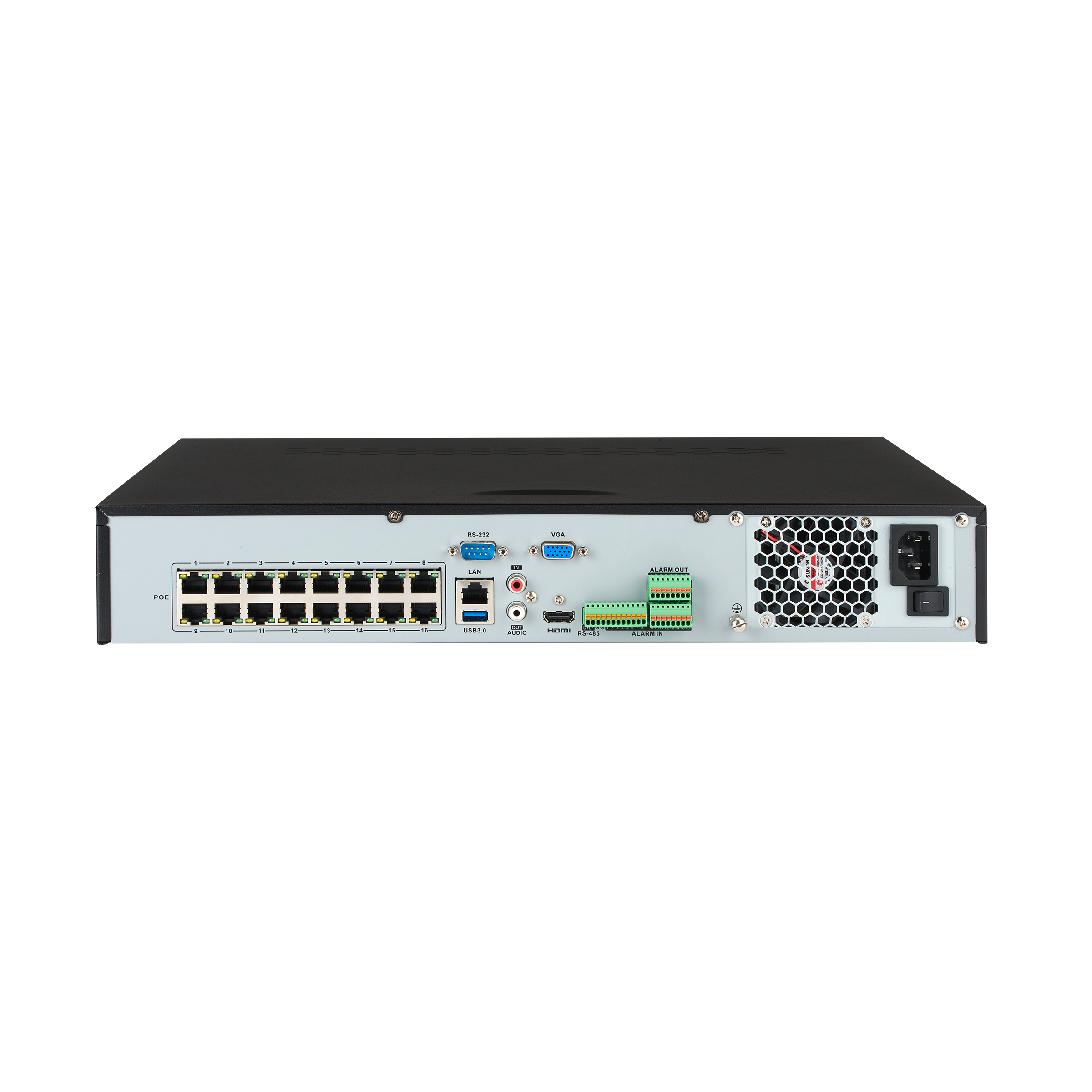

Digital Watchdog - DW-VP1612T16P - VMAX IP Plus 16-channel NVR with 12TB HDD

CCIP System Encryption

The CCIP (Closed Circuit IP) encryption is activated when the VMAX IP G4 system sends a request for an encrypted stream from the camera. The camera then encrypts its RTSP stream a second time using TLS, using the encryption's user ID and password. The result is a secured and encrypted RTSP stream that can be read only by the requesting recorder.

3-minute installation

The entire system can be set up and configured in less than four minutes from power-up. Using the user-friendly startup wizard, configure the NVR’s main functions, locate and register all your cameras and set them to record in less than four minutes and with no need for a technical background!

C3 CMS

C3 CMS takes video management to the next level. You are in complete command to control all your video surveillance systems in one intuitive interface. Easy-to-program alerts let you take action in real-time and manage the health of your devices.

PathFinder

Easy and secure remote connection with NAT Traversal (STUN/TURN) support without opening ports.

Push notifications via DW Mobile Plus App

DW’s recorders can send an event notification to your mobile device via the DW Mobile Plus app.

Features

• Complete installation, set up and camera configuration in under three minutes!
• CCIP system encryption protects your surveillance system from out of network attacks
• Record and manage single-sensor IP cameras up to 4K (3840×2160), with 160Mbps maximum throughput
• Local power for up to 16 IP cameras via resident PoE switch
• DW Witness turns a smartphone or tablet into an additional surveillance camera
• PathFinder Peer-to-Peer (P2P) remote connection
• HTTPS encryption supported
• Automatic device discovery
• Control any ONVIF camera’s set up and features remotely
• 0TB-32TB storage options
• Snapshot Notify: camera notifications sent to an email or CMS
• C3 CMS and event server software up to 144 Channels
• Event notifications via email, text and C3 CMS and push notifications to mobile devices
• Mobile application for iPhone, iPad, iPod, Android smartphones and tablets and Apple TV
• Dual-stream recording
• Easy drag and drop camera management
• Instant backup during playback
• Transaction verification via TCP and USB-serial
• Email event notifications with video clip
• Simple and free DDNS support for remote management
• Easy web-based client with multi-user access
• Advanced H.264 Linux embedded NVR
• Simultaneous live, playback, recording, back-up and network
• NVR health check with email notification
• NVR calculation and auto-recording configuration
• Help menu on major functions
• Auto or manual firmware upgrade available
• Automatic private IP addressing
• NTP (network time protocol)
• Screen saver to protect monitor screen
• Import/export configuration between multiple NVRs
• USB mouse and GUI control
• 5 year limited warranty
• Note: ONVIF conformant fisheye cameras will be recognized in VMAX IP Plus NVRs, but image dewarping capabilities are not included.
• Full HD output for local live and playback display, up to 4K (3840×2160)
• Complete system analysis with real-time system, network and PoE status monitoring
• True HD and VGA simultaneous output support
• 4 sensor input, 1 alarm relay output (3rd generation HW)
• 16 sensor input, 4 alarm relay output (2nd generation HW)
• Transaction verification via TCP and USB-serial
• Email event notifications with video clip
• Simple and free DDNS support for remote management
• Easy web-based client with multi-user access
• Advanced H.264 Linux embedded NVR
• Simultaneous live, playback, recording, back-up and network
• NVR health check with email notification
• NVR calculation and auto-recording configuration
• Help menu on major functions
• Add public view monitors with Spot Monitoring Modules
• Auto or manual firmware upgrade available
• Automatic private IP addressing
• NTP (network time protocol)
• Screen saver to protect monitor screen
• Import/export configuration between multiple NVRs
• USB mouse and GUI control
• 5 year limited warranty
• Note: ONVIF conformant fisheye cameras will be recognized in VMAX IP Plus NVRs, but image dewarping capabilities are not included.
