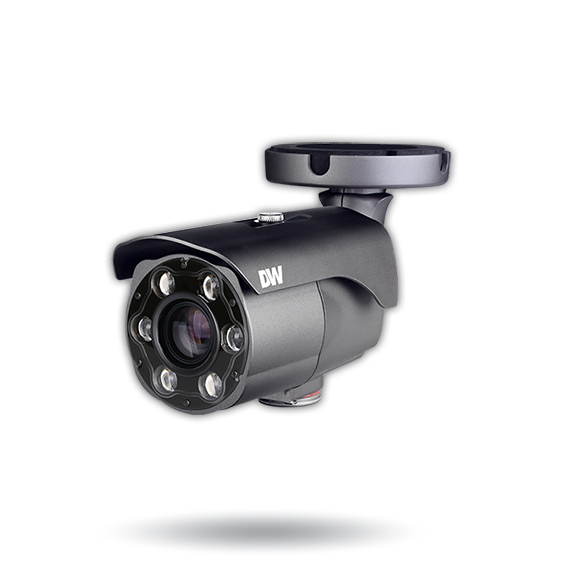

Digital Watchdog - DWC-MB45Wi650T - MEGApix 5MP bullet camera with 6~50mm vari-focal p-iris lens with motorized zoom, auto-focus, color in near-total darkness and IR
Digital Watchdog - DWC-MB45Wi650T - MEGApix 5MP bullet camera with 6~50mm vari-focal p-iris lens with motorized zoom, auto-focus, color in near-total darkness and IR
Digital Watchdog

Digital Watchdog - DWC-MB45Wi650T - MEGApix 5MP bullet camera with 6~50mm vari-focal p-iris lens with motorized zoom, auto-focus, color in near-total darkness and IR

Product SKU: DWC-MB45Wi650T
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$983.34
$1,533.60
Notify me When Available
You will receive an email when the product is available.
  • Description
  • Specifications
  • Downloads

These MEGApix IP cameras deliver crystal-clear images at 5MP resolution at real-time 30fps. Features include a 6-50mm long range vari-focal auto-focus lens with motorized zoom, true WDR, simultaneous H.265/H.264/MJPEG codec support and Star-Light Plus™ color in near-total darkness technology for quality video in any lighting condition. The IP66-rated weather-resistant housing is easy to install and will Cold Start at -40º F/-40º C.



Features:

  • 5MP 1/2.8" image sensor at real-time 30fps
  • Star-Light Plus™ color in near-total darkness technology
  • 6~50mm vari-focal p-iris lens with motorized zoom and auto-focus
  • True Wide Dynamic Range (WDR)
  • Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
  • Cold start -40°F (-40°C)
  • 140' Smart IR™ with intelligent camera sync
  • Smart DNR™ 3D digital noise reduction
  • True day/night with mechanical IR cut filter
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Backlight compensation (BLC)
  • Auto white balance (AWB)
  • Motion detection
  • Two-way audio
  • Micro SD/SDHC/SDXC class 10 card slot (card not included)
  • Alarm sensor input
  • Relay output
  • Web server built-in
  • PoE class 3 and DC12V
  • ONVIF conformant, profile S
  • NDAA/TAA compliant
  • IP66 environmental-rated dust-tight and water-resistant
  • IK 9-rated impact-resistant
  • 5 year warranty



Image sensor5MP 1/2.8” CMOS
Total pixels2592 (H) × 1944 (V)
Minimum scene illumination0.08 lux (color)
0.0 lux (B/W)
Video outputLocal video output CVBS 1.0V p-p (75?), 4:3 aspect ratio

LENS


Focal length6 ~ 50mm, F1.6
Lens typeVari-focal p-iris lens with motorized-zoom and auto-focus
Field of view (FoV)6.9° ~ 40.8°
IR distance140ft range
Optical zoomx8 optical zoom

I/O

Audio in / out1/1
Audio compressionG.711
Alarm in / out1/1

OPERATIONAL

Shutter modeAuto, manual, anti-flicker, slow shutter
Shutter speed1/30 ~ 1/32,000
Slow shutter1/2,1/3,1/5,1/6,1/7.5, 1/10
Auto gain controlAuto
Day / nightAuto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction3D DNR
Wide dynamic range (WDR)True WDR (T-WDR)
Wide dynamic range (WDR) dB120dB
Privacy zones16 programmable privacy masks
Mirror and flipYes
Alarm notificationsNotifications via e-mail, FTP, alarm output activation and SD card recording
Memory slotMicro SD / SDHC / SDXC (card not included)

NETWORK


LANRJ45 (10/100Base-T)
Video compression typeH.265, H.264, MJPEG
Resolution

H.265: 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF

H.264: 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF

MJPEG: 2.1MP/1080p, 720p, 800x600, VGA, 768x432, D1, CIF


Frame rateUp to 30fps at all resolutions
Video bitrate100Kbps  ~ 10Mbps, Multi-rate for Preview and Recording
Bitrate controlMulti-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
Streaming capabilityDual-stream at different rates and resolutions
IPIPv4, IPv6
ProtocolTCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF
Security

HTTPS(TLS), IP filtering, 802.1x,

digest authentication (ID/PW)


ONVIF conformanceYes
Web viewerOS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
Video management softwareDW Spectrum® IPVMS

ENVIRONMENTAL


Operating temperature-40°F ~ 122°F (-40°C ~ 50°C)
Operating humidity10–90% RH (non–condensing)
IP ratingIP66-rated
IK ratingIK9 impact-resistant
Other certificationsCE, FCC, RoHS

ELECTRICAL


Power requirementDC12V, POE IEEE 802.3af class 3 (adaptor not Included)
Power consumption

DC12V: max 9W

PoE: max 10.5W



MECHANICAL


MaterialAluminum bullet housing
Dimensions

9.73” x 3.8” (247.2 x 96.7mm)

*Dimensions based on the position of the sun shield cover


Weight1.98 lbs (0.9kg)
Warranty5 year warranty
DW_DS_DWC-MB45Wi650T_Rev0420_2d1ecece-8a58-4c00-aa62-fd90d98329a9.pdf:
QSG_DWC-MB45Wi650T_041620_008c5e34-ad4f-4bb4-9d02-af066f63a8a3.pdf:
DWC-MB45Wi650T_20-_20AE_20specifications.doc:
DWC-MB45Wi650T_20-_20DW_20Accessories_20Chart.xlsx:
DWC-MB45Wi650T_20-_20UL_20certificate.pdf:
