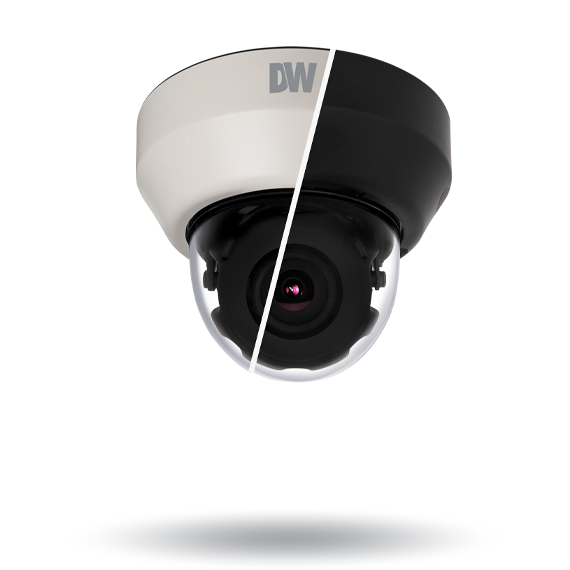

Digital Watchdog - DWC-MD421DB - MEGApix 2.1MP/1080p indoor dome Snapit camera with 2.8~12mm vari-focal p-iris lens with motorized zoom and auto-focus

Name: Digital Watchdog - DWC-MD421DB - MEGApix 2.1MP/1080p indoor dome Snapit camera with 2.8~12mm vari-focal p-iris lens with motorized zoom and auto-focus
Brand: Digital Watchdog
SKU: DWC-MD421DB
Price: 481.14 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

DISCONTINUED

Product SKU: DWC-MD421DB

$481.14

~~$636.00~~

REPLACEMENT

Description
Specifications
Downloads
Reviews

These MEGApix IP cameras deliver crystal-clear images at 2.1 Megapixel 1080p resolution and real-time 30fps. The unique Snapit™ housing is easy to install and includes CleanView dome treatment. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.

Features:

2.1MP/1080p 1/2.7" image sensor at real-time 30fps
2.8~12mm motorized zoom auto-focus p-iris lens
True Wide Dynamic Range (WDR)
Dual codecs (H.264, MJPEG) with simultaneous streaming
Snapit easy installation housing
Smart DNR™ 3D digital noise reduction
Programmable privacy zones
Auto gain control (AGC)
Auto white balance (AWB)
Motion detection
Micro SD/SDHC/SDXC class 10 card slot (card not included)
Alarm sensor input
Relay output
Web server built-in
PoE class 3 and DC12V
ONVIF conformant, profile S
NDAA/TAA compliant
Black housing (DWC-MD421DB)
5 year warranty

Image sensor	2.1MP/1080p 1/2.7“ CMOS
Total pixels	1928 (H) x 1088 (V)
Minimum scene illumination	0.12 lux (color)
Video output	Local video output CVBS 1.0V p-p (75?), 4:3 aspect ratio
LENS
Focal length	2.8-12mm, F1.4
Lens type	Motorized zoom auto-focus p-iris lens
Field of view (FoV)	106° ~ 32°
Optical zoom / digital zoom	x4.2 optical zoom
I/O
Audio in / out	1/1
Audio compression	G.711
Alarm In/Out	1/1/2017
OPERATIONAL
Shutter mode	Auto, manual, anti-flicker, slow shutter
Shutter speed	1/30 ~ 1/8000
Slow Shutter	1~1/5,1/7.5, 1/15
Auto gain control	Auto
Day / night	Auto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction	0 ~ 11
Wide dynamic range (WDR)	True WDR on, off
Wide dynamic range (WDR) dB	120dB
Privacy zone	16 programmable privacy masks
Backlight Compensation (BLC)	On / off / HSBLC
Mirror & Flip	Yes
Alarm notifications	Notifications via e-mail, FTP server or SD card recording
Memory Slot	Micro SD / SDHC / SDXC up to 128GB (card not Included)
NETWORK
LAN	802.3 compliance 10/100 LAN
Video compression type	H.264, MJPEG
Resolution	H.264: 1080p/720p/VGA/D1/CIF MJPEG: 1280 x 720/800 x 600/VGA/768 x 432/D1/CIF
Frame rate	Up to 30fps at all resolutions
Video bitrate	100Kbps ~ 10Mbps, Multi-rate for preview and recording
Bitrate control	Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth)
Streaming capability	Dual-stream at different rates and resolutions
IP	IPv4
Protocol	ONVIF, TCP/IP, UDP, autoIP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2)
Security	HTTPS(TLS), IP filtering, 802.1x, digest authentication (ID/PW)
ONVIF conformance	Yes
Web viewer	OS: Windows®, Mac® OS, Linux®
Web viewer	Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
Video management software	DW Spectrum® IPVMS
ENVIRONMENTAL
Operating temperature	-40°F ~ 122°F (-40°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
Other certifications	CE, FCC, RoHS
ELECTRICAL
Power requirement	DC 12V, PoE (IEEE 802.3af Class 3). (adaptor not included)
Power consumption	DC12V: max 6W PoE: max 7.6W
MECHANICAL
Material	Snapit™ plastic housing, polycarbonate dome
Housing color	DWC-MD421D: ivory DWC-MD421DB: black
Dimensions	4.72" x 3.63" (120 x 92.4 mm)
Weight	0.66 lbs (0.3kg)

DW_MAN_MEGApix_Snapit_Indoor_Rev0317_0_5500a41c-50a0-48d4-a7fa-c3c2442f1937.pdf:

DW_QSG_MEGApix_Snapit_Indoor_Rev0317_0_c7bb2579-bab4-4496-8a31-b7a20ce6f657.pdf:

DWC-MD421DB_20-_20DW_20Accessories_20Chart.xlsx:

DWC-MD421DB_20-_20DWC-MV421D_TIR_20Manual.pdf:

DWC-MD421DB_20-_20MEGApix_201080p_20Snapit_20Indoor_20A_E_20Specs.doc:

DWC-MD421DB_20-_20Snapit_20Indoor_20Cold_20Start_20Report.pdf:

DW_DS_MEGApix1080p_DWC-MD421D_Rev0818_fb10c20c-70f6-42d0-9d3a-b73f9e5d33cc.pdf:
