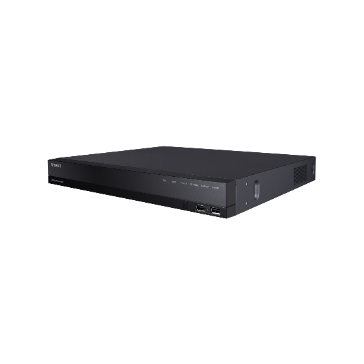

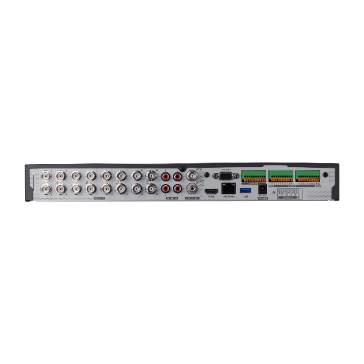

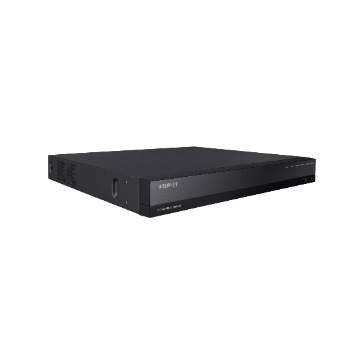

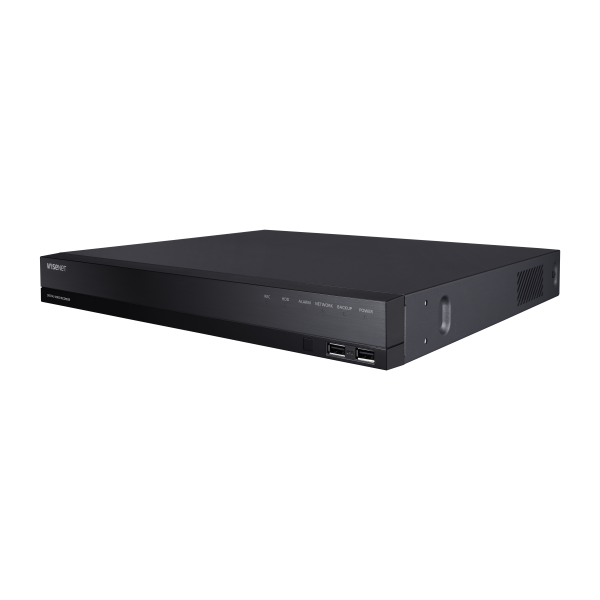

Hanwha - HRX-1620 - 16CH Pentabrid DVR

Analog Camera Inputs	16CH(1Vp-p 75ohm, BNC)
Analog Camera Signal Type	AHD(8MP, 5MP, 4MP, 1080p, 720p) HDTVI(8MP, 5MP, 4MP, 1080p, 720p) HDCVI(5MP, 4MP, 1080p, 720p) CVBS(NTSC/PAL)
Network Camera Inputs	Max. 18CH
Network Camera Resolution	8MP ~ CIF
Network Camera Protocols	SUNAPI(Wisenet), ONVIF
Local Display	1x HDMI, 1x VGA (Dual monitor) HDMI: 3840 x 2160, 1920x1080, 1280x720 (1920x1080, Clone mode) VGA: 1920x1080, 1280x720
Live Resolution	[Analog Camera(NTSC/PAL)] - 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) * per CH [Network Camera] - Typ. 2MP(480fps)
Compression	H.265, H.264, MJPEG
Record Rate (Analog)	Analog Camera(NTSC/PAL) (Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH (Sub Stream) 720p or higher : 640x360 full fps/CH, SD sugnal : upto SD full fps/CH * The maximum recording frame rate depends on the frame rate of the input camera.
Recording Bandwidth	Max. 70Mbps (Analog Camera only) ~ 51Mbps (Network Camera only)
Record Resolution	8MP ~ CIF
Record Mode	Manual, Schedule (Continuous/Event), Event(Pre/Post), Dual Track
Event Trigger	Alarm Input Analog Camera : Video Loss, Motion Detection, Tampering Network Camera : Camera Event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual-line, (Dis)Appear, Face Detection, Audio detection), Defocus camera event
Event Action	E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
Playback Bandwidth	Max. 32Mbps (18CH simultaneously)
Search & Play Users	Max. 4 Users (Local 1, Remote 3)
Simultaneous Playback	18CH(Local Monitor) 4Ch (CMS, Wisenet Mobile), 1Ch(Web)
Fisheye Dewarping	WEB / CMS
Supported HDD	Up to 6TB
HDD Slot	SATA 2ea(Max 12TB)
File Backup	BU, EXE(Include Player), AVI(Webviewer only)
Backup Function	Max. 10 CH play, Date-time/title display
PTZ Control	Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller
Smart Phone Support	iOS, Android
Smart Phone Protocol Support	RTP, RTSP, HTTP, CGI(SUNAPI)
Smart Phone Control	Live(16ch) : Multi-Profile Support Playback(4Ch Multi Playback, Max 2MP) Event push
Max. Remote Users (Smart Phone)	Search(3), Live Unicast(10)
Redundancy (ARB)	Support
Easy Configuration	Setup Wizard (Language Date/Time, Password, Network, Auto Camera Configuration), P2P (QR code)
Coaxial Control	CVBS(Pelco-C)/AHD/CVI/TVI
HDMI	1EA
VGA	1EA
BNC	16CH In / 1CH Out(Spot Output)
Audio Output	Out(1EA, RCA, Line)
Ethernet	RJ-45(10/100/1000BASE-T)
Alarm	In 16EA, Out 4EA - Relay Out1(NO/NC/COM) - Relay Out2~4(NO/COM)
USB	3EA(Front USB2.0 2a , Rear USB 3.0 1ea)
Serial (Protocols)	RS-485 (Samsung-T/Pelco-D/Pelco-p) * for PTZ
Power Inlet	1EA DC Input Jack
System Control	Mouse, IR Remocon, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000)
Language	English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
Operating Temperature	0°C to +40°C(+32℉ to +104℉)
Operating Humidity	20% ~ 85% RH
Certification	UL, CE, FCC, KC
Power Input	DC12V
Power Consumption	Max. 41W (6T HDD 2ea)
Color / Material	Black / Metal
Dimension (WxHxD)	370.0 x 44.0 x 320mm (14.57" x 1.73" x 12.6")
Weight	Approx. 2.6Kg (5.8 lb, 4TB HDD 1ea)
Protocol	TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS	Wisenet DDNS
Transmission Speed	Analog Camera(NTSC/PAL) (Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH, 720p 30/25fps/CH, SD 30/25fps/CH (Sub Stream) 720p or higher : 640x360 full fps/CH, SD sugnal : upto SD full fps/CH * The maximum recording frame rate depends on the frame rate of the input camera.
Transmission Bandwidth	Max. 30Mbps
Audio Input/Output	4 Line in / 1 Line out
Audio Compression	G.711 (N/W Cam G.711, 726)
Audio Communication	2-Way
Max Remote Users (Network)	Search(3), Live Unicast(10), Multicast(20)
Security	IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup) Device Certificate(Hanwha Techwin Root CA)
Viewer Software	SSM, Webviewer, Smart Viewer, Wisenet mobile Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS
