36% $1,182.04
SMT-2701PVM
SMT-2701PVM
Hanwha Vision

SMT-2701PVM

Product SKU: SMT-2701PVM
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$2,056.76
$3,238.80
Notify me When Available
You will receive an email when the product is available.
  • Description
  • Specifications
  • Downloads

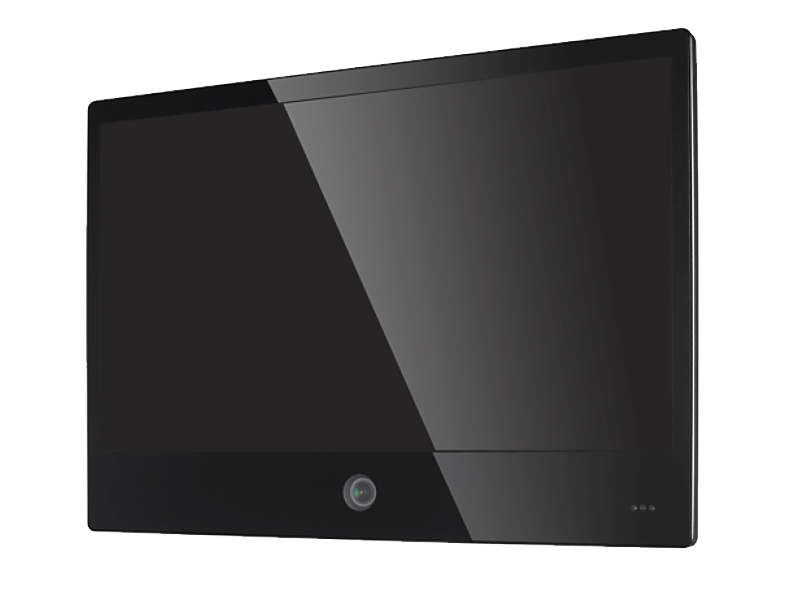

27" IP public view monitor, black casing, 16:9 Full HD LED panel (contrast ratio 3,000:1, brightness 300 cd/m², 12ms response time), face detection display for visual deterrent, customizable text overlay with pre-configured "recording in progress" OSD, VESA mountable (100 x 100mm / 200 x 100mm) 2MP IP camera built-in, 1080p HDMI output, 4.6mm fixed lens(73.8°H), 150dB WDR, H.265/H.264/MJPEG, WiseStream II compression technology, micro SD/SDHC/SDXC, bi-directional audio, hallway view mode.



Features:

  • 27” LED 1080p resolution monitor and camera
  • Latency-free viewing
  • Inconspicuous integrated camera
  • Face Detection display for visual deterrent (Colored bounding box around detected face)
  • Wide Dynamic Range (150dB)
  • Advanced video analytics, motion detection
  • Customizable text overlay with pre-configured "Recording in progress" OSD
  • Internally powered Camera
  • Micro SD/SDHC/SDXC memory slot (256GB)
  • H.265, H.264, MJPEG triple codec, Multiple streaming
  • Additional HDMI and VGA input
  • IP video and network manageable
  • Multi-crop streaming
  • XNB-6001 built-in
DISPLAY
 Type LED
 Color Black
 Screen Size 27”
 Max. Resolution1,920 x 1,080
 Contrast Ratio3,000:1
 Brightness 300 cd/m²
 Aspect Ratio16:9
 Viewing Angle (H/V)178° / 178°
 Noise Reduction Control3D Comb Filter
 Response Time12ms
 Mounting VESA 100 x 100mm / 200 x 100mm, stand not included
 CAMERA
 Imaging Device1/2.8" 2M CMOS
 Total Pixels 1,945 (H) x 1,109 (V) 2.16M
 Effective Pixels1,945 (H) x 1,097 (V) 2.13M
 Scanning SystemProgressive Scan
 Min. IlluminationColor: 0.06 Lux (1/30sec, F2.5)
 LENS
 Focal length4.6mm pinhole
 Max. Aperture ratioF2.5
 Angular Field of ViewH: 73.8˚ / V: 39.6˚ / D: 86.8˚
 Min. Object Distance0.98ft (0.3m)
 CONNECTIVITY
   VideoHDMI (1), VGA (1)
 Input AudioStereo mini jack
   USBUSB (S/W update only)
   NetworkRJ-45 (10/100BASE-T)
 Output AudioStereo mini jack
 SOUND
 Speaker TypeBuilt-in speaker (2x2 W)
 OPERATIONAL
 Monitor OSDOff / On (Displayed up to 85 characters) / OSD blinking, Pre-configured Text "Recording in progress"
 Day & Night Auto (Electrical) / Color / B/W
 Backlight CompensationOff / BLC / HLC (Masking / Dimming) / WDR
 Wide Dynamic Range150dB
 Contrast EnhancementSSDR (Off / On)
 Digital Noise ReductionSSNRV (2D+3D noise filter) (Off / On)
 Digital Image StabilizationOff / On
    - Up to 6 faces detectable in real time
 Face Detection- Detection distance : up to 50ft (15.24m)
    - Overlay color changeable : Blue / Red / Green / Orange / Black

 Motion DetectionOff / On (8ea, 8point polygonal zones), Handover
 Privacy MaskingOff / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic
 Gain ControlOff / Low / Middle / High
 White BalanceATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium)
 Contrast Level adjusment
 LDC (Lens Distortion Correction)Off / On (5 levels with min / max)
 Electronic Shutter SpeedMinimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
 Flip / Mirror Off / On, Hallway view : 90˚/270˚
 Video & Audio AnalyticsTampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line,
 Enter / Exit, (Dis)Appear, Face detection, Motion detection, Digital auto tracking

 Alarm TriggersMotion detection, Video & Audio analytics, Network disconnect
 Alarm EventsFile upload via FTP, E-mail, Notification via E-mail, Local storage (SD/SDHC/
 SDXC) or NAS recording at event triggers, External output, DPTZ preset

 NETWORK
 Video Compression FormatH.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
 Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600,
  800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240

 Max. FramerateH.265 / H.264 : Max. 60fps at all resolutions, MJPEG : Max. 30fps
 Smart CodecManual mode (Area-based : 5ea)
 WiseStream IISupport
 Video Quality AdjustmentH.265 / H.264 : Target bitrate level control, MJPEG : Target bitrate level control
 Bitrate Control MethodH.265 / H.264 : CBR or VBR, MJPEG : VBR
 Streaming CapabilityMultiple streaming (Up to 10 profiles)
    TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP,
 Protocol PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM,
    UPnP, Bonjour
 Security HTTPS(SSL) login authentication, Digest login authentication
  IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP)

 Edge StorageSD/SDHC/SDXC (Up to 256GB)
 Application Programming InterfaceONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform
 ELECTRICAL
 Input Voltage / CurrentDC 12-24V (100-240VAC Power Supply included) / 3.75A max.
 Power Consumption45W max.
 ENVIRONMENTAL

MECHANICAL

Dimension (WxHxD)637mm x 448.3mm x 48.2mm (25.1" x 17.7" x 1.9")
Weight7.97 lbs
