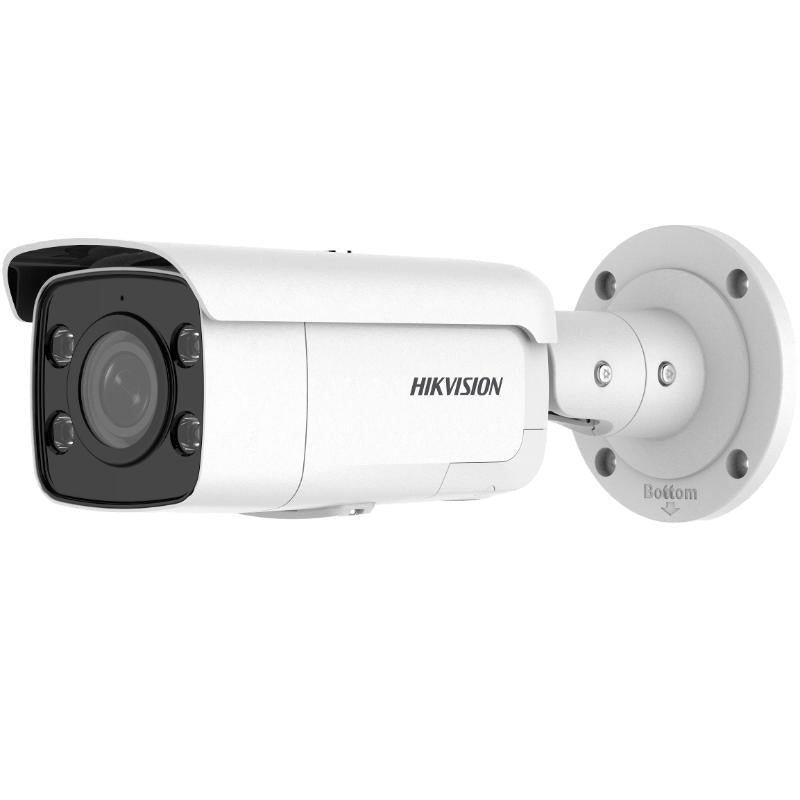

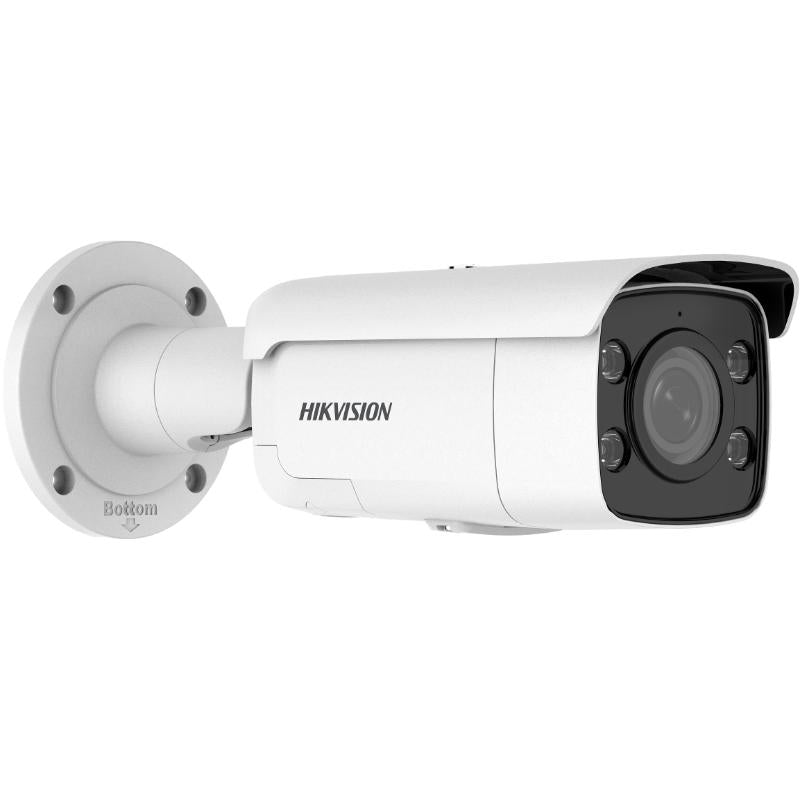

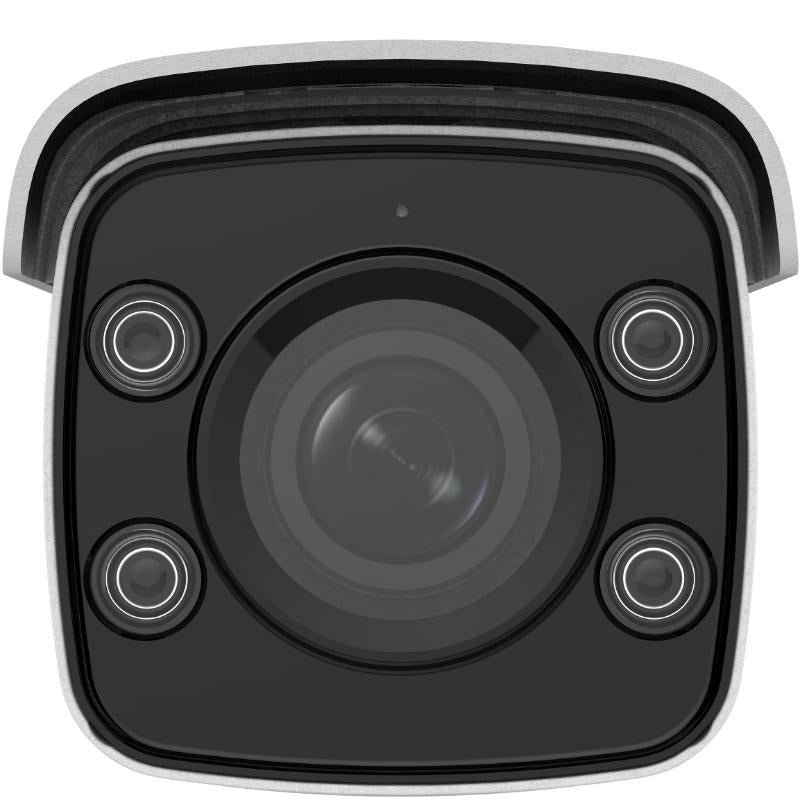

Hikvision - DS-2CD2T87G2-LSU/SL 4mm - 8 MP ColorVu Strobe Light and Audible Warning Fixed Bullet Network Camera, 4mm
Hikvision - DS-2CD2T87G2-LSU/SL 4mm - 8 MP ColorVu Strobe Light and Audible Warning Fixed Bullet Network Camera, 4mm
Hikvision - DS-2CD2T87G2-LSU/SL 4mm - 8 MP ColorVu Strobe Light and Audible Warning Fixed Bullet Network Camera, 4mm
Hikvision - DS-2CD2T87G2-LSU/SL 4mm - 8 MP ColorVu Strobe Light and Audible Warning Fixed Bullet Network Camera, 4mm
Hikvision - DS-2CD2T87G2-LSU/SL 4mm - 8 MP ColorVu Strobe Light and Audible Warning Fixed Bullet Network Camera, 4mm
Hikvision - DS-2CD2T87G2-LSU/SL 4mm - 8 MP ColorVu Strobe Light and Audible Warning Fixed Bullet Network Camera, 4mm
Hikvision - DS-2CD2T87G2-LSU/SL 4mm - 8 MP ColorVu Strobe Light and Audible Warning Fixed Bullet Network Camera, 4mm
Hikvision - DS-2CD2T87G2-LSU/SL 4mm - 8 MP ColorVu Strobe Light and Audible Warning Fixed Bullet Network Camera, 4mm
Hikvision

Hikvision - DS-2CD2T87G2-LSU/SL 4mm - 8 MP ColorVu Strobe Light and Audible Warning Fixed Bullet Network Camera, 4mm

Product SKU: DS-2CD2T87G2-LSU/SL 4mm
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$562.75
$704.40
Notify me When Available
You will receive an email when the product is available.
  • Description
  • Specifications
  • Downloads

8 MP ColorVu Strobe Light and Audible Warning Fixed Bullet Network Camera, 4mm



Features:

  • High quality imaging with 8 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong backlight due to 130 dB WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • 24/7 colorful imaging
  • Active strobe light and audio alarm to warn intruders off
  • Provide real-time security via built-in two-way audio
  • Audio and alarm interface available
  • Water and dust resistant (IP67)
Specification
Camera
Image Sensor1/1.2" Progressive Scan CMOS
Max. Resolution3840 × 2160
Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time1/3 s to 1/100,000 s
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Day & Night24/7 color imaging
Lens
Lens TypeFixed focal lens, 2.8, 4, 6 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°
4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°
6 mm: horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°
Iris TypeFixed
Lens MountM mount
ApertureF1.0
Depth of Field2.8 mm: 4.5 m to ∞
4 mm: 7 m to ∞
6 mm: 13 m to ∞
DORI
DORI2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m
4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m
6 mm, D: 167 m, O: 66 m, R: 33 m, I: 16 m
Illuminator
Supplement Light TypeWhite Light
Supplement Light Range60 m
Smart Supplement LightYes
Video
Main Stream50 Hz:
25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160)
30 fps (3200 x 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)
Video CompressionMain stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)Yes
Region of Interest (ROI)1 fixed region for main stream and sub-stream
Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket,
WebSockets
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters SwitchYes
Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white
balance adjustable by client software or web browser
Day/Night SwitchDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)130 dB
SNR≥ 52 dB
Image EnhancementBLC, HLC, 3D DNR
Privacy Mask4 regions of privacy mask
Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 512
GB
Reset KeyYes
Built-in MicrophoneYes
Built-in Speaker2 W, 10 cm: 97 dB
Audio1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 KΩ, interface type: non-equilibrium
1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 Ω,
interface type: non-equilibrium
Alarm1 input, 1 output (max. 24 VDC, 1 A)
Event
Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict,
illegal login, HDD full, HDD error)
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting
detection (support alarm triggering by specified target types (human and vehicle)), scene change detection
LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger
capture, send email
Deep Learning Function
Face CaptureYes
General
Power12 VDC ± 25%, 0.84 A, max. 11.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.21 A
MaterialFront cover: metal, body: metal, bracket: metal
Dimension289.9 mm × 93.5 mm × 91.2 mm (11.4" × 3.7" × 3.6")
Package Dimension386 × 156 × 155 mm (15.2" × 6.1" × 6.1")
WeightApprox. 1255 g (2.6 lb.)
With Package WeightApprox. 1769 g (3.7 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions		-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionAnti-flicker, heartbeat, password reset via e-mail, pixel counter
Approval
EMCFCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN
50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)
KC (KN32: 2015, KN35: 2015)
SafetyUL (UL 62368-1);
CB (IEC 62368-1:2014+A11)
CE-LVD (EN 62368-1:2014/A11:2017)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013)
DS-2CD2T87G2-LSU_SL-C_Datasheet_V5.5.115_20230418_0_b61b65b9-a2f1-4d01-b723-0655e5d77bb3.pdf:
