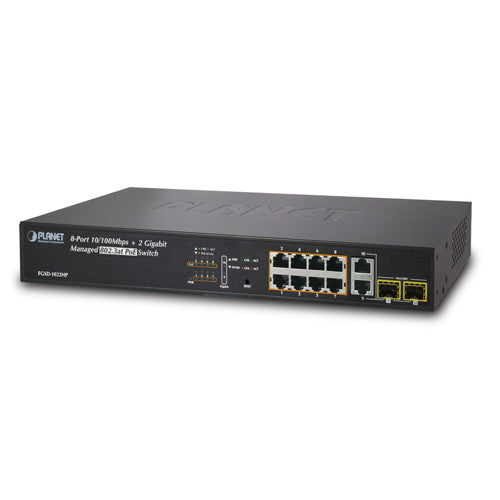

Planet - FGSD-1022HP - 8-Port 10/100Mbps + 2 Gigabit TP/SFP Combo Managed 802.3at PoE Switch

8-Port 10/100Mbps + 2 Gigabit TP/SFP Combo Managed 802.3at PoE Switch

Features:

Layer 2 Features

• Prevents packet loss Flow Control:
  • IEEE 3x PAUSE frame Flow Control for Full-Duplex mode
  • Back-Pressure Flow Control in Half-Duplex mode
• High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• 8K MAC Address Table, automatic source address learning and ageing
• Support VLAN:
  • IEEE 1Q Tag-Based VLAN
  • Port-Based VLAN
  • Q-in-Q tunneling (Double Tag VLAN)
  • GVRP for dynamic VLAN Management
  • Private VLAN Edge (PVE / Protect Port )

Supports Link Aggregation

• Up to 13 Trunk groups
• Up to 8 ports per trunk group with 6Gbps bandwidth (Full Duplex mode)
• IEEE 3ad LACP (Link Aggregation Control Protocol)
• Cisco ether-Channel (Static Trunk)

Support Spanning Tree Protocol:

• STP, IEEE 1D (Classic Spanning Tree Protocol)
• MSTP, IEEE 1s (Multiple Spanning Tree Protocol, spanning tree by VLAN)
• Quality of Service
  • 4 priority queues on all switch ports
  • Traffic classification:
    • IEEE 1p Class of Service
    • IP TOS / DSCP code priority
    • Port Base priority
  • Strict priority and weighted round robin (WRR) CoS policies
  • Ingress/Egress Bandwidth control on each port

Multicast

• IGMP Snooping v1 and v2
• IGMP Snooping v2 fast leave
• IGMP Query mode for Multicast Media application
• Security
  • IEEE 1x Port-Based network access control protocol
  • RADIUS users access authentication
  • L3 / L4 Access Control List (ACL)
  • Source IP-MAC / Port-Binding
  • Port Security for Source MAC address entries filtering

Management

• Switch Management Interface
• Telnet Command Line Interface
• Web switch management
• SNMP v1, v2c, v3 switch management
• SSL switch management
  • DHCP client for IP address assignment
  • DHCP Option82 and DHCP Relay
  • Link Layer Discovery Protocol (LLDP) for easy network management
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • Firmware upgrade via TFTP or HTTP
  • Configuration restore / backup via TFTP or HTTP
  • Event message logging to remote Syslog server
  • Four RMON groups 1, 2, 3, 9 (history, statistics, alarms, and events)
  • SNMP trap for interface Link Up and Link Down notification
  • Supports Ping function

Power over Ethernet (FGSD-1022P / FGSD-1022HP Only )

• Complies with IEEE 3af / IEEE 802.3at Power over Ethernet End-Span PSE
• Up to 8 IEEE 3af devices powered
• Up to 5 IEEE 3at device powered (FGSD-1022HP only)
• Support PoE Power up to 4 Watts for each PoE ports
• Support PoE Power up to 30 Watts for each PoE ports (FGSD-1022HP only)
• Auto detect powered device (PD)
• Circuit protection prevent power interference between ports
• Remote power feeding up to 100m

PoE Management

• IEEE 3af and IEEE 802.3at mode switch control
• Temperature Threshold control
• PoE power usage threshold control
• Total PoE power budget control
• Per port PoE function enable/disable
• PoE Port Power feeding priority
• Per PoE port power limit
• PD classification detection
• PoE Power Supply Over Temperature Protection
