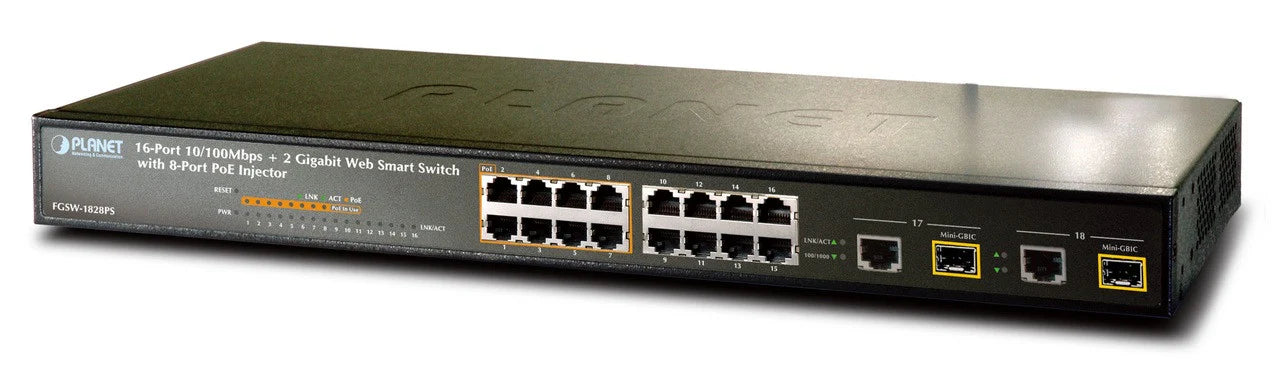

Planet - FGSW-1828PS - 16-Port 10/100 (8-Port PoE) + 2-Port MiniGBIC/SFP Ethernet Web/Smart PoE Switch

The FGSW-1828PS provide 16 10/100Mbps Fast Ethernet ports with 8 PoE interfaces, the FGSW-1828PS supports MDI / MDI-X convertible on 16-10/100Mbps ports and also provide PoE inject function on port #1 to port #8 which is able to drive 8 IEEE 802.3af compliant powered devices, the FGSW-1828PS also provide two Gigabit Ethernet ports, either TP or SFP per port. The two Gigabit ports either can be 1000Base-T for 10/100/1000Mbps or 1000Base-SX/LX through SFP (Small Factor Pluggable) interfaces. The distance can be extended from 100 meters (TP), 550 meters (Multi-mode fiber), up to above 10/20/30/40/50/70/120 kilometers (Single-mode fiber).

Features:

• Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z　Gigabit Ethernet standard
• 16-Port 10/100Mbps + 2 Gigabit TP / SFP Combo Web Smart PoE Switch
• 8-Port support 48VDC power to PoE Powered Device (Port 1 to port 8)
• Each Switching ports support auto-negotiation-10/20, 100/200Mbps (Fast Ethernet) , 1000/2000Mbps (Gigabit Ethernet) supported
• Auto-MDI / MDI-X detection on each RJ-45 port
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x　pause frame flow control (full-duplex)
• High performance Store and Forward architecture, broadcast storm control,　runt / CRC filtering eliminates erroneous packets to optimize the network bandwidth
• 4K MAC address table, automatic source address learning and ageing
• 2.75Mb embedded memory for packet buffers
• Remote Web interface for Switch management and setup
• SNMP Trap for alarm notification of events
• Broadcast Storm Control support
• Supports up to 16 / 18 port-based VLAN groups / 32 IEEE 802.1Q VLAN groups / MTU VLAN
• Supports up to 2 Trunk groups, each trunk for up to maximum 4 port with 800Mbps bandwidth
• Supports QoS , bandwidth control and MAC address filter / TCP & UDP filter on each port
• Supports port mirroring function and IGMP Snooping v1 / v2
• PoE power Disable/Enable and PoE power consumption monitoring by management interface
• Firmware upgrade through Web interface
• Password setting, IP setting and device description setting through Planet Smart discovery utility
• 19-inch rack mount size
• Internal full-range power supply suitable for worldwide use
• EMI standards complies with FCC, CE class A
