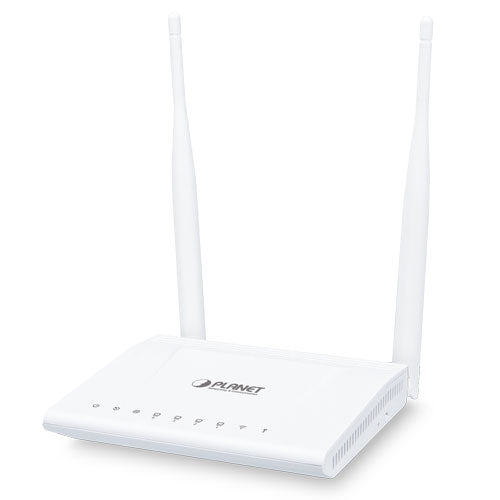

Planet - FRT-415N - 802.11n Wireless Internet Fiber Router (mini-GBIC, SFP) with 4-port switch

With built-in 100BASE-FX fiber interface, PLANET FRT-415N supports different optic types for WAN and the distance can be up to 15~60 km through the fiber connection. The FRT-415N is an ideal solution for FTTH (Fiber-to-the-home) applications in the IPv6 environment. It can handle multiple high-throughput services such as IPTV, on-line gaming, VoIP and Internet access, and keep the bandwidth usage smooth. The FRT-415N also incorporates a 4-port 10/100BASE-TX switching hub, which makes it easy to create or extend your LAN, and prevents DoS attacks.

High-speed 802.11n Wireless
With built-in IEEE 802.11b/g and 802.11n wireless network capability, the FRT-415N allows any computer and wireless-enabled network device to connect to it without additional cabling. 802.11n wireless capability brings users the highest speed of wireless experience ever; the data transmission rate can be as high as 300Mbps. The radio coverage is also doubled to offer high-speed wireless connection even in widely spacious offices or houses.

Secure Wireless Access Control
To secure wireless communication, the FRT-415N supports up-to-date encryptions including WEP, WPA-PSK and WPA2-PSK. Moreover, the FRT-415N supports WPS configuration with PBC/PIN type for users to easily connect to a secure wireless network.

Providing Superior Function
The FRT-415N provides user-friendly management interface to be managed easily through standard web browsers. For networking management features, the FRT-415N not only provides basic router functions such as DHCP server, virtual server, DMZ, QoS and UPnP, but also provides full firewall functions including Network Address Translation (NAT), IP/Port/MAC filtering and content filtering. Furthermore, the FRT-415N serves as an Internet firewall to protect your network from being accessed by unauthorized users.

Internet Access Features

• Shared Internet Access: All users on the LAN can access the Internet through the FRT-415N using only one single external IP address. The local (invalid) IP addresses are hidden from external sources. This process is called NAT (Network Address Translation).
• IEEE 802.3u 100BASE-FX standard: The FRT-415N provides long-distance connection based on optical fiber transceiver which supports FTTH and IPTV applications.
• Multiple WAN Connections: Upon the Internet (WAN port) connection, the FRT-415N supports dynamic IP address (IP address is allocated upon connection), fixed IP address, PPPoE and bridge. SFP or RJ45 can be selected to be the default WAN interface.

Advanced Internet Functions

• Virtual Servers: This feature allows Internet users to access Internet servers on your LAN. The setup is quick and easy.
• Firewall: The FRT-415N supports simple firewall with NAT technology.
• Universal Plug and Play (UPnP): UPnP allows automatic discovery and configuration of the broadband router. UPnP is supported by Windows 7, or later.
• User-friendly Interface: The FRT-415N can be managed and controlled through Web UI.
• DMZ Support: The FRT-415N can translate public IP addresses into private IP address to allow unlimited 2-way communication with the servers or individual users on the Internet. It provides the most flexibility to run programs smoothly for programs that might be restricted in NAT environment.
• RIP1/2 Routing: It supports RIP v1/v2 routing protocol for routing capability.
• IPv6 Support: The FRT-415N supports IPv6 for new services and higher security.

LAN Features

• 4-port Switch: The FRT-415N incorporates a 4-port 10/100BASE-TX switching hub, making it easy to create or extend your LAN.
• DHCP Server Support: Dynamic Host Configuration Protocol provides a dynamic IP address to PCs and other devices upon request. The FRT-415N can act as a DHCP Server for devices on your local LAN.

Wireless Features

• Supports IEEE 802.11b/g/n Wireless Standards: The 802.11n standard provides backward compatibility with the 802.11b and 802.11g standard, so 802.11b, 802.11g, and 802.11n can be used simultaneously. IEEE 802.11n wireless technology is capable of having a data rate of up to 300Mbps.
• Two External Antennas with MIMO Technology: The FRT-415N provides farther coverage, less dead spaces and higher throughput with 2T2R MIMO technology.
• WPS Push Button Control: The FRT-415N supports WPS (Wi-Fi Protected Setup) for users to easily connect to wireless network without configuring the security.
• WEP Support: WEP (Wired Equivalent Privacy) is included. Key sizes of 64 bit and 128 bit are supported.
• WPA-PSK Support: WPA-PSK_TKIP and WAP-PSK_AES encryption are supported.
• Wireless MAC Access Control: The Wireless Access Control feature can check the MAC address (hardware address) of wireless stations to ensure that only trusted wireless stations can access your LAN.
