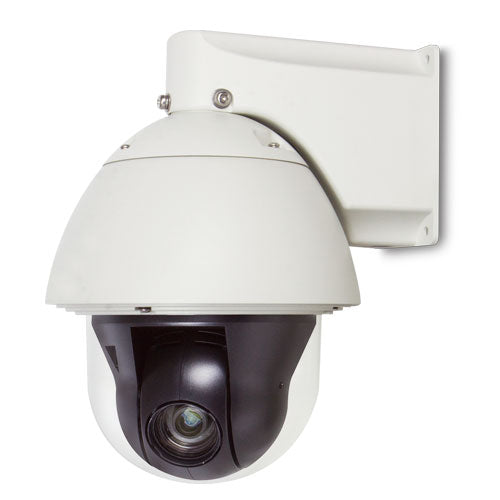

Planet - ICA-E6260 - 2 Mega-pixel PoE Plus Speed Dome IP Camera with Extended Support
Planet - ICA-E6260 - 2 Mega-pixel PoE Plus Speed Dome IP Camera with Extended Support
Planet - ICA-E6260 - 2 Mega-pixel PoE Plus Speed Dome IP Camera with Extended Support
Planet - ICA-E6260 - 2 Mega-pixel PoE Plus Speed Dome IP Camera with Extended Support
Planet - ICA-E6260 - 2 Mega-pixel PoE Plus Speed Dome IP Camera with Extended Support
Planet - ICA-E6260 - 2 Mega-pixel PoE Plus Speed Dome IP Camera with Extended Support
Planet

Planet - ICA-E6260 - 2 Mega-pixel PoE Plus Speed Dome IP Camera with Extended Support

Product SKU: ICA-E6260
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$1,501.74
$1,728.72
Notify me When Available
You will receive an email when the product is available.
  • Description
  • Specifications
  • Downloads

Camera

  • 1/2.8" 2 mega-pixel progressive scan CMOS sensor
  • Auto-focal 4.5~148.5 mm, auto-iris lens
  • 0.05 lux minimum illumination at F1.6
  • Maximum resolution 1920 x 1080
  • 33 x 10 zooming (33x optical, 10x digital) adjustment
  • Endless 360-degree pan
  • Auto white balance and auto electronic shutter time (1/5 ~ 1/32k sec)
  • Removable IR-cut filter for Day & Night function


Video/Audio

  • H.264/MJPEG video compression
  • Simultaneous multi-stream support
  • H.264 high profile, main profile and baseline
  • Max. resolution of 1080p at 60fps
  • Automatic object detection and tracking
  • 3DNR to improve picture quality at low lux
  • Digital image stabilizer supported
  • True WDR enhancement function strengthens visibility under extremely bright or dark environments
  • Two-way audio support with enhanced audio quality


Network and Configuration

  • Compliant with IEEE 802.3at high PoE interface for flexible deployment
  • Supports both IPv6 and IPv4 protocols
  • RTSP, UPnP, Bonjour and HTTPS protocols selectable


Easy Installation & Management

  • ONVIF compliant for interoperability
  • IK09 and IP67 rating
  • Micro SD card slot for video recording
  • Digital Input/Output for integration with sensors and alarms
  • Fan and heater with fully automatic intelligent control
Camera
Image Device 1/2.8" 2 mega-pixel progressive scan CMOS Sensor
Lens Auto-focal 4.5~148.5 mm/F1.6~5.0, auto-iris
Mechanical IR-cut filter
Angle of view: Horizontal: 3~69.3 degrees
Min. Illuminator Color: 0.1 lux @ F1.6 (30 IRE, 2400°K)
B/W: 0.05 lux (30 IRE, 2400°K)
Effective Pixels 1920 x 1080 pixels
Horizontal Resolution 1800 TVL
Electronic Shutter 1/5~1/32000 sec.
S/N Ratio 56dB
Pan / Tilt / Zoom
Optical Zoom 33x
Tele to Wide Speed 2.7 sec.
Pan Degree 360 degrees (endless)
Tilt Degree -20 ~ 200 degrees
Manual Panning Speed 3.2 ~ 72 degrees/sec.
Manual Tilting Speed 1.6 ~ 36 degrees/sec.
Preset Points 256
Preset Tours 10
Preset Panning Accuracy 0.265 degrees
Preset Tilting Accuracy 0.149 degrees
Preset Panning Speed 0.1~300 degrees/sec.
Preset Tilting Speed 0.1~150 degrees/sec.
Resume after Power loss Yes
Auto scan Yes
Protocol Sony VISCA, Pelco D, Pelco P
Absolute Position Yes
PTZ Auto Tracking Yes
Video Encoder H.264/MJPEG
Video Profile H.264: 1920 x 1080, 1280 x 720, 640 x 480, 320 x 240
MJPEG: 1920 x 1080, 1280 x 720, 640 x 480, 320 x 240
Frame Rate 1920 x 1080 up to 60fps
1280 x 720 up to 60fps
640 x 480 up to 30fps
320 x 240 up to 30fps
Image Setting Video flipping, video mirroring, brightness, contrast, sharpness, automatic gain control, 2D+3D digital noise reduction, flickerless, true WDR (145dB), exposure, white balance (automatic, manual or hold), OSD, privacy mask (20 regions), digital image stabilizer
Streaming Simultaneous triple streams based on three configurations
Controllable frame rate and bandwidth
Constant and variable bit rate
Bit Rate 128Kbps - 12Mbps (per stream)
Text Overlay User defined text on video
Audio
Audio Streaming Two-way audio
Compression PCM, G.711 (A-law and µ-law)

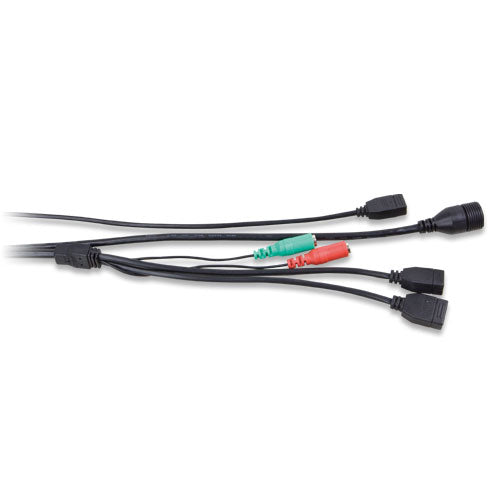

Audio Input/Audio-Out Cable with 3.5mm phone jack
Network and Configuration
Network Standard IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
Protocol and Service TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, PLANET DDNS, PLANET Easy DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Security Password protection, IP address filtering, HTTPS encryption, anonymous login, 802.1X network access control
Users 10 simultaneous unicast users
System Integration
Application Programming Interface Software Development Kit (SDK) available; ONVIF compliant
Alarm Triggering Video motion detection (10 regions), sound detection and external input
Alarm Events Notify control center, go to PTZ preset point or preset tour, change camera settings, command other devices, e-mail notification with snapshots, save video or snapshot to local storage, upload video and snapshot to FTP server, activate external device through digital output
Built-in Analytics Tamper, shock detection
General
Power Supply High PoE (IEEE 802.3at)
AC 24V ± 10%
Power Consumption PoE: 29.4W (with heater)
AC 24V: 68W (with heater)
Housing IK09 and IP67 rating
Operating Temperature -40 ~ 55 degrees C (within 30mins)
Operating Humidity 10 ~ 85% (non-condensing)
Weight 2500g
Dimensions (Φ x H) 200 x 276 mm
Emission CE, FCC
Connectors 10/100Mbps Ethernet, RJ45
Micro SDHC card slot (max. 32GB, class 10)
Terminal block for 4 alarm input and 2 output
External mic. input
Audio out
AC power jack
ICA-E6260_Datasheet_8c6e950a-c805-425a-bb3a-998f551aae64.pdf:
ICA-E6260_User_Manual_1a556e49-1121-4acd-a112-542440d50a70.pdf:
ICA-E6260_Quick_Installation_Guide_c90b2c20-baf6-405d-b319-02d0eacf7fd4.pdf:
