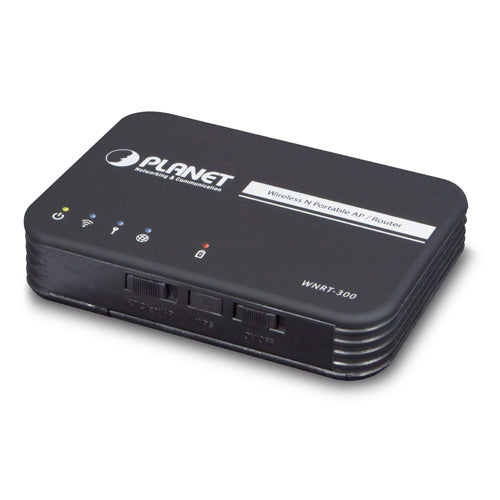

Planet - WNRT-300 - 150Mbps 802.11n Wireless Portable AP/Router
Planet - WNRT-300 - 150Mbps 802.11n Wireless Portable AP/Router
Planet - WNRT-300 - 150Mbps 802.11n Wireless Portable AP/Router
Planet - WNRT-300 - 150Mbps 802.11n Wireless Portable AP/Router
Planet - WNRT-300 - 150Mbps 802.11n Wireless Portable AP/Router
Planet - WNRT-300 - 150Mbps 802.11n Wireless Portable AP/Router
Planet - WNRT-300 - 150Mbps 802.11n Wireless Portable AP/Router
Planet - WNRT-300 - 150Mbps 802.11n Wireless Portable AP/Router
Planet

Planet - WNRT-300 - 150Mbps 802.11n Wireless Portable AP/Router

Product SKU: WNRT-300
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$30.78
Notify me When Available
You will receive an email when the product is available.
  • Description
  • Specifications
  • Downloads

Portable 11n Wireless Router (1T/1R), battery included



Features:

  • Multiple Wireless Network Technologies for Greater Access
  • More Flexibility and Mobility
  • Built-in High Capacity Battery
  • One-touch Secure Wireless Connection
  • Wide Range of Wireless Security Support
  • Advanced Firewall Security
  • Easy Setup Anytime, Anywhere
  • Handy Size, Multiple Modes, Powerful Connectivity



Industrial Compliant Wireless LAN & LAN

  • Compliant with IEEE 802.11n wireless technology capable of up to 150Mbps data rate
  • Backward compatible with 802.11b/g standard
  • Equipped with one 10/100Mbps RJ-45 Ethernet port for LAN/WAN, Auto MDI/MDI-X supported



Wireless Network Range Extender

  • Multiple Wireless Modes: AP, WDS, Repeater, Universal Repeater, Client
  • Supports WMM (Wi-Fi Multimedia), Wireless QoS
  • Supports IAPP (Inter Access Point Protocol), Wireless Roaming



Fixed-network Broadband Router

  • Supported Internet types: Dynamic IP/ Static IP/ PPPoE/ L2TP/ PPTP
  • Supports Static & Dynamic (RIP1 and 2) Routing
  • Supports IP / MAC-Based Bandwidth Control
  • Supports 802.1d STP & IGMP Proxy



Secure Network Connection

  • Advanced security: 64/128-bit WEP, WPA-Enterprise/ WPA2-Enterprise and WPA-PSK/WPA2-PSK with TKIP/AES Encryption, 802.1x Authentication
  • Built-in NAT firewall features with Port/ IP/ MAC/ URL Filtering, and DoS protection
  • Supports 802.1Q VLAN



Advanced Networking Function for Specific Application

  • Supports multiple sessions IPSec, L2TP, PPTP, and IPv6 VPN pass-through
  • Supports Port Forwarding, DMZ, UPnP and Dynamic DNS for various networking applications
  • Supports DHCP Server



Easy to Install & Management

  • Web-Based UI and setup Wizard for easy configuration
  • System status monitoring includes DHCP Client and System Log



Flexible Application & Business-oriented design

  • Portable and Pocket-sized design for true mobility
  • Hardware switchable operation modes: Router / AP / Client
  • One-touch Wi-Fi Protected Setup (WPS)
  • Built-in rechargeable Li-ion battery
Hardware Specification
Interface LAN / WAN : 1 x 10/100Mbps Auto MDI/MDI-X RJ45 port
Antenna Gain: 1 x Internal 2dBi Antenna
Orientation: Omni-directional

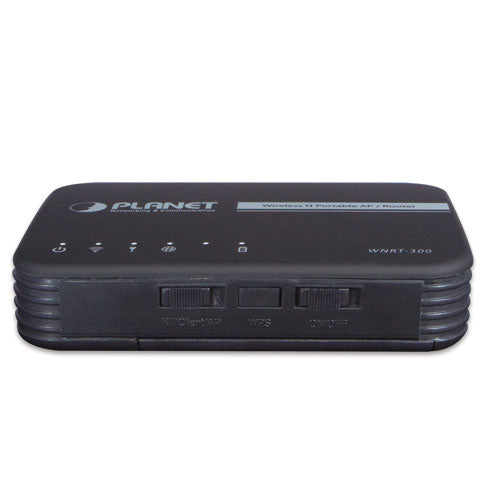

Button / Switch Front panel (from left to right):
　- Mode Selection Switch (Router / Client / AP)
　- WPS Button
　- Power On / Off Switch

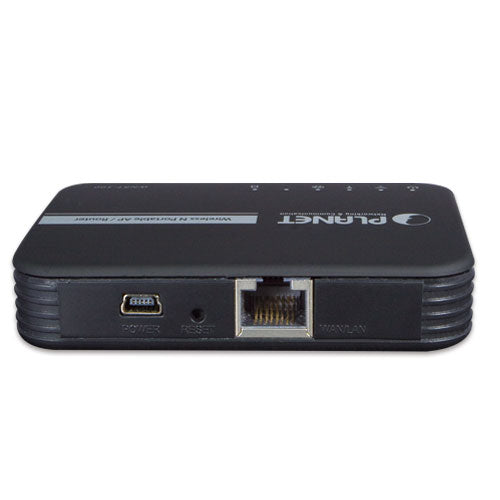

Rear panel:
　- Reset button
* Push for above 5 seconds to reset to factory default settings
LED Indicators PWR, WLAN, WAN/LAN, WPS, CHG
Material Plastic
Dimension (W x D x H) 88 x 62 x 18 mm
Weight With battery: 80g
Without battery: 58g
Battery Built-in Rechargeable Li-ion Battery (3.7V, 1050mAh)
Power Requirement DC 5V , 0.4A maximum, connected through mini-USB connector
Power Adapter AC Input: 100~240V AC (50/60Hz)
DC Output: 5V with max. 1A current
Standard Accessory Power Adapter x 1, USB Cable x 1, Ethernet Cable x 1, Li-ion Battery x 1, CD-ROM x 1, Quick Guide x 1
Wireless Interface Specification
Standard Compliance with IEEE 802.11b/g/n
Frequency Band 2.4 ~ 2.4835GHz
Extend Frequency DSSS
Modulation Type DBPSK, DQPSK, QPSK, CCK and OFDM (BPSK / QPSK / 16-QAM / 64-QAM)
Data Transmission Rates 11n: Up to 150Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)
Transmission Distance Indoor up to 100m
Outdoor up to 300m (Depends on the environment conditions)
Channel America/ FCC: 2.412 ~ 2.462GHz (11 Channels)
Europe/ ETSI: 2.412 ~ 2.472GHz (13 Channels)
Japan/ TELEC: 2.412 ~ 2.484GHz (14 Channels)
Max. RF Power 20 dBm (EIRP)
Receive Sensitivity 135M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
Software Features
Operation Mode 　■ AP
　■ Router
　■ Client
(Switchable by hardware)
Wireless Mode AP, WDS, Repeater (WDS+AP), Universal Repeater (AP + Client)
Encryption Security WEP (64/128-bit) encryption security
WPA-Enterprise / WPA2-Enterprise (TKIP/AES)
WPA-Personal / WPA2-Personal (TKIP/AES)
802.1x Authentication
Wireless Security Provides wireless LAN ACL (Access Control List) filtering
Wireless MAC address filtering
Supports WPS (Wi-Fi Protected Setup)
Multiple SSID up to 5 wireless groups, each mapped to a separate 802.1p/q tagged VLAN
Enable / Disable SSID Broadcast
Wireless Advanced WMM (Wi-Fi Multimedia): 802.11e Wireless QoS
IAPP (Inter Access Point Protocol): 802.11f Wireless Roaming
Provides Wireless Statistics
Internet Connection Type Shares data and Internet access by supporting the following types of internet access:
　- PPPoE
　- Dynamic IP
　- Static IP
　- PPTP
　- L2TP
Firewall NAT firewall with SPI (Stateful Packet Inspection)
Built-in NAT server supporting Port Forwarding, and DMZ
Built-in firewall with IP address/ MAC address/ Port/ URL filtering
Supports ICMP-FLOOD, UDP-FLOOD, TCP-SYN-FLOOD filter, and DoS protection
Supports 802.1Q VLAN up to 4
Routing Protocol Static / Dynamic (RIP1 and 2) Routing
VPN Pass-through PPTP, L2TP, IPSec, IPv6
LAN Built-in DHCP server supporting static IP address distributing
Supports UPnP, Dynamic DNS
Supports IGMP Proxy
Supports 802.1d STP (Spanning Tree)
IP / MAC-based Bandwidth Control
System Management Web-Based (HTTP) management interface
SNTP time synchronize
Easy firmware upgrade
System Log supports Remote Log
Standards Conformance
IEEE Standards IEEE 802.11n (1T1R, up to 150Mbps)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11i
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3x Flow Control
Other Protocols and Standards CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP
Environment
Temperature Operating: 0 ~ 40 Degree C
Storage: -40 ~ 70 Degree C
Humidity Operating: 10 ~ 90% (Non-Condensing)
Storage: 5 ~ 90% (Non-Condensing)
WNRT-300_Datasheet_80e6fb8e-5885-4279-9798-44904a3186fd.pdf:
WNRT-300_EC_Declaration_f894fad2-f7fb-48a6-8e77-491eabd1cc02.pdf:
