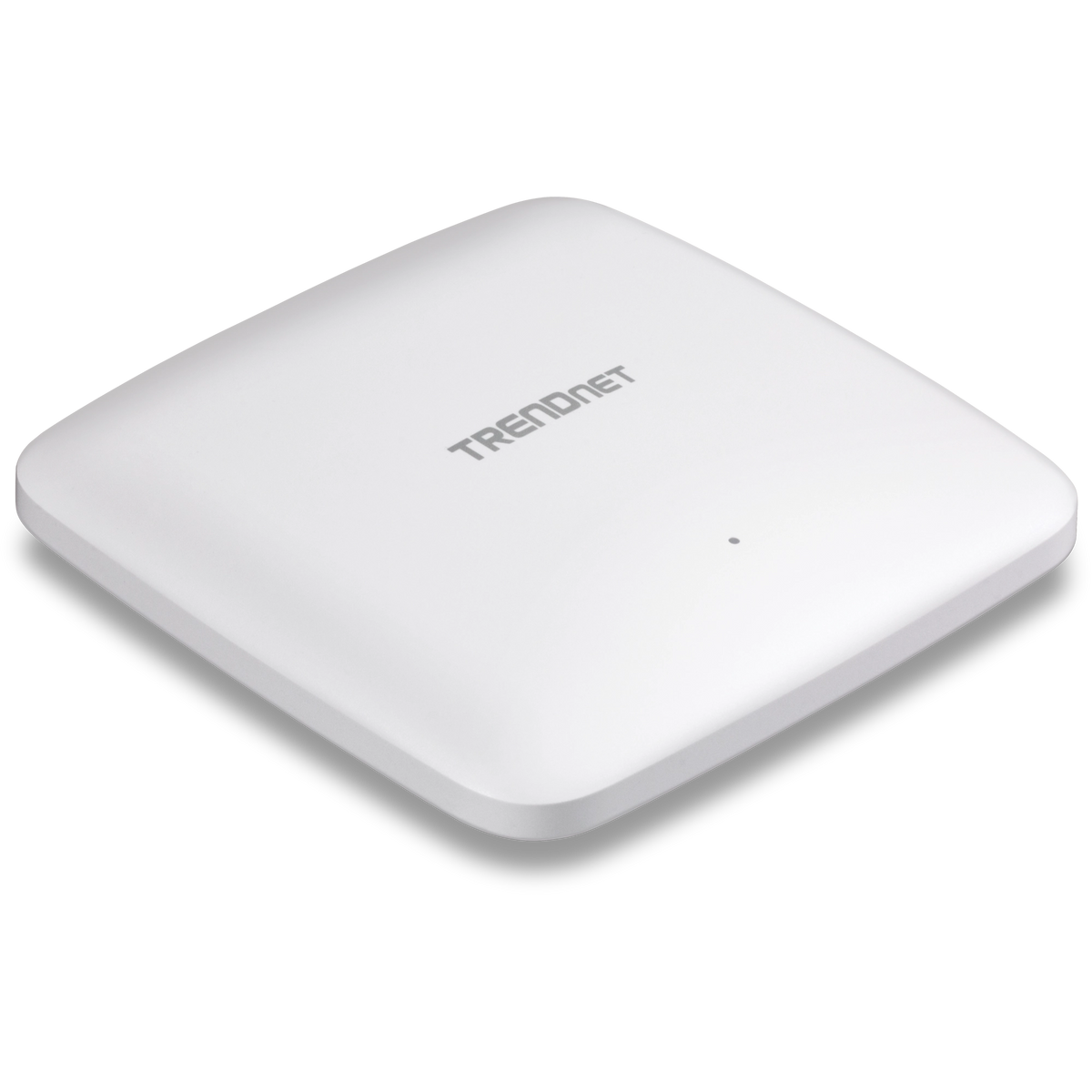

Trendnet - TEW-921DAP(CA) - AX1800 Dual Band PoE+Indoor Wireless Access Point

Trendnet

Trendnet - TEW-921DAP(CA) - AX1800 Dual Band PoE+Indoor Wireless Access Point

Name: Trendnet - TEW-921DAP(CA) - AX1800 Dual Band PoE+Indoor Wireless Access Point
Brand: Trendnet
SKU: TEW-921DAP(CA)
Price: 125.55 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: TEW-921DAP(CA)

$125.55

Description
Specifications
Downloads
Reviews

• High-performance AX1800 PoE+ WiFi 6 access point
• OFDMA and MU-MIMO technology boosts performance in a busy environment
• Two concurrent WiFi bands maximize device networking speeds
• AX1800 Dual Band: 1201Mbps (5GHz) + 567Mbps (2.4GHz) bands
• Access Point, Client Bridge, WDS AP, WDS Bridge, WDS Station, and Repeater modes
• Supports up to WPA3 encryption
• Optional cloud management with TRENDnet Hive (Additional fee applies)
• 1 x Gigabit PoE+ LAN port
• Captive portal for hotspot applications
• Low-profile housing blends into most environments

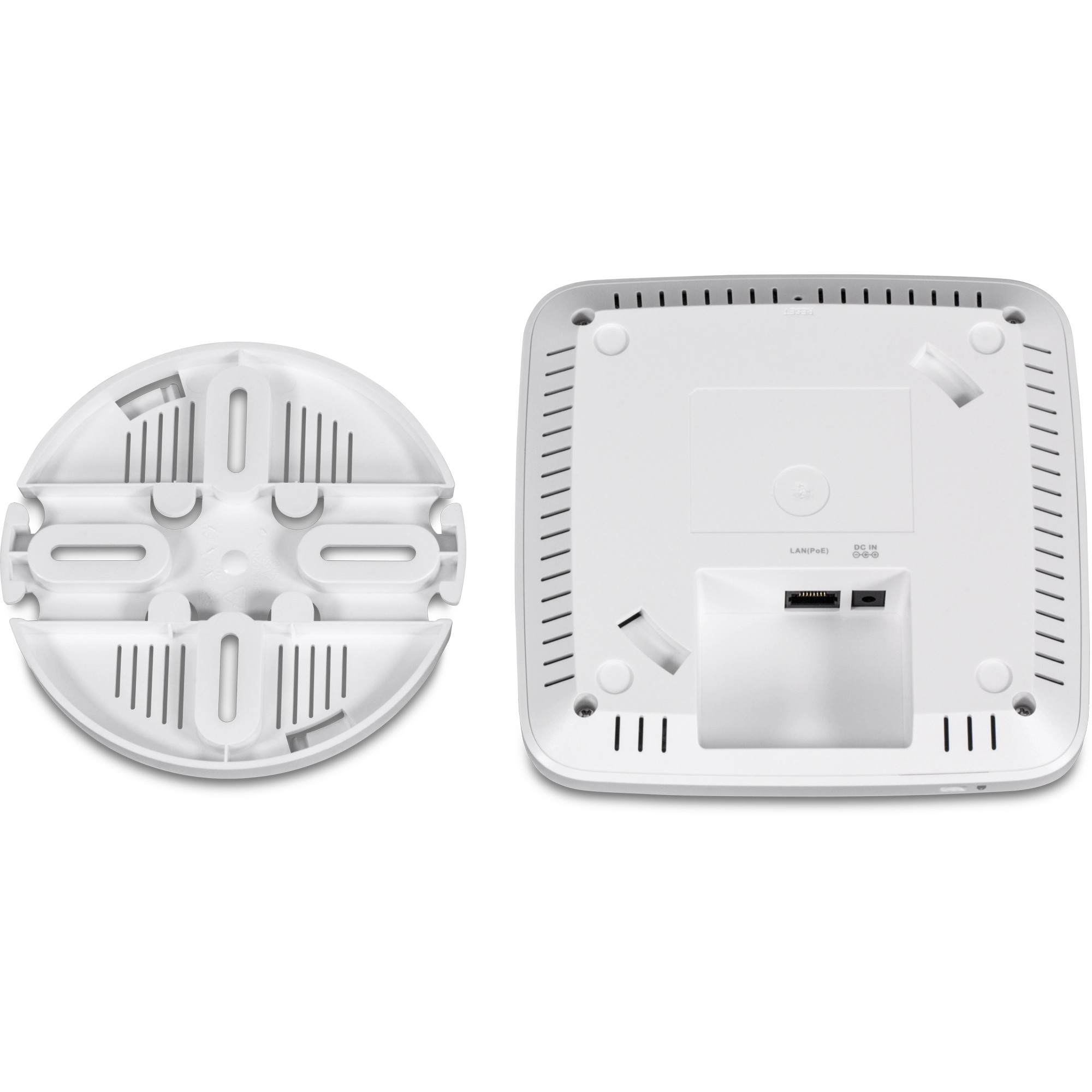

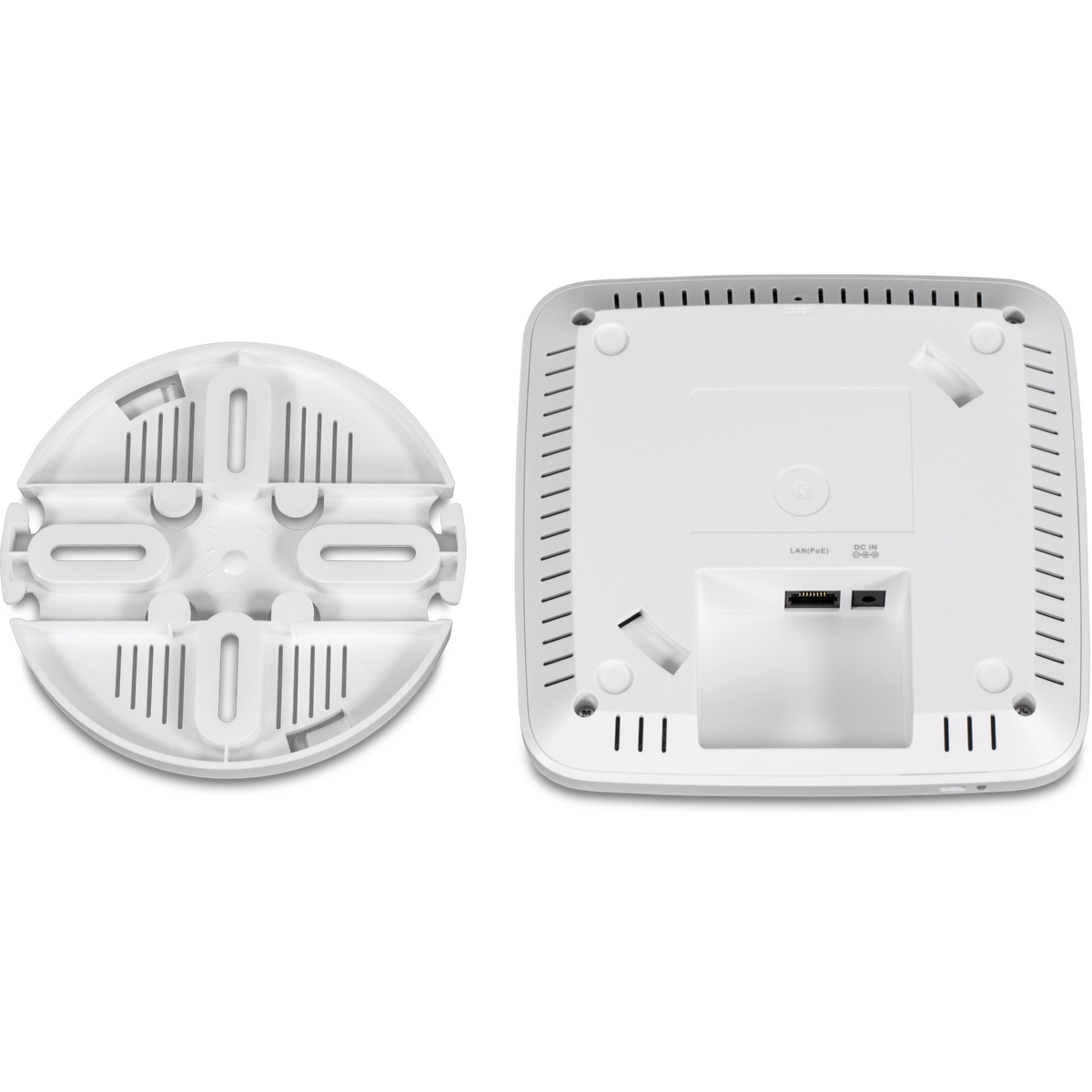

• Includes wall / ceiling mounting plate
• NDAA / TAA compliant (U.S. and Canada only)

Standards	• IEEE 802.3 • IEEE 802.3u • IEEE 802.3x • IEEE 802.3ab • IEEE 802.3at • IEEE 802.1Q • IEEE 802.11a • IEEE 802.11b • IEEE 802.11g • IEEE 802.11k • IEEE 802.11n (up to 400Mbps)* • IEEE 802.11r • IEEE 802.11v • IEEE 802.11w • IEEE 802.11ac Wave 2 (up to 867Mbps)* • IEEE 802.11ax (up to 1201Mbps)*

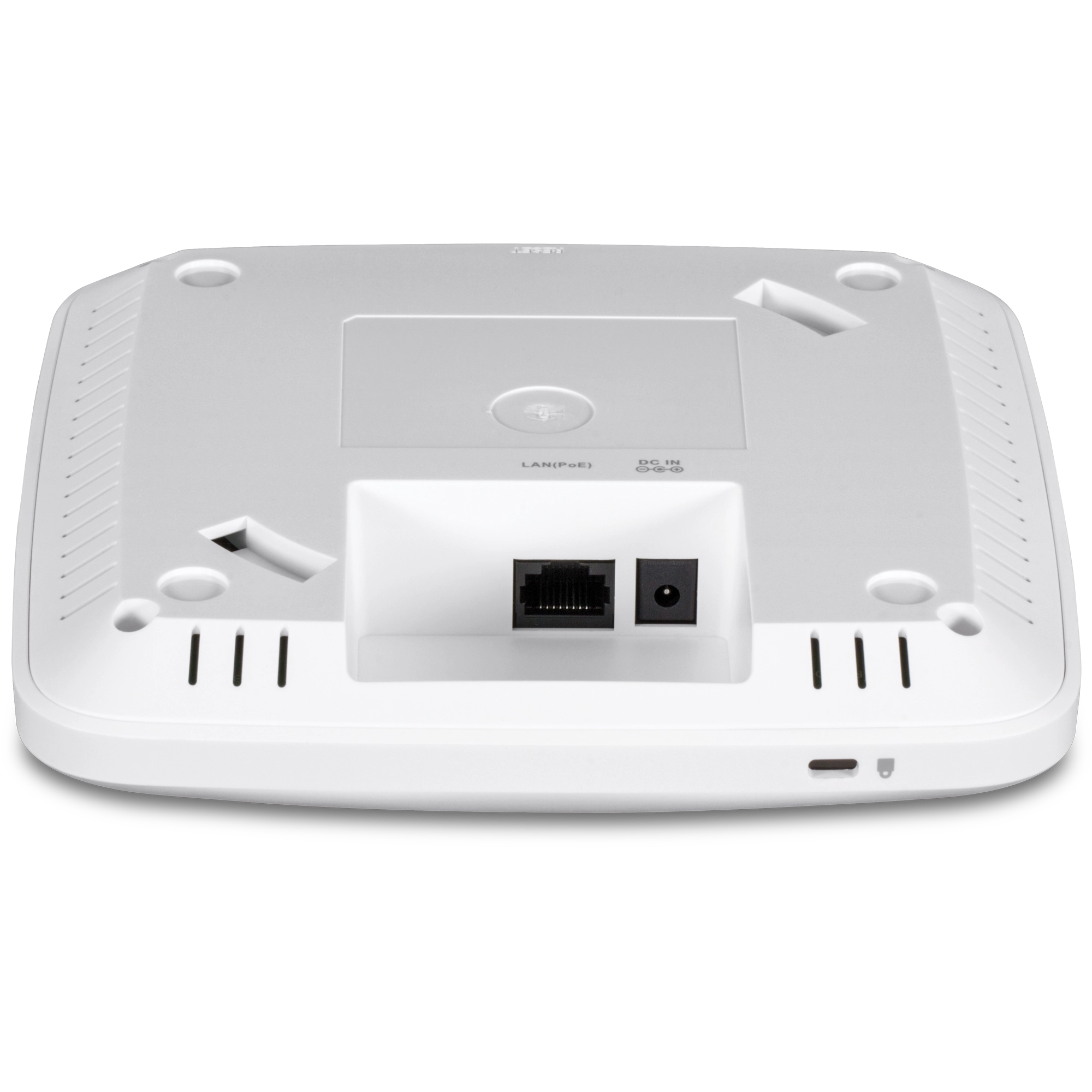

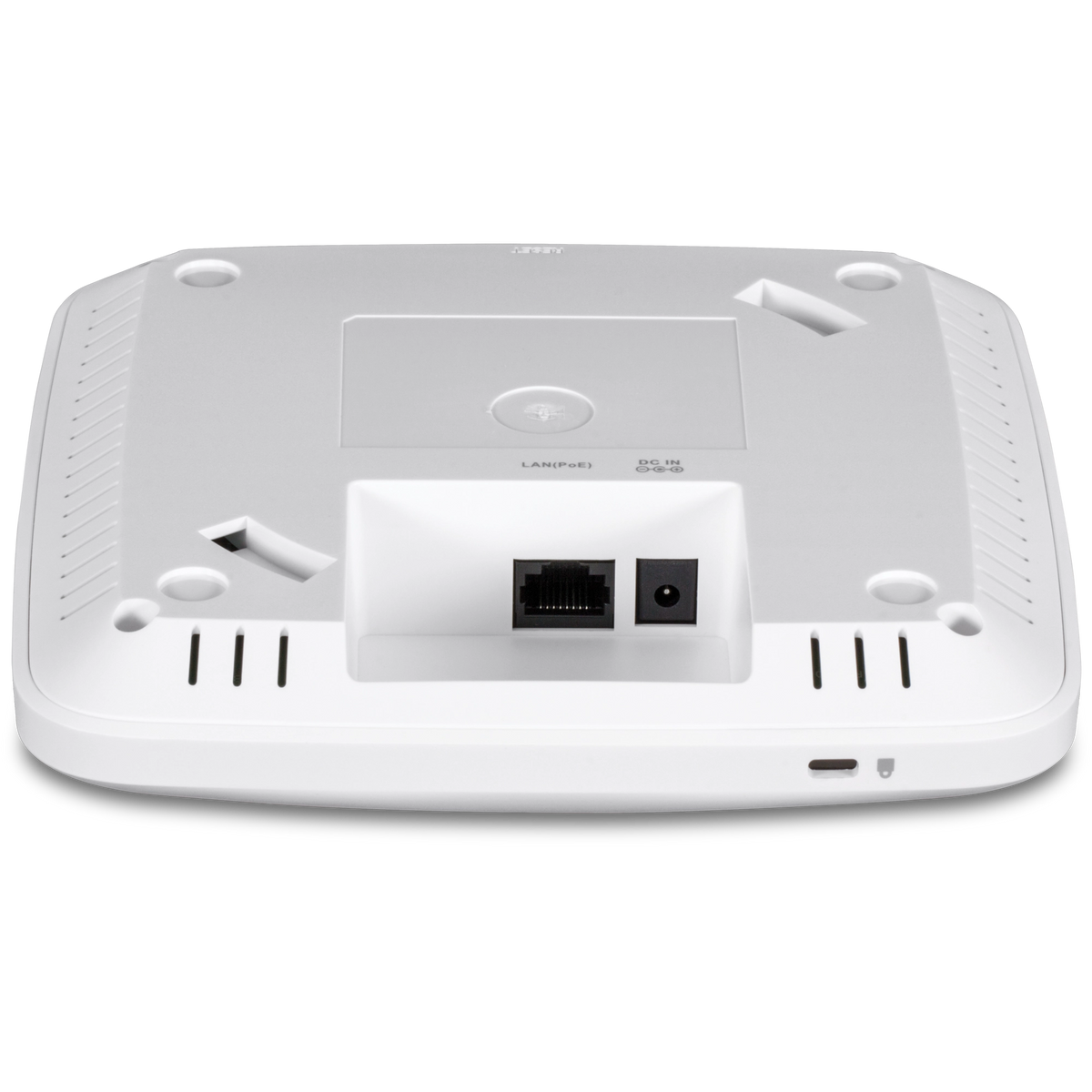

Hardware Interface	• 1 x PoE+ Gigabit LAN port (power input) • Power port (optional power adapter sold separately) • LED indicators • Mounting plate • Reset button
Features	• MU-MIMO • OFDMA • Band steering • WiFi traffic shaping • 802.1Q VLAN assignment per SSID • IPv6 support (Link-Local, Static IPv6, Auto-Configuration (SLAAC/DHCPv6)) • Multi-Language interface, English, French, Spanish, German, Russian • LEDs on/off • External Captive Portal (Coovachilli server authentication) • Internal Captive Portal (Local user account authentication and customizable portal page) • Redirect Captive Portal • 802.11k intelligent radio resource management • RSSI Threshold (client signal strength and connectivity control) • Airtime Fairness • IGMP Snooping
Operation Modes	• Access Point • Client Bridge • WDS AP • WDS Bridge • WDS Station • Repeater
Management/Monitoring	• Web based management • SNMP v1/v3 • STP • Event logging • Ping test • Traceroute • Telnet • Reboot & scheduled automatic reboot
Hive Cloud Management	• Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser, or through the mobile app • Multi-device management • Provisioning through scheduled batch firmware or configuration updates for multiple switches • Event/hardware network monitoring (CPU/memory utilization) • Configure features such as IP address settings, WiFi settings, operation modes, and LED control through cloud management
Access Control	• Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS, WPA3-PSK • MAC filter • Maximum client limit
QoS	Bandwidth control per SSID or client
SSID	Up to 8 SSIDs per wireless band (16 total)
Frequency	• 2.4GHz: 2.412 – 2.472GHz • 5GHz: 5.180 – 5.320GHz
Wireless Channels	• 2.4GHz: FCC: 1–11, ETSI: 1 – 13 • 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165 ETSI: 36, 40, 44, 48 (52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140) **
Modulation	• DBPSK/DQPSK/CCK for DSSS technique • BPSK/QPSK/16-QAM/64-QAM/256-QAM/1024-QAM for OFDM technique • OFDMA
MIMO Configuration	• 5GHz: 2x2:2 • 2.4GHz: 2x2:2
Antenna Gain	• 2.4GHz: 2 x 3.2 dBi internal • 5Ghz: 2 x 4.3 dBi internal
Wireless Output Power	• 802.11a: FCC: 30 dBm (max.) / CE: 28 dBm (max.) • 802.11b: FCC: 29 dBm (max.) / CE: 18 dBm (max.) • 802.11g: FCC: 29 dBm (max.) / CE: 19 dBm (max.) • 802.11n (2.4GHz): FCC: 29 dBm (max.) / CE: 19 dBm (max.) • 802.11n (5GHz): FCC: 30 dBm (max.) / CE: 28 dBm (max.) • 802.11ac: FCC: 30 dBm (max.) / CE: 28 dBm (max.) • 802.11ax (2.4GHz): FCC: 29 dBm / CE: 19 dBm • 802.11ax (5GHz): FCC: 30 dBm / CE: 28 dBm
Receiving Sensitivity	• 802.11a: -75 dBm (typical) @ 54Mbps • 802.11b: -90 dBm (typical) @ 11Mbps • 802.11g: -77 dBm (typical) @ 54Mbps • 802.11n (2.4 GHz): -77 dBm (typical) @ 400Mbps • 802.11n (5 GHz): -71 dBm (typical) @ 400Mbps • 802.11ac: -71 dBm (typical) @ 867 Mbps • 802.11ax (2.4GHz): -65 dBm (typical) @ 574Mbps • 802.11ax (5GHz): -63 dBm (typical) @ 1201Mbps
Power	• IEEE 802.3at Type 2 PoE PD Class 4 Input: 100 - 240V AC, 50/60Hz, Output: 12V DC, 1.5A external power adapter (optional power adapter sold separately) • Max. consumption: 15W
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 95% non-condensing
Certifications	CE, FCC
Dimensions	160 x 160 x 34mm (6.3 x 6.3 x 1.34 in.)
Weight	486g (1.07 lbs.)
Warranty	3 year
Package Contents	• TEW-921DAP • Network cable (1.5m/5 ft.) • Quick Installation Guide • Mounting plate
