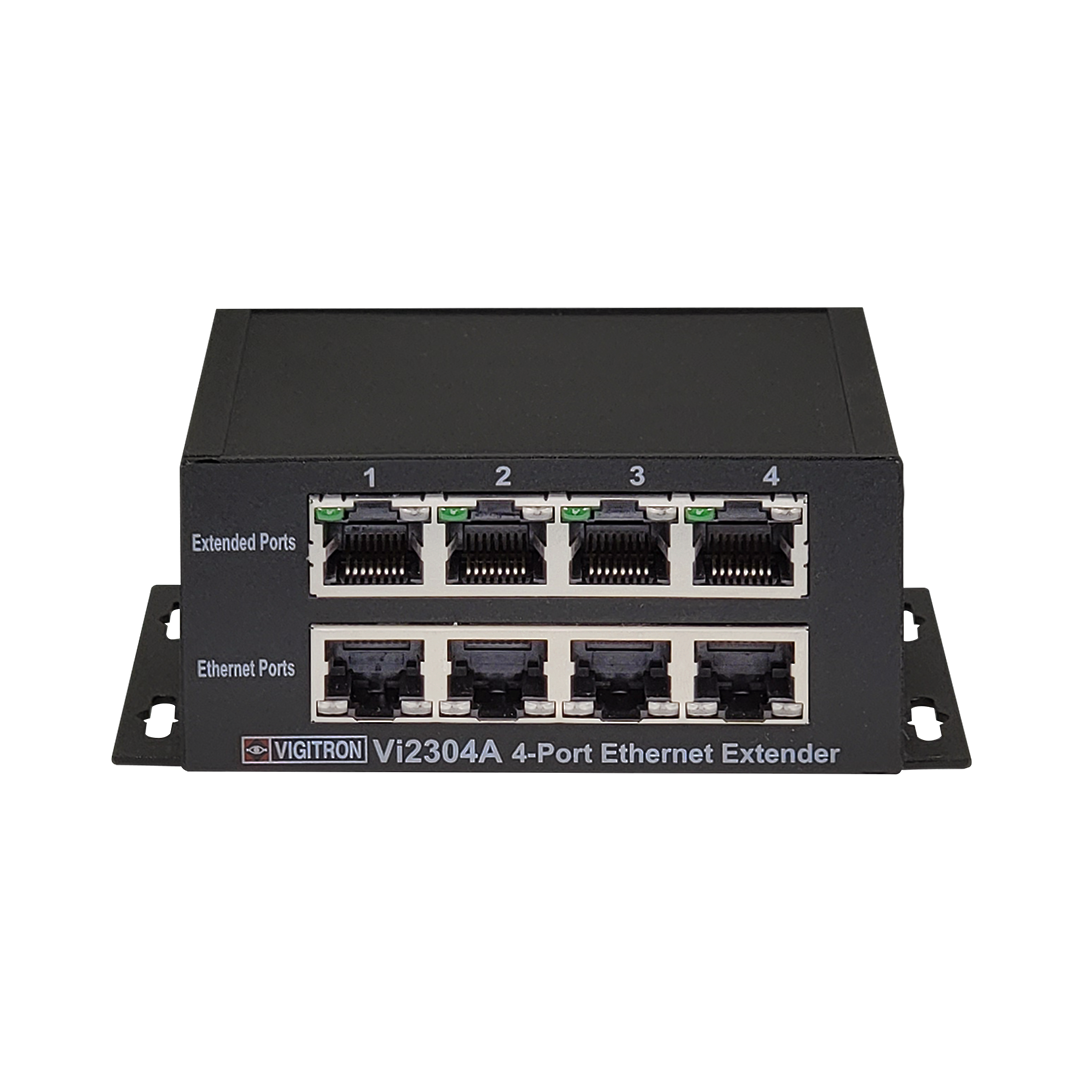

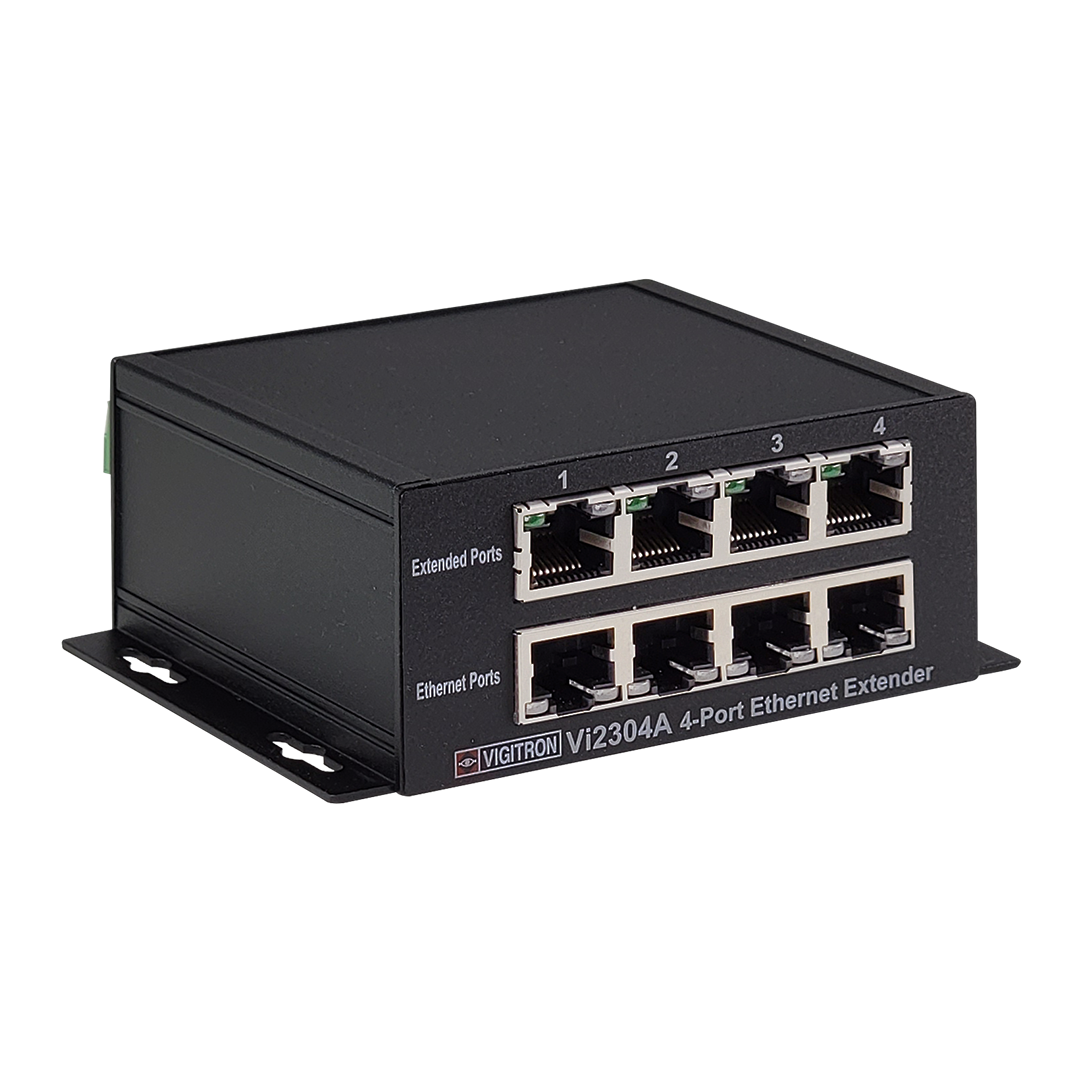

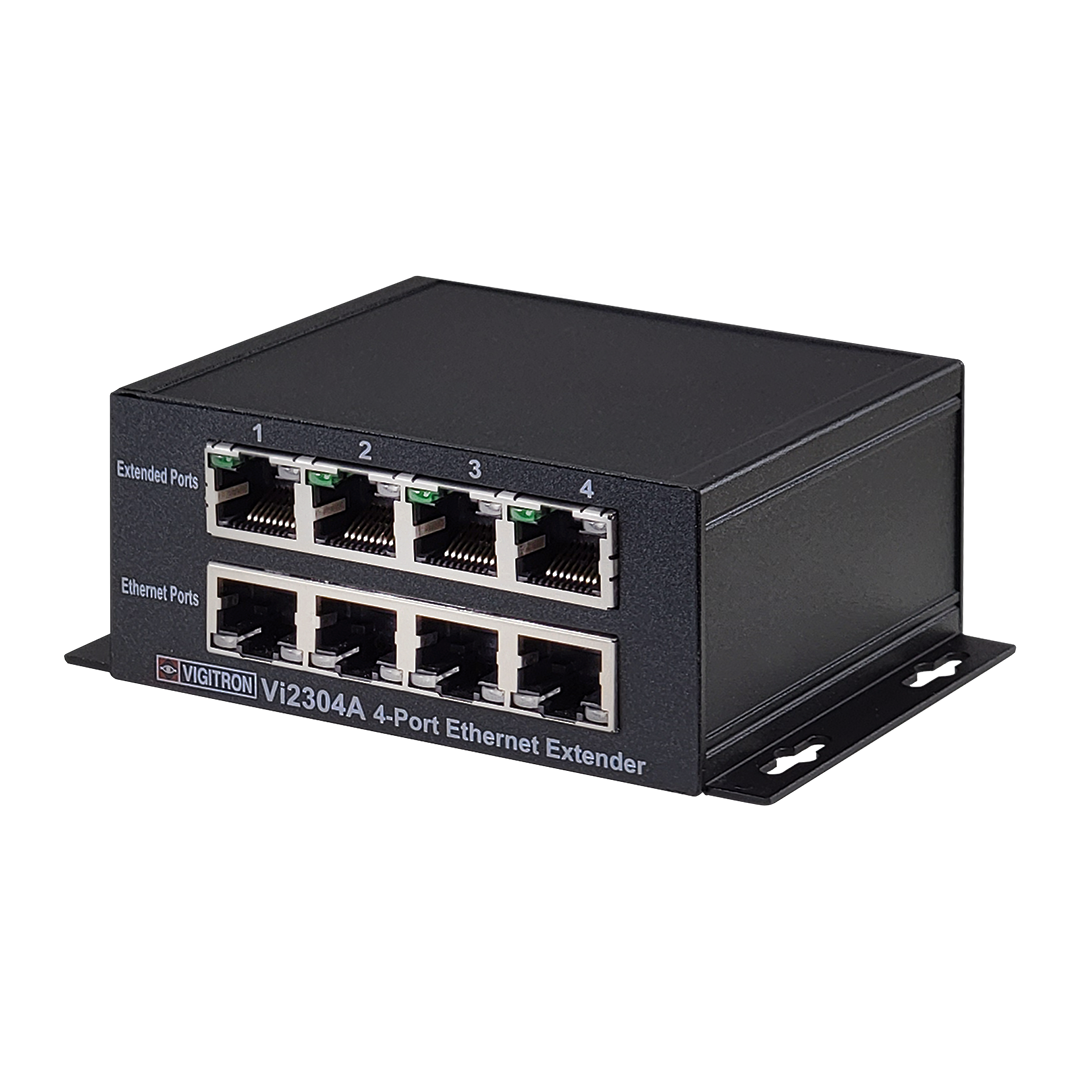

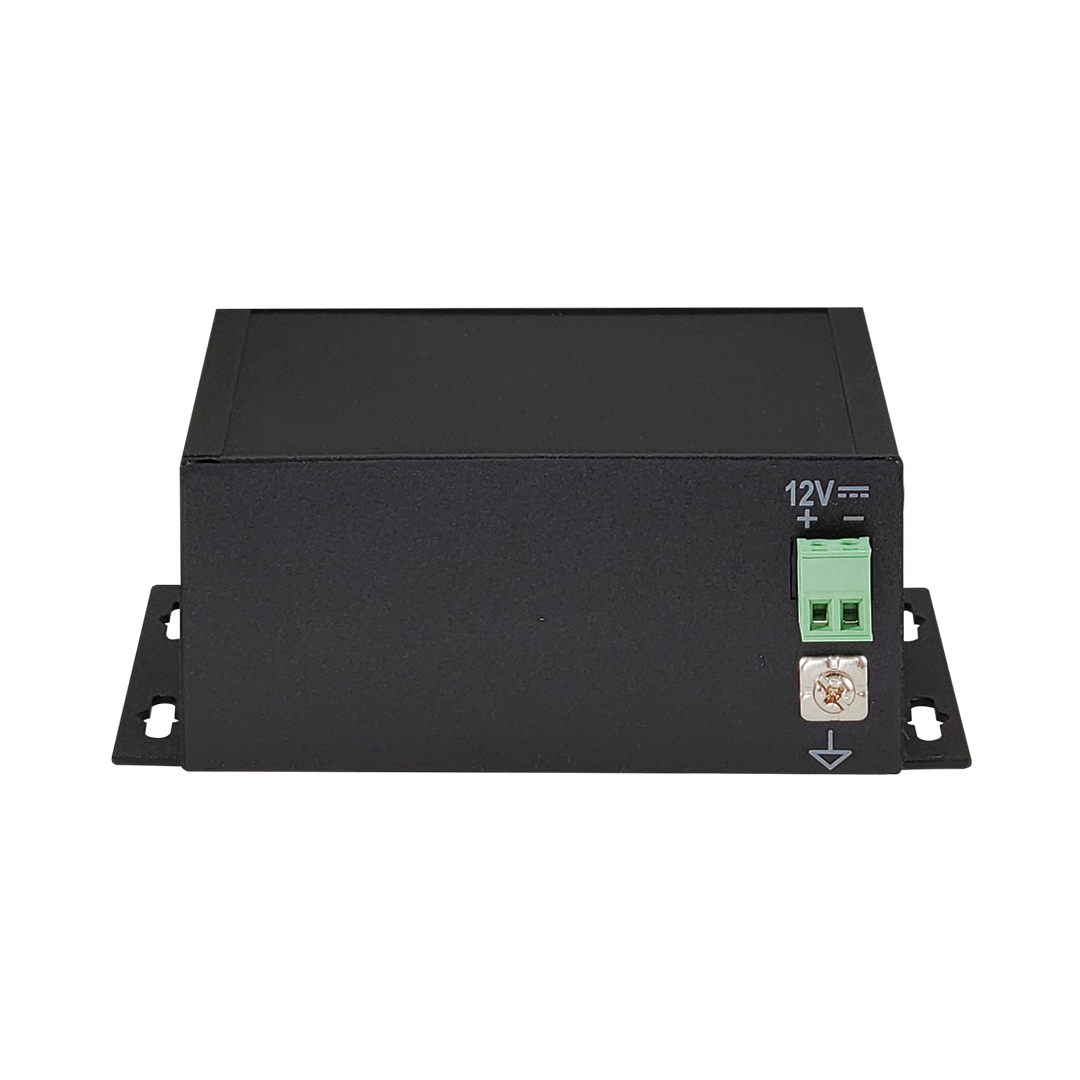

Vigitron - Vi2304A - 4-Port MaxiiCopper™ Ethernet Extender over UTP, af/at/bt 72W PoE, Requires 12VDC @ 3A PS, suggested Vi0014

4-Port MaxiiCopper Ethernet Extender over UTP, 60W PoE, Requires 12VDC @ 3A PS, suggested Vi0014. Vigitron's Maxiicopper Vi2300 Extender Series brings new performance standards to the growing need for high speed transmission of full bandwidth Ethernet and PoE over extended distances including high power PTZ domes with heaters and blowers. Its unique Symmetric Bandwidth (SBW) assures full bandwidth transmission is maintained over the entire operational distance for both uploads and downloads with Virtual Zero Packet Loss (VZPL). Bandwidth assurance provides the ability to transmit multiple cameras on single camera runs with no information loss. Combining a Vi2300A series extender with Vigitron’s MaxxiCollector Vi2804A Extended Ethernet Switch up to 4 camera streems can be transmitted to a central location on a single cable. The Vi2308A and Vi2316A are a compact EIA 19” 1U high rack design for easy installation.

Extended Pass Through PoE (PTP) up to 60W eliminates the need for additional cost for remote site power. Type tested under NEMATS2 environmental standards for -40°C to +75°C, these extenders are the perfect solution for remote signal and power transmission for warehouses, parking lots, campuses, casinos, and many more. Best of all, the Vi2300A series is MegaPixel Certified (MPC), type tested to network packet performance standards, and major camera brand compatibility tested to assure you error free and reliable operations. The product series is available in single, four, eight and sixteen channel configurations to meet every system application requirement.

Installation cost savings, proven performance, and major camera brand compatibility all go into making the Vigitron's Maxiicopper Vi2300A series your best choice for extended distance Ethernet and power transmission.

Features:

•  Extends Ethernet beyond 328 feet (100 m) limitation up to 3,000 feet (914 m) over UTP.
•  Saves additional networking equipment costs and reduces installation time.
•  Extended Pass Through PoE (PTP) compatible with 802.3af/at and and PoE ++ (60 W)
•  MegaPixel Certified (MPC) High data rate, ideal for high bandwidth requirements of MegaPixel cameras, multiple IP cameras systems and cameras requiring Jumbo Frames.
•  Symmetric Bandwidth (SBW) provides consistent upload and download with Virtual Zero Packet Loss (VZPL).
•  Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards.
•  Supports one-pair or four-pair UTP wires with built-in transceiver cable connectivity tester.
•  Type tested for -40°C to +75°C temperature range under conforming to NEMA-TS2.
•  Data rate selectable to for maximum bandwidth utilization
•  Complies to major IEEE standards and RFC protocols for UDP, TCP/IP, HTTP/HTTPS.
•  Available in 4, 8, and 16 channel combinations to fit any size application
•  USA designed and manufactured.
•  Limited Life Time Warranty.
