FD9367-HV - DISCONTINUED

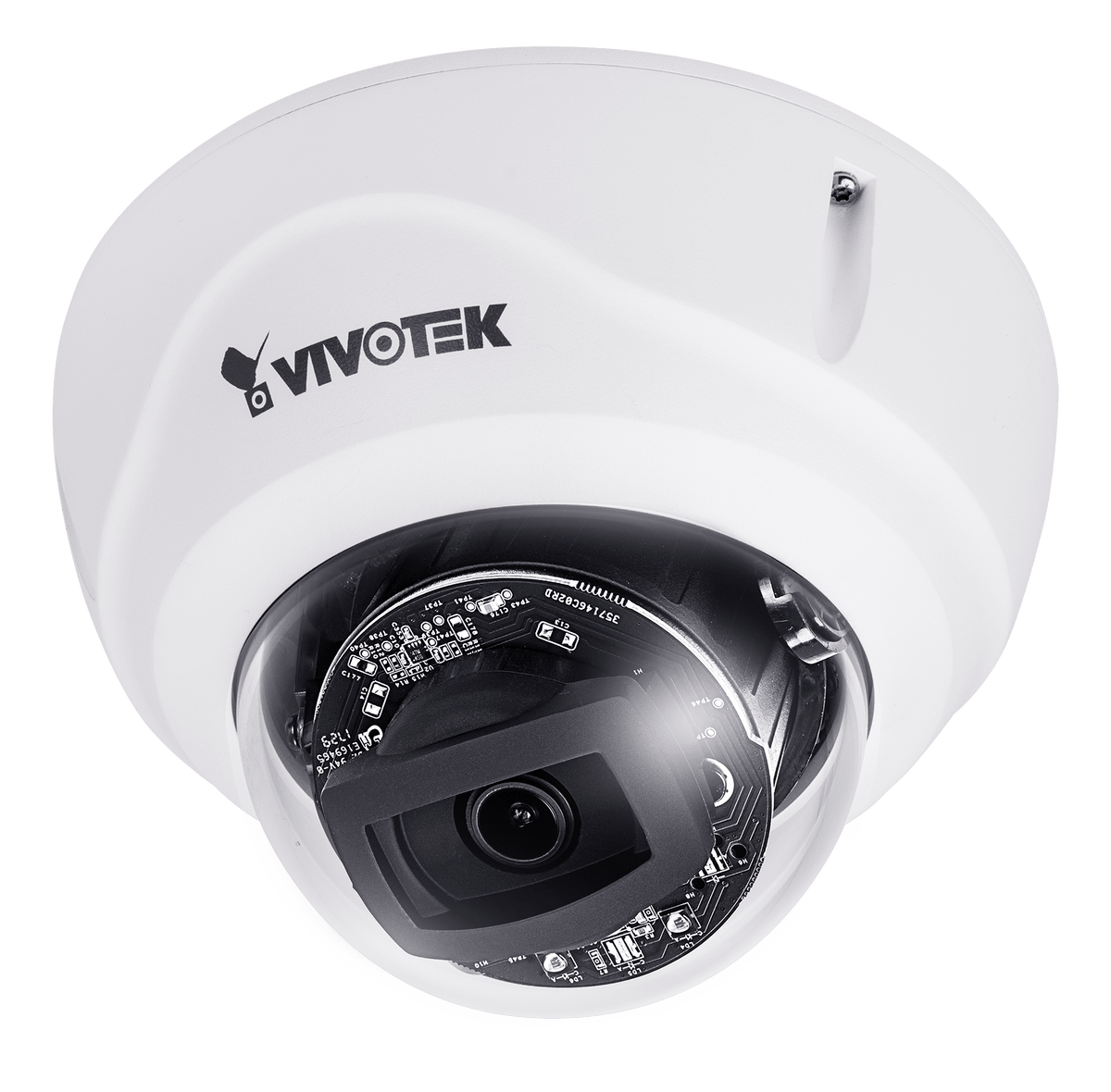

The FD9367-HV is the new professional outdoor IR dome network camera from VIVOTEK, equipped with a full HD sensor capable of 1920x1080 resolution at 30 fps. With the most updated VIVOTEK SNV and WDR Pro technology, the FD9367-HV is capable of capturing the highest quality images in both low light and high contrast environments.

The FD9367-HV also offers great image in night time by equipping IR illuminators with effective range up to 30 meters. With an IP66 and IK10 rated housing, the FD9367-HV is capable of operating under the harshest of conditions.

Additionally, the FD9367-HV employs VIVOTEK's Smart Stream III technology and H.265 compression codec, reducing bandwidth more than 90%* while still maintaining excellent image quality compared to traditional H.264 without smart streaming. Furthermore, the VIVOTEK VADP (VIVOTEK Application Development Platform) allows users to add customized programs for various applications and user scenarios.

Features:

• Image Sensor 1/2.8" Progressive CMOS
• Max. Resolution 1920x1080
• Lens Type Fixed-focus
• Focal Length f = 2.8 mm
• Aperture F1.6
• Auto-iris Fixed-iris
• Field of View 109° (Horizontal), 61° (Vertical), 126° (Diagonal)
• Shutter Time 1/5 sec. to 1/32,000 sec.
• WDR Technology WDR Pro
• Day/Night Removable IR-cut filter for day & night function
• Minimum Illumination 0.07 Lux @ F1.6 (Color), 0.001 Lux @ F1.6 (B/W), 0 Lux with IR illumination on
• ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)
• IR Illuminators Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
• On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
• Compression H.265, H.264, MJPEG
• Maximum Frame Rate 30 fps @ 1920x1080
• Maximum Streams 3 simultaneous streams
• S/N Ratio 58 dB
• Dynamic Range 120 dB
• Video Streaming Adjustable resolution, quality and constant bit rate control, Smart Stream III
• Image Settings Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video rotation, 3DNR, DIS, HLC
• Audio Capability Two-way audio
• Compression G.711, G.726
• Interface Built-in Mic, External Mic input, External line output
• Effective Range 5 meters
• Users Live viewing for up to 10 clients
• Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/ RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL/ TLS
• Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
• ONVIF Supported, specification available at www.onvif.org
• Video Motion Detection Five-window video motion detection
• Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, MicroSD card life expectancy
• Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card, File upload via HTTP, SMTP, FTP, NAS server and MicroSD card
• Connectors RJ-45 cable connector for Network 10/100 Mbps PoE connection, Audio Mic in, Audio line out, DC 12V Digital input *1, Digital output *1
• LED Indicator System power and status indicator
• Power Input DC 12V or IEEE 802.3af PoE Class 0
• Power Consumption Max. 7 W
• Dimensions Ø 155 x 104 mm
• Weight 854 g (1.88 lb)
• Safety Certifications CE, LVD, FCC Class A, VCCI, C-Tick, UL
• Operating Temperature Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F)
• Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
• Humidity 90%
• Warranty 24 Months
• Quick installation guide, warranty card, screw pack, alignment sticker
