IB9391-EHT - DISCONTINUED Replacement: IB9391-EHTV-V2

The IB9391-EHT is the new flagship outdoor bullet network camera from VIVOTEK, equipped with a 4K ultra HD sensor capable of 3840x2160 resolution at 30 fps. With the latest in VIVOTEK WDR Pro technology, the IB9391-HTV is capable of capturing the highest quality images in high contrast environments.

The IB9391-EHT also supports standard 1920x1080 HD resolution at 120 frames per second, capable of catching very fast moving objects. Additionally, the IB9391-EHT employs VIVOTEK's Smart Stream III technology and H.265 compression codec, reducing bandwidth more than 90%* while still maintaining excellent image quality. Protecting all these features is the IB9391-EHT's IP67, IK10 and NEMA 4X certified housing, capable of operating in temperatures from -50°C to 60°C.

Features:

• Image Sensor 1/2" Progressive CMOS
• Max. Resolution 3840x2160
• Lens Type Vari-focal, Remote Focus
• Focal Length f = 3.9 ~ 10 mm
• Aperture F1.5 ~ F2.7
• Iris type P-iris
• Field of View 45° ~ 95° (Horizontal), 25° ~ 52° (Vertical), 52° ~ 111° (Diagonal)
• Shutter Time 1/5 sec. to 1/32,000 sec.
• WDR Technology WDR Pro
• Minimum Illumination 0.02 Lux @ F1.5 (Color), 0.01 Lux @ F1.5 (B/W), 0 Lux with IR illumination on
• Day/Night Removable IR-cut filter for day & night function
• Tilt Range 90°
• Rotation Range 180°
• ePTZ:48x digital zoom (4x on IE plug-in, 12x built in)
• IR Illuminators Built-in IR Illuminators up to 50 meters with Smart IR II
• On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
• Compression H.265, H.264, MJPEG
• Maximum Frame Rate 30 fps @ 3840x2160 (WDR Pro on), 120 fps @ 1920x1080 (WDR Pro off)
• Maximum Streams 3 simultaneous streams
• S/N Ratio 60.5 dB
• Dynamic Range 120 dB
• Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III
• Image Settings Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24); Scheduled profile settings, defog, 3DNR, video rotation, AE speed, DIS, HLC
• Audio Capability Two-way Audio
• Compression G.711, G.726
• Interface External microphone input, External line output
• Users Live viewing for up to 10 clients
• Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS/SSL
• Interface 10 Base-T/100 Base-TX Ethernet /1000 Base-T (RJ-45)
• ONVIF Supported
• Smart Motion Detection Five-window video motion detection, people detection, time filter
• Smart VCA Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection*
• VADP Package Deep Learning VCA (Smart Motion Detection, Smart VCA), Trend Micro IoT
• Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, advanced motion detection, MircoSD card life expectancy
• Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card, File upload via HTTP, SMTP, FTP, NAS server and MicroSD card
• Connectors RJ-45 cable connector for Network 10/100/1000 Mbps PoE connection*1, Audio input*1, Audio output*1, DC 12V power input*1, AC 24V power input *1, Digital input*1, Digital output*1
• LED Indicator System power and status indicator
• Power Input IEEE 802.3at Class4 PoE, AC 24V/DC 12V, Power redundancy
• Power Consumption Max: 25 W
• Dimensions 121 x 121 x 394 mm (w/ junction box), 118 x 118 x 333 mm (w/o junction box)
• Weight 2,235 g (w/ junction box) 1,755 g (w/o junction box)
• Casing IP66, IP67, IK10
• Safety Certifications CE, FCC Class A, VCCI, C-tick, UL
• Operating Temperature Starting Temperature:-40°C ~ 60°C (-40°F ~ 140°F)
• Working Temperature (IR off):-50°C ~ 60°C (-58°F ~ 140°F)
• Working Temperature (IR on):-50°C ~ 50°C (-58°F ~ 122°F)
• Humidity 90%
• Warranty 36 Months

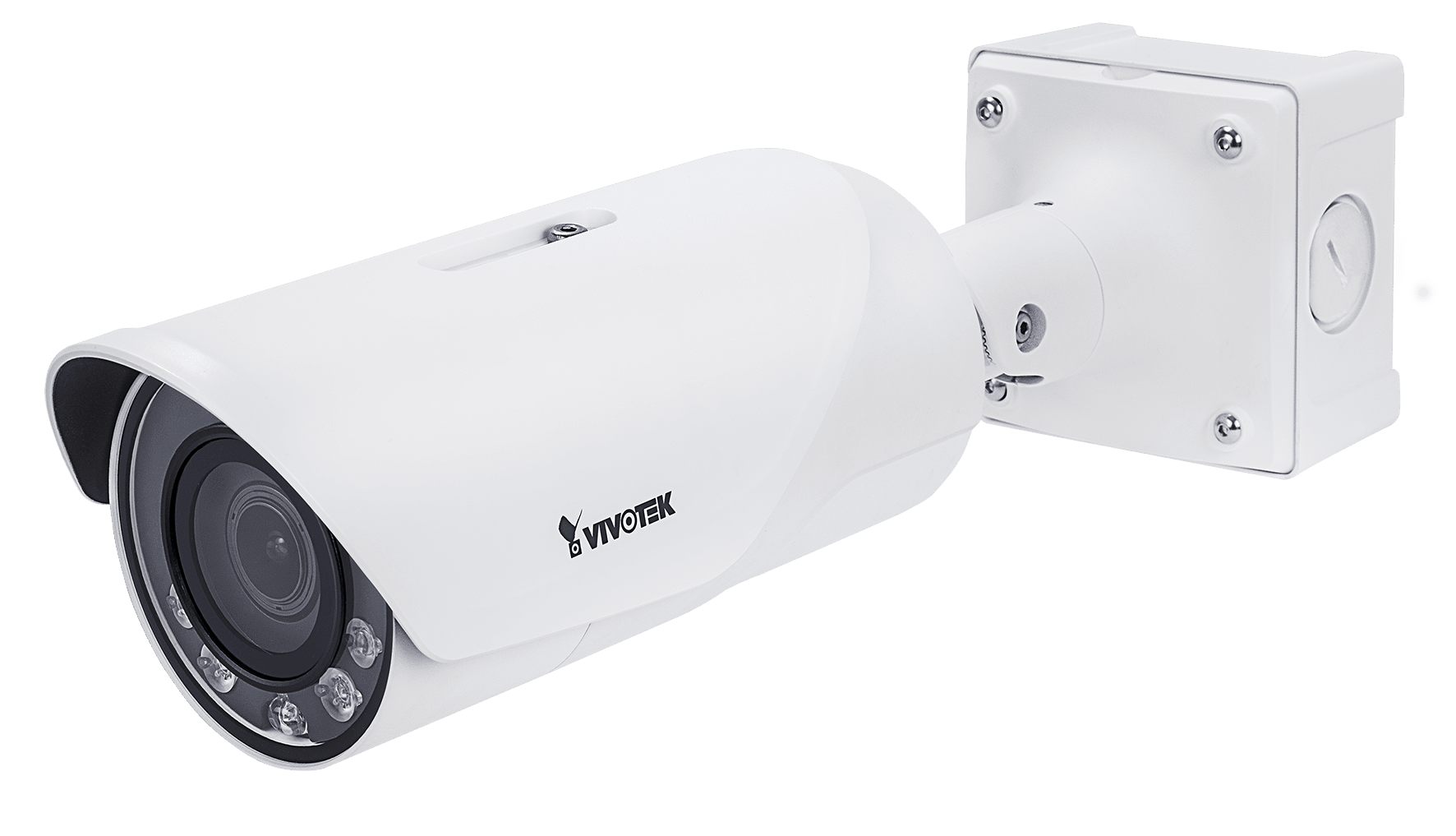

• Sunshield, waterproof connectors, quick installation guide, warranty card, alignment sticker, desiccant bags. AM-719 Junction box shown in image is NOT included and must be purchased separately.
