Vivotek - ND9323P-2TB-4IB60 - Kit 1 x ND9323P with 1 x 2TB HDD and 4 x IB9360-H

Vivotek - ND9323P-2TB-4IB60 - Kit 1 x ND9323P with 1 x 2TB HDD and 4 x IB9360-H

Name: Vivotek - ND9323P-2TB-4IB60 - Kit 1 x ND9323P with 1 x 2TB HDD and 4 x IB9360-H
Brand: Vivotek
SKU: ND9323P-2TB-4IB60
Price: 1169.64 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Product SKU: ND9323P-2TB-4IB60

$1,169.64

~~$1,417.20~~

Description
Specifications
Downloads
Reviews

Easy-To-Use & Cost-Effective 4K NVR Kit

• 8-Channel PoE NVR (x1)
• 5MP/2MP IP Cameras (x4), Outdoor-ready
• Storage Supports Max. 16TB
• VIVOCloud App & Portal for 24/7 Viewing
• HDMI/VGA Monitor Display

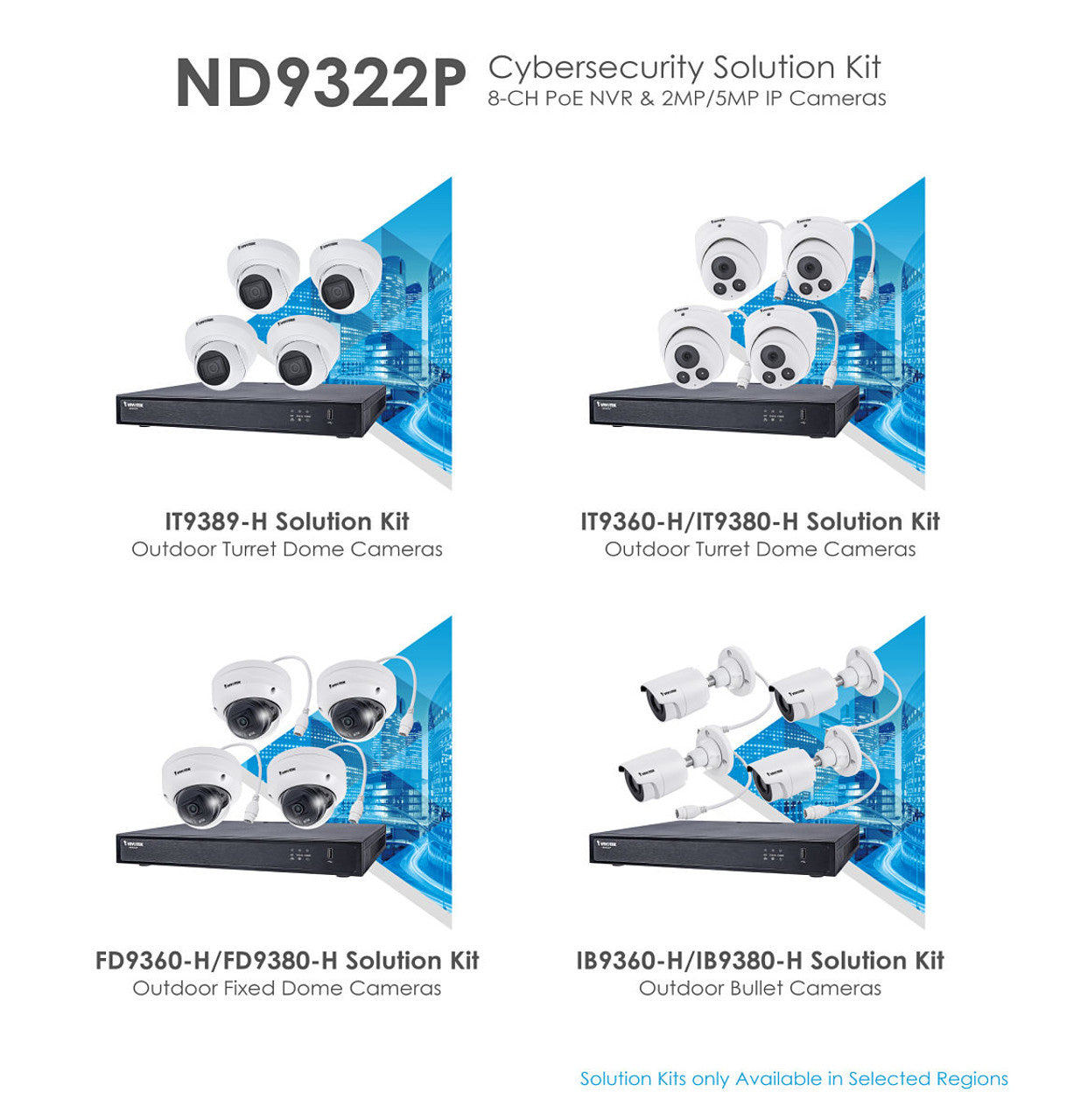

Kit Products

ND9322P

8-CH PoE NVR

H.265/H.264/MJPEG
SATA HDD x2 Supported
802.3 at/af PoE x 8 Port
4K Local Video Display
VIVOCloud App & Portal

IT9389-H

Outdoor 5MP Turret Dome Camera

H.265/H.264/MJPEG
30 fps @ 2560x1920
30M IR with Smart IR
IP66, IK10
Smart Stream III
SNV (Supreme Night Visibility)
-20°C ~ 50°C (-4°F ~ 122°F)

IT9360-H

Outdoor 2MP Turret Dome Camera

H.265/H.264/MJPEG
30 fps @ 1920x1080 (WDR on)
30M IR with Smart IR
WDR Pro
SNV (Supreme Night Visibility)
Smart Stream III
IP66, IK10
-20°C ~ 60°C (-4°F ~ 140°F)

IT9380-H

Outdoor 5MP Turret Dome Camera

H.265/H.264/MJPEG
20fps @ 2560x1920 (WDR Pro on)
30M IR with Smart IR
WDR Pro
SNV (Supreme Night Visibility)
Smart Stream III
IP66, IK10
-20°C ~ 60°C (-4°F ~ 140°F)

FD9360-H

Outdoor 2MP Fixed Dome Camera

H.265/H.264/MJPEG
30 fps @ 1920x1080 (WDR on)
30M IR with Smart IR
WDR Pro
SNV (Supreme Night Visibility)
Smart Stream III
IP66, IK10
-30°C ~ 60°C (-22°F ~ 140°F)

FD9380-H

Outdoor 5MP Fixed Dome Camera

H.265/H.264/MJPEG
20 fps @ 2560x1920 (WDR Pro on)
30M IR with Smart IR
WDR Pro
SNV (Supreme Night Visibility)
Smart Stream III
IP66, IK10
-30°C ~ 60°C (-22°F ~ 140°F)

IB9360-H

Outdoor 2MP Bullet Camera

H.265/H.264/MJPEG
30 fps @ 1920x1080 (WDR on)
30M IR with Smart IR
WDR Pro
SNV (Supreme Night Visibility)
Smart Stream III
IP66, IK10
-30°C ~ 60°C (-22°F ~ 140°F)

IB9380-H

Outdoor 5MP Bullet Camera

H.265/H.264/MJPEG
20 fps @ 2560x1920 (WDR Pro on)
30M IR with Smart IR
WDR Pro
SNV (Supreme Night Visibility)
Smart Stream III
IP66, IK10
-30°C ~ 60°C (-22°F ~ 140°F)

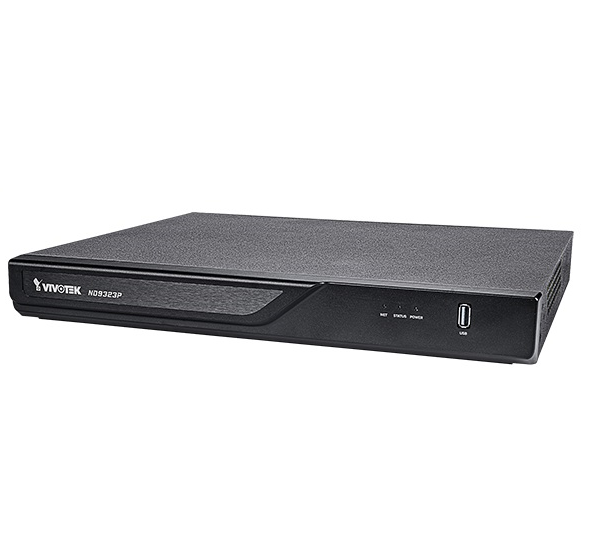

Device

Model	ND9323P
OS	Embedded Linux
Watchdog	Hardware + Software
Power Restoration	System Restart Automatically after Power Recovery

Local Display

LiveView Display	8 Channels Multi-Layout Display: 1x1, 2x2, 3x3, 1M+5, 1P+3, 1P+6, 2P+3, 3V
Video Output	HDMI x1, VGA x1
Display Resolution	3840x2160, 1920x1080, 1280x720
Stream Application	Constant\Auto Stream
Fisheye Dewarp	Web dewarp 1O, 1P, 1R
PTZ Operation	Direction Control, Home, Iris, Preset, Patrol (Group), PiP Control

Video

Video Format	H.265, H.264, MJPEG
Graphic Decoder	Hardware decoding
Decoding Resolution	Up to 3840x2160
Decoding Capability	3840x2160 @ 30 fps (1-CH) 1920x1080 @ 120 fps (4-CH) 1280x720 @ 240 fps (8-CH)

Audio

Audio Format	G.711, G.726
Audio In/Out	3.5 Phone jack audio output x1 3.5 Phone jack audio input (reserved) x1

Record

Recording Time (sec.)	Pre-Record: 5 (Max. 10) Post-Record: 20 (Max. 300)
Recording Stream	Single
Recording Throughput	64 Mbps
Recording Mode	Continuous, Schedule, Manual, Event
Recording Setting	Recycle (unit: Day)
Watermark	Supported

Storage & Backup

HDD Devices	Internal x2 (3.5") *HDD is purchased by separately.
HDD Max. Capacity	*Please refer to the HDD supported list on the VIVOTEK website.
RAID	RAID 0, 1 (single volume up to 16TB)
Disk Management	Create, Format and Remove Disk HDD S.M.A.R.T.
External Storage	USB Storage (USB 3.0)
Video Clip Export	USB Dongle (FAT Format)
Schedule Backup	FTP

Playback

Playback Display	4 Channels Multi-Layout Display: 1x1, 2x2, 1P+3, 1V+3
Playback Control	Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard)
Video Search	By calendar, date/time, and alarm
Thumbnail Explorer (Storyboard)	Listing the thumbnail of recorded video (Max. 2-CH)
Snapshot	JPEG
Video Clip Export	EXE

Network

Ethernet	10/100/1000Mbps Ethernet (RJ-45) x1
Network Throughput Input/Output Total	88 Mbps
PoE	802.3at/af compliant PoE ports x 8 (Total Max. 120 W) * DO NOT suggest connecting any non-PD device with this NVR PoE port in order to avoid potential risk.
PoE Management	Supported
Protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter

External Interface

USB	Front: 1 (USB 3.0) Back: 1 (USB 2.0)
Alarm In	4
Alarm Out	1
Audio	3.5 Phone Jack Audio Output x1 3.5 Phone Jack Audio Input (Reserved) x1

System

Camera Integration	ONVIF Profile S
Event	Motion Detection, Smart VCA Event, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error
Event Action	Video recording, email with snapshot, buzzer, PTZ, FTP, DO (camera, system), full screen, send to CMS, VIVOCloud APP Notification
User Management	User level: administrator, regular user
Log	System, recording, user, error
Date & Time	Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time
Language	Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, Arabic

Advanced Features

VCA Counting Solution	Supported
VCA Event Search	Supported

Remote Client

Software AP	Shepherd, VAST 2
Mobile/Tablet App	iViewer (Android & iOS)
Web Browser	Internet Explorer 10 (32 bit) or later/ Windows Chrome v68.0.3 or later/ Windows for new web
VIVOCloud	Supported

General

Power Input	100-240V AC, 50/60Hz
Power Consumption	Max. 175 W
Dimensions	366 (W) x 320.3 (D) x 46 (H)mm
Weight	2.5 kg (without HDD)
Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
Humidity	0 ~ 95%
Safety Certifications	CE, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS
Warranty	36 months
