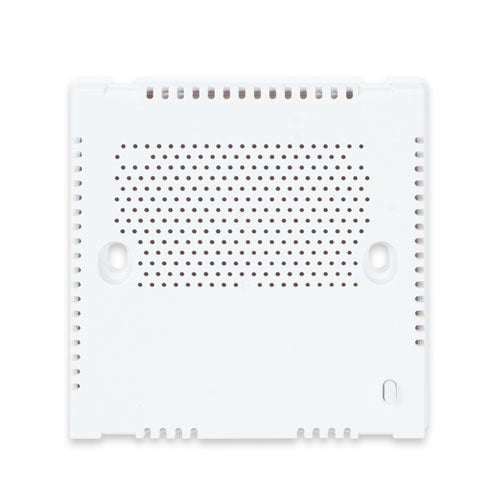

Planet - WDAP-W1800AXU - Wi-Fi 6 1800Mbps 802.11ax Dual Band In-wall Wireless Access Point, 802.3at PoE PD, one 10/100/1000T LAN/WAN port

Ultra-high-speed Wi-Fi 6 Wireless LAN Solution

PLANET WDAP-W1800AXU 1800Mbps Dual Band 802.11ax Wireless AP, supporting MU-MIMO, OFDMA (Orthogonal Frequency Division Multiple Access), Seamless Roaming, Beamforming and BSS Coloring technology, provides a maximum wireless speed of 1200Mbps in the 5GHz band and 600Mbps in the 2.4GHz band. The maximum number of client users is up to 150, ensuring more secure and robust connectivity with the adoption of Wi-Fi 6 technology.

Suitable for Any Room Installation without Spoiling Interior Design

Featuring attractive in-wall design, the WDAP-W1800AXU can be firmly installed into the wall via the standard 86 x 86 mm European outlet box, which makes electrical wiring invisible and convenient for room installation without affecting the original interior design. It is ideal for hotels, residences, hospitals and more to establish any kind of wireless network.

Features:

Standard Compliant Hardware Interface

• Compliant with the IEEE 802.11a/b/g/n/ac/ax wireless technology
• Equipped with 10/100/1000Mbps RJ45 ports, and auto MDI/MDI-X
• USB Type-C Port supplies 5V 0.5A for battery charging

RF Interface Characteristics

• 802.11ax 2T2R architecture with data rate of up to 1800Mbps (600Mbps in 2.4GHz and 1200Mbps in 5GHz)
• High output power with multiply-adjustable transmit power control

Multiple Operation Modes and Wireless Features

• Multiple operation modes: AP, gateway and repeater
• Supports OFDMA (orthogonal frequency division multiple access)
• Supports MU-MIMO (multi-user multiple-input multiple-output), Beamforming and BSS Coloring
• WMM (Wi-Fi multimedia) provides higher priority to multimedia transmitting over wireless
• Coverage threshold to limit the weak signal of clients occupying session
• Real-time Wi-Fi channel analysis chart and client limit control for better performance
• Supports Terminal Seamless Roaming with 802.11k, 802.11v, and 802.11r

Secure Network Connection

• Full encryption supported: WPA3 Personal, WPA2/WPA3 Personal, WPA2 Personal (AES), WPA2 Personal (TKIP), WPA2 Personal (TKIP+AES), WPA/WPA2 Personal (AES), WPA/WPA2 Personal (TKIP), WPA/WPA2 Personal (TKIP+AES), WPA2 Enterprise, WPA/WPA2 Enterprise
• Supports 802.1Q port VLAN Supports IP/Port/MAC address/URL filtering, DoS, SPI firewall
• Supports DMZ and port forwarding
• Bandwidth control per IP address to increase network stability

Easy Deployment and Management

• Supports PLANET AP Controllers in AP mode
• Self-healing mechanism through system auto reboot setting
• System status monitoring through remote syslog server
• Gateway mode supports PLANET DDNS/Easy DDNS, Captive Portal, RADIUS Server/Client
• PLANET Smart Discovery Utility for deployment management
• PLANET NMS system and CloudViewer for deployment management
